SHURflo

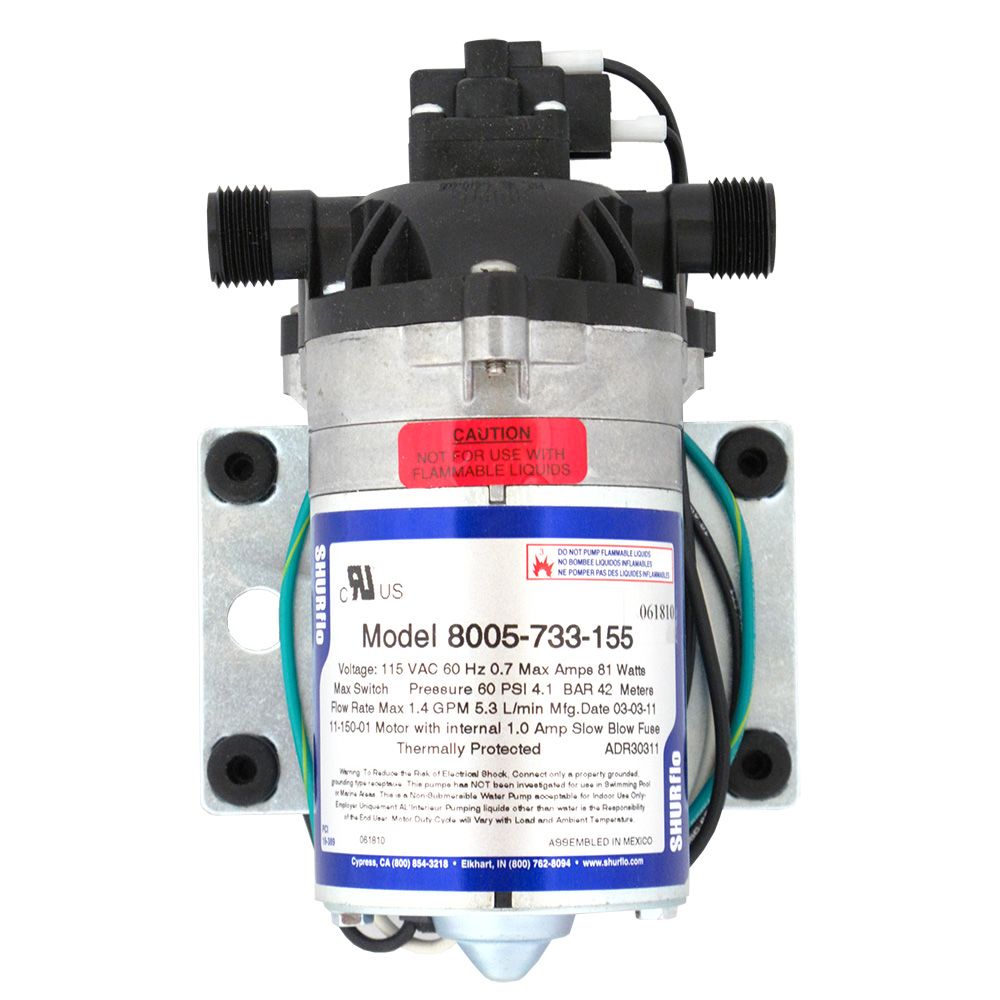

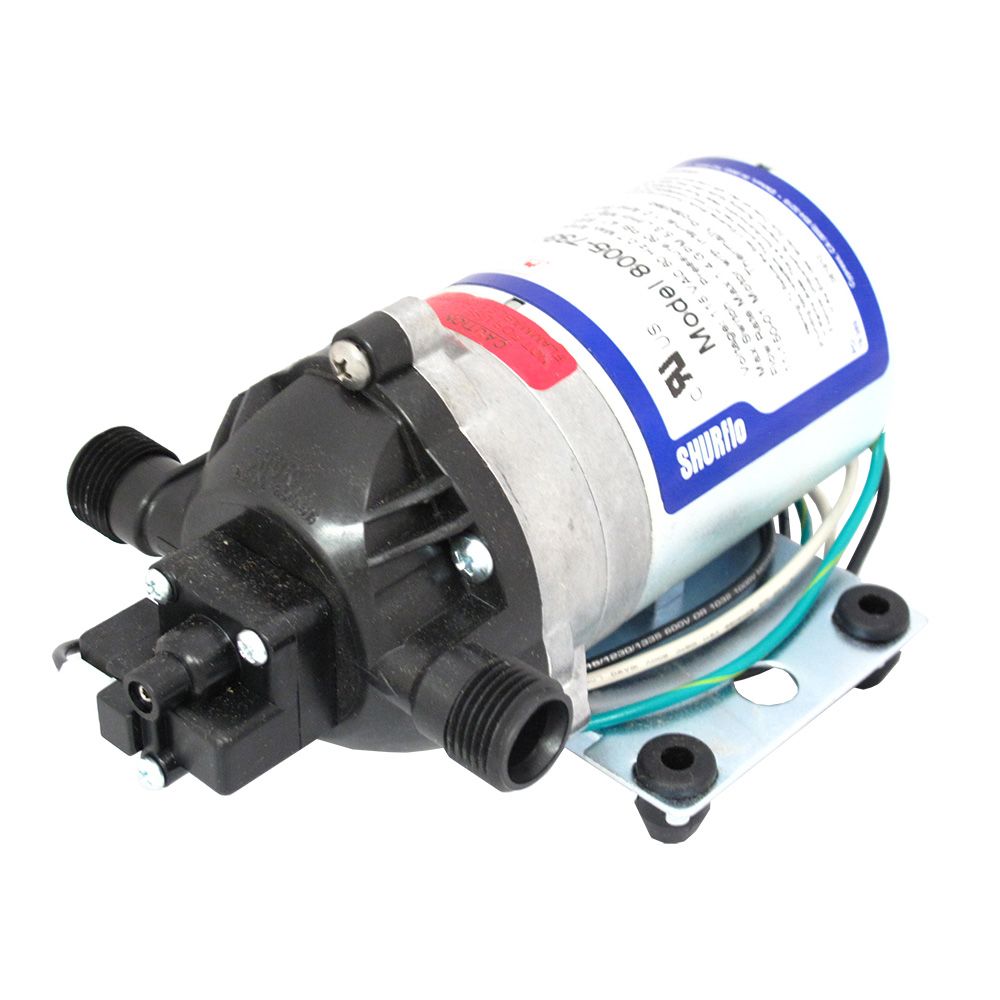

SHURflo 8005-733-155 Demand Pump 1.5 gpm 60 psi 115VAC

Part Number: 8005-733-155

In Stock

out of stock

In Stock

$72.49

The SHURflo 8005-733-155 Demand Pump is ideal in applications that require high pressure and a flow rate of 1.5 GPM.  The pump can be mounted in any position, is compact and is designed for long trouble-free life.

Additional Specification:
  • 1.5 GPM flow rate
  • Demand Switch
  • 45psi internal bypass
  • Can run dry without damage
  • Self priming up 8 vertical feet
  • 1/2" -14 Male Parallel threaded ports
  • Santoprene® diaphragm
  • Built-in check valve
  • UL Recognized Component
  • NSF and CSA listed
 Applications:
  • Water delivery


Weight & Dimensions

Approx Height (Inches)

4.08 Inches

Approx Length (Inches)

7.53 Inches

Approx Width (Inches)

5 Inches

Details

Amps

0.31 (0 psi) - 0.54 (60 psi) Amps

Diaphragm Materials

Santoprene

Flow Rate

1.5 Gallons Per Minute

Inlet Size

1/2" - 14 Male Parallel Thread

Liquid Temperature

170 Degrees Fahrenheit

Outlet Size

1/2" - 14 Male Parallel Thread

Type

Demand

Valve Type

EPDM

Voltage

115VAC

Power Source

No cord

Suction Lift

Self prime up to 11 ft

Warranty & Certifications

Certifications

NSF, CSA


SHURflo

SHURflo

SHURflo

SHURflo




The SHURflo 8005-733-155 Demand Pump is ideal in applications that require high pressure and a flow rate of 1.5 GPM.  The pump can be mounted in any position, is compact and is designed for long trouble-free life.

Additional Specification:
  • 1.5 GPM flow rate
  • Demand Switch
  • 45psi internal bypass
  • Can run dry without damage
  • Self priming up 8 vertical feet
  • 1/2" -14 Male Parallel threaded ports
  • Santoprene® diaphragm
  • Built-in check valve
  • UL Recognized Component
  • NSF and CSA listed
 Applications:
  • Water delivery

Weight & Dimensions

Approx Height (Inches)

4.08 Inches

Approx Length (Inches)

7.53 Inches

Approx Width (Inches)

5 Inches

Details

Amps

0.31 (0 psi) - 0.54 (60 psi) Amps

Diaphragm Materials

Santoprene

Flow Rate

1.5 Gallons Per Minute

Inlet Size

1/2" - 14 Male Parallel Thread

Liquid Temperature

170 Degrees Fahrenheit

Outlet Size

1/2" - 14 Male Parallel Thread

Type

Demand

Valve Type

EPDM

Voltage

115VAC

Power Source

No cord

Suction Lift

Self prime up to 11 ft

Warranty & Certifications

Certifications

NSF, CSA
