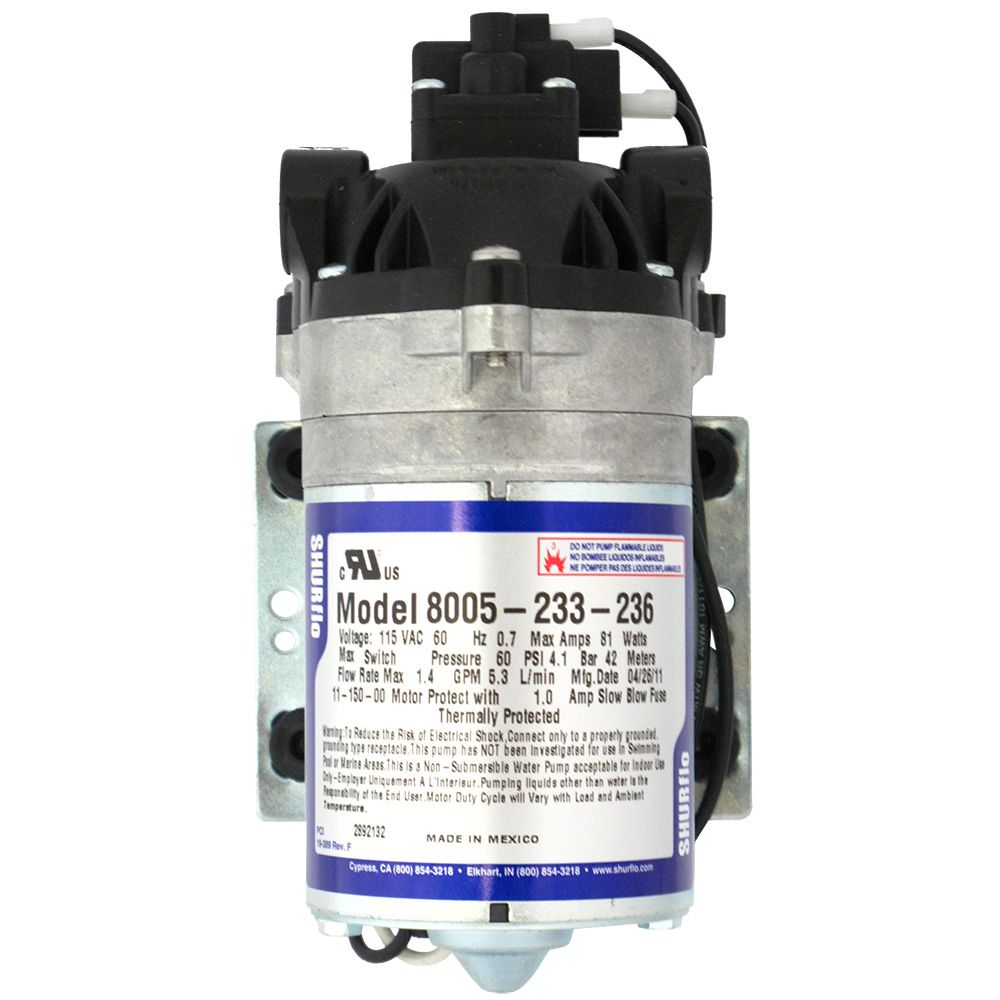

SHURflo 8005-233-236 Demand Pump 1.5 gpm 60 psi 115VAC

Part Number: 8005-233-236

In Stock

out of stock

In Stock

$119.18

The SHURflo 8005-233-236 Demand Pump is ideal in applications that require high pressure and a flow rate of 1.4 GPM. The pump can be mounted in any position, is compact and is designed for long trouble-free life.

Additional Specification:
  • 1.4 GPM flow rate
  • Demand Switch
  • Can run dry without damage
  • Self priming up 8 vertical feet
  • 3/8" NPT female ports
  • Santoprene® diaphragm
  • Built-in check valve
  • UL Recognized Component
  • NSF and CSA listed
Applications:
  • Water delivery
  • Soil extraction




Weight & Dimensions

Height (inches)

4

Length (inches)

7.5

Weight (lbs)

3.893

Width (inches)

4

Details

Amps

0.36-0.66 Amps @ 0-60 PSI

Diaphragm Materials

Santoprene

Inlet/Outlet Connection

3/8" FPT

Inlet Pressure

Max 30 PSI

Liquid Temperature

170 °F

Power Source

No Cord

Pressure Switch

Adjustable Shut-off (Range 40-60 PSI), Factory Set@60 PSI, Turn on 45 PSI +/- 5 PSI

Series

8000

Size

3/8"

Suction Lift

Self prime up to 8 ft

Wire Option

Bare Wire

Connection Type

Female (FPT)

Flow Rate

1.5 GPM

Type

Diaphragm Pump

Voltage

115VAC

Warranty & Certifications

Certifications

NSF; UL; CSA
