SHURflo

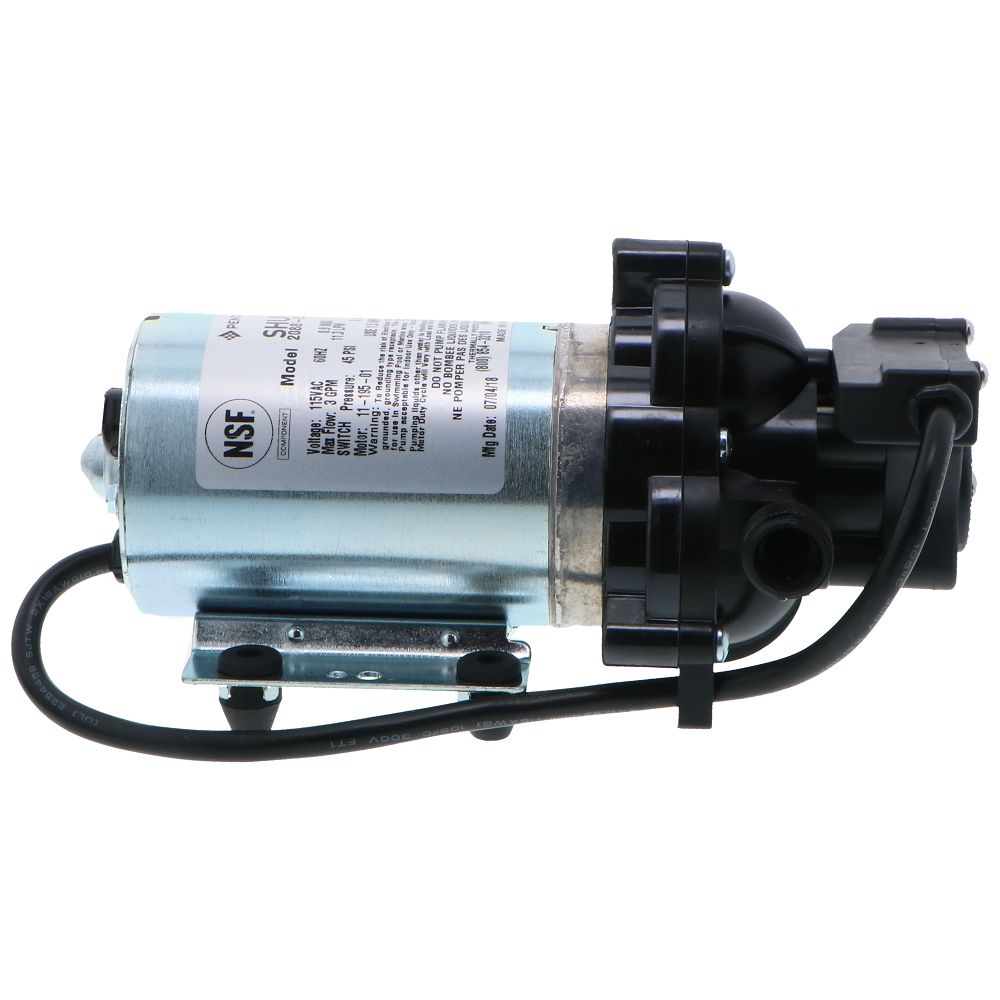

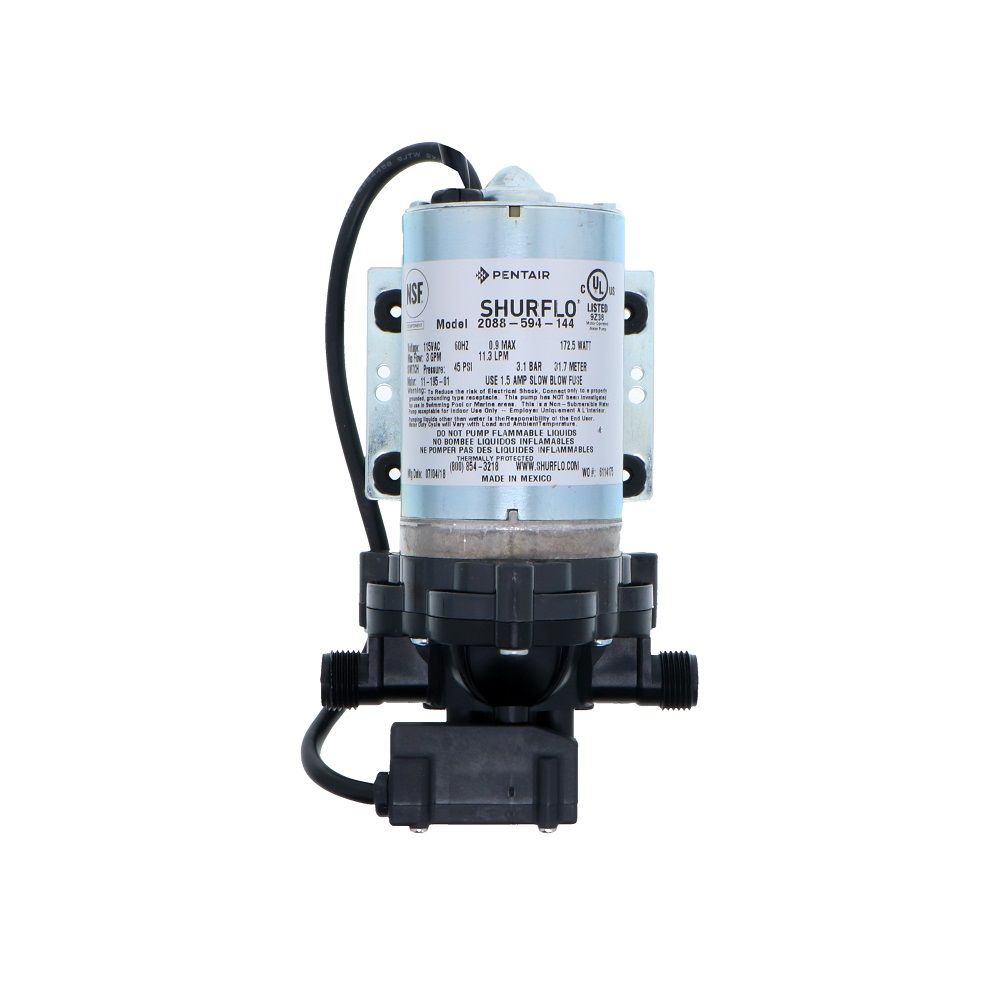

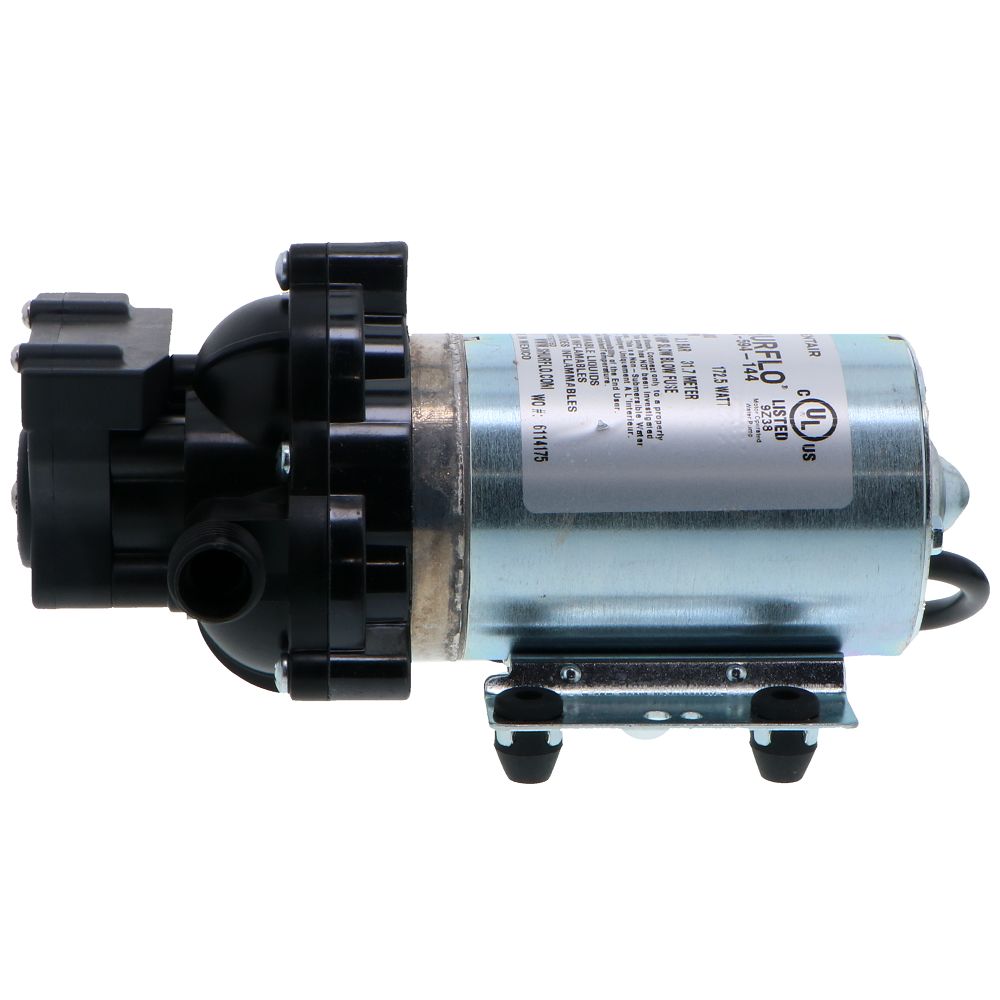

SHURflo 2088-594-144 Delivery Pump 3.0 gpm Open Flow 115VAC w/ Cord

Part Number: 2088-594-144

In Stock

out of stock

In Stock

$118.08

The SHURflo 2088-594-144 Delivery Pump delivers reliable performance in high flow, moderate pressure applications. 2088 series pumps are used in a variety of transfer and dispense-on demand applications. They can be mounted in any position and are designed for easy maintenance.

Specifications:
  • Flow Rate: 3.0 Open Flow
  • Flow Rate Actual: 1.5GPM @ 45psi
  • Positive Displacement 3 Chamber Diaphragm
  • Santoprene® Valves & Diaphragm
  • Poly Housing
  • 45 psi Demand Switch
  • 1/2" - 14 Male Parallel Thread Ports
  • Open Flow & Self-Priming (up to 9 vertical feet)
  • Prevents back flow of fluid through the pump
  • Can run dry without damage
  • Ground wires w/ base plate
  • NSF, UL and CSA listed
 Applications:
  • Water delivery


Details

Series

2088

Amps

0.5-0.75 Amps @ 0-50 psi

Diaphragm Materials

Santoprene

Flow Rate

3 GPM

Housing Material

Poly

Liquid Temperature

130 °F

Size

1/2"

Voltage

115VAC

Power Source

USA 3 Prong

Suction Lift

Self prime up to 9 ft

Cut In Flow Rate

25 (+/-5) GPM

Inlet/Outlet Connection

1/2" | MPT

Wire Option

Wall Plug

Warranty & Certifications

Certifications

NSF

Warranty

SHURflo warrants Industrial 2088 series pumps to be free from material and workmanship defects (under normal use and service) for a period of one (1) year from the date of manufacture. or (1) one year use with proof of purchase, not to exceed 2 years


SHURflo

SHURflo

SHURflo

SHURflo




The SHURflo 2088-594-144 Delivery Pump delivers reliable performance in high flow, moderate pressure applications. 2088 series pumps are used in a variety of transfer and dispense-on demand applications. They can be mounted in any position and are designed for easy maintenance.

Specifications:
  • Flow Rate: 3.0 Open Flow
  • Flow Rate Actual: 1.5GPM @ 45psi
  • Positive Displacement 3 Chamber Diaphragm
  • Santoprene® Valves & Diaphragm
  • Poly Housing
  • 45 psi Demand Switch
  • 1/2" - 14 Male Parallel Thread Ports
  • Open Flow & Self-Priming (up to 9 vertical feet)
  • Prevents back flow of fluid through the pump
  • Can run dry without damage
  • Ground wires w/ base plate
  • NSF, UL and CSA listed
 Applications:
  • Water delivery

Details

Series

2088

Amps

0.5-0.75 Amps @ 0-50 psi

Diaphragm Materials

Santoprene

Flow Rate

3 GPM

Housing Material

Poly

Liquid Temperature

130 °F

Size

1/2"

Voltage

115VAC

Power Source

USA 3 Prong

Suction Lift

Self prime up to 9 ft

Cut In Flow Rate

25 (+/-5) GPM

Inlet/Outlet Connection

1/2" | MPT

Wire Option

Wall Plug

Warranty & Certifications

Certifications

NSF

Warranty

SHURflo warrants Industrial 2088 series pumps to be free from material and workmanship defects (under normal use and service) for a period of one (1) year from the date of manufacture. or (1) one year use with proof of purchase, not to exceed 2 years
