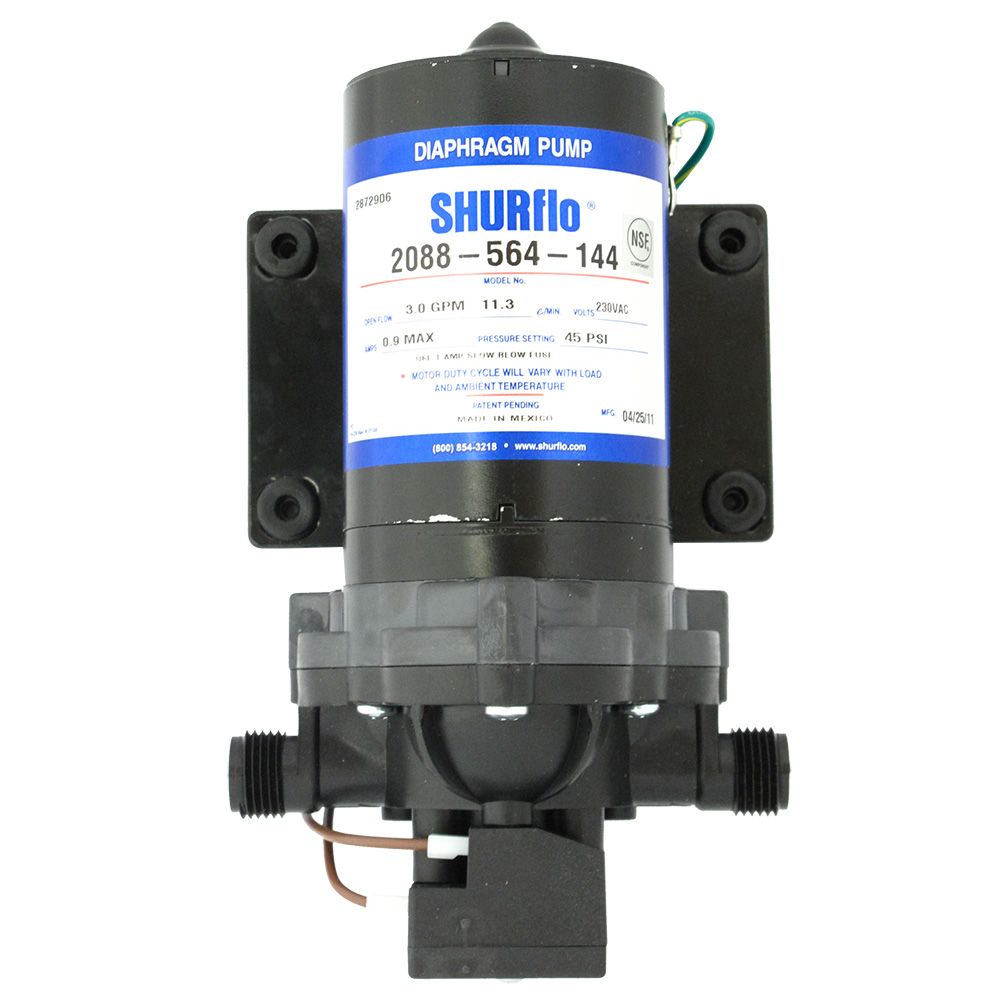

SHURflo 2088-564-144 Delivery Pump 3.0 gpm 45 psi 230VAC No Cord

The SHURflo 2088-564-144 Delivery Pump delivers reliable performance in high flow, moderate pressure applications. 2088 series pumps are used in a variety of transfer and dispense-on demand applications. They can be mounted in any position and are designed for easy maintenance.

Specification:

3.0 GPM flow rate
Positive Displacement 3 Chamber Diaphragm
Santoprene® Valves & Diaphragm
Poly Housing
45 psi Demand Switch
1/2" - 14 Male Parallel Thread Ports
Open Flow & Self-Priming (up to 9 vertical feet)
Prevents back flow of fluid through the pump
Can run dry without damage
Ground wires w/ base plate
UL Recognized Component
NSF and CSA listed

Applications:

Water delivery
RV Potable Water

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Amps	0.3-0.6 Amps @ 0-50 PSI
Cut In Flow Rate	25 (+/-5) GPM
Diaphragm Materials	Santoprene
Housing Material	Poly
Inlet Connection	1/2" MPT
Liquid Temperature	Max 130 °F
Outlet Connection	1/2" MPT
Power Source	NONE
Pump Max Flow Rate (Gpm)	3
Series	2088
Size	1/2"
Suction Lift	Self prime up to 9 ft
Voltage Type	AC
Wire Option	Bare Wire
Connection Type	Male (MPT)
Type	Diaphragm Pump
Voltage	230VAC
Warranty & Certifications
Warranty	SHURflo warrants Industrial 2088 series pumps to be free from material and workmanship defects (under normal use and service) for a period of one (1) year from the date of manufacture. or (1) one year use with proof of purchase, not to exceed 2 years
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	4.75
Product Length	8.5
Product Width	5
Product Weight (lbs)	5.5

Product Details
Amps	0.3-0.6 Amps @ 0-50 PSI
Cut In Flow Rate	25 (+/-5) GPM
Diaphragm Materials	Santoprene
Housing Material	Poly
Inlet Connection	1/2" MPT
Liquid Temperature	Max 130 °F
Outlet Connection	1/2" MPT
Power Source	NONE
Pump Max Flow Rate (Gpm)	3
Series	2088
Size	1/2"
Suction Lift	Self prime up to 9 ft
Voltage Type	AC
Wire Option	Bare Wire
Connection Type	Male (MPT)
Type	Diaphragm Pump
Voltage	230VAC
Warranty & Certifications
Warranty	SHURflo warrants Industrial 2088 series pumps to be free from material and workmanship defects (under normal use and service) for a period of one (1) year from the date of manufacture. or (1) one year use with proof of purchase, not to exceed 2 years
Shipping Dimensions
Shipping Length	23.75 in.
Shipping Width	18 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Height	6
Product Length	23.75
Product Width	18
Product Weight (lbs)	31.472

SHURflo 2088-564-144 Delivery Pump 3.0 gpm 45 psi 230VAC No Cord Manual
