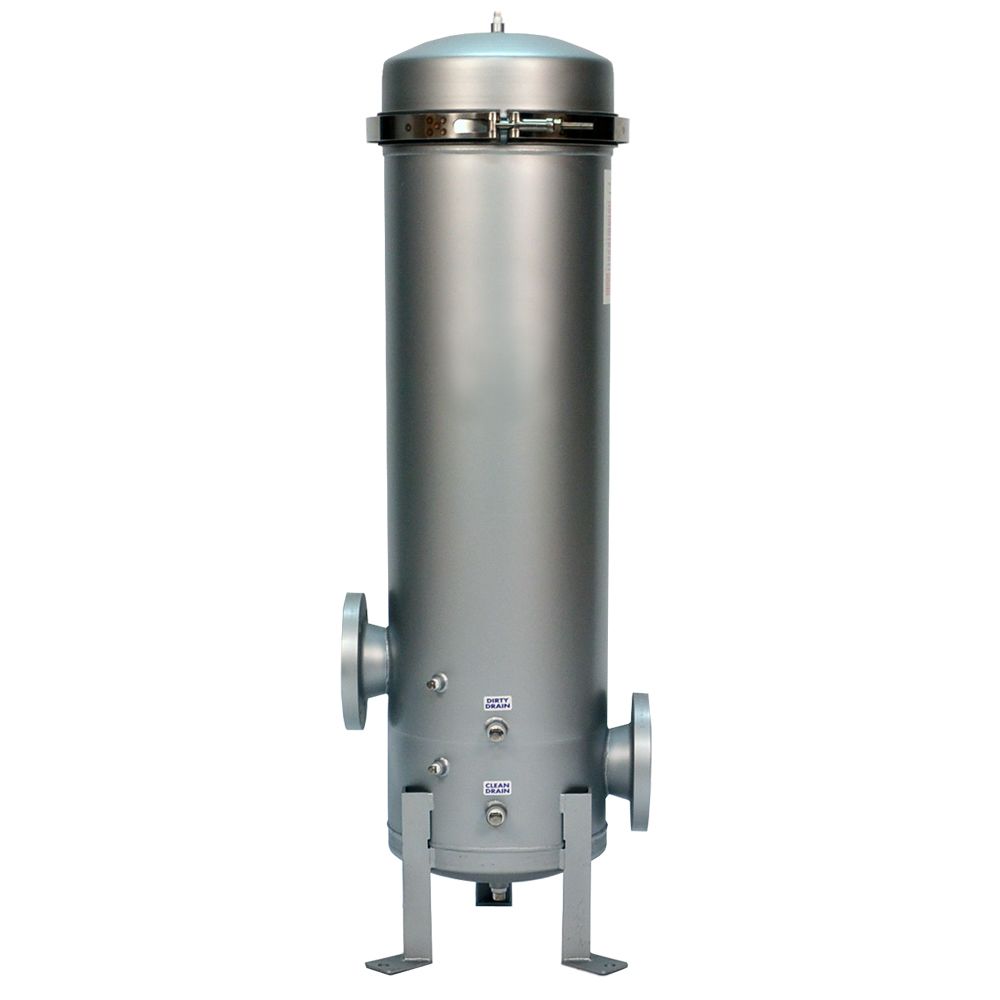

Shelco 12FOS3 Multi-Cartridge Filter Housings

Part Number: 12FOS3C-304-3F-MLGP-B

In Stock

out of stock

In Stock

$2,874.00


Shelco 12FOS3 Multi-Cartridge Housings hold twelve 30" cartridges and provide excellent filtration for up to 252 gallons per minute. The swing bolt or V-band clamp allows for secure sealing and quick filter changes.

Applications:
  • Coolants
  • Power
  • Electronics
  • Chemicals
  • Water
  • Pulp & Paper
  • Inks/Paints/Coatings
  • Oil/Gas
  • Food & Beverage
  • Desalination

Features:
  • Heavy-duty 304L stainless steel construction for maximum durability
  • Holds twelve 30" cartridges for optimal filtration flow
  • Swing bolt or V-band clamp closure for quick filter change-outs and secure sealing
  • Protective poly-coat finish
  • Inlet/Outlet: 3" RF Flange
  • Flow rates up to 252 gallons per minute
  • All stainless steel internals


NOTE: Standard option 12FOS series housings are stocked and available for immediate shipment. Customized housings require 2-3 weeks to manufacture. For more information on returning customized items, see our Returns Policy.


Weight & Dimensions

Approx Height (Inches)

49-1/2 Inches

Approx Length (Inches)

30"

Details

Body Material

304L Stainless Steel

Cap Color

Stainless Steel

Cap Material

304 Stainless Steel

Closure Type

V-band clamp - Stainless Steel, Swing Bolts - Zinc Plated Steel

Color / Finish

Stainless Steel

Drain Size

1/2"

Gaskets

Buna N (FDA grade)

Housing Material

304 Stainless Steel

Inlet/Outlet Size

3" flange

Max Flow Rate

252 Gallons Per Minute

Max Operating Pressure

150 psig @ 300°F PSI

Number Of Cartridges

12

Origin

USA
