SharkBite®

SharkBite® Water Filter Connection Kit - 3/4"

Part Number: 25561

In Stock

out of stock

In Stock

$20.67

The SharkBite® Water Filtration Connection Kit contains components for installing a water filtration system. No special tools, soldering, glue, tape, or clamps are needed. As you insert the pipe into this push-to-connect fitting the stainless-steel teeth clamp down tightly while the built-in O-ring compresses ensuring a leak-free seal. If any of these SharkBite® fittings need to be disconnected simply slip the disconnect tool behind the collet firmly and the fitting will disconnect. Unlike many plumbing connectors, SharkBite® fittings can be rotated after assembly to make installation quick and easy.

Applications: Potable water and hydronic heating

Features:
  • Innovative push-to-connect quick and reliable connection
  • Lead-free construction for durability and safety
  • Use to connect to any combination of copper, PEX, CPVC or PE-RT pipes
  • Connect and Go – No additional securing needed
  • Corrosion resistant to prolong the lifecycle of the fitting
  • Compact and robust lead-free DZR brass body for strong corrosion resistance
  • Pipe Insertion Depth for 3/4" Fitting: 1.125"
NOTE: SharkBite® fittings are certified by NSF to meet standards 14, 61 and 372. This ensures that this fitting can be used for potable water and hydronic heating applications.

*If you do not see the item you need on our site please call and speak with one of our certified water specialists to assist you with a specific item order.

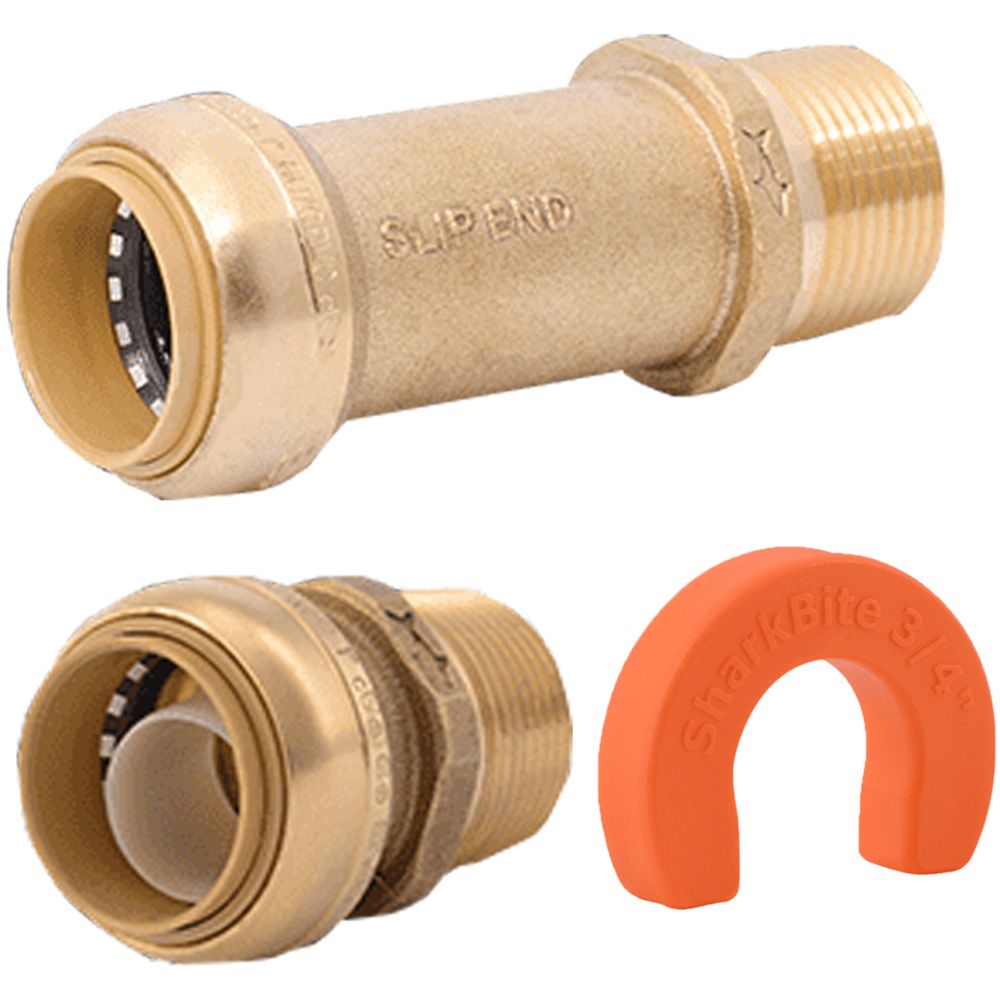

Water Filter Connection Kit Includes:
Quantity Part Number Description
1 U3134LF 3/4" x 3/4" Male SLIP Adapter
1 U134LF 3/4" x 3/4" MPT Straight Adapter
1 U712 3/4" Disconnect Clip


Details

Body Material

Lead-Free Brass

Inlet/Outlet Connection

3/4" Slip, 3/4" MPT

Max Operating Pressure

200 PSI

Max Operating Temperature

200 °F

O Rings

EPDM

Push In Size

3/4" ID, 7/8" OD

Size

3/4"

Warranty & Certifications

Certifications

NSF/ANSI 14, NSF/ANSI 61, NSF/ANSI 372, ASSE 1061

Warranty

25 Year


SharkBite

SharkBite

SharkBite

SharkBite
