SharkBite® Water Filter Connection Kit - 1"
Part Number: 25562
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Applications: Potable water and hydronic heating
Features:
- Innovative push-to-connect quick and reliable connection
- Lead-free construction for durability and safety
- Use to connect to any combination of copper, PEX, CPVC or PE-RT pipes
- Connect and Go – No additional securing needed
- Applications: Ice maker connection or saddle valve replacement
- Corrosion resistant to prolong the lifecycle of the fitting
- Compact and robust lead-free DZR brass body for strong corrosion resistance
- Pipe Insertion Depth for 1" Fitting: 1.313"
*If you do not see the item you need on our site please call and speak with one of our certified water specialists to assist you with a specific item order.

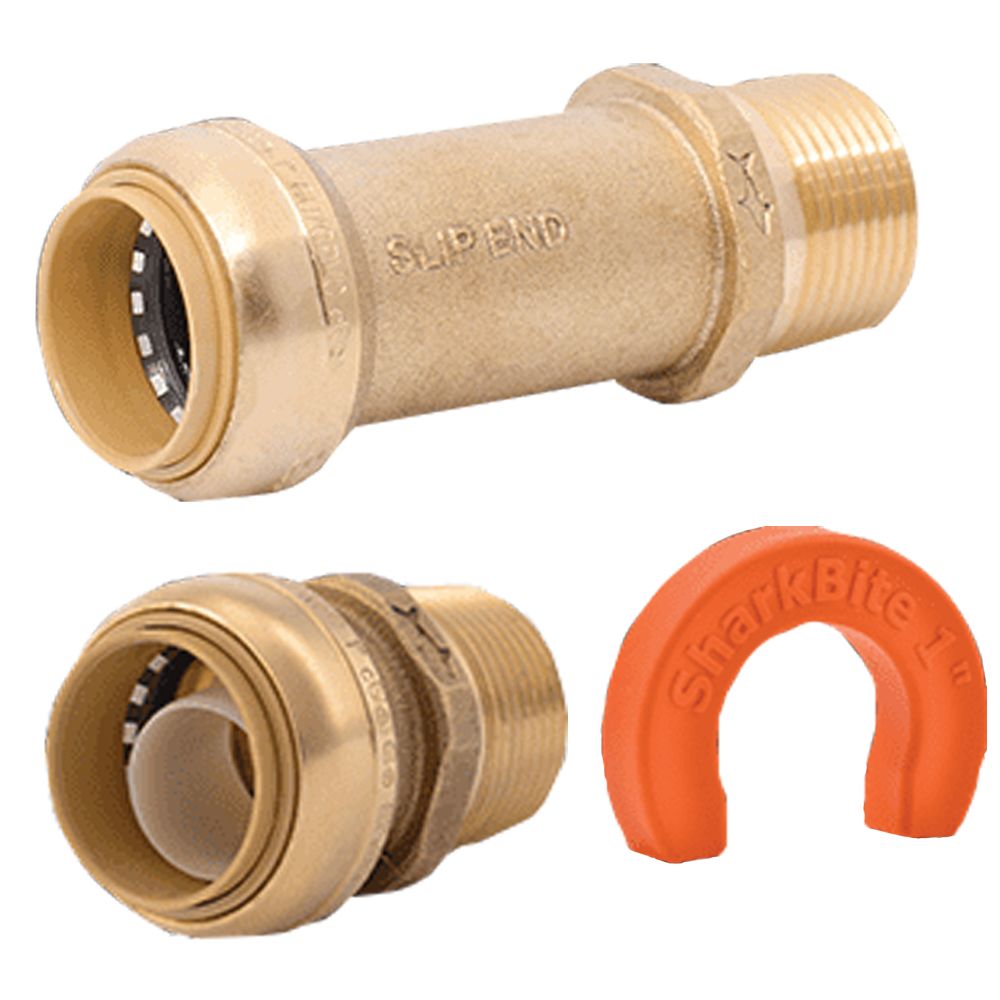

Water Filter Connection Kit Includes: | ||
Quantity | Part Number | Description |
1 | U3140LF | 1" x 1" SLIP Male Adapter |
1 | U140LF | 1" x 1" MPT Straight Adapter |
1 | U714 | 1" Disconnect Clip |
Product Details | |
---|---|
Body Material | Lead-Free Brass |
Inlet Connection | 1" Slip 1" MPT |
Max Pressure (Psi) | 200 |
Max Temp (°F) | 200 |
O-Rings | EPDM |
Outlet Connection | 1" Slip,1" MPT |
Push-In Size | 1" ID 1-1/8" OD |
Size | 1" |
Connection Type | Slip Male (MPT) |
Type | Fitting Kits |
Warranty & Certifications | |
Certifications | NSF/ANSI 14, NSF/ANSI 61, NSF/ANSI 372, ASSE 1061 |
Warranty | 25 Year |
Product Details | |
---|---|
Body Material | Lead-Free Brass |
Inlet Connection | 1" Slip 1" MPT |
Max Pressure (Psi) | 200 |
Max Temp (°F) | 200 |
O-Rings | EPDM |
Outlet Connection | 1" Slip,1" MPT |
Push-In Size | 1" ID 1-1/8" OD |
Size | 1" |
Connection Type | Slip Male (MPT) |
Type | Fitting Kits |
Warranty & Certifications | |
Certifications | NSF/ANSI 14, NSF/ANSI 61, NSF/ANSI 372, ASSE 1061 |
Warranty | 25 Year |
Applications: Potable water and hydronic heating
Features:
- Innovative push-to-connect quick and reliable connection
- Lead-free construction for durability and safety
- Use to connect to any combination of copper, PEX, CPVC or PE-RT pipes
- Connect and Go – No additional securing needed
- Applications: Ice maker connection or saddle valve replacement
- Corrosion resistant to prolong the lifecycle of the fitting
- Compact and robust lead-free DZR brass body for strong corrosion resistance
- Pipe Insertion Depth for 1" Fitting: 1.313"
*If you do not see the item you need on our site please call and speak with one of our certified water specialists to assist you with a specific item order.
Water Filter Connection Kit Includes: | ||
Quantity | Part Number | Description |
1 | U3140LF | 1" x 1" SLIP Male Adapter |
1 | U140LF | 1" x 1" MPT Straight Adapter |
1 | U714 | 1" Disconnect Clip |
Product Details | |
---|---|
Body Material | Lead-Free Brass |
Inlet Connection | 1" Slip 1" MPT |
Max Pressure (Psi) | 200 |
Max Temp (°F) | 200 |
O-Rings | EPDM |
Outlet Connection | 1" Slip,1" MPT |
Push-In Size | 1" ID 1-1/8" OD |
Size | 1" |
Connection Type | Slip Male (MPT) |
Type | Fitting Kits |
Warranty & Certifications | |
Certifications | NSF/ANSI 14, NSF/ANSI 61, NSF/ANSI 372, ASSE 1061 |
Warranty | 25 Year |
Product Details | |
---|---|
Body Material | Lead-Free Brass |
Inlet Connection | 1" Slip 1" MPT |
Max Pressure (Psi) | 200 |
Max Temp (°F) | 200 |
O-Rings | EPDM |
Outlet Connection | 1" Slip,1" MPT |
Push-In Size | 1" ID 1-1/8" OD |
Size | 1" |
Connection Type | Slip Male (MPT) |
Type | Fitting Kits |
Warranty & Certifications | |
Certifications | NSF/ANSI 14, NSF/ANSI 61, NSF/ANSI 372, ASSE 1061 |
Warranty | 25 Year |
