SharkBite®

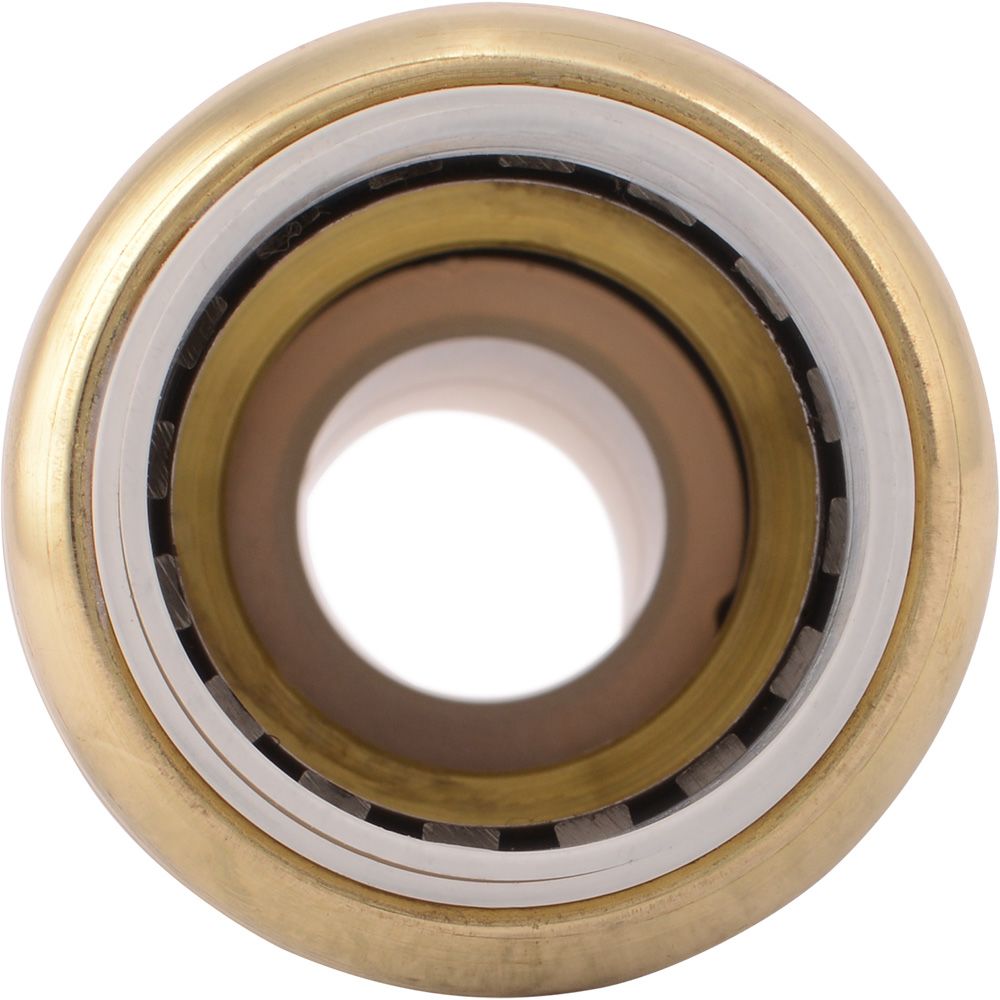

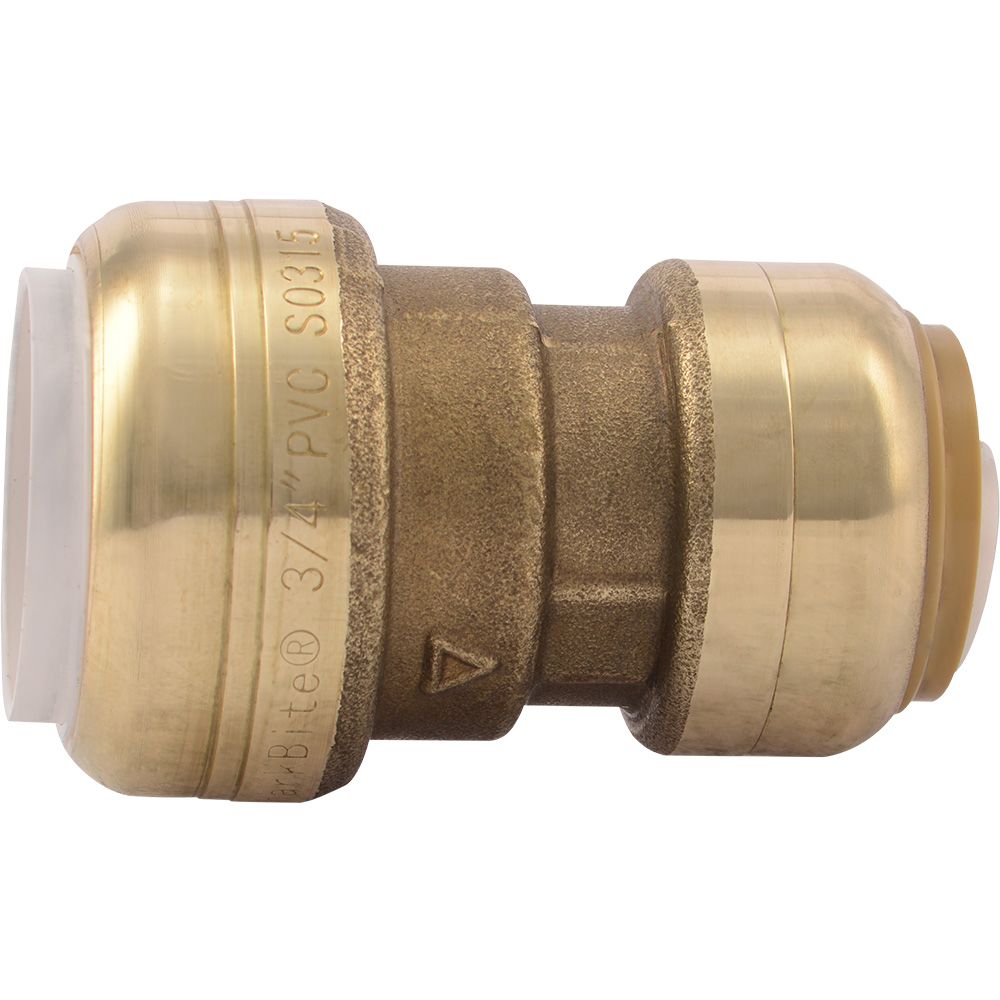

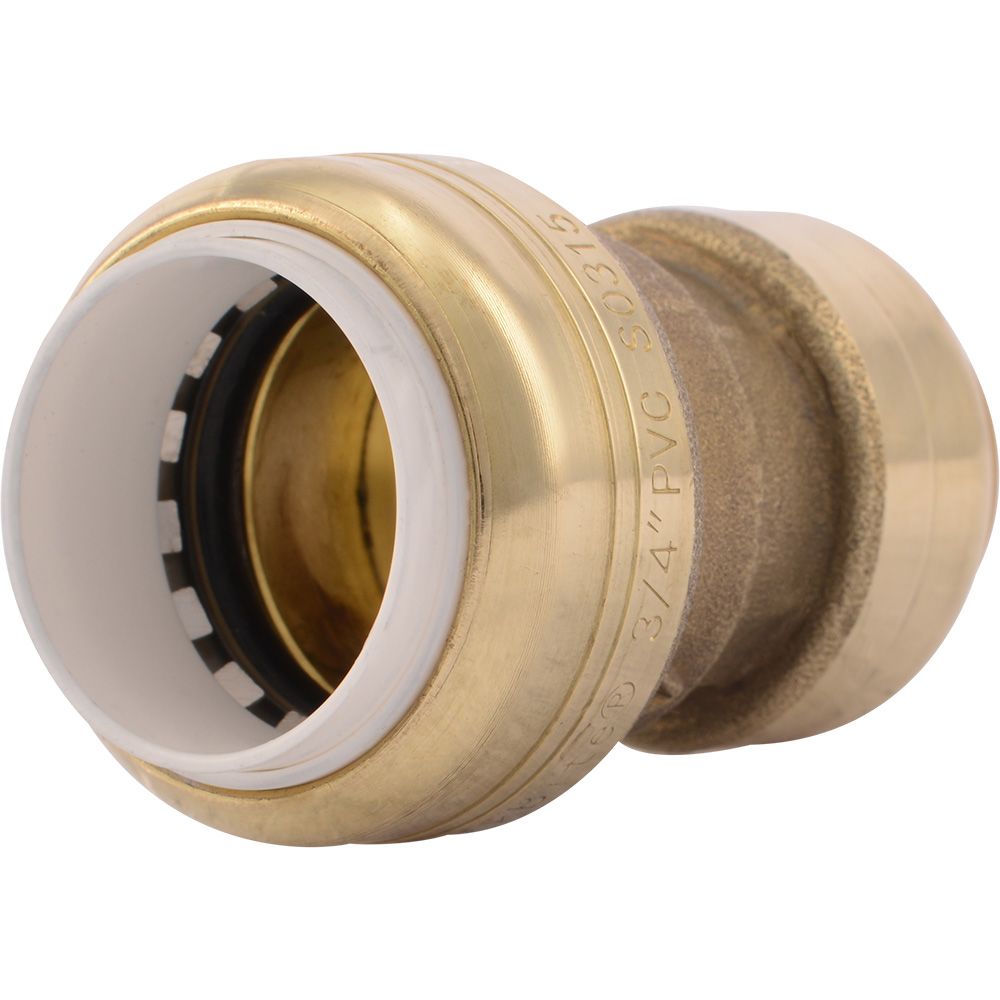

SharkBite® UIP4016 Push-to-Connect Brass PVC Transition Coupling - 3/4" PVC x 3/4" CTS

Part Number: UIP4016

In Stock

out of stock

In Stock

$13.85

The SharkBite® UIP4016 Push-to-Connect Brass PVC Transition Coupling is designed to join piping together without the need of soldering, glue, tape, or clamps. As you insert the pipe into this push-to-connect fitting the stainless-steel teeth clamp down tightly while the built-in O-ring compresses ensuring a leak-free seal. If the UIP4016 PVC transition coupler needs to be disconnected simply slip the disconnect tool behind the collet firmly and the fitting will disconnect. Unlike many plumbing connectors, SharkBite® fittings can be rotated after assembly to make installation quick and easy. Conversion or transition couplings allow the user to transition from schedule 40, 80, or 120 PVC pipe (white collar) to PEX, copper, CPVC, PE-RT, or HDPE pipe (tan collar).

Applications: Potable water and hydronic heating

Features:
  • Innovative push-to-connect quick and reliable connection
  • Lead-free construction for durability and safety
  • Use to connect to any combination of copper, PEX, CPVC or PE-RT pipes from PVC
  • Connect and Go – No additional securing needed
  • Corrosion resistant to prolong the lifecycle of the fitting
  • Demount or Disconnect Clip sold separately
  • Compact and robust lead-free DZR brass body for strong corrosion resistance
  • Pipe Insertion Depth for 3/4" Fitting: 1.125"
NOTE: SharkBite® fittings are certified by NSF to meet standards 14, 61 and 372. This ensures that this fitting can be used for potable water and hydronic heating applications.

*If you do not see the item you need on our site please call and speak with one of our certified water specialists to assist you with a specific item order.



Weight & Dimensions

Weight (lbs)

1.19

Details

Max Temp (°F)

200

Max Pressure (Psi)

200

Push-In Size

3/4" ID, 7/8" OD

Body Material

Brass

O-Rings

EPDM

Warranty & Certifications

Certifications

NSF/ANSI 14, NSF/ANSI 61, ASSE 1061

Warranty

25 Year


SharkBite

SharkBite

SharkBite

SharkBite
