SharkBite®

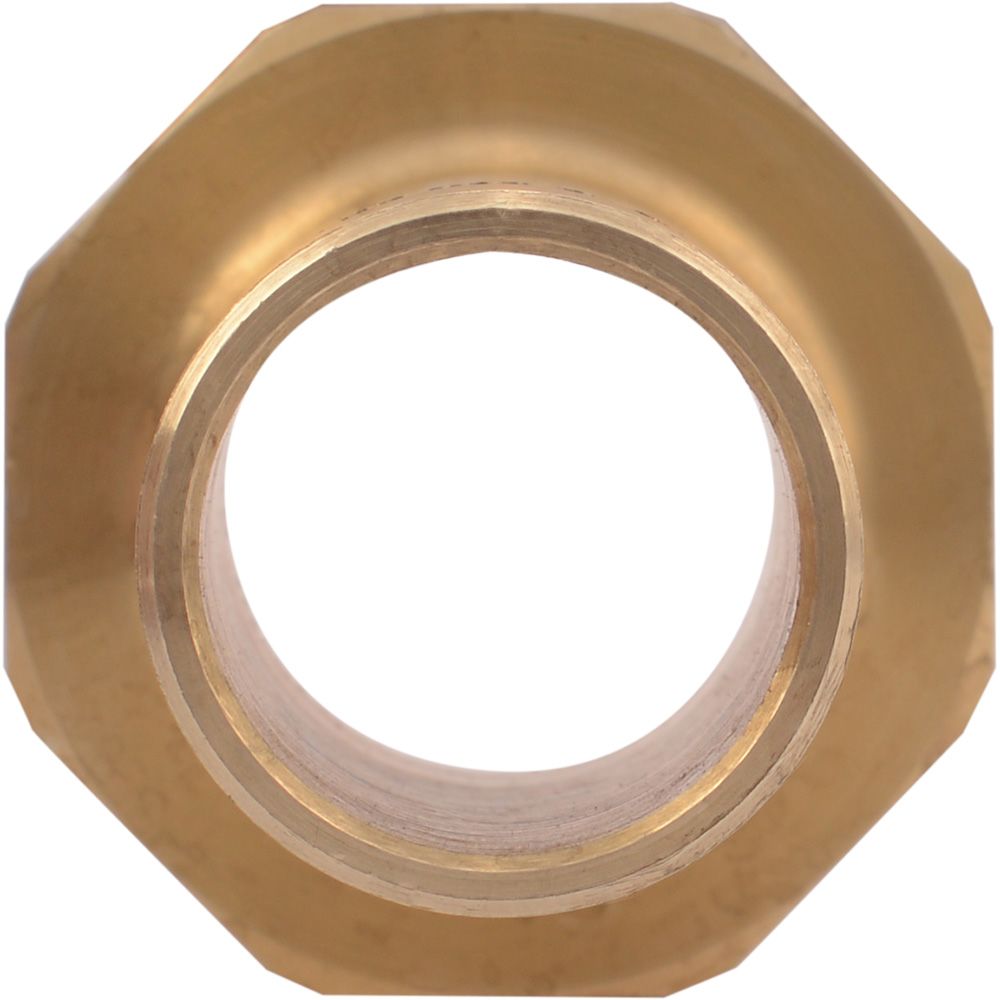

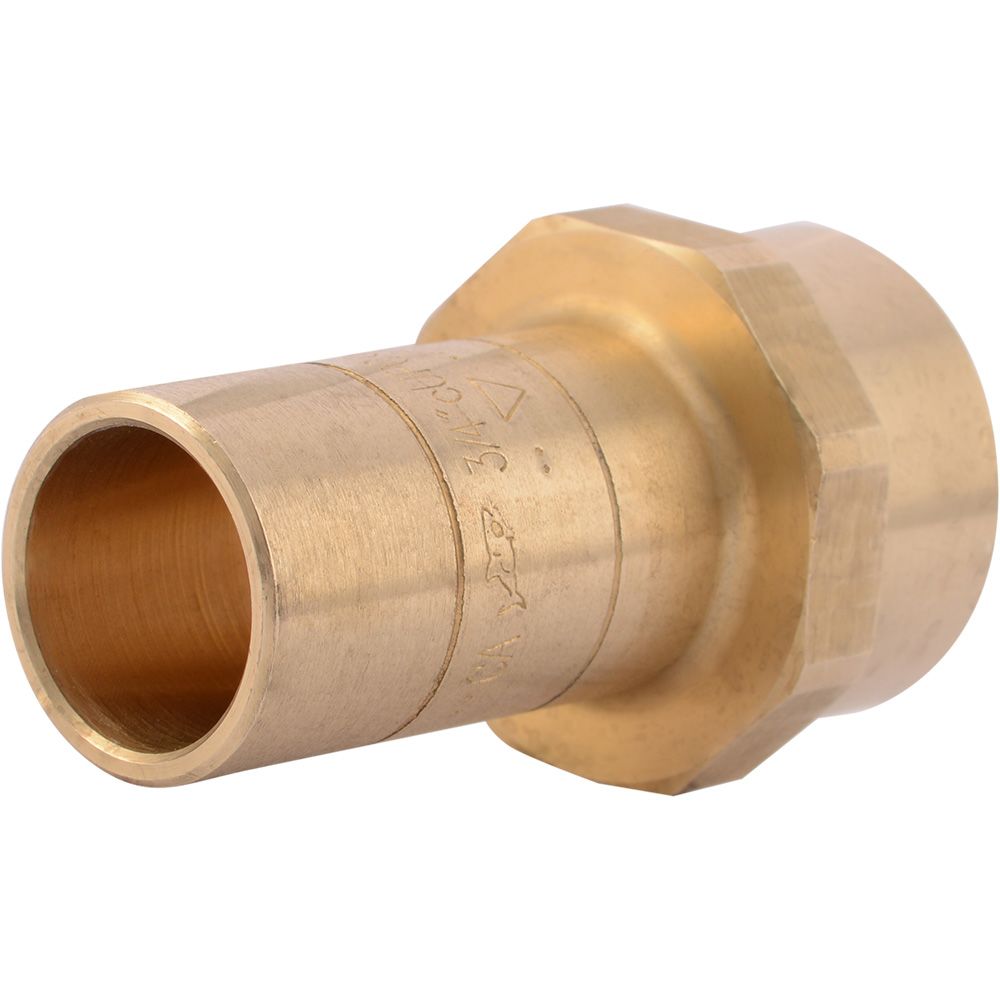

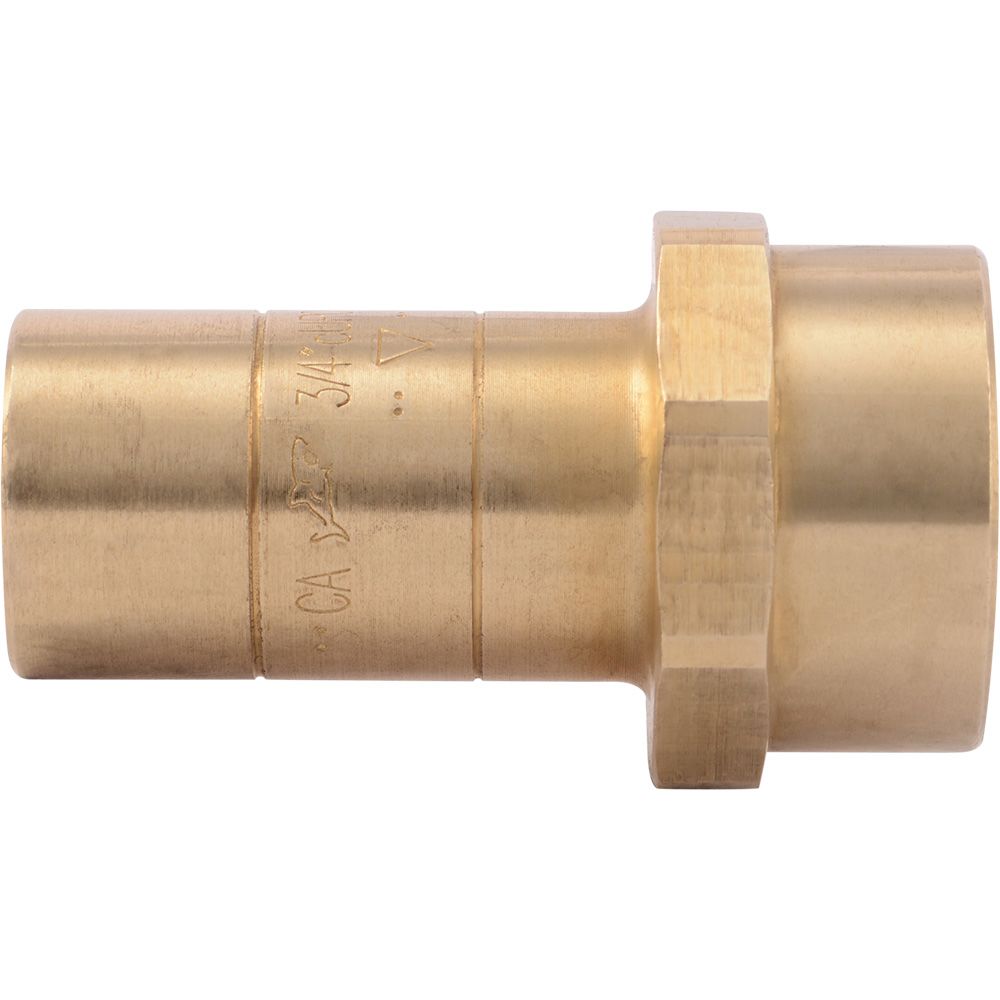

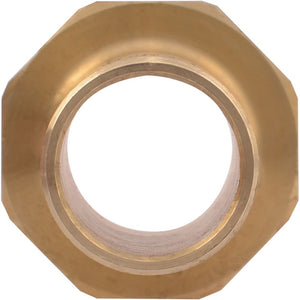

SharkBite® U766LF Lead-Free Brass Push-to-Connect Threaded Fitting Adapter - 3/4" CTS x 3/4" FPT

Part Number: U766LF

In Stock

out of stock

In Stock

$11.95

The SharkBite® U766LF Push-to-Connect Brass Threaded Fitting Adapter is designed to join piping together without the need of soldering, glue, tape, or clamps. One side has a copper tube sized (CTS) tailpiece adapter that can be pushed into any SharkBite® fitting. The other side has a FNPT connection.

Applications: Potable water and hydronic heating

Features:
  • Innovative push-to-connect quick and reliable connection
  • Lead-free construction for durability and safety
  • Use to connect to any combination of copper, PEX, CPVC or PE-RT pipes
  • Connect and Go – No additional securing needed
  • Corrosion resistant to prolong the lifecycle of the fitting
  • Demount or Disconnect Clip sold separately
  • Compact and robust lead-free DZR brass body for strong corrosion resistance
  • Pipe Insertion Depth for ¾" Fitting: 1.125"
NOTE: SharkBite® fittings are certified by NSF to meet standards 14, 61 and 372. This ensures that this fitting can be used for potable water and hydronic heating applications.

*If you do not see the item you need on our site please call and speak with one of our certified water specialists to assist you with a specific item order.



Weight & Dimensions

Weight (lbs)

1.34

Details

Max Temp (°F)

200

Max Pressure (Psi)

200

Push-In Size

3/4" OD

Body Material

Lead-Free Brass

O-Rings

EPDM

Size

3/4"

Inlet/Outlet Connection

3/4" FPT

Warranty & Certifications

Certifications

NSF/ANSI 14, NSF/ANSI 61, NSF/ANSI 372, ASSE 1061

Warranty

25 Year


SharkBite

SharkBite

SharkBite

SharkBite
