SharkBite®

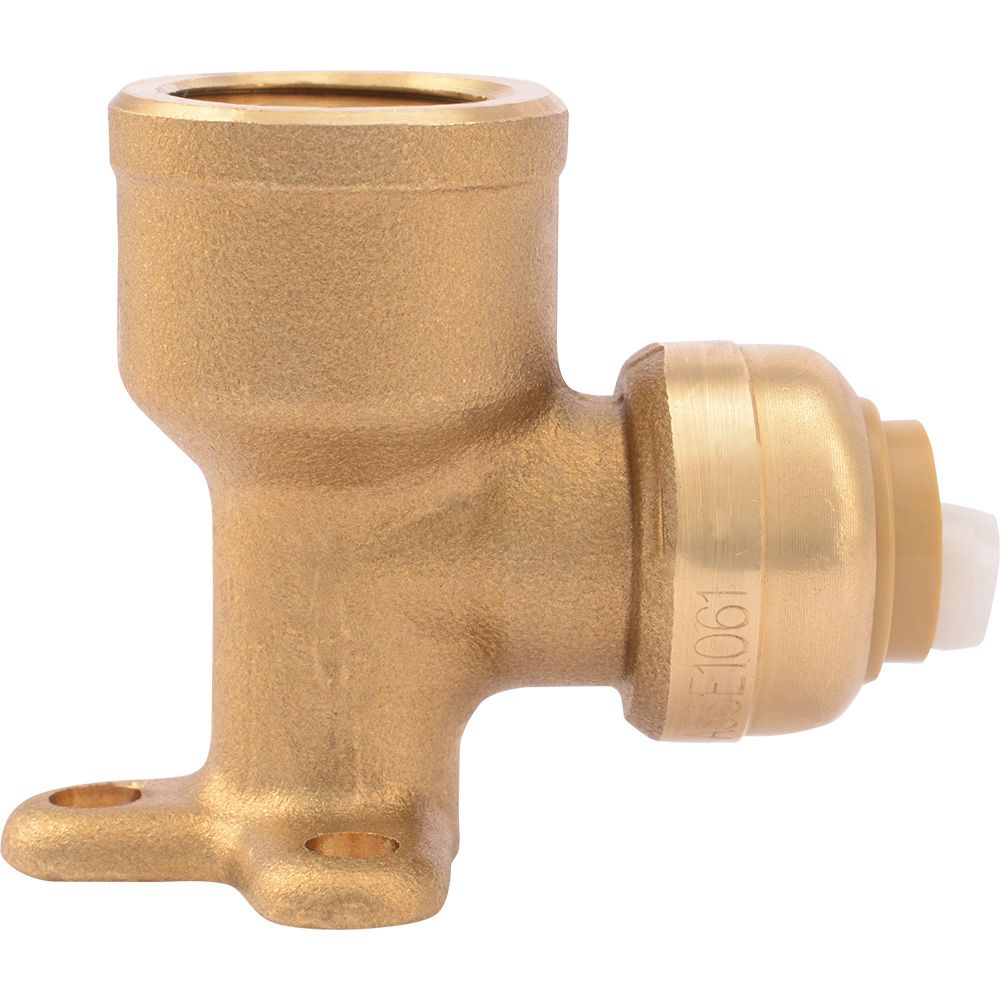

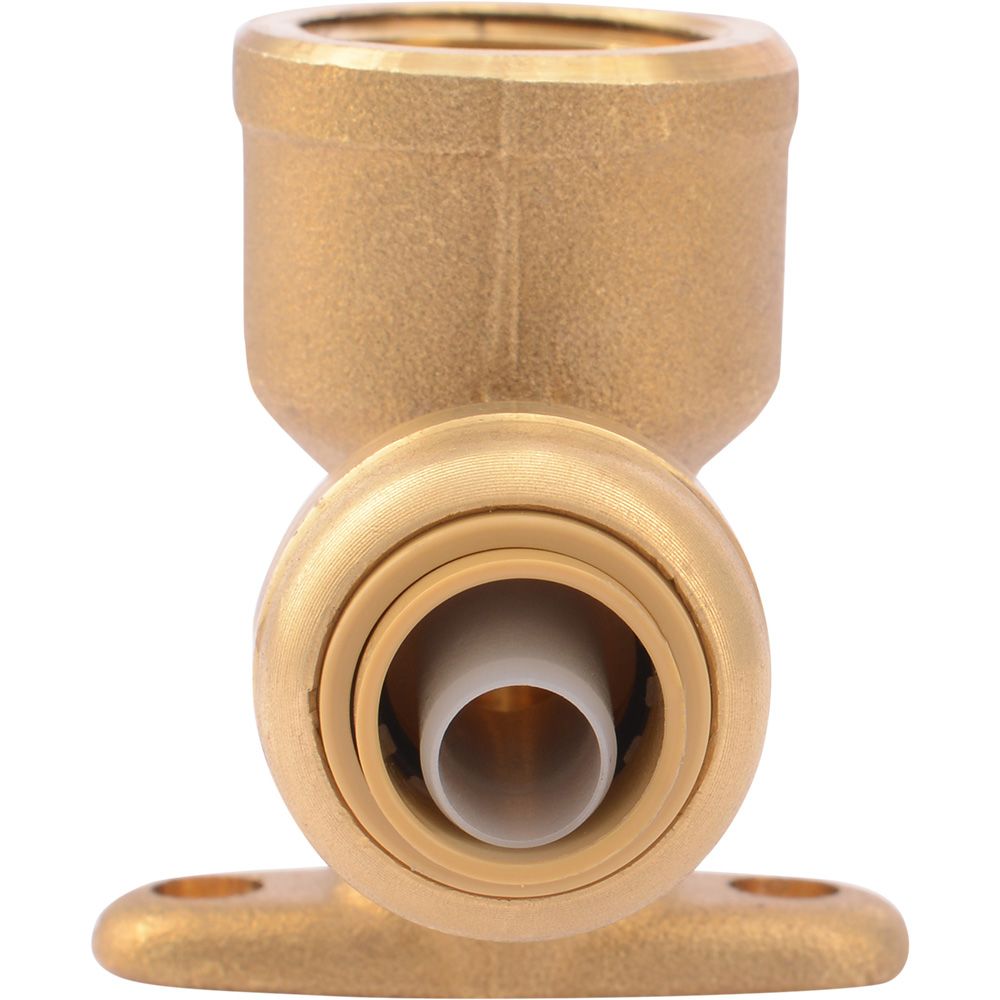

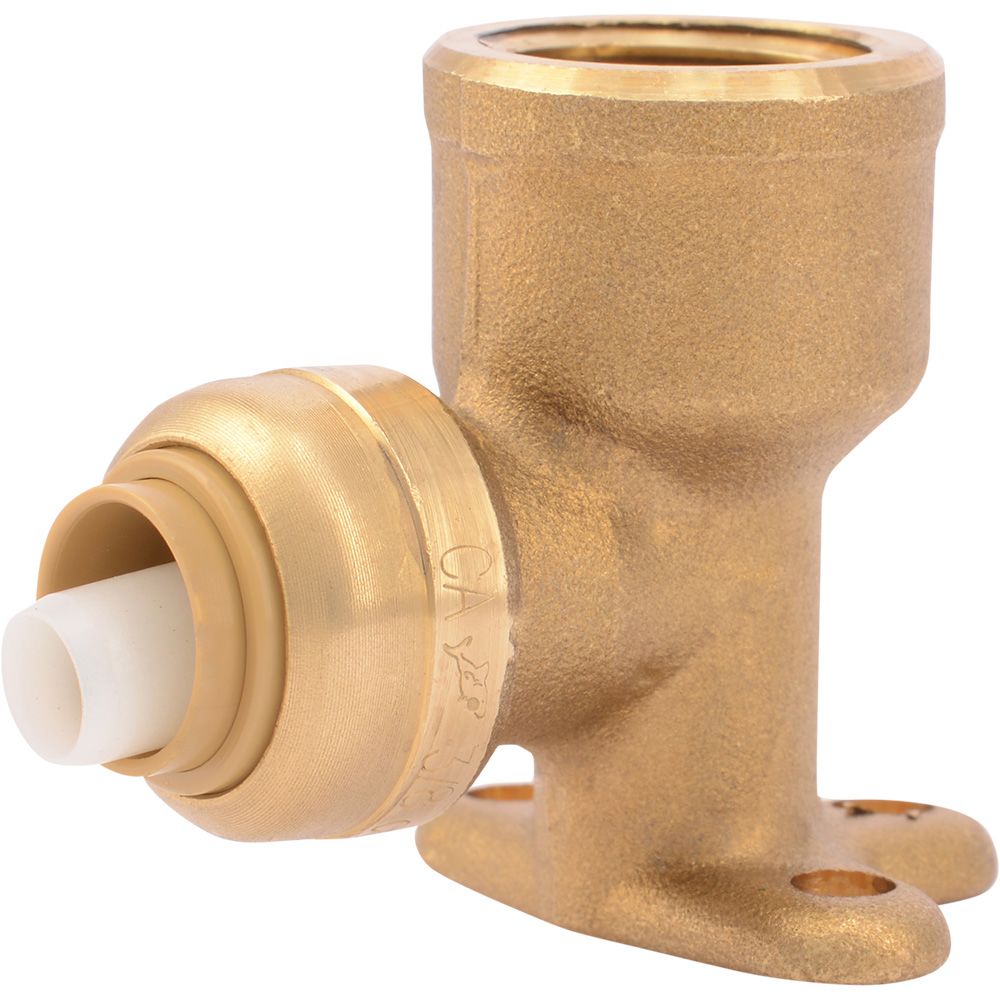

SharkBite® U332LF Lead-Free Brass Push-to-Connect Drop-Ear Elbow - 3/8" x 1/2" FPT

Part Number: U332LF

In Stock

out of stock

In Stock

$8.47

The SharkBite® U332LF Push-to-Connect Brass Drop-Ear Elbow is designed to join piping together without the need of soldering, glue, tape, or clamps. As you insert the pipe into this push-to-connect fitting the stainless-steel teeth clamp down tightly while the built-in O-ring compresses ensuring a leak-free seal. If the U332LF elbow needs to be disconnected simply slip the disconnect tool behind the collet firmly and the fitting will disconnect. Unlike many plumbing connectors, SharkBite® fittings can be rotated after assembly to make installation quick and easy.

Applications: Potable water and hydronic heating

Features:
  • Innovative push-to-connect quick and reliable connection
  • Lead-free construction for durability and safety
  • Use to connect to any combination of copper, PEX, CPVC or PE-RT pipes
  • Connect and Go - No additional securing needed
  • Corrosion resistant to prolong the lifecycle of the fitting
  • Demount or Disconnect Clip sold separately
  • Compact and robust lead-free DZR brass body for strong corrosion resistance
  • Pipe Insertion Depth for 3/8" (1/2" OD) Fitting: 0.875"
NOTE: SharkBite® fittings are certified by NSF to meet standards 14, 61 and 372. This ensures that this fitting can be used for potable water and hydronic heating applications.

*If you do not see the item you need on our site please call and speak with one of our certified water specialists to assist you with a specific item order.



Weight & Dimensions

Weight (lbs)

1.58

Details

Max Temp (°F)

200

Max Pressure (Psi)

200

Push-In Size

3/8" ID, 1/2" OD

Body Material

Lead-Free Brass

O-Rings

EPDM

Size

1/2"

Inlet/Outlet Connection

1/2" FPT

Warranty & Certifications

Certifications

NSF/ANSI 14, NSF/ANSI 61, NSF/ANSI 372, ASSE 1061

Warranty

25 Year


SharkBite

SharkBite

SharkBite

SharkBite


Product Videos


The SharkBite® U332LF Push-to-Connect Brass Drop-Ear Elbow is designed to join piping together without the need of soldering, glue, tape, or clamps. As you insert the pipe into this push-to-connect fitting the stainless-steel teeth clamp down tightly while the built-in O-ring compresses ensuring a leak-free seal. If the U332LF elbow needs to be disconnected simply slip the disconnect tool behind the collet firmly and the fitting will disconnect. Unlike many plumbing connectors, SharkBite® fittings can be rotated after assembly to make installation quick and easy.

Applications: Potable water and hydronic heating

Features:
  • Innovative push-to-connect quick and reliable connection
  • Lead-free construction for durability and safety
  • Use to connect to any combination of copper, PEX, CPVC or PE-RT pipes
  • Connect and Go - No additional securing needed
  • Corrosion resistant to prolong the lifecycle of the fitting
  • Demount or Disconnect Clip sold separately
  • Compact and robust lead-free DZR brass body for strong corrosion resistance
  • Pipe Insertion Depth for 3/8" (1/2" OD) Fitting: 0.875"
NOTE: SharkBite® fittings are certified by NSF to meet standards 14, 61 and 372. This ensures that this fitting can be used for potable water and hydronic heating applications.

*If you do not see the item you need on our site please call and speak with one of our certified water specialists to assist you with a specific item order.


Weight & Dimensions

Weight (lbs)

1.58

Details

Max Temp (°F)

200

Max Pressure (Psi)

200

Push-In Size

3/8" ID, 1/2" OD

Body Material

Lead-Free Brass

O-Rings

EPDM

Size

1/2"

Inlet/Outlet Connection

1/2" FPT

Warranty & Certifications

Certifications

NSF/ANSI 14, NSF/ANSI 61, NSF/ANSI 372, ASSE 1061

Warranty

25 Year
