SharkBite®

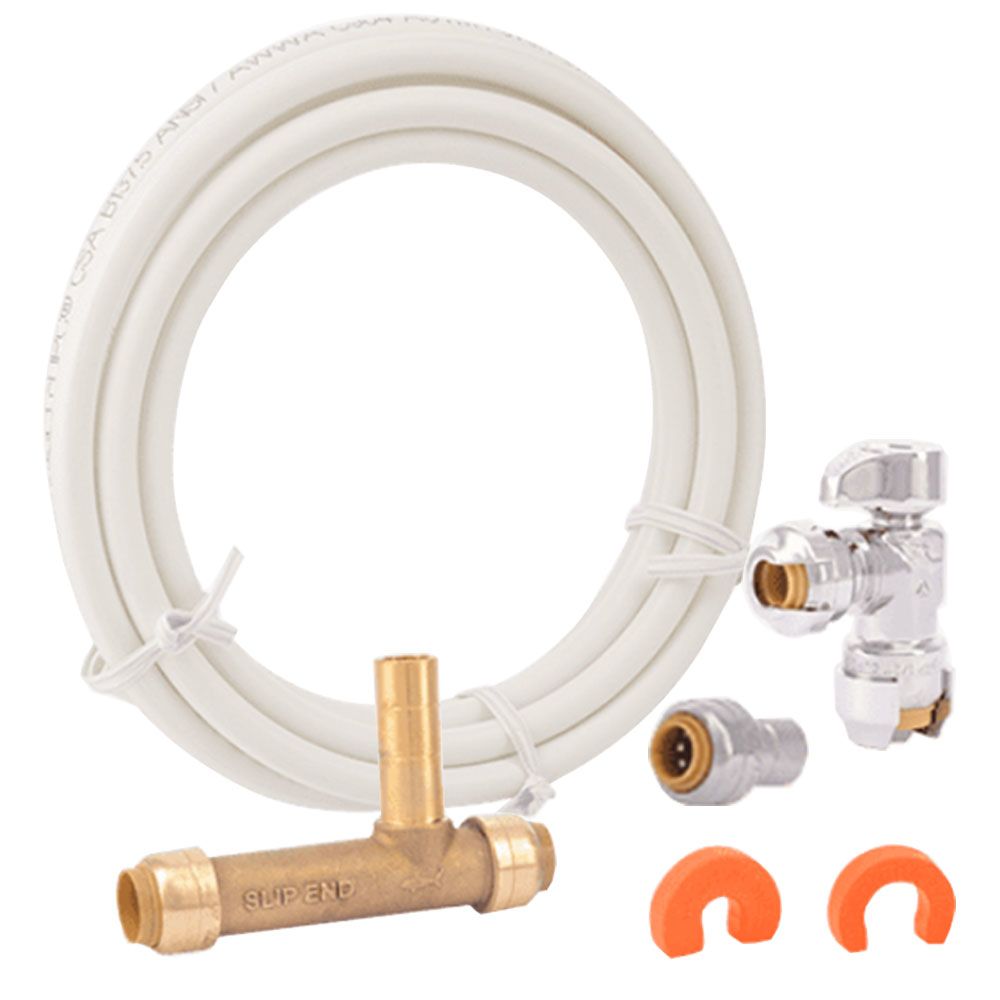

SharkBite® Ice Maker Connection Kit

Part Number: 25024

In Stock

out of stock

In Stock

$29.97

The SharkBite® Ice Maker Connection Kit contains components for installing a water supply line to an ice maker. This kit is also ideal if you need to replace an old or leaking saddle valve. No special tools, soldering, glue, tape, or clamps are needed. As you insert the pipe into this push-to-connect fitting the stainless-steel teeth clamp down tightly while the built-in O-ring compresses ensuring a leak-free seal. If any of these SharkBite® fittings need to be disconnected simply slip the disconnect tool behind the collet firmly and the fitting will disconnect. Unlike many plumbing connectors, SharkBite® fittings can be rotated after assembly to make installation quick and easy.

Applications: Ice maker connection or saddle valve replacement

Features:
  • Innovative push-to-connect quick and reliable connection
  • Lead-free construction for durability and safety
  • Use to connect to any combination of copper, PEX, CPVC or PE-RT pipes
  • Connect and Go – No additional securing needed
  • Corrosion resistant to prolong the lifecycle of the fitting
  • Compact and robust lead-free DZR brass body for strong corrosion resistance
NOTE: SharkBite® fittings are certified by NSF to meet standards 14, 61 and 372. This ensures that this fitting can be used for potable water and hydronic heating applications.

*If you do not see the item you need on our site please call and speak with one of our certified water specialists to assist you with a specific item order.

Ice Maker Connection Kit Includes:
Quantity Part Number Description
1 U4482LF 1/2" Service Slip Tee Adapter
1 23048-0000LF 1/2" x 1/4" (3/8" OD) Angle Stop Valve
1 PEX Tubing 10 ft. coil of 1/4" Tubing
1 U3524LF 1/4" (3/8" OD) Compression x 1/4" (3/8" OD) Stop Valve Connector
1 U706 1/4" Disconnect Clip
1 U708 3/8" Disconnect Clip


Weight & Dimensions

Weight (lbs)

2.97

Details

Max Temp (°F)

200

Max Pressure (Psi)

200

Push-In Size

1/2" ID, 5/8" OD, 1/4" ID, 3/8" OD

Body Material

Lead-Free Brass

O-Rings

EPDM

Size

1/4"

Tubing Material

PEX

Inlet/Outlet Connection

1/4" Compression

Warranty & Certifications

Certifications

NSF/ANSI 14, NSF/ANSI 61, NSF/ANSI 372, ASSE 1061

Warranty

25 Year


SharkBite

SharkBite

SharkBite

SharkBite


Product Videos
