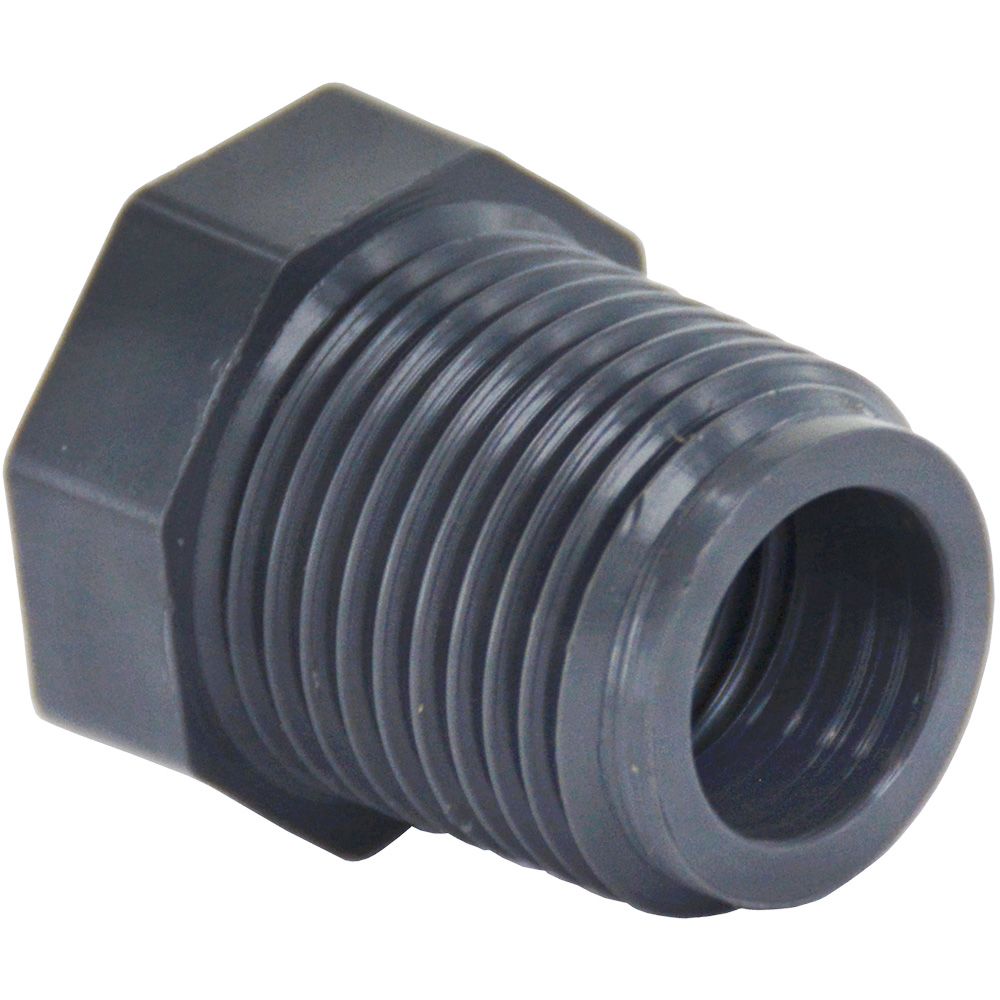

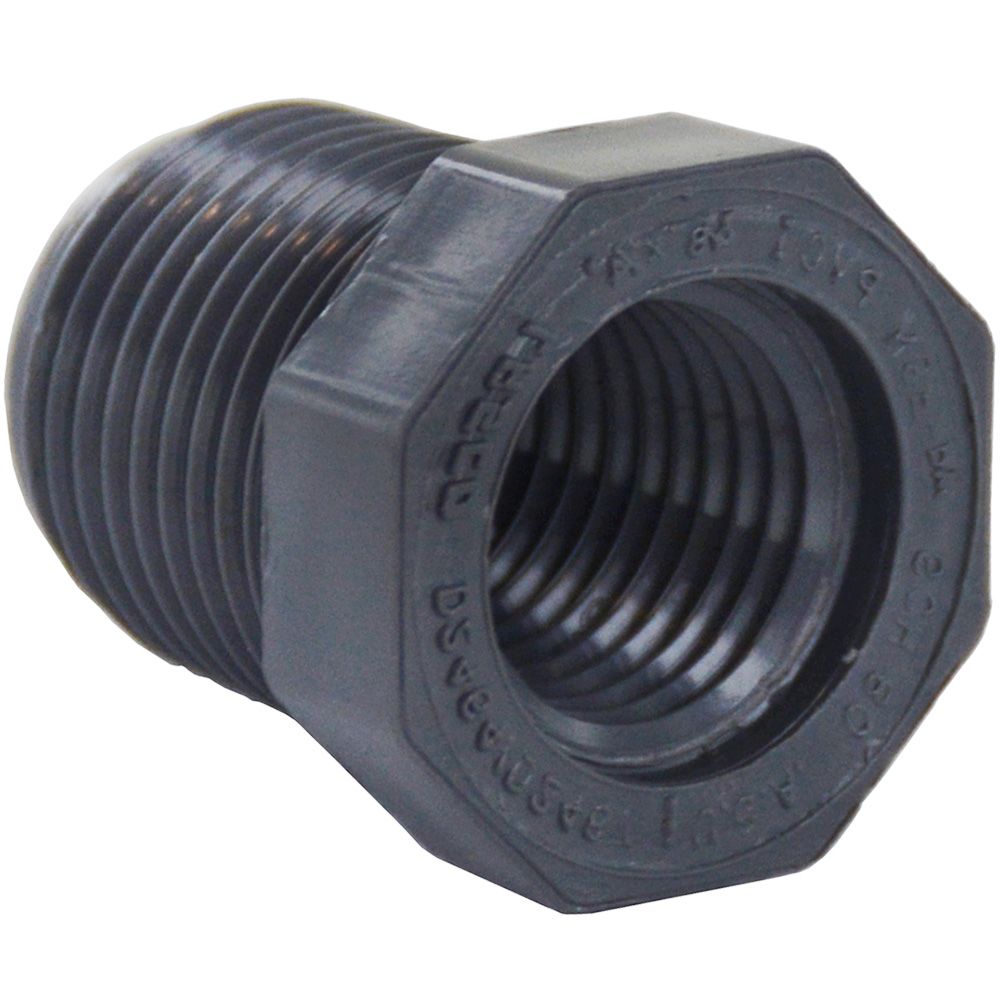

Schedule 80 PVC Reducer Bushing 3/8" MIP x 1/4" FIP

Part Number: 839-052

In Stock

out of stock

In Stock

$4.24


The PVC Schedule 80 reducing bushing has smooth interior walls to maintain a lower pressure loss and high volume than metal fittings. These fittings never rust and provide extended system life. They are lead free and made for use with potable water.

Specifications:
  • Schedule: 80
  • Material: PVC
  • Thread: 3/8" MIP x 1/4" FIP
  • Material: Schedule 80 PVC
  • Max Temperature: 140°F
  • Standards: ASTM D-1784 and NSF




Weight & Dimensions

Weight (lbs)

0.02

Details

Series

Schedule 80

Max Temp (°F)

140

Max Pressure (Psi)

920

Min Pressure (Psi)

0

Application

Water

Body Material

Schedule 80 PVC

Color / Finish

Gray

Mounting Options

Thread

Size

3/8", 1/4"

Schedule

80

Inlet/Outlet Connection

3/8" MIP, 1/4" FIP

Warranty & Certifications

Certifications

NSF 61, NSF 14




The PVC Schedule 80 reducing bushing has smooth interior walls to maintain a lower pressure loss and high volume than metal fittings. These fittings never rust and provide extended system life. They are lead free and made for use with potable water.

Specifications:
  • Schedule: 80
  • Material: PVC
  • Thread: 3/8" MIP x 1/4" FIP
  • Material: Schedule 80 PVC
  • Max Temperature: 140°F
  • Standards: ASTM D-1784 and NSF



Weight & Dimensions

Weight (lbs)

0.02

Details

Series

Schedule 80

Max Temp (°F)

140

Max Pressure (Psi)

920

Min Pressure (Psi)

0

Application

Water

Body Material

Schedule 80 PVC

Color / Finish

Gray

Mounting Options

Thread

Size

3/8", 1/4"

Schedule

80

Inlet/Outlet Connection

3/8" MIP, 1/4" FIP

Warranty & Certifications

Certifications

NSF 61, NSF 14
