Schedule 80 PVC Elbow 1-1/4

Home / Fittings / Pipe Fittings / Schedule 80 PVC Elbow 1-1/4" FIP

Basics

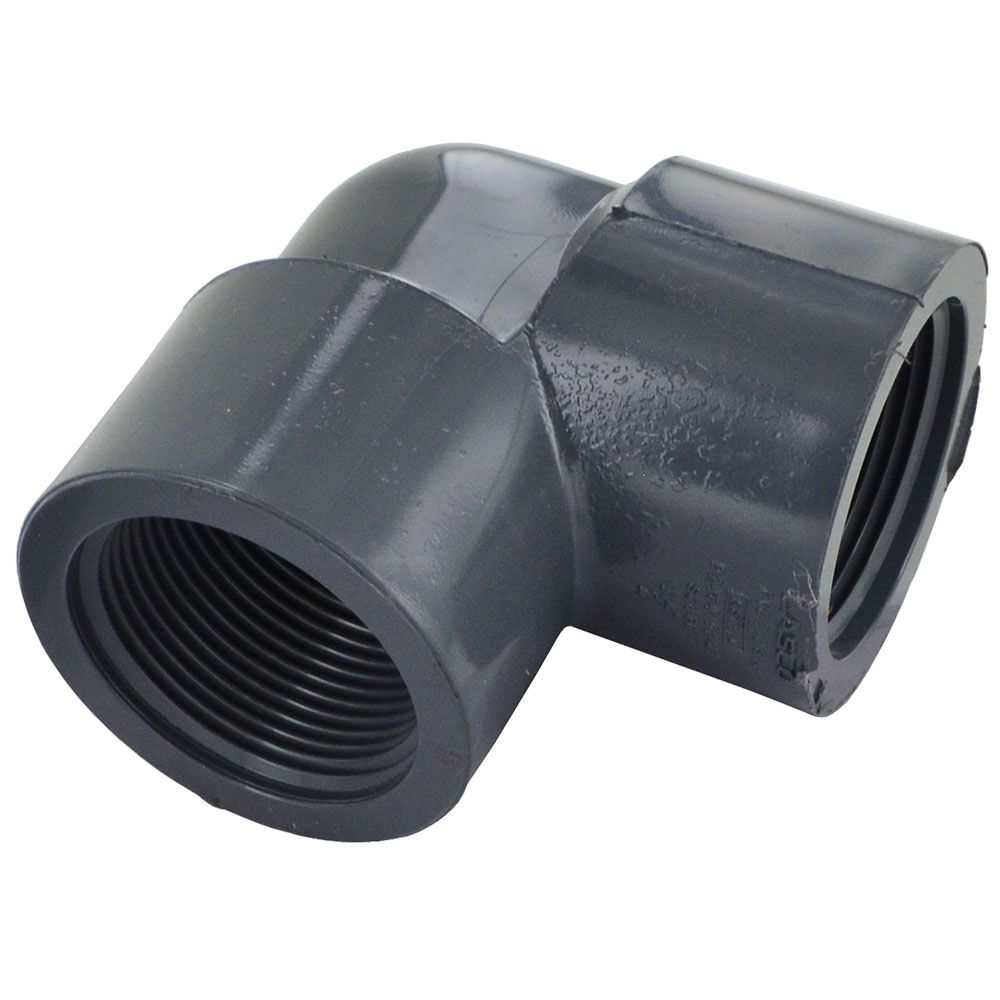

Schedule 80 PVC Elbow 1-1/4" FIP

Part Number: 808-012

PVC 1-1/4" Elbow is designed with the FIP (Female Iron Pipe) threading wich is ideal for industrial and commercial applications. The fitting is a 90° PVC-elbow. This PVC-elbow is a schedule 80 (thickness of wall diameter).

Specifications:

Schedule: 80
Size: 1-1/4" x 1-1/4" (FIP)
Max Temperature: 140° F
Standards: ASTM D-1784 & NSF

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Body Material	Schedule 80 PVC
Inlet Connection	1-1/4" FIP
Max Pressure (Psi)	520
Max Temp (°F)	140
Min Pressure (Psi)	0
Mounting Options	Thread
Outlet Connection	1-1/4" FIP
Schedule	80
Series	Schedule 80
Shape	90
Size	1-1/4"
Color / Finish	Gray
Connection Type	FIP
Origin	U.S.A.
Sub-Type	Union Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61

Schedule: 80
Size: 1-1/4" x 1-1/4" (FIP)
Max Temperature: 140° F
Standards: ASTM D-1784 & NSF

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
