Fresh Water Systems

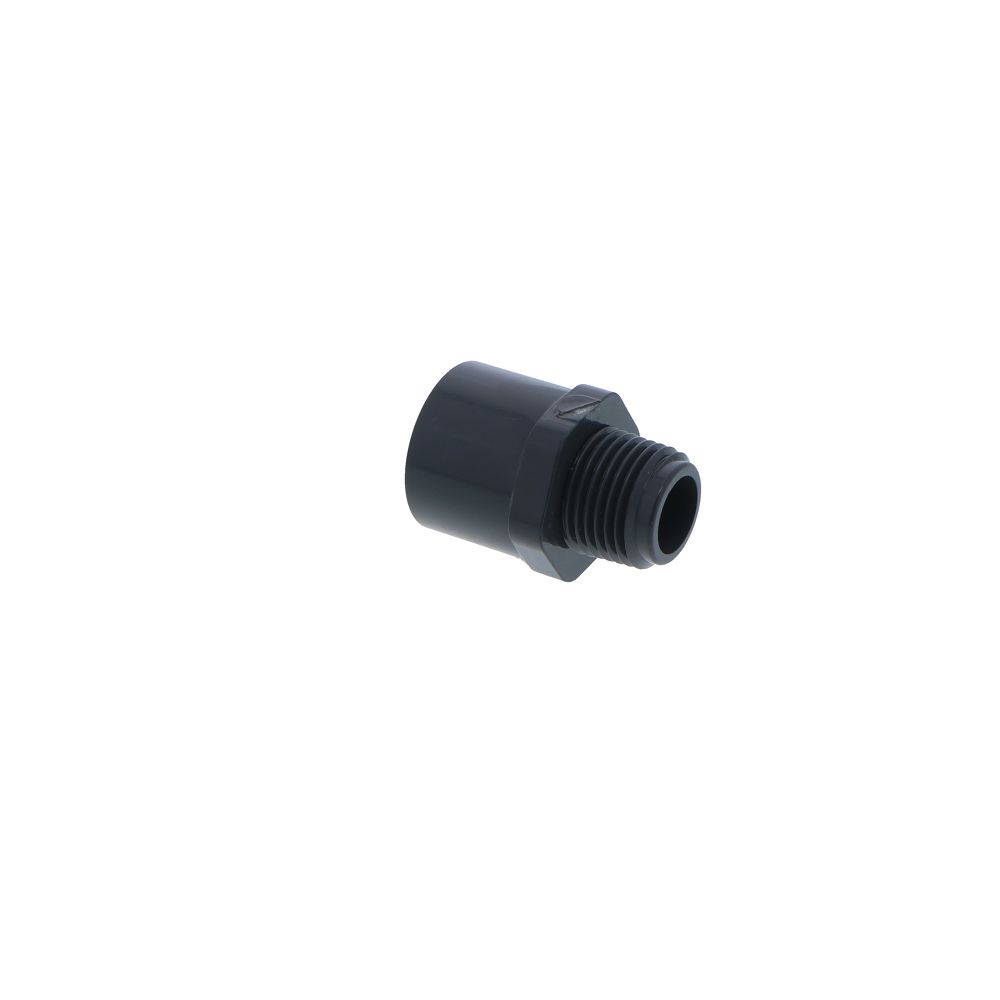

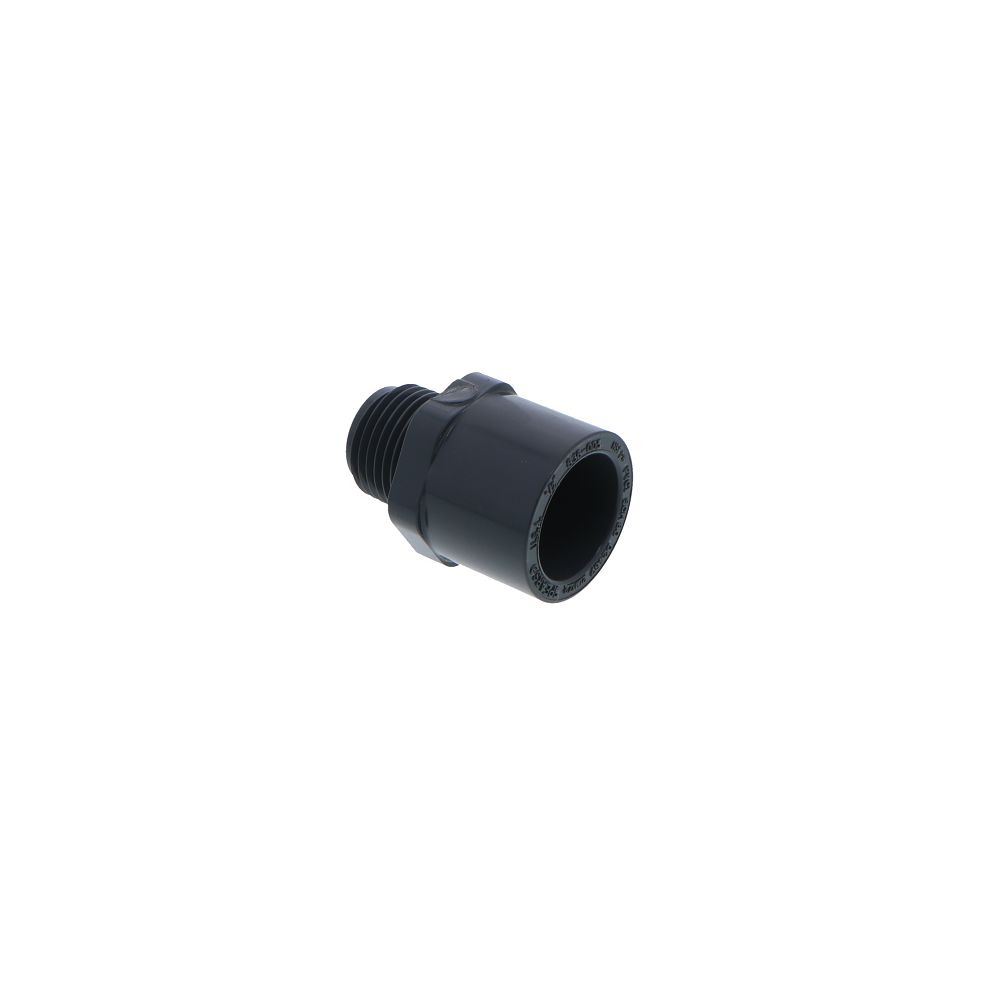

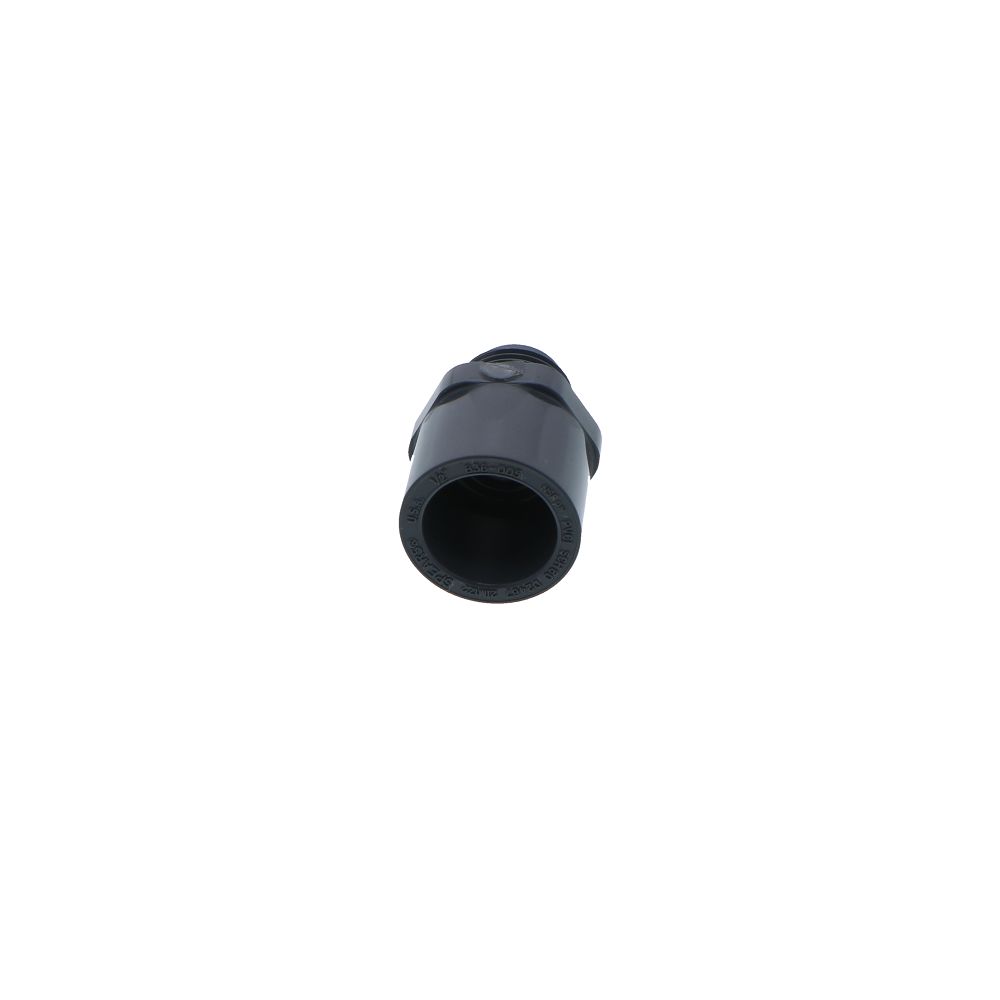

Schedule 80 PVC Bushing 1/2" MPT x 1/2" Socket

Part Number: 836-005

In Stock

out of stock

In Stock

$2.25

The PVC Schedule 80 reducing bushing has smooth interior walls to maintain a lower pressure loss and high volume than metal fittings. These fittings never rust and will provide extended system life. They are lead free and made for use with potable water.

Specifications:
  • Schedule: 80
  • Material: PVC
  • Size: 1/2" x 1/2"
  • Thread: MPT x Slip
  • Max Temperature: 140°F
  • Standards: ASTM D-1784 and NSF




Weight & Dimensions

Weight (lbs)

0.02

Details

Application

Water

Body Material

Schedule 80 PVC

Inlet/Outlet Connection

1/2" MPT, 1/2" Socket

Max Pressure (Psi)

850

Max Temp (°F)

140

Min Pressure (Psi)

0

Mounting Options

Thread

Schedule

80

Series

Schedule 80

Size

1/2"

Color / Finish

Gray

Connection Type

Male (MPT), Socket

End Cap Type

MPT, Slip

Origin

USA

Type

Bushing

Warranty & Certifications

Certifications

NSF 61; NSF 14



The PVC Schedule 80 reducing bushing has smooth interior walls to maintain a lower pressure loss and high volume than metal fittings. These fittings never rust and will provide extended system life. They are lead free and made for use with potable water.

Specifications:
  • Schedule: 80
  • Material: PVC
  • Size: 1/2" x 1/2"
  • Thread: MPT x Slip
  • Max Temperature: 140°F
  • Standards: ASTM D-1784 and NSF



Weight & Dimensions

Weight (lbs)

0.02

Details

Application

Water

Body Material

Schedule 80 PVC

Inlet/Outlet Connection

1/2" MPT, 1/2" Socket

Max Pressure (Psi)

850

Max Temp (°F)

140

Min Pressure (Psi)

0

Mounting Options

Thread

Schedule

80

Series

Schedule 80

Size

1/2"

Color / Finish

Gray

Connection Type

Male (MPT), Socket

End Cap Type

MPT, Slip

Origin

USA

Type

Bushing

Warranty & Certifications

Certifications

NSF 61; NSF 14
