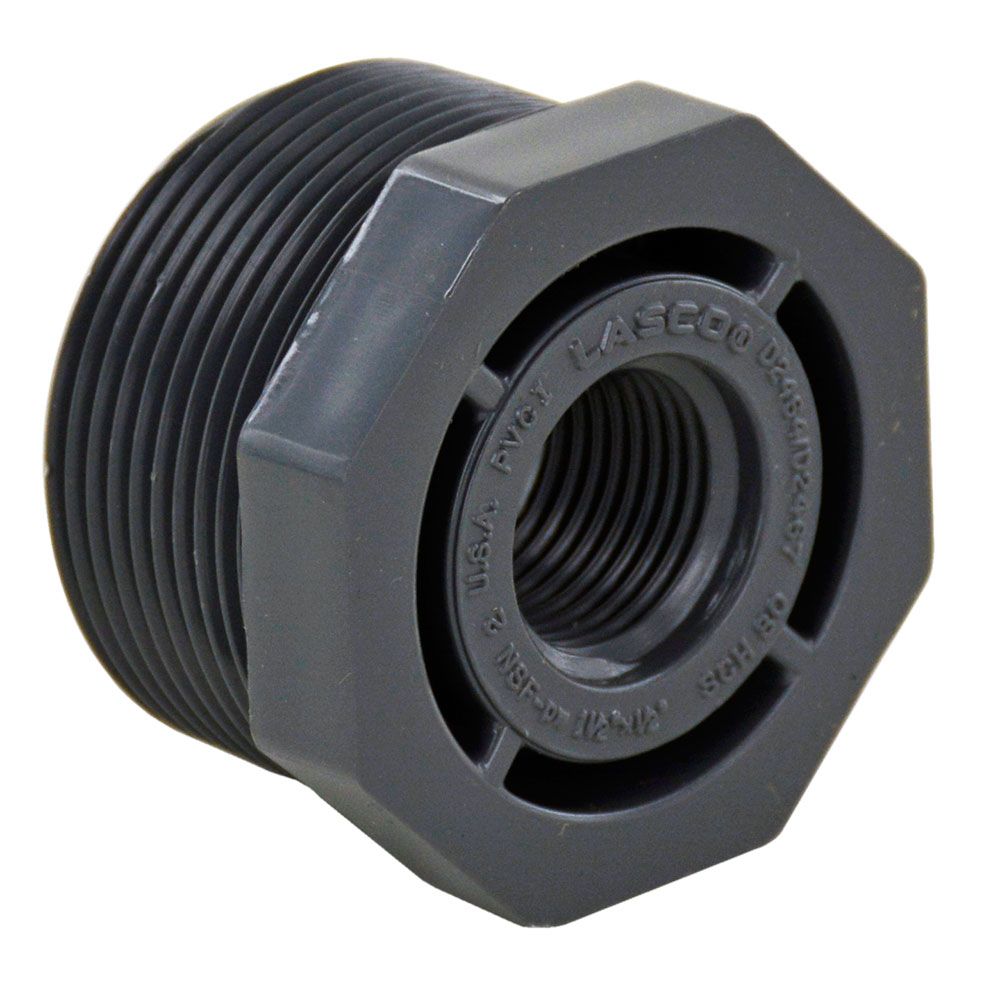

Schedule 80 PVC Bushing 1-1/4" MIP x 1/2" FIP

Part Number: 839-166

In Stock

out of stock

In Stock

Closeout sale item with limited availability.

$3.68

The PVC Schedule 80 reducing bushing has smooth interior walls to maintain a lower pressure loss and high volume than metal fittings. These fittings never rust and provide extended system life. They are lead-free and made for use with potable water.

Specifications:
  • Schedule: 80
  • Material: PVC
  • Size: 1-1/4" x 1/2"
  • Thread: MIP x FIP
  • Max Temperature: 140°F
  • Standards: ASTM D-1784 and NSF




Weight & Dimensions

Weight (lbs)

0.02

Details

Application

Water

Body Material

Schedule 80 PVC

Inlet/Outlet Connection

1-1/4" MIP, 1/2" FIP

Max Pressure (Psi)

520

Max Temp (°F)

140

Min Pressure (Psi)

0

Mounting Options

Thread

Schedule

80

Series

Schedule 80

Size

1-1/4", 1/2"

Color / Finish

Gray

Connection Type

MIP, FIP

Origin

USA

Type

Bushing

Warranty & Certifications

Certifications

NSF 61; NSF 14



The PVC Schedule 80 reducing bushing has smooth interior walls to maintain a lower pressure loss and high volume than metal fittings. These fittings never rust and provide extended system life. They are lead-free and made for use with potable water.

Specifications:
  • Schedule: 80
  • Material: PVC
  • Size: 1-1/4" x 1/2"
  • Thread: MIP x FIP
  • Max Temperature: 140°F
  • Standards: ASTM D-1784 and NSF



NOTE: Closeout sale item with limited availability.

Weight & Dimensions

Weight (lbs)

0.02

Details

Application

Water

Body Material

Schedule 80 PVC

Inlet/Outlet Connection

1-1/4" MIP, 1/2" FIP

Max Pressure (Psi)

520

Max Temp (°F)

140

Min Pressure (Psi)

0

Mounting Options

Thread

Schedule

80

Series

Schedule 80

Size

1-1/4", 1/2"

Color / Finish

Gray

Connection Type

MIP, FIP

Origin

USA

Type

Bushing

Warranty & Certifications

Certifications

NSF 61; NSF 14
