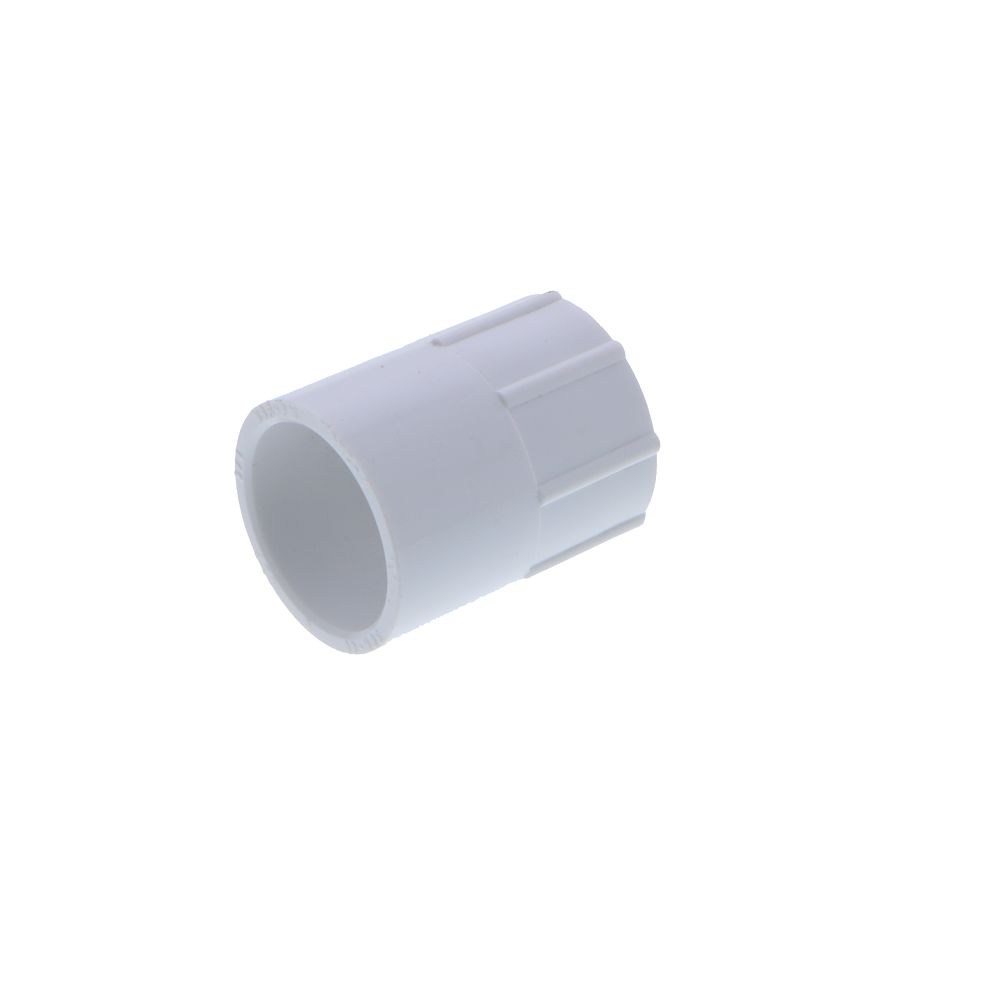

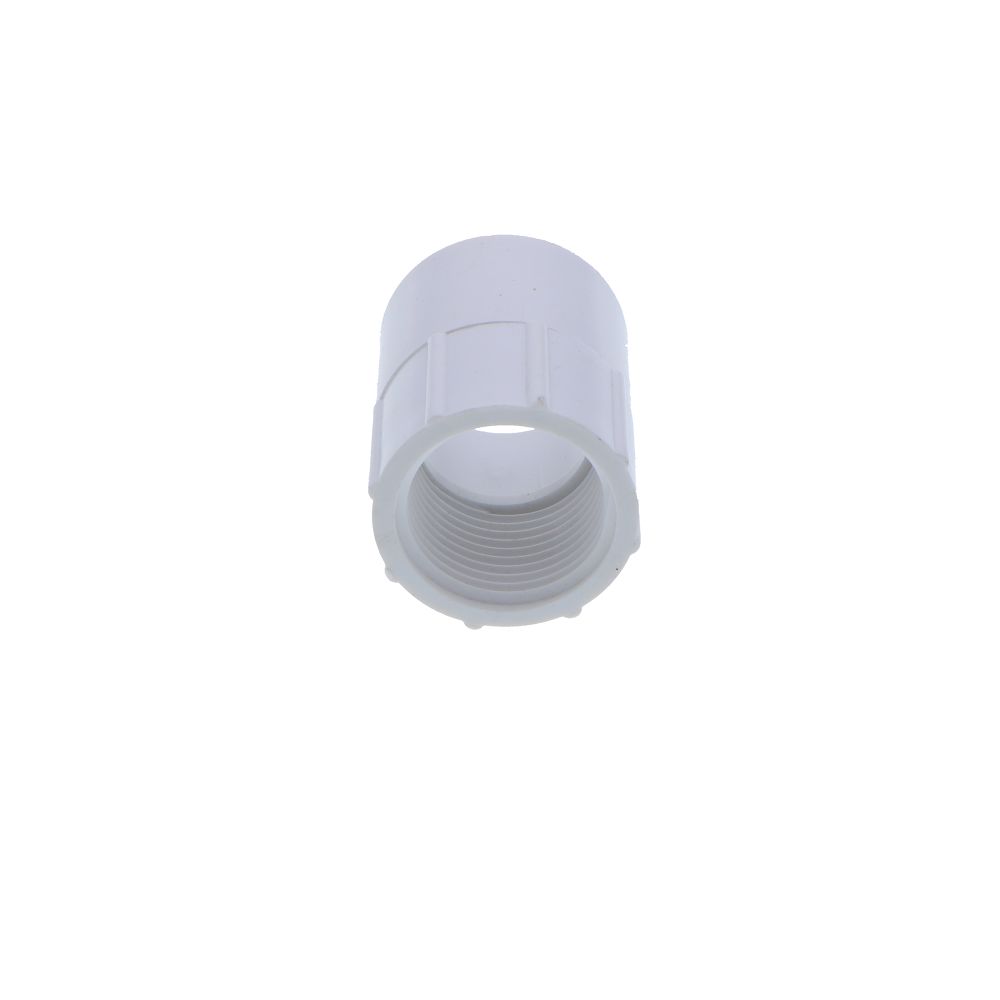

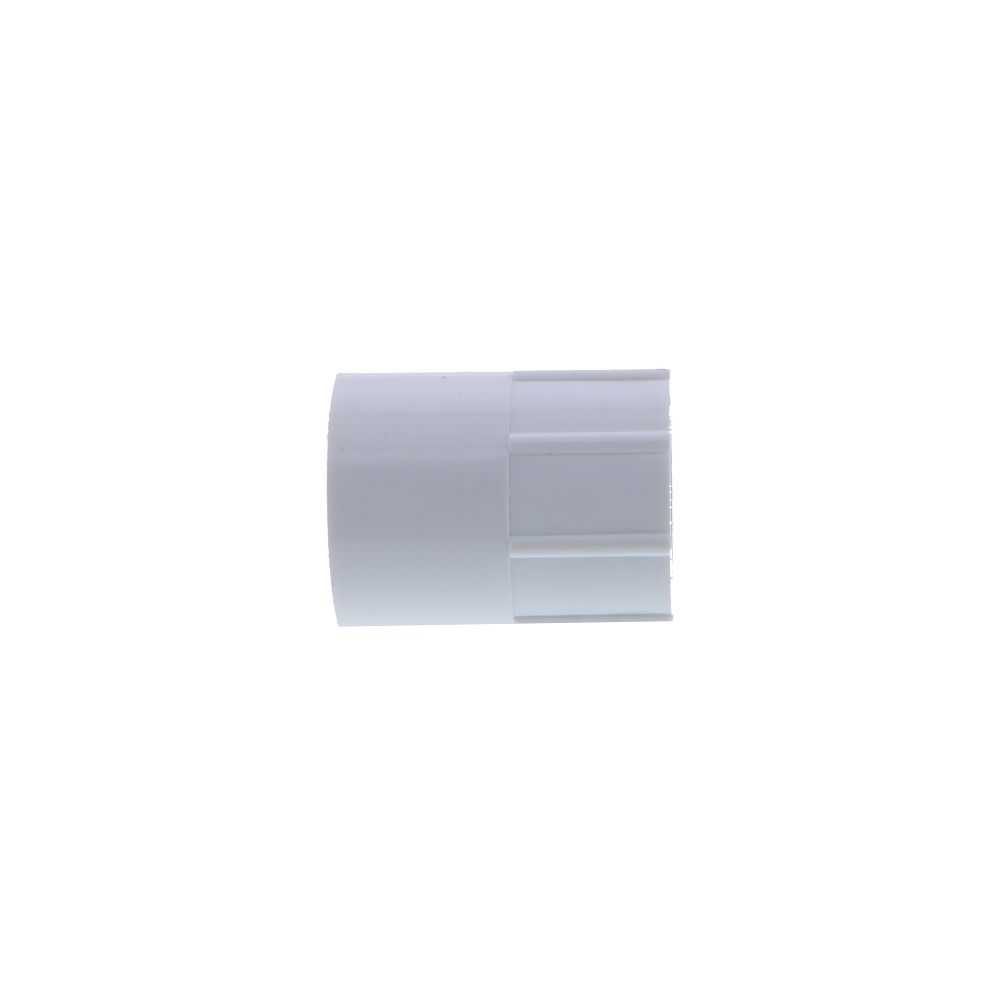

The Schedule 40 PVC Bushing 3/4" SLIP x 3/4" FPT are used to connect two pipes of different diameters. These bushings create a tight seal without adhesion products, but that are also ideal for situations where the pipes may need to be removed or replace regularly. The smooth interior walls help to maintain a lower pressure loss and high volume than metal fittings.
Unlike metal, PVC will never rust, scale, or pit, and offers substantially lower material and installation costs. PVC thermoplastic is light-weight and handles fluids at service temperatures up to 140°F (60°C), allowing a wide range of process applications, including most mineral acids, bases, salts, and other corrosive fluids.
Specifications:
- Schedule: 40
- End Type: SLIP x FPT
- Nominal Pipe Size: 3/4" x 3/4"
- Max Service Temp: 140°F
- NSF 61 Certified for potable water
- Features & Applications:
- Made in the USA
- Provide secure connection between two pipe lines of different diameters
- Resistant to corrosion, rust, & scale
- Low maintenance & installation costs
Weight & Dimensions
Weight (lbs) | 0.07 |
Details
Application | Water |
Body Material | Schedule 40 PVC |
Inlet/Outlet Connection | 3/4" FPT, 3/4" Slip |
Max Pressure (Psi) | 480 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 0 |
Mounting Options | Thread |
Schedule | 40 |
Series | Schedule 40 |
Size | 3/4" |
Color / Finish | White |
Connection Type | Female (FPT) |
End Cap Type | Slip, FPT |
Origin | USA |
Type | Bushing |
Warranty & Certifications
Certifications | NSF 61; NSF 14 |
The Schedule 40 PVC Bushing 3/4" SLIP x 3/4" FPT are used to connect two pipes of different diameters. These bushings create a tight seal without adhesion products, but that are also ideal for situations where the pipes may need to be removed or replace regularly. The smooth interior walls help to maintain a lower pressure loss and high volume than metal fittings.
Unlike metal, PVC will never rust, scale, or pit, and offers substantially lower material and installation costs. PVC thermoplastic is light-weight and handles fluids at service temperatures up to 140°F (60°C), allowing a wide range of process applications, including most mineral acids, bases, salts, and other corrosive fluids.
Specifications:
- Schedule: 40
- End Type: SLIP x FPT
- Nominal Pipe Size: 3/4" x 3/4"
- Max Service Temp: 140°F
- NSF 61 Certified for potable water
- Features & Applications:
- Made in the USA
- Provide secure connection between two pipe lines of different diameters
- Resistant to corrosion, rust, & scale
- Low maintenance & installation costs
Weight & Dimensions
Weight (lbs) | 0.07 |
Details
Application | Water |
Body Material | Schedule 40 PVC |
Inlet/Outlet Connection | 3/4" FPT, 3/4" Slip |
Max Pressure (Psi) | 480 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 0 |
Mounting Options | Thread |
Schedule | 40 |
Series | Schedule 40 |
Size | 3/4" |
Color / Finish | White |
Connection Type | Female (FPT) |
End Cap Type | Slip, FPT |
Origin | USA |
Type | Bushing |
Warranty & Certifications
Certifications | NSF 61; NSF 14 |
