Schedule 40 PVC 45 Degree Elbow 3/4" Slip x 3/4" Slip

Home / Fittings / Pipe Fittings / Schedule 40 PVC 45 Degree Elbow 3/4" Slip x 3/4" Slip

Basics

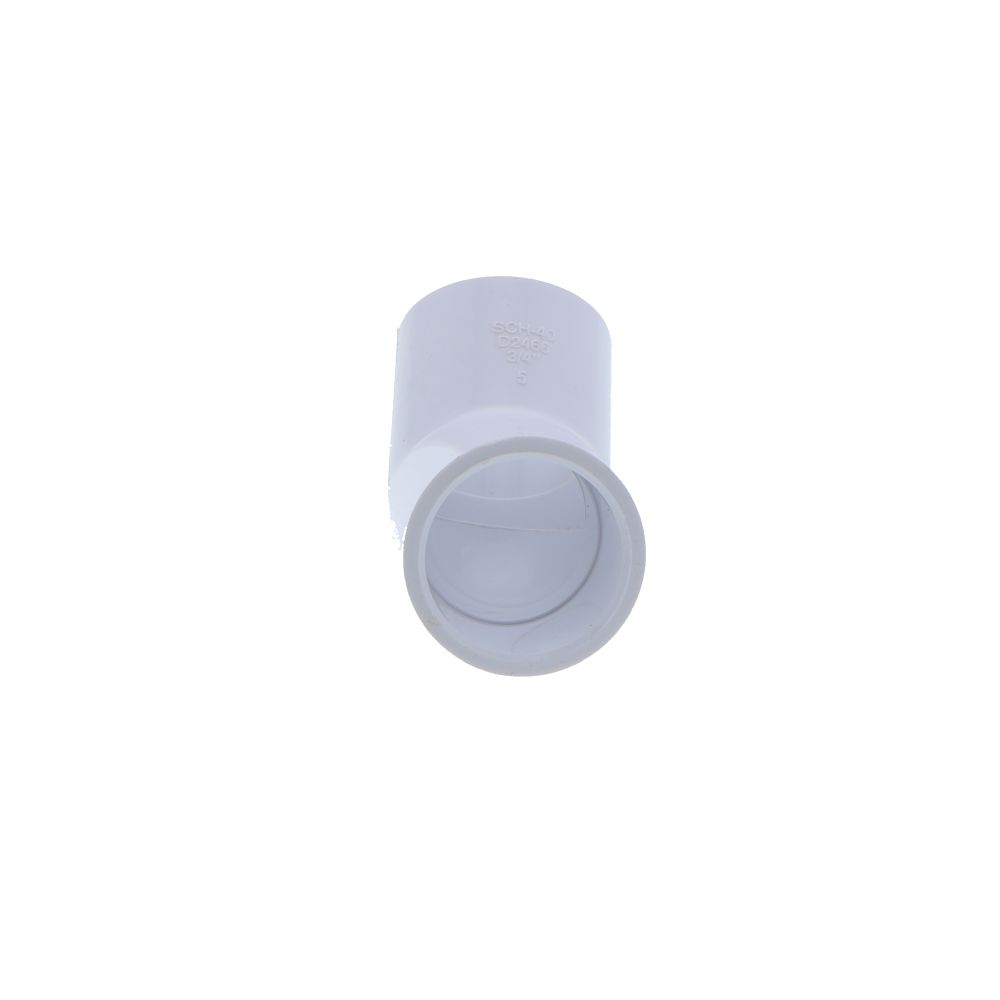

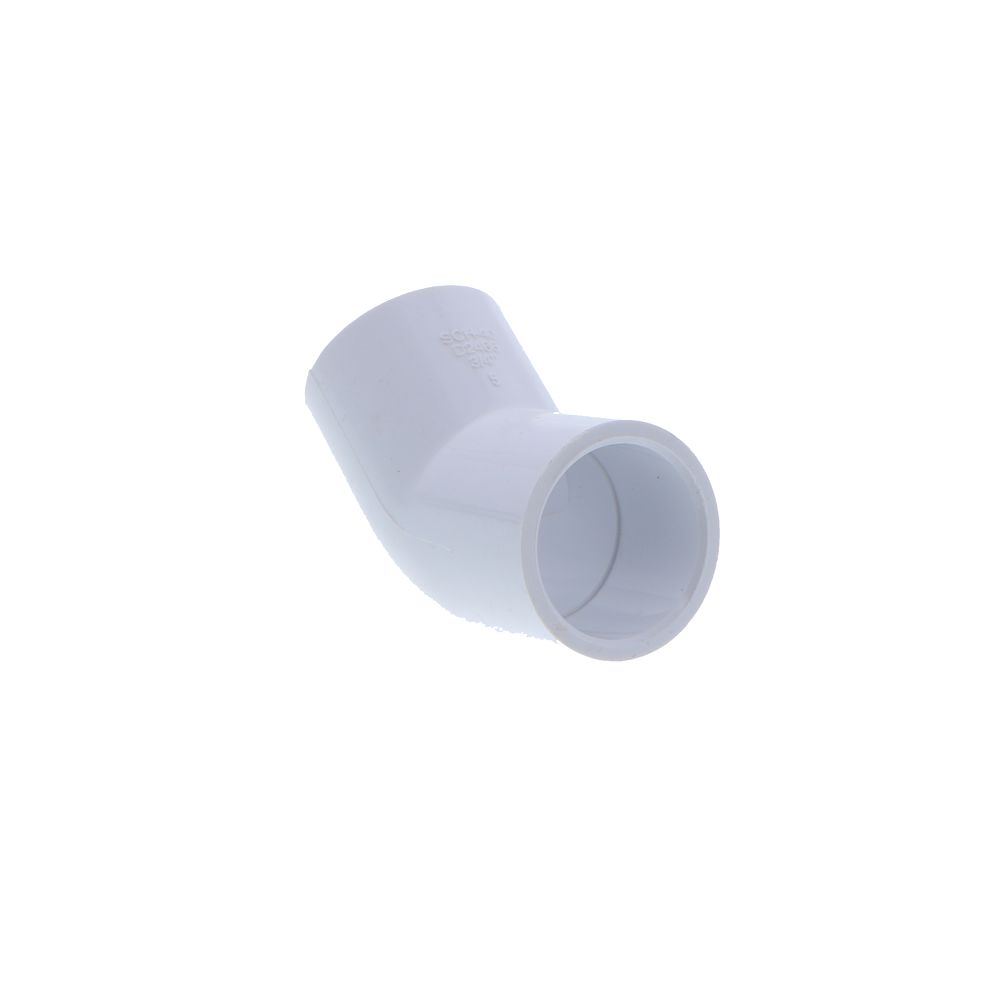

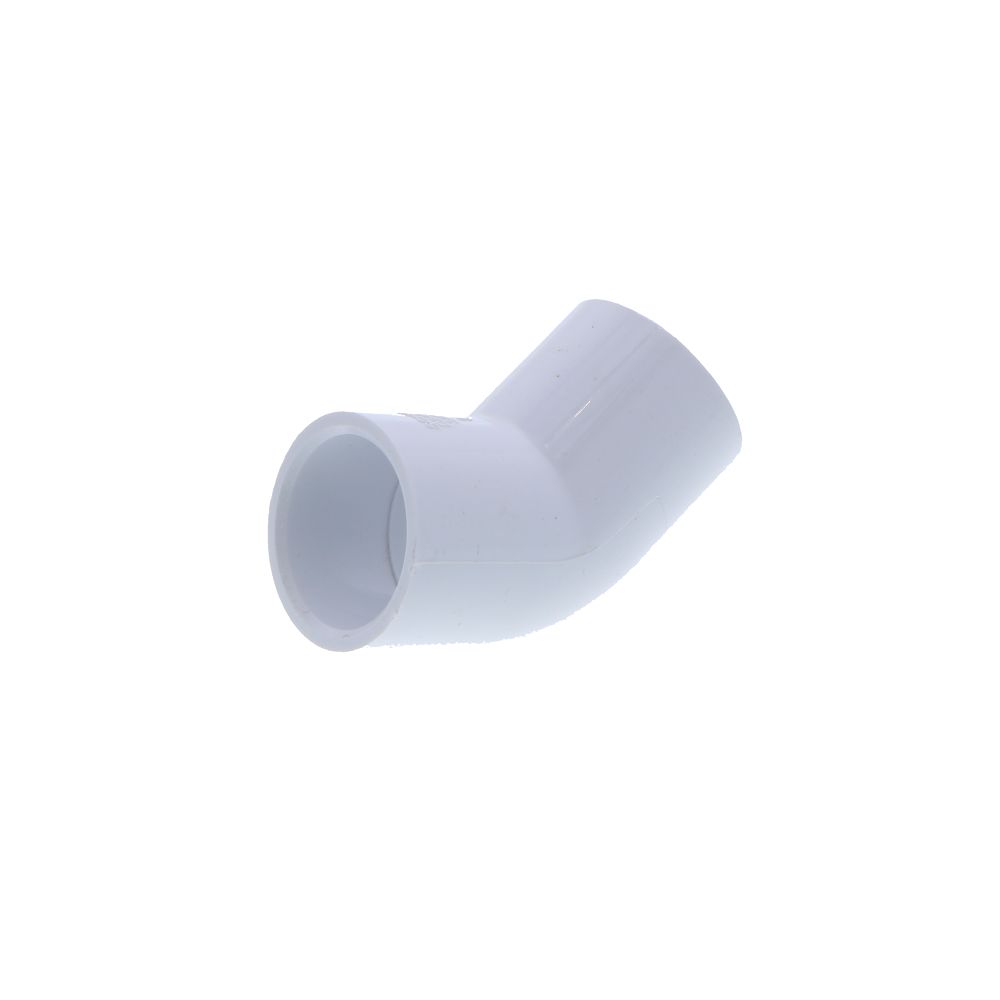

Schedule 40 PVC 45 Degree Elbow 3/4" Slip x 3/4" Slip

Part Number: 417-007

The 417-007 is a 45° Elbow designed with slip connections on both ends. The socket diameters are both 3/4". The interior of the elbow is constructed with a smooth surface for less pressure loss. The material of this elbow is PVC which can handle higher volume than standard metal fittings.

Specifications:

Angle: 45°
Schedule: 40
Material: PVC
Size: 3/4" x 3/4"
End Type: Slip x Slip
Max Temperature: 140° F
Standards: ASTM D1784 & NSF

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Body Material	Schedule 40 PVC
Inlet Connection	3/4" Slip
Max Pressure (Psi)	480
Max Temp (°F)	140
Min Pressure (Psi)	0
Mounting Options	Free Floating
Outlet Connection	3/4" Slip
Schedule	40
Series	Schedule 40
Shape	45
Size	3/4"
Color / Finish	White
Connection Type	Slip
End Cap Type	Slip
Origin	U.S.A.
Sub-Type	Union Elbow
Type	Elbow
Warranty & Certifications
Product Certification Standard	NSF/ANSI 61

Angle: 45°
Schedule: 40
Material: PVC
Size: 3/4" x 3/4"
End Type: Slip x Slip
Max Temperature: 140° F
Standards: ASTM D1784 & NSF
