Atlantic Ultraviolet Corporation

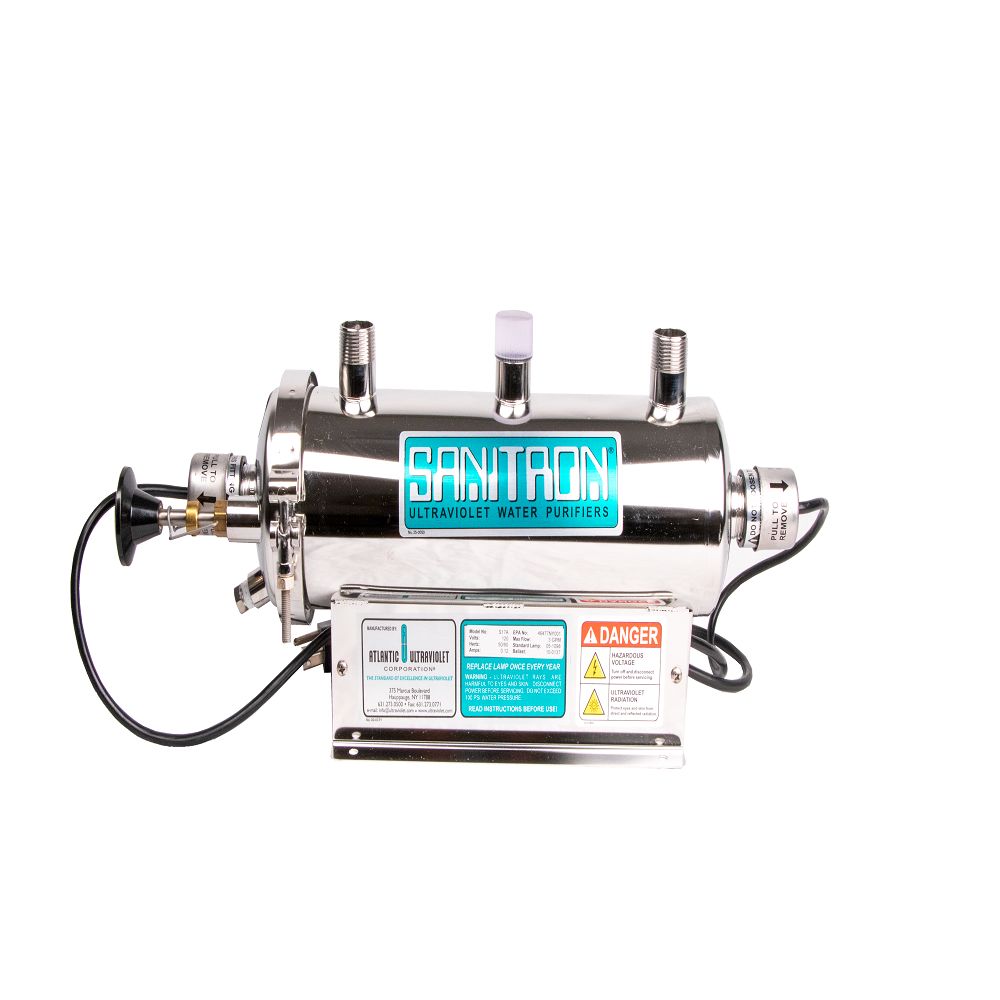

Sanitron S17A, 3 gpm, Ultraviolet Water Purifier

Part Number: S17A

Alt. Part Number: 25-1791

In Stock

out of stock

In Stock

$740.05


The Sanitron S17A Ultraviolet Water Purifier utilizes germicidal ultraviolet lamps that produce short wave radiation lethal to microorganisms present in water such as bacteria and viruses. The S17A is the ideal solution for an ever growing range of water treatment applications.
Specifications:
  • 2 to 416 gallons per minute, 120 to 25,000 GPH
  • Potable and high purity water applications
  • 304 or 316 stainless steel, electropolished and passivated

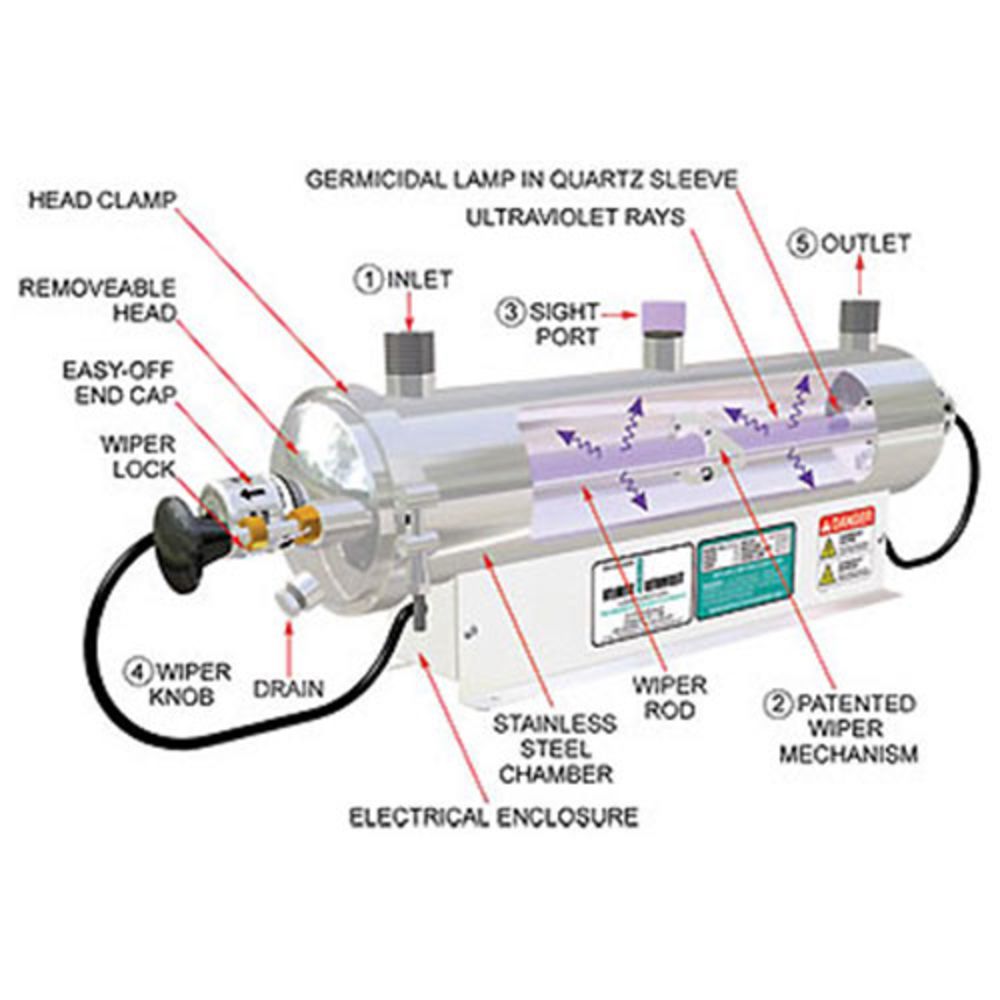

  • Easy off retainer cap for effortless lamp change
  • Drain plug for in-place drainage of the purifier chamber
  • Sight port to view germicidal lamp operation
  • Removable flanged head for easy disassemble
  • Patented dual action wiper mechanism for cleaning of the quartz sleeve
  • Interchangeable chamber for 5,000 GPH and up
  • Maximum recommended operating pressure for all purifiers is 100 p.s.i.
  • Pressure drop at maximum recommended flow rate is less than 5 p.s.i.
Sanitron S17A Advantages:
  • Effective - All micro-organisms are susceptible to Sanitron ultraviolet disinfection
  • Economical - Hundreds of gallons are purified for each penny of operating cost
  • Safe - No danger of overdosing; no addition of dangerous chemicals
  • Fast - Water is ready for use as soon as it leaves the purifier, no further contact time required
  • Easy - Simple installation and care. Compact units require minimum space.
  • Automatic - Provides continuous or intermittent disinfection without special attention
  • Chemical Free - No chlorine taste or corrosion problems
  • Versatile - Capacities available from two to thousands of gallons per minute (g.p.m.)
  • Stainless Steel Construction - 316 SS Electropolished
  • Origin: Made in USA
  • Warranty - 12 years UV chamber, 3 years Ballast, 1 year Lamp and Quartz Sleeve
Applications include home wells, farms, ranches, dairies, bottling plants, pharmaceutical and cosmetic industries, laboratories, hospital, electronic industries, food industry, hotels, aquarium and hatcheries, nurseries and pools, etc.



Weight & Dimensions

Approx Length (Inches)

19-3/8 Inches

Details

Body Material

316 Stainless Steel

Diameter

4-5/16 Inches

Flow Rate

3 GPM (30mJ/cm2 Dose)

Frequency

50-60 Hz

Number Of Lamps

1

Operating Pressure Range

5-100 PSI

Power

18 Watts

Size

3/4"

Voltage

120 V

Contaminants Reduced

Bacteria, Chlorine, Bad Taste & Odor, Heavy Metals

Inlet/Outlet Connection

3/4" | MPT

Warranty & Certifications

Warranty

1 year


Sanitron
