Rusco/Vu-Flow Stainless Steel Filter Screens for Sed. Trappers/Sand Separators

Part Number: FS-1-30STSS

Description

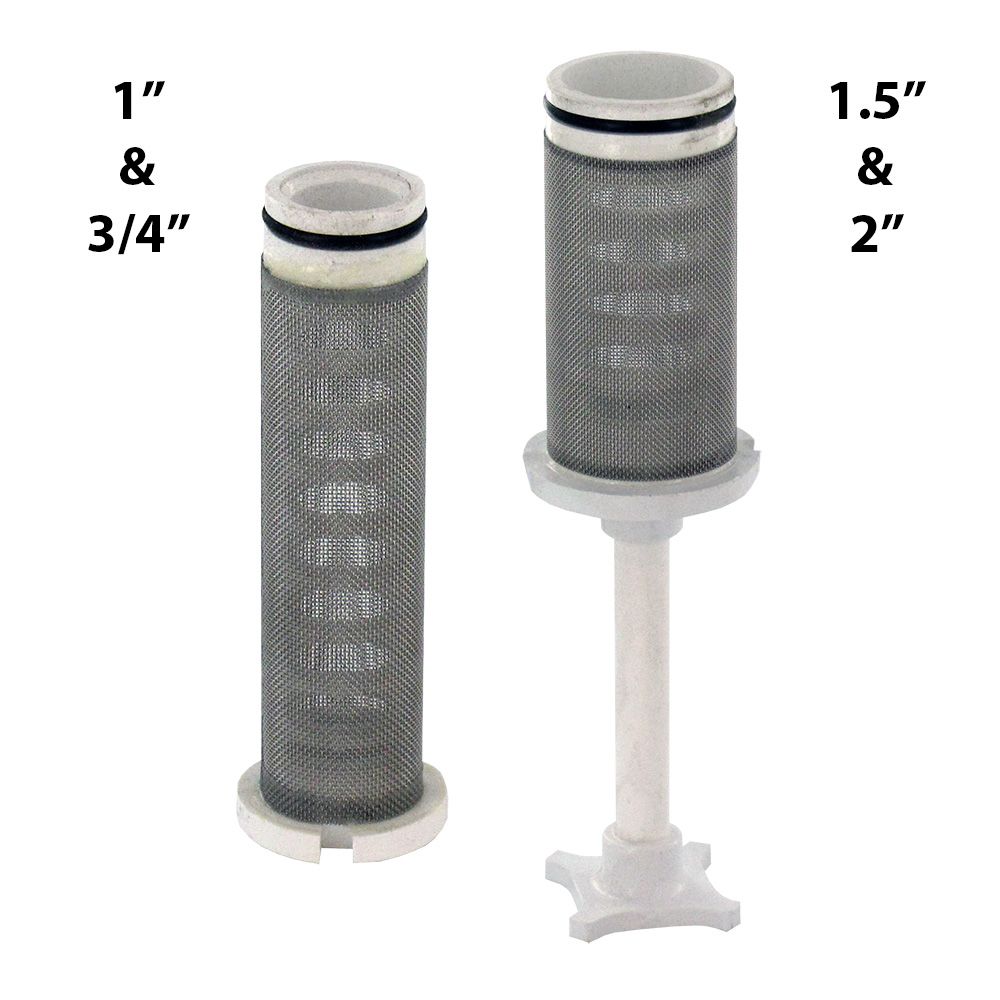

These filter screens fit in Rusco Sediment Trappers and Vu-Flow Sand Separators and are efficient in heavy sediment applications. They can be used in applications with a flow rate ranging from 1 GPM to 100 GPM. Applications include irrigation, drinking water, agriculture and industrial uses. The filter screen is cleanable and reusable. Use the table below to identify the correct screen size for your filter.

Spin Down Size	Filter Screen Length	Filter Screen Top Diameter
3/4" & 1"	5-1/4"	1-3/16"
1-1/2"	8-1/8"	1-5/8"
2"	10"	1-7/8"

Specifications

Product Details
Body Material	PVC
Body Size	1"
Inlet Connection	3/4" FPT 1" Slip 1-1/2" Slip 2" Slip
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 254 152 104 74
O-Rings	EPDM
Outlet Connection	3/4" FPT,1" Slip,1-1/2" Slip,2" Slip
Size	3/4" 1" 1-1/2" 2"
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT) Slip
Diameter	.021 .010 .006 .004 .0029
Flow Rate	1-100 GPM
Media Type	Stainless Steel
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Type	Sediment Trapper Filter Screens
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	1

Product Details
Body Material	PVC
Body Size	1-1/2"
Inlet Connection	3/4" FPT 1" Slip 1-1/2" Slip 2" Slip
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 254 152 104 74
O-Rings	EPDM
Outlet Connection	3/4" FPT,1" Slip,1-1/2" Slip,2" Slip
Size	3/4" 1" 1-1/2" 2"
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT) Slip
Diameter	.021 .010 .006 .004 .0029
Flow Rate	1-100 GPM
Media Type	Stainless Steel
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Type	Sediment Trapper Filter Screens
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	0.65

Product Details
Body Material	PVC
Body Size	2"
Inlet Connection	3/4" FPT 1" Slip 1-1/2" Slip 2" Slip
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 254 152 104 74
O-Rings	EPDM
Outlet Connection	3/4" FPT,1" Slip,1-1/2" Slip,2" Slip
Size	3/4" 1" 1-1/2" 2"
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT) Slip
Diameter	.021 .010 .006 .004 .0029
Flow Rate	1-100 GPM
Media Type	Stainless Steel
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Type	Sediment Trapper Filter Screens
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	0.85

Product Details
Body Material	PVC
Body Size	1"
Inlet Connection	3/4" FPT 1" Slip 1-1/2" Slip 2" Slip
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 254 152 104 74
O-Rings	EPDM
Outlet Connection	3/4" FPT,1" Slip,1-1/2" Slip,2" Slip
Size	3/4" 1" 1-1/2" 2"
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT) Slip
Diameter	.021 .010 .006 .004 .0029
Flow Rate	1-100 GPM
Media Type	Stainless Steel
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Type	Sediment Trapper Filter Screens
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	0.5

Product Details
Body Material	PVC
Body Size	1-1/2"
Inlet Connection	3/4" FPT 1" Slip 1-1/2" Slip 2" Slip
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 254 152 104 74
O-Rings	EPDM
Outlet Connection	3/4" FPT,1" Slip,1-1/2" Slip,2" Slip
Size	3/4" 1" 1-1/2" 2"
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT) Slip
Diameter	.021 .010 .006 .004 .0029
Flow Rate	1-100 GPM
Media Type	Stainless Steel
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Type	Sediment Trapper Filter Screens
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	0.25

Product Details
Body Material	PVC
Body Size	2"
Inlet Connection	3/4" FPT 1" Slip 1-1/2" Slip 2" Slip
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 254 152 104 74
O-Rings	EPDM
Outlet Connection	3/4" FPT,1" Slip,1-1/2" Slip,2" Slip
Size	3/4" 1" 1-1/2" 2"
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT) Slip
Diameter	.021 .010 .006 .004 .0029
Flow Rate	1-100 GPM
Media Type	Stainless Steel
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Type	Sediment Trapper Filter Screens
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	0.7

Product Details
Body Material	PVC
Body Size	1"
Inlet Connection	3/4" FPT 1" Slip 1-1/2" Slip 2" Slip
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 254 152 104 74
O-Rings	EPDM
Outlet Connection	3/4" FPT,1" Slip,1-1/2" Slip,2" Slip
Size	3/4" 1" 1-1/2" 2"
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT) Slip
Diameter	.021 .010 .006 .004 .0029
Flow Rate	1-100 GPM
Media Type	Stainless Steel
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Type	Sediment Trapper Filter Screens
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	0.03

Product Details
Body Material	PVC
Body Size	1-1/2"
Inlet Connection	3/4" FPT 1" Slip 1-1/2" Slip 2" Slip
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 254 152 104 74
O-Rings	EPDM
Outlet Connection	3/4" FPT,1" Slip,1-1/2" Slip,2" Slip
Size	3/4" 1" 1-1/2" 2"
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT) Slip
Diameter	.021 .010 .006 .004 .0029
Flow Rate	1-100 GPM
Media Type	Stainless Steel
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Type	Sediment Trapper Filter Screens
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	0.5

Product Details
Body Material	PVC
Body Size	2"
Inlet Connection	3/4" FPT 1" Slip 1-1/2" Slip 2" Slip
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 254 152 104 74
O-Rings	EPDM
Outlet Connection	3/4" FPT,1" Slip,1-1/2" Slip,2" Slip
Size	3/4" 1" 1-1/2" 2"
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT) Slip
Diameter	.021 .010 .006 .004 .0029
Flow Rate	1-100 GPM
Media Type	Stainless Steel
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Type	Sediment Trapper Filter Screens
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	0.9

Product Details
Body Material	PVC
Body Size	1"
Inlet Connection	3/4" FPT 1" Slip 1-1/2" Slip 2" Slip
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 254 152 104 74
O-Rings	EPDM
Outlet Connection	3/4" FPT,1" Slip,1-1/2" Slip,2" Slip
Size	3/4" 1" 1-1/2" 2"
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT) Slip
Diameter	.021 .010 .006 .004 .0029
Flow Rate	1-100 GPM
Media Type	Stainless Steel
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Type	Sediment Trapper Filter Screens
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	0.65

Product Details
Body Material	PVC
Body Size	1-1/2"
Inlet Connection	3/4" FPT 1" Slip 1-1/2" Slip 2" Slip
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 254 152 104 74
O-Rings	EPDM
Outlet Connection	3/4" FPT,1" Slip,1-1/2" Slip,2" Slip
Size	3/4" 1" 1-1/2" 2"
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT) Slip
Diameter	.021 .010 .006 .004 .0029
Flow Rate	1-100 GPM
Media Type	Stainless Steel
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Type	Sediment Trapper Filter Screens
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	0.38

Product Details
Body Material	PVC
Body Size	2"
Inlet Connection	3/4" FPT 1" Slip 1-1/2" Slip 2" Slip
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 254 152 104 74
O-Rings	EPDM
Outlet Connection	3/4" FPT,1" Slip,1-1/2" Slip,2" Slip
Size	3/4" 1" 1-1/2" 2"
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT) Slip
Diameter	.021 .010 .006 .004 .0029
Flow Rate	1-100 GPM
Media Type	Stainless Steel
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Type	Sediment Trapper Filter Screens
Shipping Dimensions
Shipping Length	14 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	1

Product Details
Body Material	PVC
Body Size	1"
Inlet Connection	3/4" FPT 1" Slip 1-1/2" Slip 2" Slip
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 254 152 104 74
O-Rings	EPDM
Outlet Connection	3/4" FPT,1" Slip,1-1/2" Slip,2" Slip
Size	3/4" 1" 1-1/2" 2"
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT) Slip
Diameter	.021 .010 .006 .004 .0029
Flow Rate	1-100 GPM
Media Type	Stainless Steel
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Type	Sediment Trapper Filter Screens
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	0.25

Product Details
Body Material	PVC
Body Size	1-1/2"
Inlet Connection	3/4" FPT 1" Slip 1-1/2" Slip 2" Slip
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 254 152 104 74
O-Rings	EPDM
Outlet Connection	3/4" FPT,1" Slip,1-1/2" Slip,2" Slip
Size	3/4" 1" 1-1/2" 2"
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT) Slip
Diameter	.021 .010 .006 .004 .0029
Flow Rate	1-100 GPM
Media Type	Stainless Steel
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Type	Sediment Trapper Filter Screens
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	0.7

Product Details
Body Material	PVC
Body Size	2"
Inlet Connection	3/4" FPT 1" Slip 1-1/2" Slip 2" Slip
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 254 152 104 74
O-Rings	EPDM
Outlet Connection	3/4" FPT,1" Slip,1-1/2" Slip,2" Slip
Size	3/4" 1" 1-1/2" 2"
Cartridge Style	Sediment Trapper
Connection Type	Female (FPT) Slip
Diameter	.021 .010 .006 .004 .0029
Flow Rate	1-100 GPM
Media Type	Stainless Steel
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Type	Sediment Trapper Filter Screens
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	1

Downloads

Rusco/Vu-Flow Stainless Steel Filter Screens for Sed. Trappers/Sand Separators - 200 mesh (61 mic) for 3/4

Reviews (16)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Rusco/Vu-Flow Stainless Steel Filter Screens for Sed. Trappers/Sand Separators

Rusco/Vu-Flow Stainless Steel Filter Screens for Sed. Trappers/Sand Separators

You May Also Need

Request A Quote

Shipping Information

Description

Specifications

Downloads

Reviews (16)

Safe & Secure Checkout

We’re here to help

Your cart

Rusco/Vu-Flow Stainless Steel Filter Screens for Sed. Trappers/Sand Separators

Shop

Help

Info

Choose options
