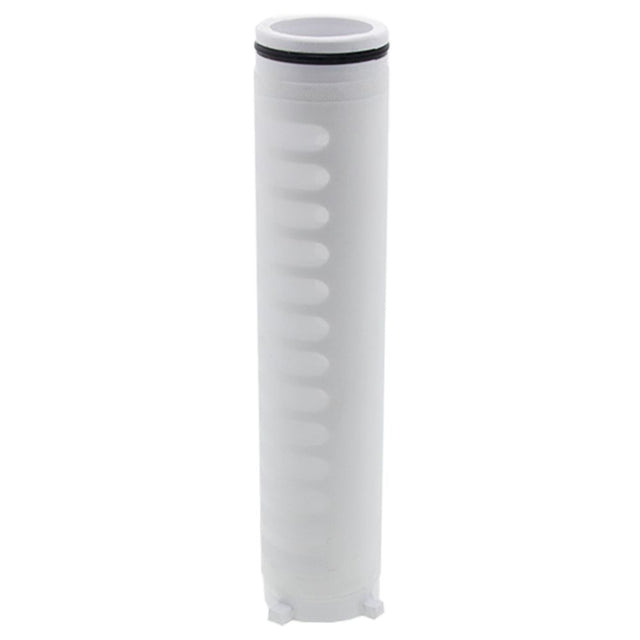

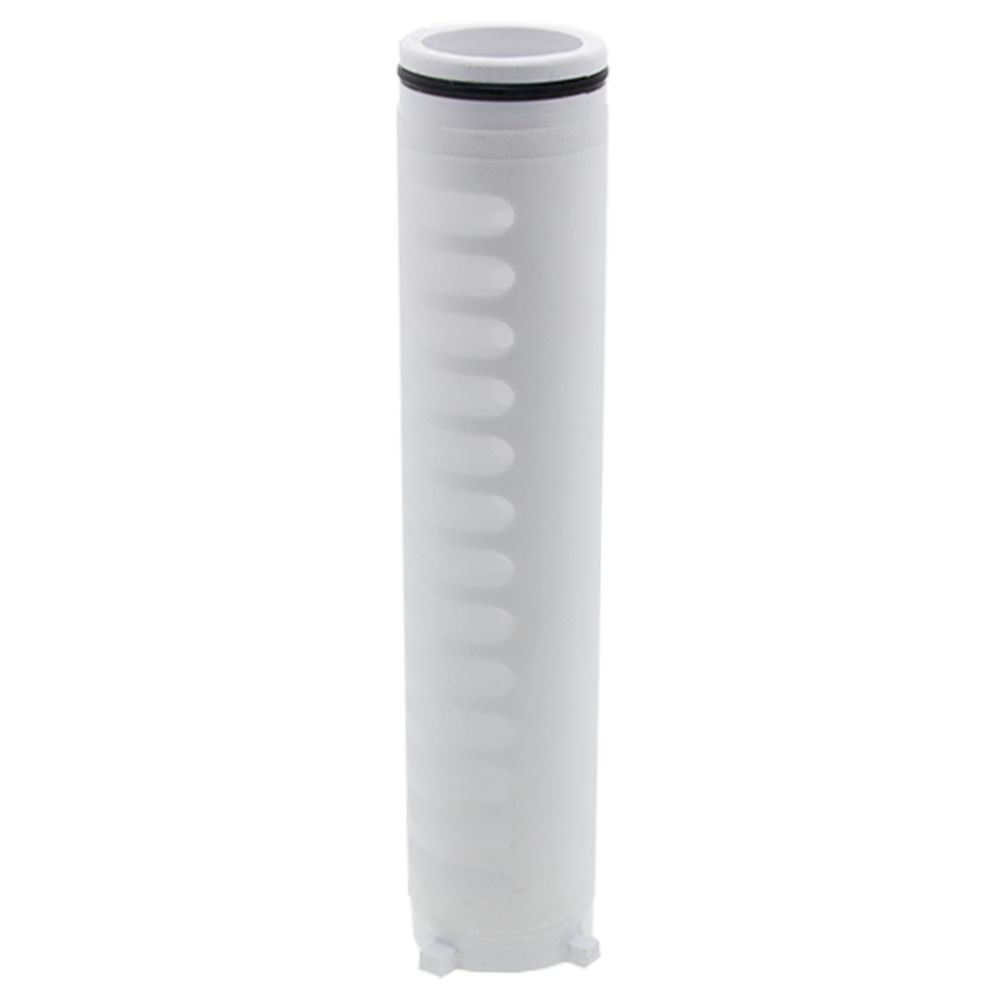

![Rusco/Vu-Flow Polyester Filter Screens for Spin-Down/Sediment Filters - 100 mesh [152 mic] for 2" Spin-Down/Sediment](http://cdn.shopify.com/s/files/1/2723/8896/products/li97pnv7hrokcifql6wo_1500x.jpg?v=1596557932)
The Rusco/Vu-Flow filter screens are efficient in heavy sediment applications. They can be used in applications with a flow rate ranging from 1 GPM to 100 GPM. Applications include irrigation, drinking water, agriculture and industrial uses.The filter screen is cleanable and reusable. Use the table below to identify the correct screen size for your spin down filter.
| Spin Down Size |
Filter Screen Length |
Filter Screen Top Diameter |
| 3/4" & 1" | 5-1/4" | 1-3/16" |
| 1-1/2" | 8-1/8" | 1-5/8" |
| 2" | 10" | 1-7/8" |
| Rusco # | VuFlow | Fits | Mesh/Microns/ Opening |
| FS-3/4-30ST | NT1SC30 | 3/4" & 1" | 30/533/.021" |
| FS-3/4-60ST | NT1SC60 | 3/4" & 1" | 60/254/.010" |
| FS-3/4-100ST | NT1SC100 | 3/4" & 1" | 100/152/.006" |
| FS-3/4-140ST | NT1SC140 | 3/4" & 1" | 140/104/.004" |
| FS-3/4-250ST | NT1SC250 | 3/4" & 1" | 250/61/.0024" |
| FS-3/4-500ST | NT1SC500 | 3/4" & 1" | 500/30/.0012" |
| FS-3/4-1000ST | NT1SC1000 | 3/4" & 1" | 1000/15/.0006" |

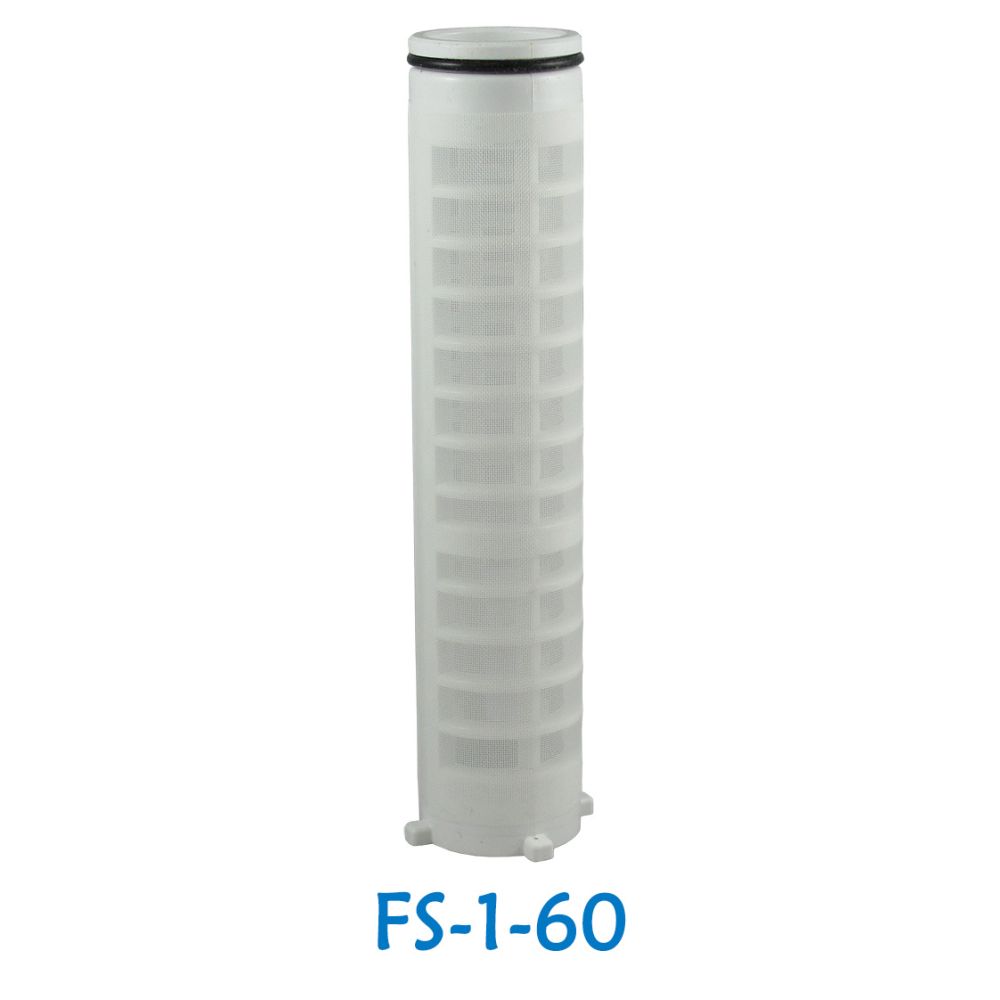

| FS-1-60ST | NT1SC60 | 1" & 3/4" | 60/254/.010" |
| FS-1-100ST | NT1SC100 | 1" & 3/4" | 100/152/.006" |

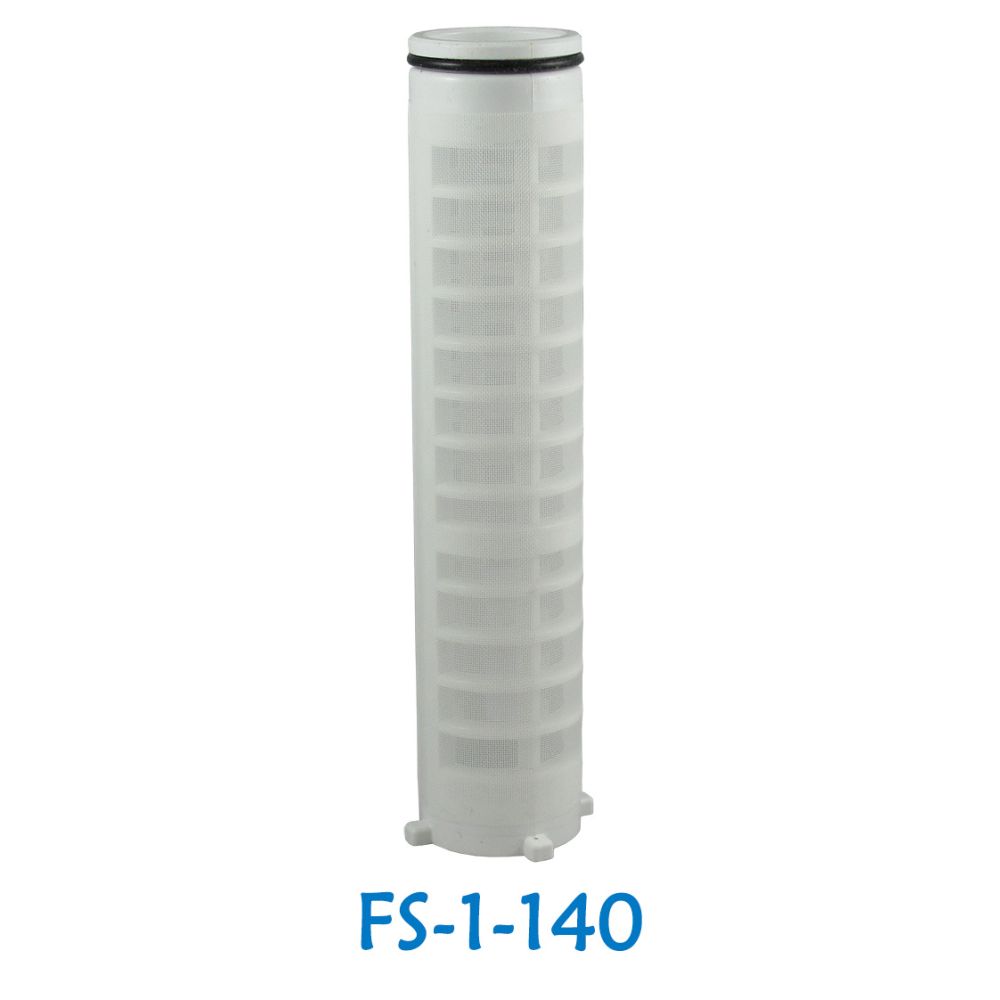

| FS-1-140ST | NT1SC140 | 1" & 3/4" | 140/104/.004" |
| FS-1-250ST | NT1SC250 | 1" & 3/4" | 250/61/.0024" |

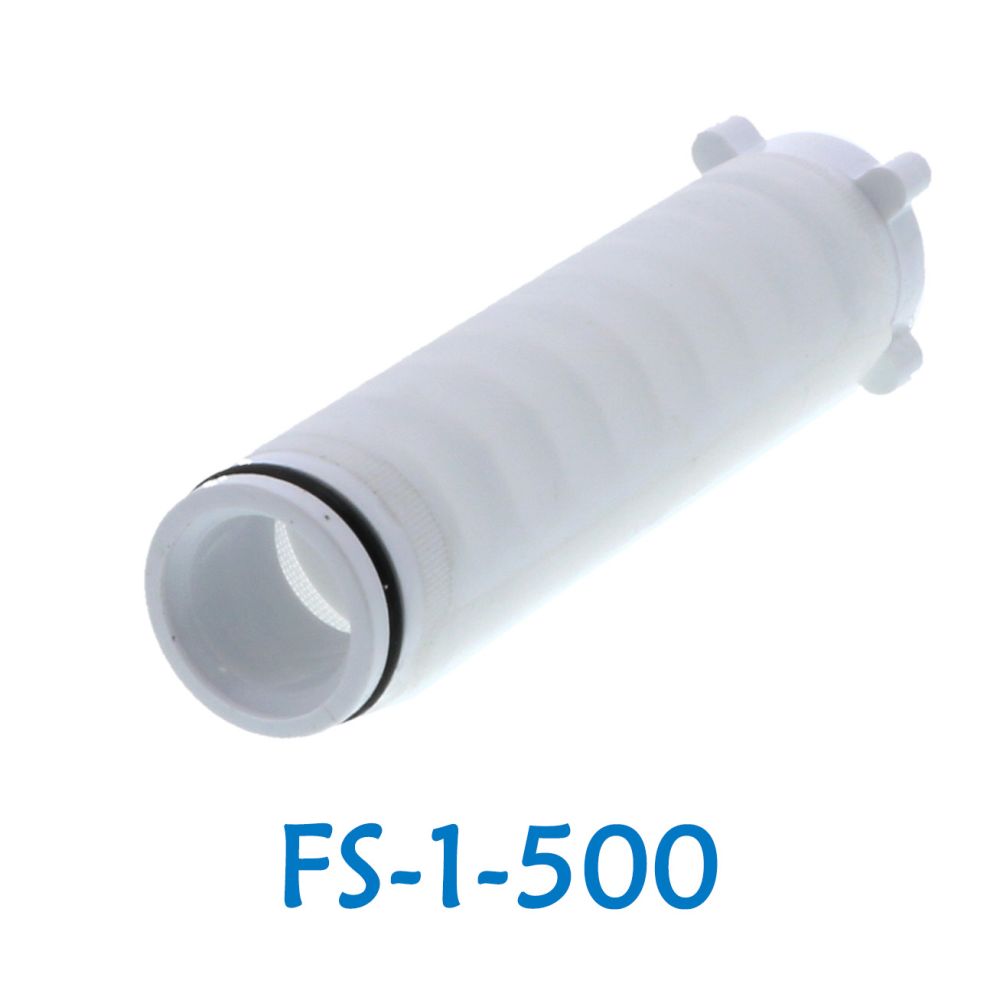

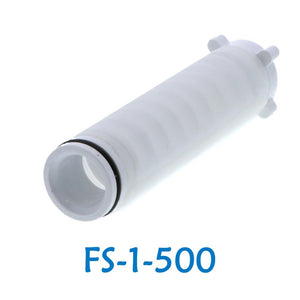

| FS-1-500ST | NT1SC500 | 1" & 3/4" | 500/30/.0012" |

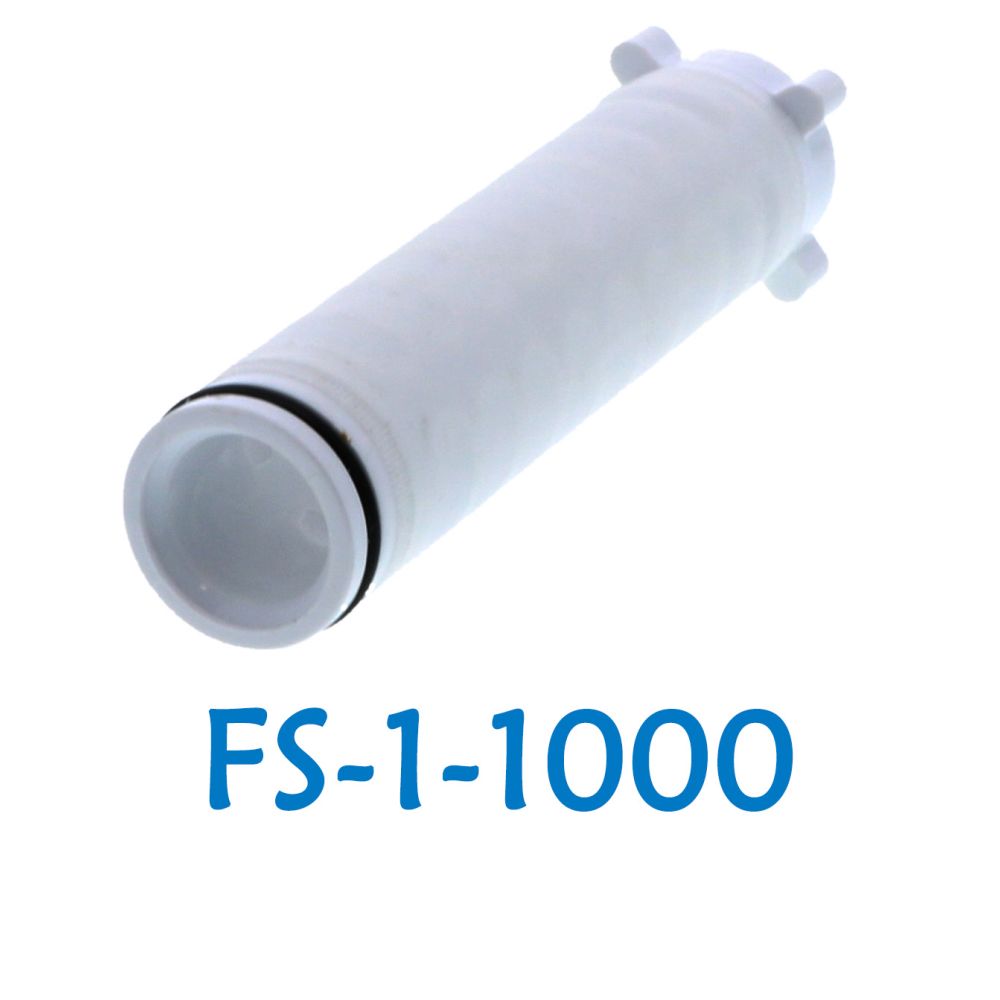

| FS-1-1000ST | NT1SC1000 | 1" & 3/4" | 1000/15/.0006" |
| FS-1-1/2-30ST | NT1.5SC30 | 1.5" ST or SD | 30/533/.021" |

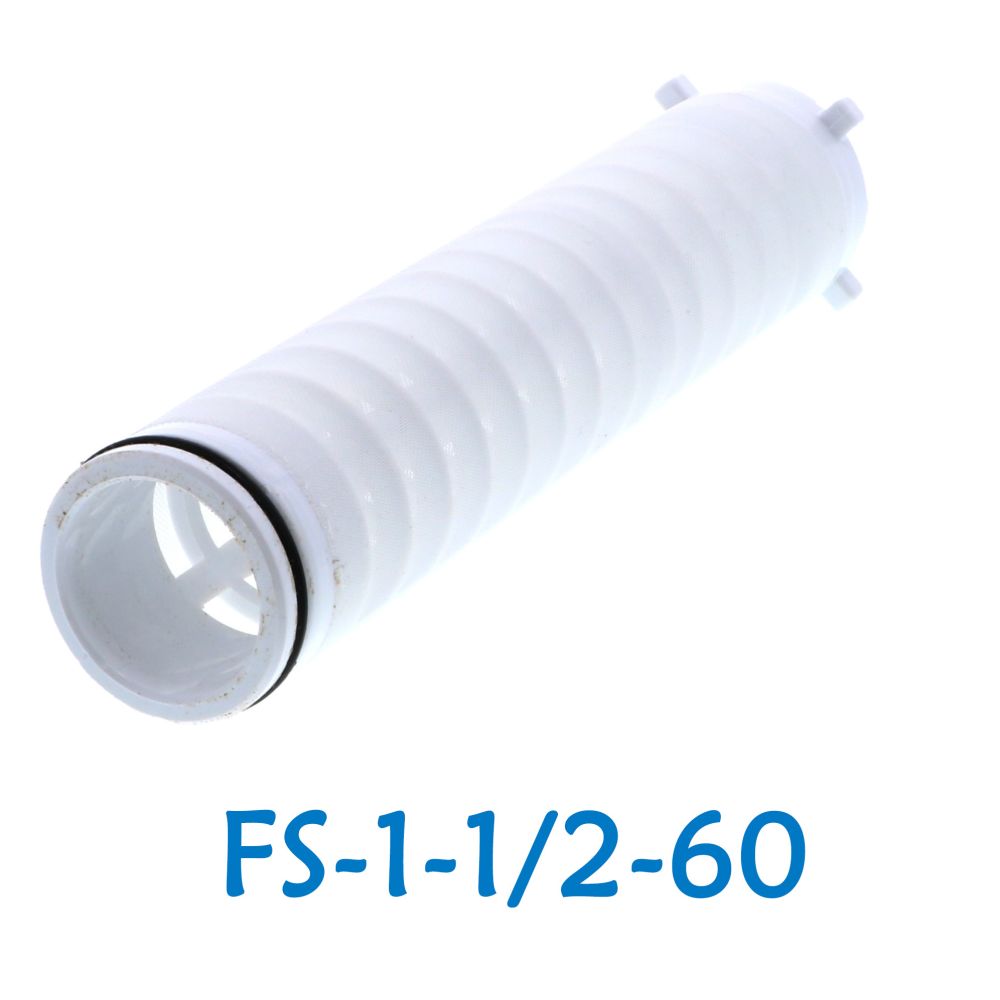

| FS-1-1/2-60ST | NT1.5SC60 | 1.5" ST or SD | 60/254/.010" |

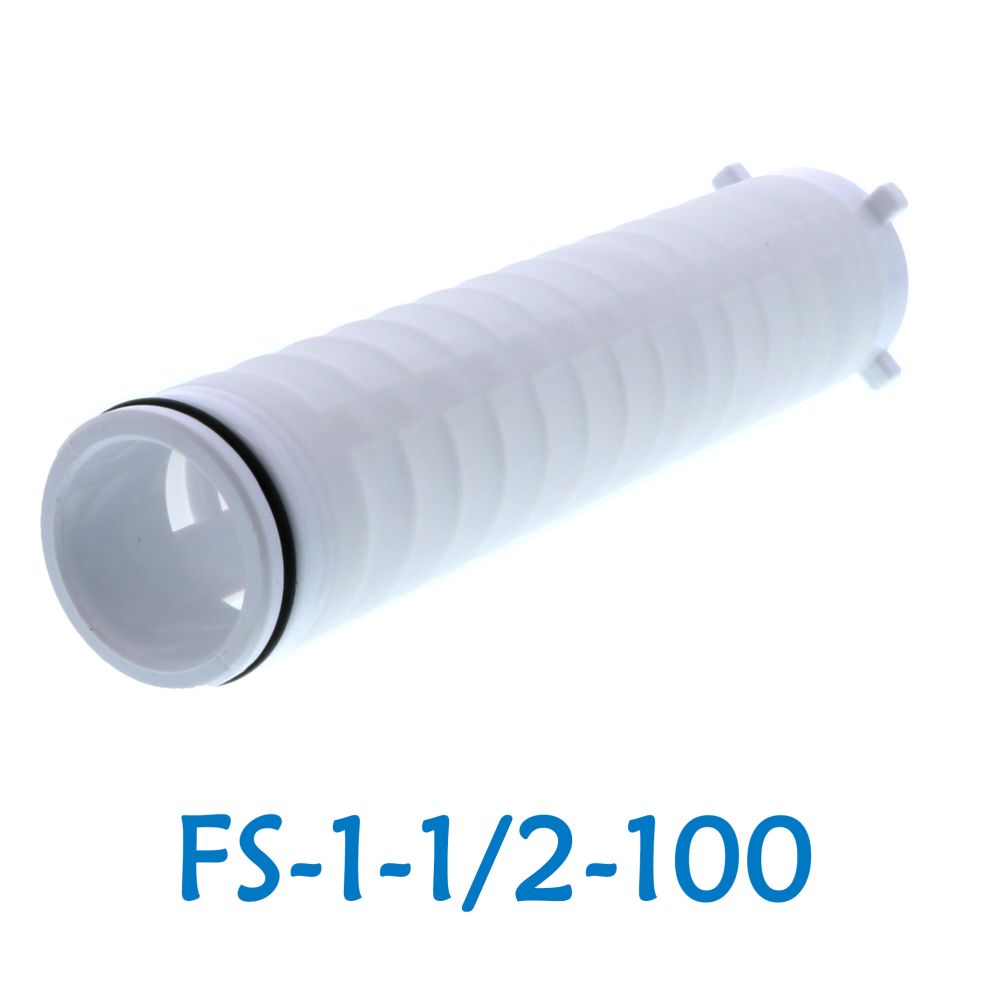

| FS-1-1/2-100ST | NT1.5SC100 | 1.5" ST or SD | 100/152/.006" |

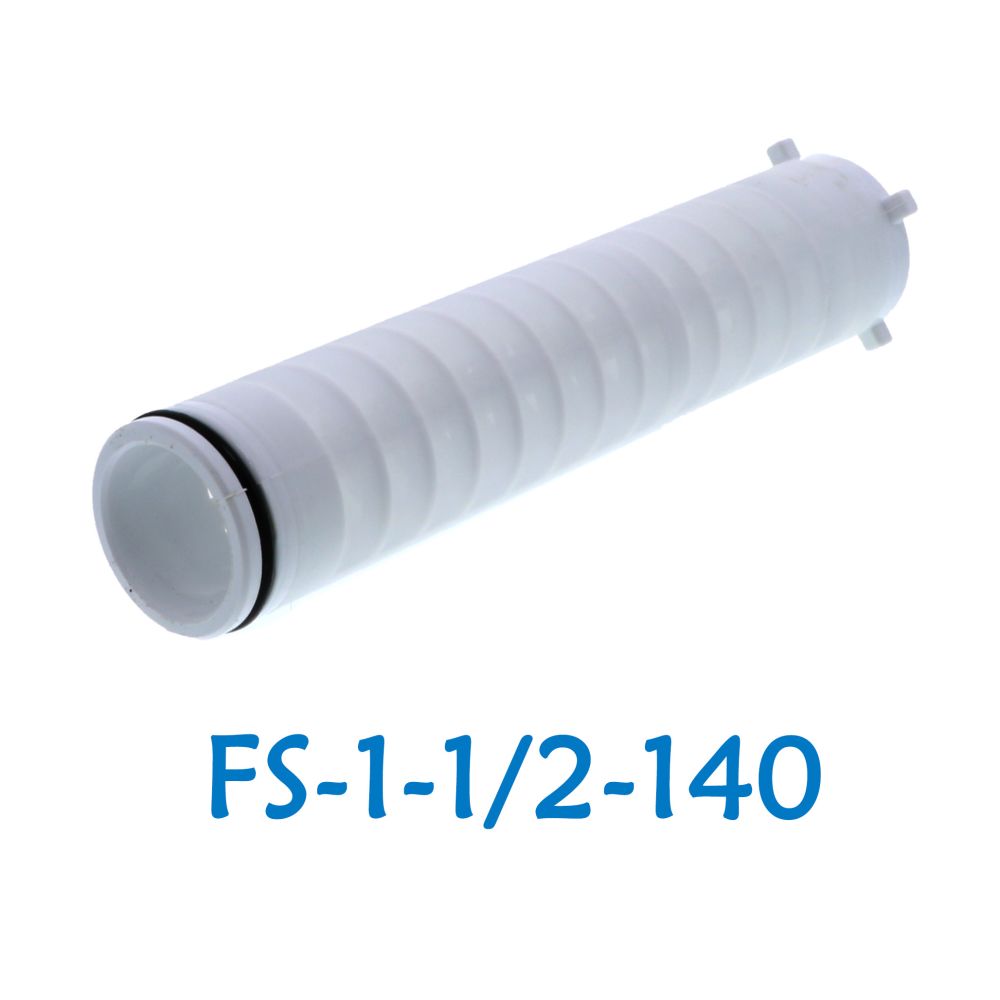

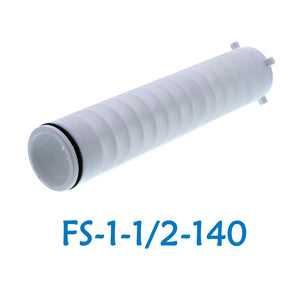

| FS-1-1/2-140ST | NT1.5SC140 | 1.5" ST or SD | 140/104/.004" |

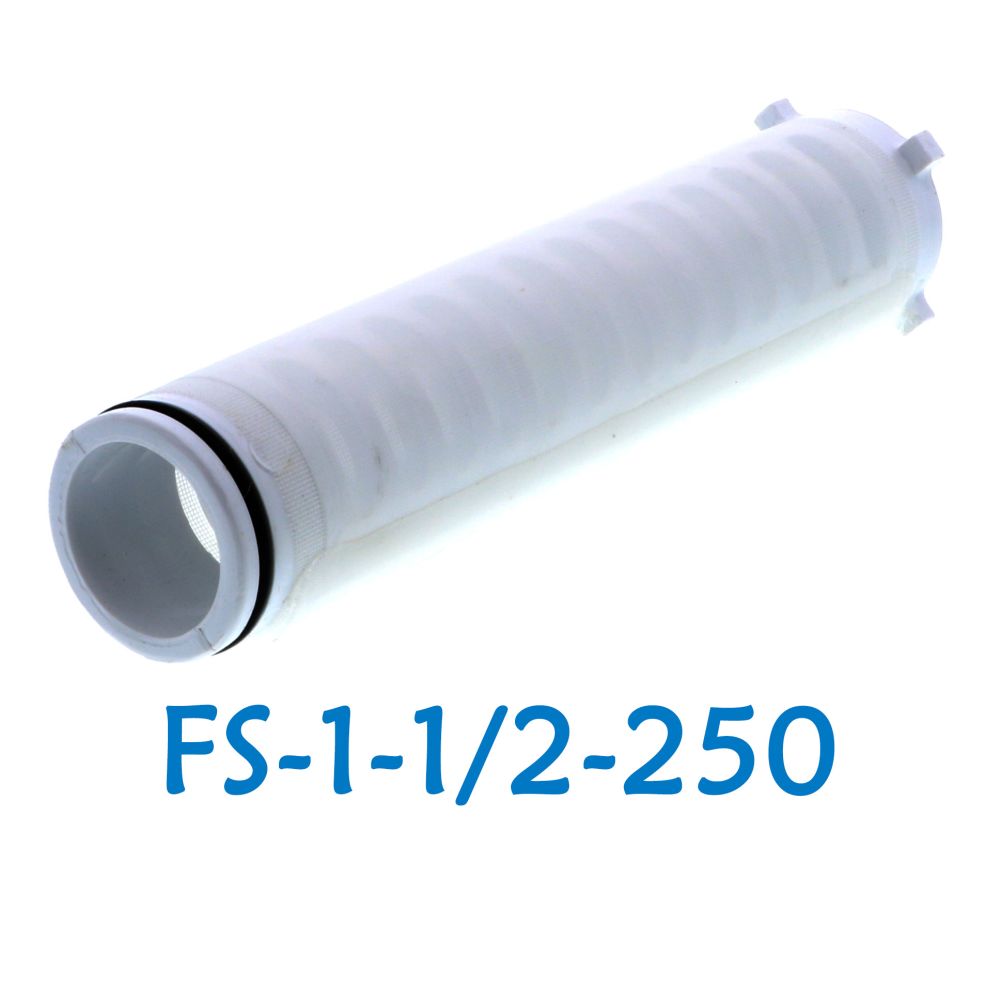

| FS-1-1/2-250ST | NT1.5SC250 | 1.5" ST or SD | 250/61/.0024" |

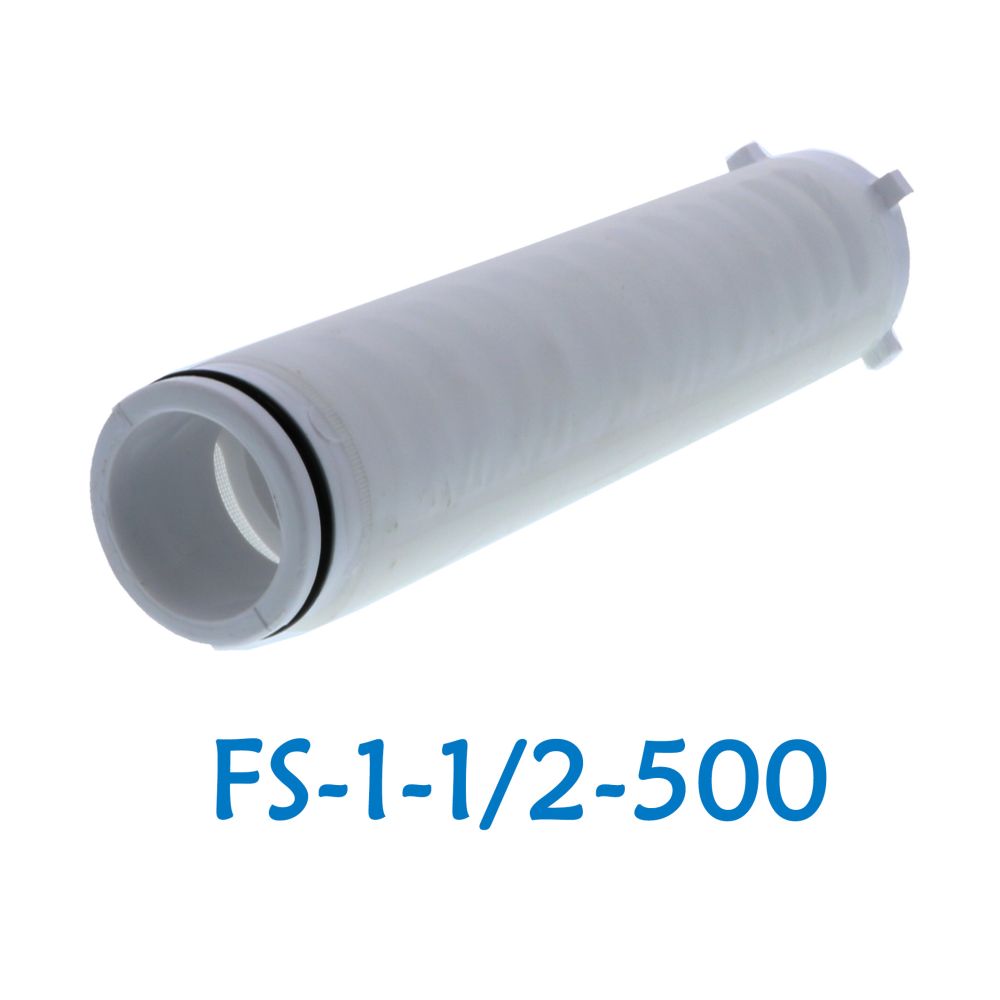

| FS-1-1/2-500ST | NT1.5SC500 | 1.5" ST or SD | 500/30/.0012" |

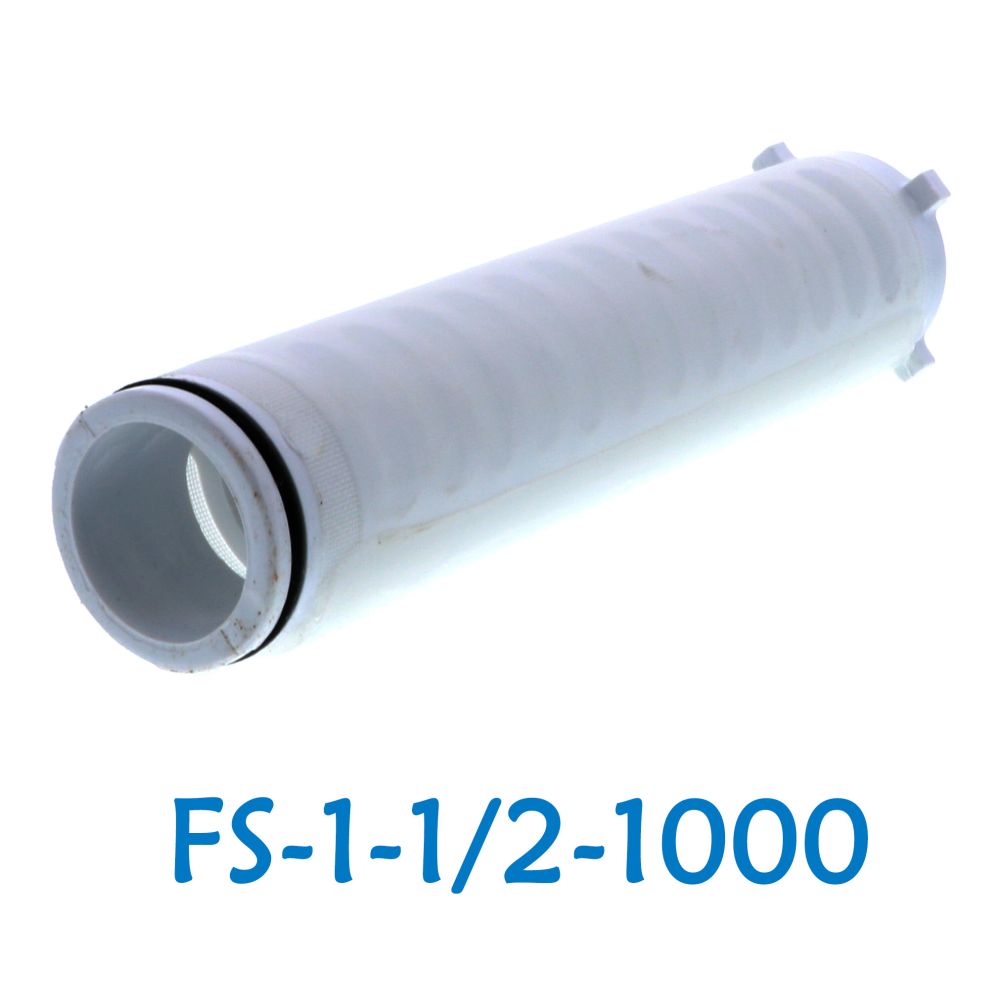

| FS-1-1/2-1000ST | NT1.5SC1000 | 1.5" ST or SD | 1000/15/.0006" |
| FS-2-30ST | NT2SC30 | 2" ST or SD | 30/533/.021" |

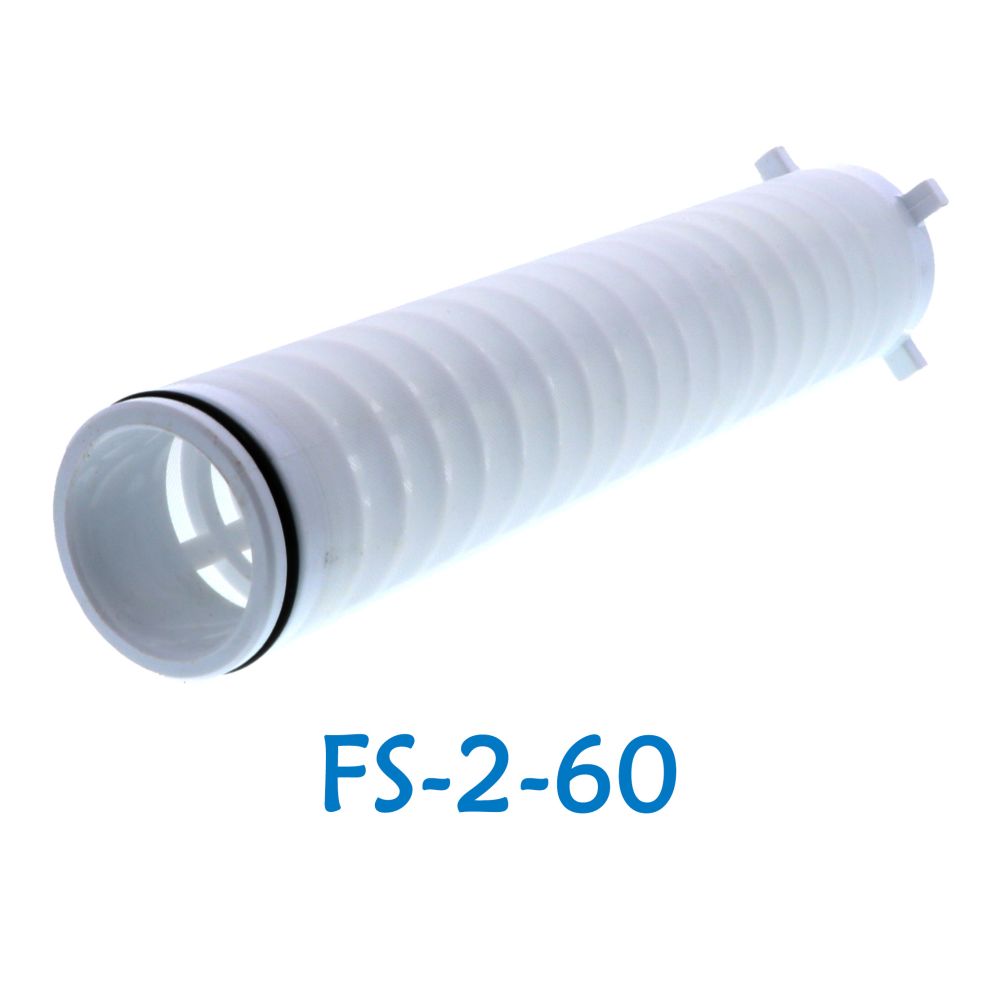

| FS-2-60ST | NT2SC60 | 2" ST or SD | 60/254/.010" |

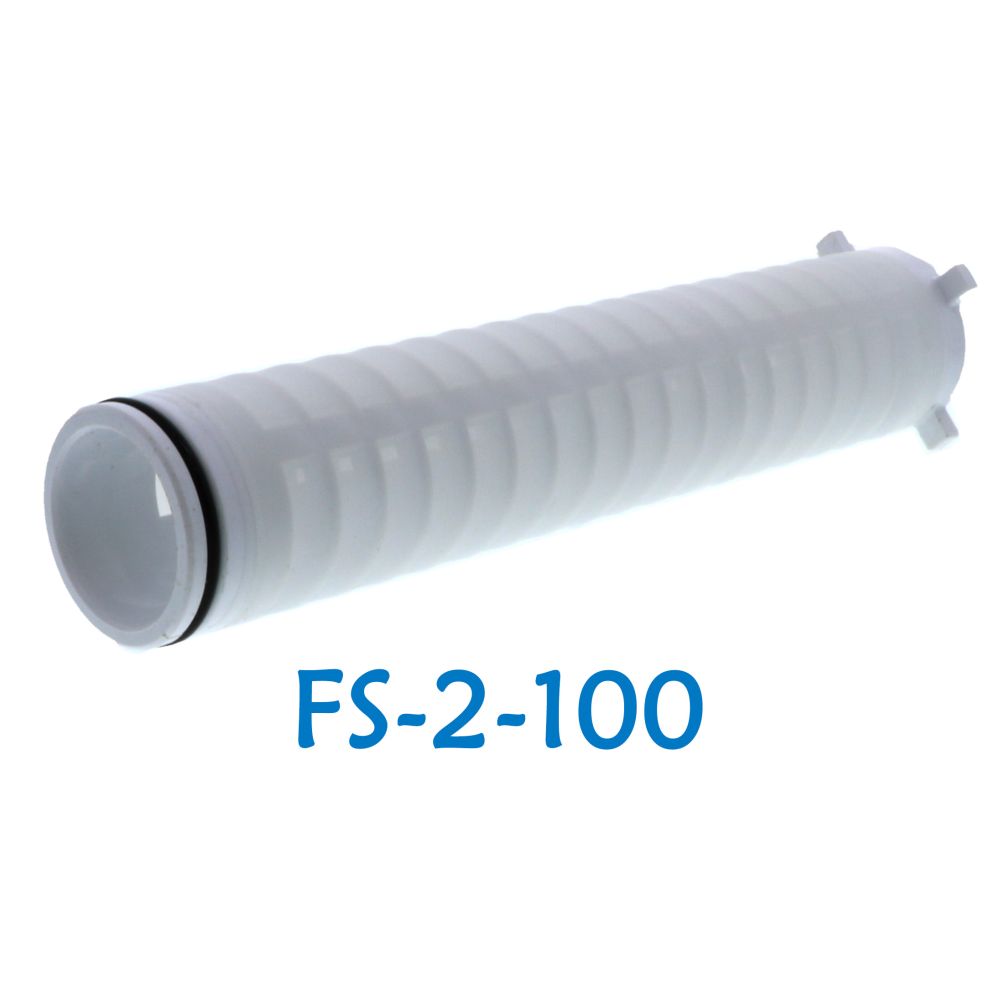

| FS-2-100ST | NT2SC100 | 2" ST or SD | 100/152/.006" |
| FS-2-140ST | NT2SC140 | 2" ST or SD | 140/104/.004" |

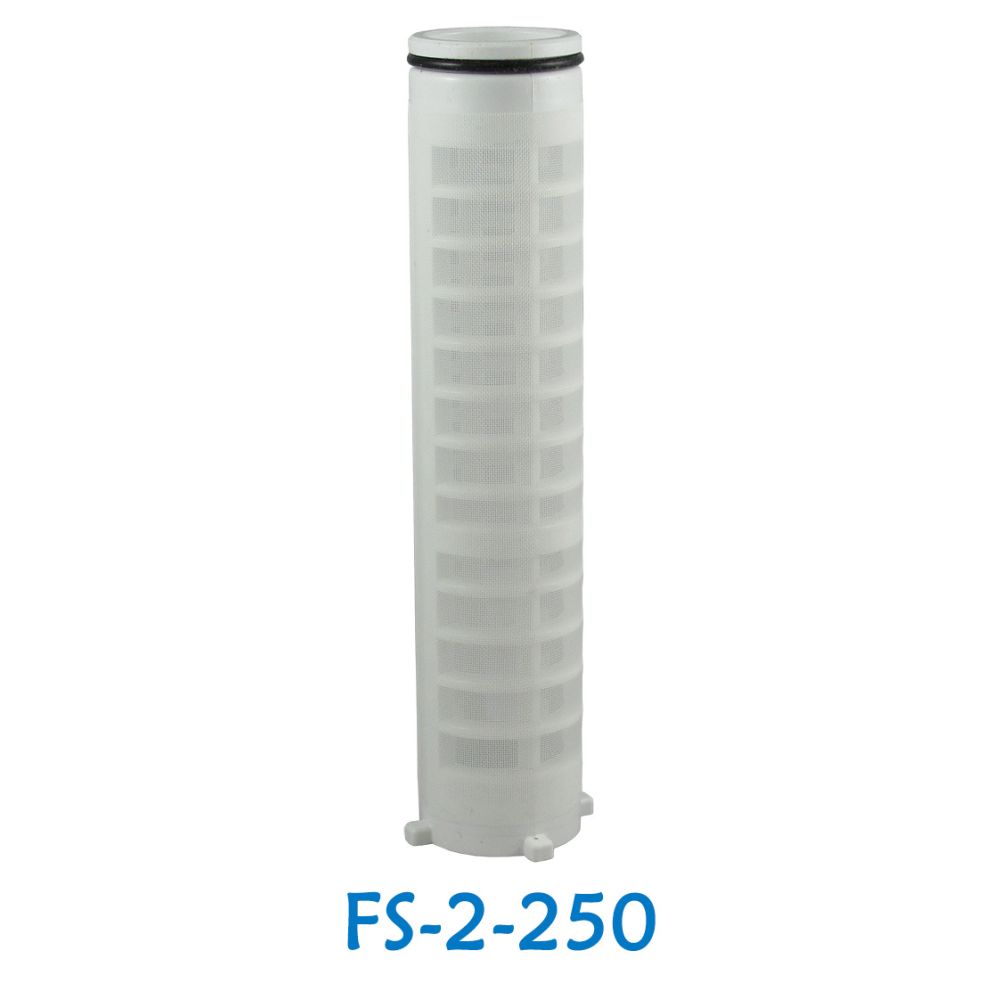

| FS-2-250ST | NT2SC250 | 2" ST or SD | 250/61/.0024" |

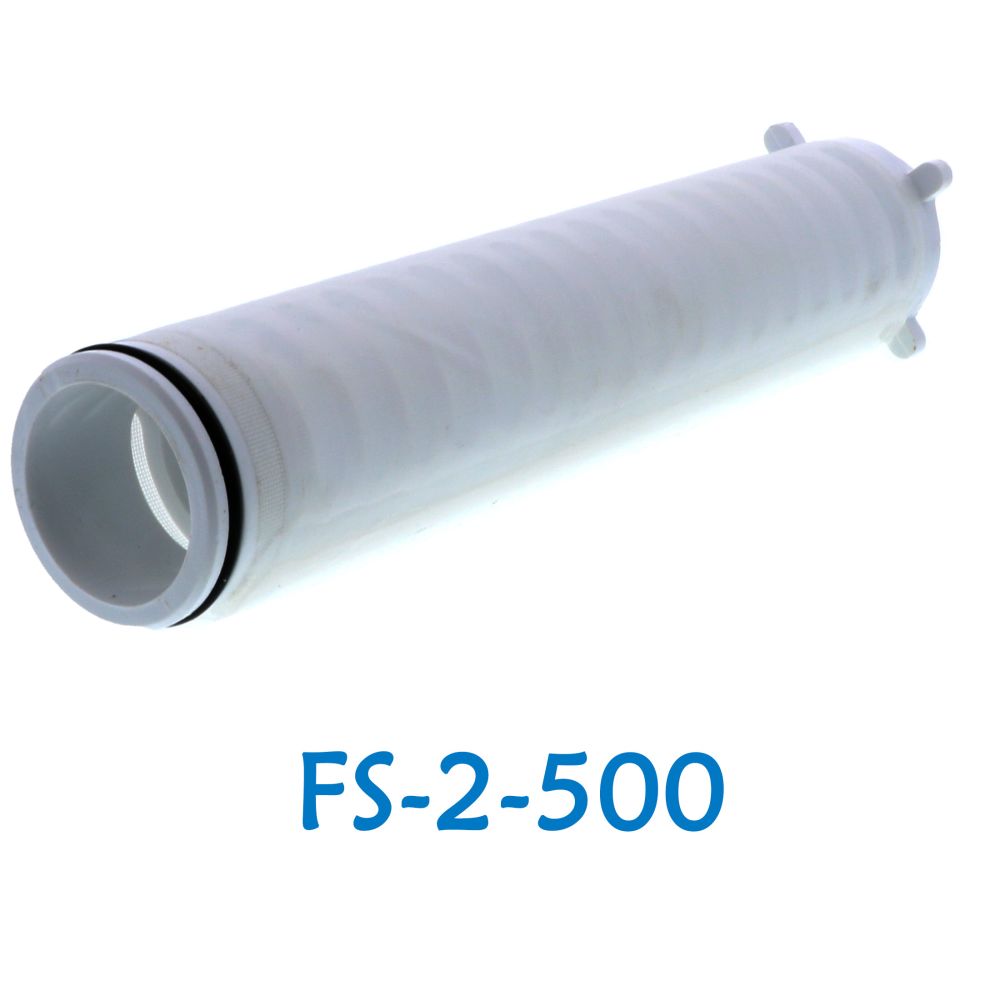

| FS-2-500ST | NT2SC500 | 2" ST or SD | 500/30/.0012" |

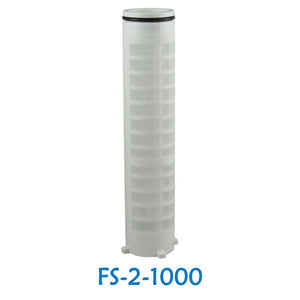

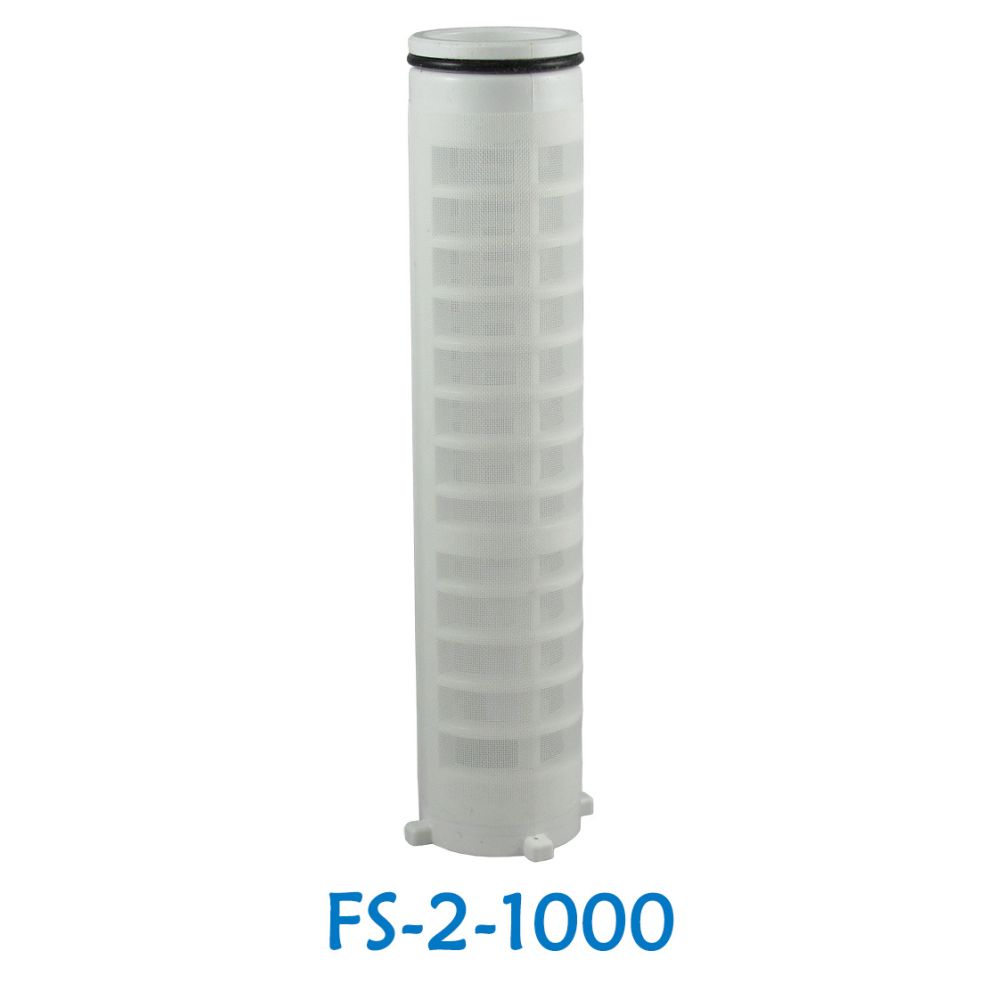

| FS-2-1000ST | NT2SC1000 | 2" ST or SD | 1000/15/.0006" |
Details
Body Material | PVC |
Inlet/Outlet Connection | 3/4" FPT, 1" Slip, 1-1/2" Slip, 2" Slip |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 100 |

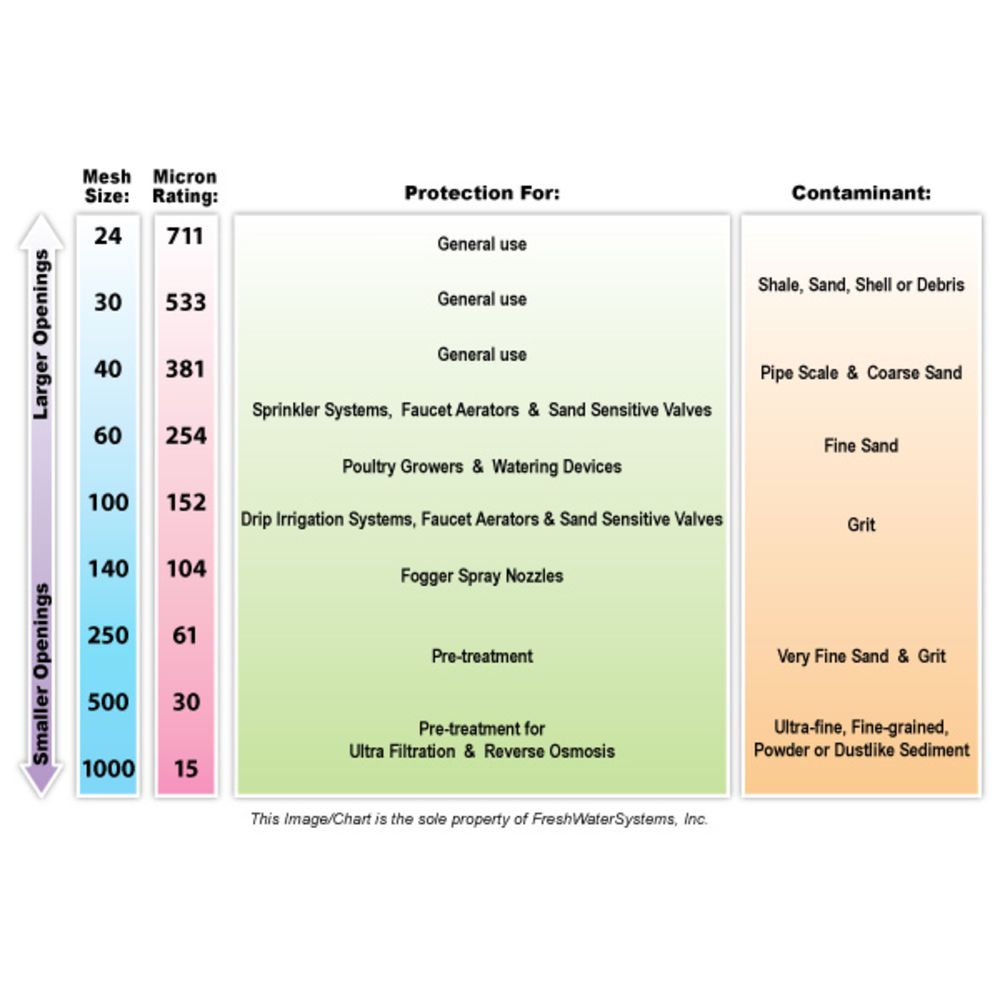

Mesh Size | 30, 60, 100, 140, 250, 500, 1000 |
Micron Rating (Nominal) | 533 µm, 254 µm, 152 µm, 104 µm, 61 µm, 30 µm, 15 µm |
O-Rings | EPDM |
Size | 3/4", 1", 1-1/2", 2" |
Cartridge Style | Spin-down, Sediment Trapper |
Connection Type | Female (FPT), Slip |
Diameter | .021, .010, .006, .004, .0024, .0012, .0006 |
Flow Rate | 1-100 GPM |
Media Type | Polyester |
