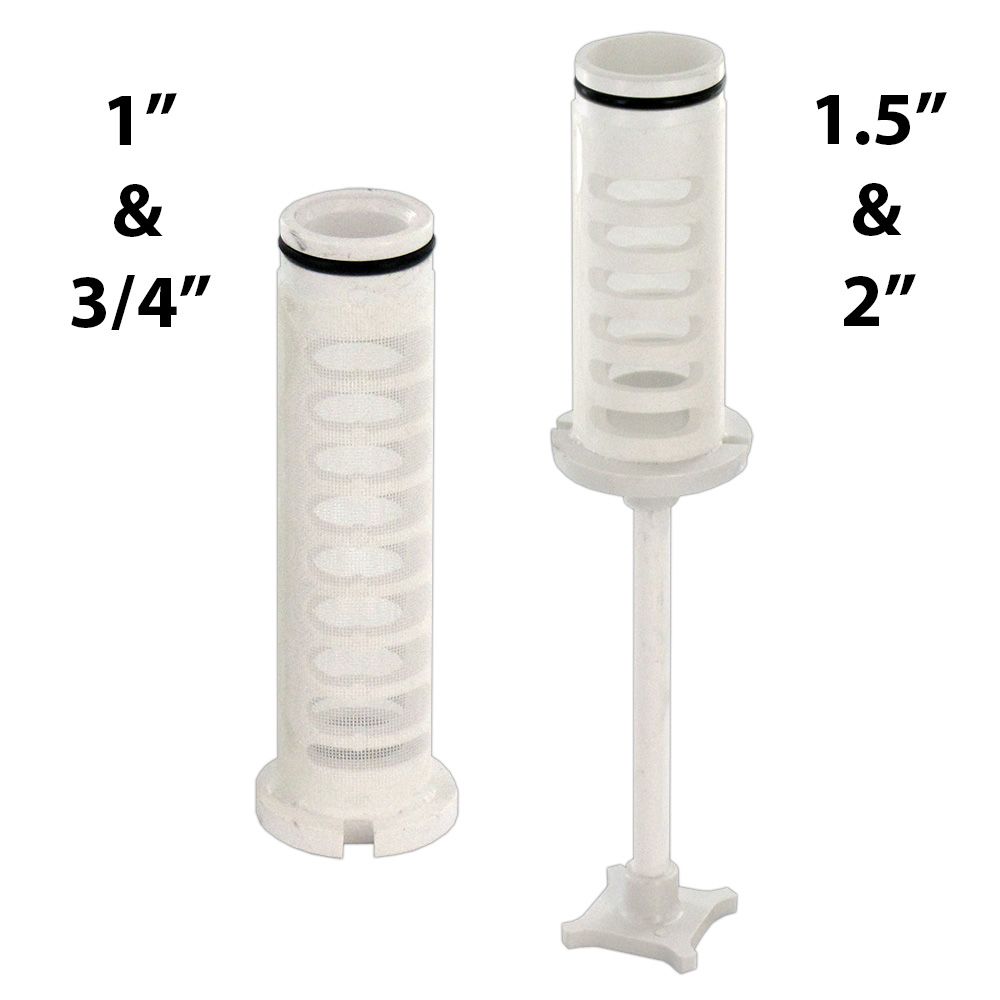

These filter screens fit in Rusco Sediment Trapper and Vu-Flow Sand Separator Filter Systems. They are efficient in heavy sediment applications. They can be used in applications with a flow rate ranging from 1 GPM to 100 GPM. Applications include irrigation, drinking water, agriculture and industrial uses. The filter screen is cleanable and reusable. Use the table below to identify the correct screen size for your spin down sediment trapper filter.
| Spin Down Size |
Filter Screen Length |
Filter Screen Top Diameter |
| 3/4" & 1" | 5-1/4" | 1-3/16" |
| 1-1/2" | 8-1/8" | 1-5/8" |
| 2" | 10" | 1-7/8" |
| Rusco # | VuFlow | Fits | Mesh/Microns/ Opening |
| FS-3/4-30ST | NT1SC30 | 3/4" & 1" | 30/533/.021" |
| FS-3/4-60ST | NT1SC60 | 3/4" & 1" | 60/254/.010" |
| FS-3/4-100ST | NT1SC100 | 3/4" & 1" | 100/152/.006" |
| FS-3/4-140ST | NT1SC140 | 3/4" & 1" | 140/104/.004" |
| FS-3/4-250ST | NT1SC250 | 3/4" & 1" | 250/61/.0024" |
| FS-3/4-500ST | NT1SC500 | 3/4" & 1" | 500/30/.0012" |
| FS-3/4-1000ST | NT1SC1000 | 3/4" & 1" | 1000/15/.0006" |
| FS-1-60ST | NT1SC60 | 1" & 3/4" | 60/254/.010" |
| FS-1-100ST | NT1SC100 | 1" & 3/4" | 100/152/.006" |
| FS-1-140ST | NT1SC140 | 1" & 3/4" | 140/104/.004" |
| FS-1-250ST | NT1SC250 | 1" & 3/4" | 250/61/.0024" |
| FS-1-500ST | NT1SC500 | 1" & 3/4" | 500/30/.0012" |
| FS-1-1000ST | NT1SC1000 | 1" & 3/4" | 1000/15/.0006" |
| FS-1-1/2-30ST | NT1.5SC30 | 1.5" ST or SD | 30/533/.021" |
| FS-1-1/2-60ST | NT1.5SC60 | 1.5" ST or SD | 60/254/.010" |
| FS-1-1/2-100ST | NT1.5SC100 | 1.5" ST or SD | 100/152/.006" |
| FS-1-1/2-140ST | NT1.5SC140 | 1.5" ST or SD | 140/104/.004" |
| FS-1-1/2-250ST | NT1.5SC250 | 1.5" ST or SD | 250/61/.0024" |
| FS-1-1/2-500ST | NT1.5SC500 | 1.5" ST or SD | 500/30/.0012" |
| FS-1-1/2-1000ST | NT1.5SC1000 | 1.5" ST or SD | 1000/15/.0006" |
| FS-2-30ST | NT2SC30 | 2" ST or SD | 30/533/.021" |
| FS-2-60ST | NT2SC60 | 2" ST or SD | 60/254/.010" |
| FS-2-100ST | NT2SC100 | 2" ST or SD | 100/152/.006" |
| FS-2-140ST | NT2SC140 | 2" ST or SD | 140/104/.004" |
| FS-2-250ST | NT2SC250 | 2" ST or SD | 250/61/.0024" |
| FS-2-500ST | NT2SC500 | 2" ST or SD | 500/30/.0012" |
| FS-2-1000ST | NT2SC1000 | 2" ST or SD | 1000/15/.0006" |
Details
Max Temp (°F) | 100 |
Max Pressure (Psi) | 150 |
Body Material | PVC |
Cartridge Style | Spin-Down, Sediment Trapper |
Diameter | .021, .010, .006, .004, .0024, .0012, .0006 |
Flow Rate | 1-100 GPM |
Housing Material | High Impact Polymer Resin |
Media Type | Polyester |

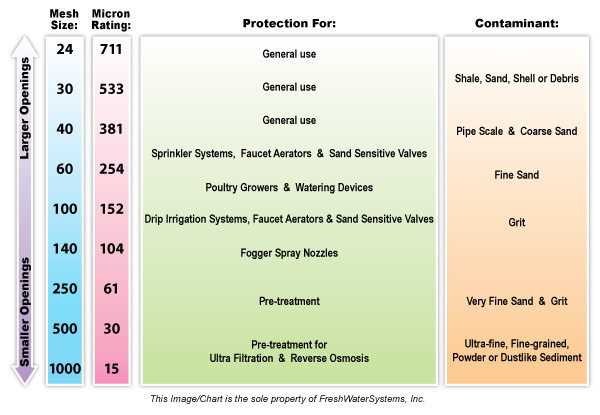

Mesh Size | 30, 60, 100, 140, 250, 500, 1000, 24, 40 |
Micron Rating (Nominal) | 533 µm, 254 µm, 152 µm, 104 µm, 61 µm, 30 µm, 15 µm, 711 µm, 381 µm |
O-Rings | EPDM |
Size | 3/4", 1", 1-1/2", 2" |
Inlet/Outlet Connection | 3/4" FPT, 1" Slip, 1-1/2" Slip, 2" Slip |
Product Videos
These filter screens fit in Rusco Sediment Trapper and Vu-Flow Sand Separator Filter Systems. They are efficient in heavy sediment applications. They can be used in applications with a flow rate ranging from 1 GPM to 100 GPM. Applications include irrigation, drinking water, agriculture and industrial uses. The filter screen is cleanable and reusable. Use the table below to identify the correct screen size for your spin down sediment trapper filter.
| Spin Down Size |
Filter Screen Length |
Filter Screen Top Diameter |
| 3/4" & 1" | 5-1/4" | 1-3/16" |
| 1-1/2" | 8-1/8" | 1-5/8" |
| 2" | 10" | 1-7/8" |
| Rusco # | VuFlow | Fits | Mesh/Microns/ Opening |
| FS-3/4-30ST | NT1SC30 | 3/4" & 1" | 30/533/.021" |
| FS-3/4-60ST | NT1SC60 | 3/4" & 1" | 60/254/.010" |
| FS-3/4-100ST | NT1SC100 | 3/4" & 1" | 100/152/.006" |
| FS-3/4-140ST | NT1SC140 | 3/4" & 1" | 140/104/.004" |
| FS-3/4-250ST | NT1SC250 | 3/4" & 1" | 250/61/.0024" |
| FS-3/4-500ST | NT1SC500 | 3/4" & 1" | 500/30/.0012" |
| FS-3/4-1000ST | NT1SC1000 | 3/4" & 1" | 1000/15/.0006" |
| FS-1-60ST | NT1SC60 | 1" & 3/4" | 60/254/.010" |
| FS-1-100ST | NT1SC100 | 1" & 3/4" | 100/152/.006" |
| FS-1-140ST | NT1SC140 | 1" & 3/4" | 140/104/.004" |
| FS-1-250ST | NT1SC250 | 1" & 3/4" | 250/61/.0024" |
| FS-1-500ST | NT1SC500 | 1" & 3/4" | 500/30/.0012" |
| FS-1-1000ST | NT1SC1000 | 1" & 3/4" | 1000/15/.0006" |
| FS-1-1/2-30ST | NT1.5SC30 | 1.5" ST or SD | 30/533/.021" |
| FS-1-1/2-60ST | NT1.5SC60 | 1.5" ST or SD | 60/254/.010" |
| FS-1-1/2-100ST | NT1.5SC100 | 1.5" ST or SD | 100/152/.006" |
| FS-1-1/2-140ST | NT1.5SC140 | 1.5" ST or SD | 140/104/.004" |
| FS-1-1/2-250ST | NT1.5SC250 | 1.5" ST or SD | 250/61/.0024" |
| FS-1-1/2-500ST | NT1.5SC500 | 1.5" ST or SD | 500/30/.0012" |
| FS-1-1/2-1000ST | NT1.5SC1000 | 1.5" ST or SD | 1000/15/.0006" |
| FS-2-30ST | NT2SC30 | 2" ST or SD | 30/533/.021" |
| FS-2-60ST | NT2SC60 | 2" ST or SD | 60/254/.010" |
| FS-2-100ST | NT2SC100 | 2" ST or SD | 100/152/.006" |
| FS-2-140ST | NT2SC140 | 2" ST or SD | 140/104/.004" |
| FS-2-250ST | NT2SC250 | 2" ST or SD | 250/61/.0024" |
| FS-2-500ST | NT2SC500 | 2" ST or SD | 500/30/.0012" |
| FS-2-1000ST | NT2SC1000 | 2" ST or SD | 1000/15/.0006" |
Details
Max Temp (°F) | 100 |
Max Pressure (Psi) | 150 |
Body Material | PVC |
Cartridge Style | Spin-Down, Sediment Trapper |
Diameter | .021, .010, .006, .004, .0024, .0012, .0006 |
Flow Rate | 1-100 GPM |
Housing Material | High Impact Polymer Resin |
Media Type | Polyester |
Mesh Size | 30, 60, 100, 140, 250, 500, 1000, 24, 40 |
Micron Rating (Nominal) | 533 µm, 254 µm, 152 µm, 104 µm, 61 µm, 30 µm, 15 µm, 711 µm, 381 µm |
O-Rings | EPDM |
Size | 3/4", 1", 1-1/2", 2" |
Inlet/Outlet Connection | 3/4" FPT, 1" Slip, 1-1/2" Slip, 2" Slip |
