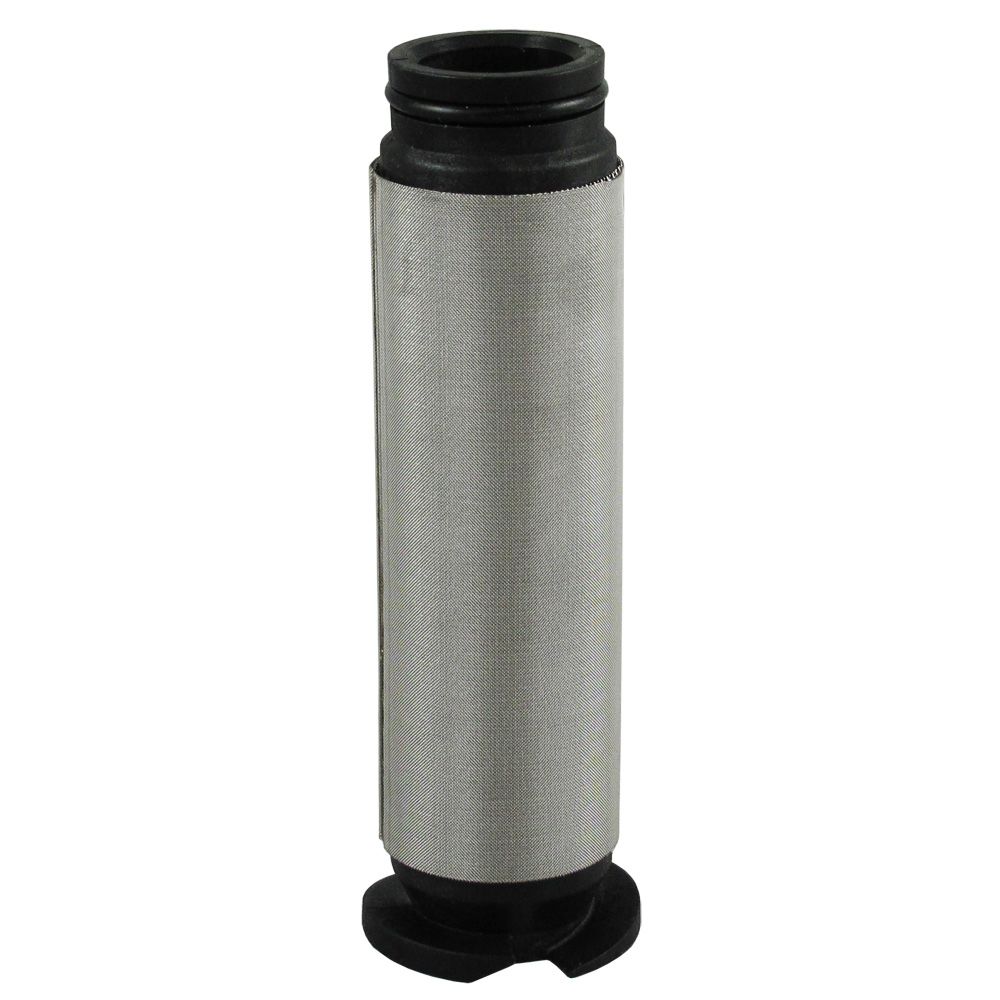

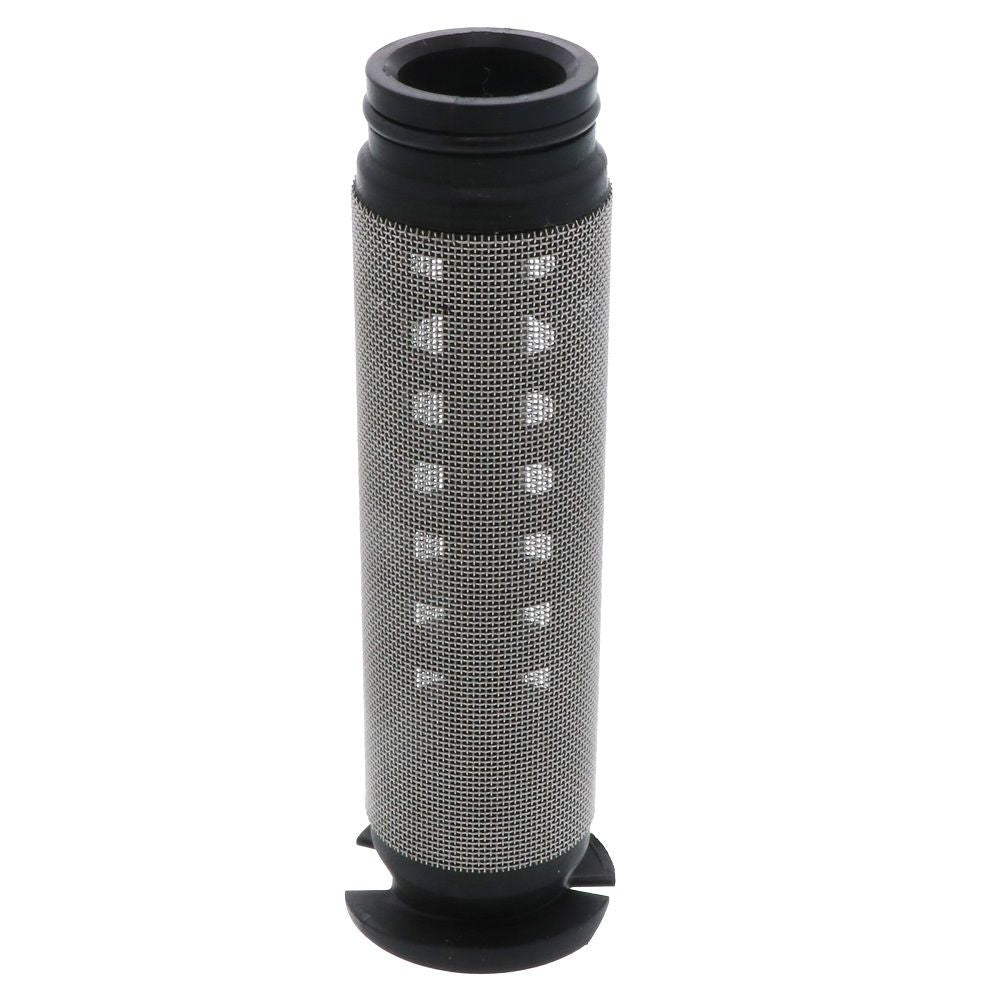

Rusco/Vu-Flow Hot Water Filter Screens for Sediment Trappers/Sand Separators

Part Number: FS-3/4-30STHT

In Stock

out of stock

In Stock

$31.88

The Rusco Sediment Trapper and Vu-Flow Sand Separator filter screens are efficient in heavy sediment applications. They can be used in applications with a flow rate ranging from 1 GPM to 100 GPM. Applications include irrigation, drinking water, agriculture and industrial uses.The filter screen is cleanable and reusable. Use the table below to identify the correct screen size for your spin down sediment trapper filter.

Spin Down
Size
Filter Screen
Length
Filter Screen
Top Diameter
3/4" & 1" 5-1/4" 1-3/16"
1-1/2" 8-1/8" 1-5/8"
2" 10" 1-7/8"



Details

Body Material

PVC

Cartridge Style

Sediment Trapper

Diameter

.021; .010; .006; .004; .0029

Housing Material

High Impact Polymer Resin

Media Type

Stainless Steel

Mesh Size

30; 60; 100; 140; 200

Micron Rating (Nominal)

533 µm; 254 µm; 152 µm; 104 µm; 74 µm

O-Rings

EPDM


Rusco/Vu-Flow

Rusco/Vu-Flow

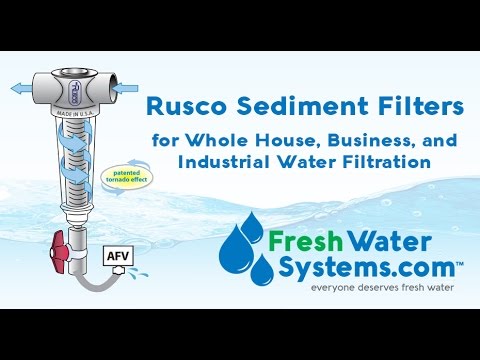

Product Videos


The Rusco Sediment Trapper and Vu-Flow Sand Separator filter screens are efficient in heavy sediment applications. They can be used in applications with a flow rate ranging from 1 GPM to 100 GPM. Applications include irrigation, drinking water, agriculture and industrial uses.The filter screen is cleanable and reusable. Use the table below to identify the correct screen size for your spin down sediment trapper filter.

Spin Down
Size
Filter Screen
Length
Filter Screen
Top Diameter
3/4" & 1" 5-1/4" 1-3/16"
1-1/2" 8-1/8" 1-5/8"
2" 10" 1-7/8"


Details

Body Material

PVC

Cartridge Style

Sediment Trapper

Diameter

.021; .010; .006; .004; .0029

Housing Material

High Impact Polymer Resin

Media Type

Stainless Steel

Mesh Size

30; 60; 100; 140; 200

Micron Rating (Nominal)

533 µm; 254 µm; 152 µm; 104 µm; 74 µm

O-Rings

EPDM
