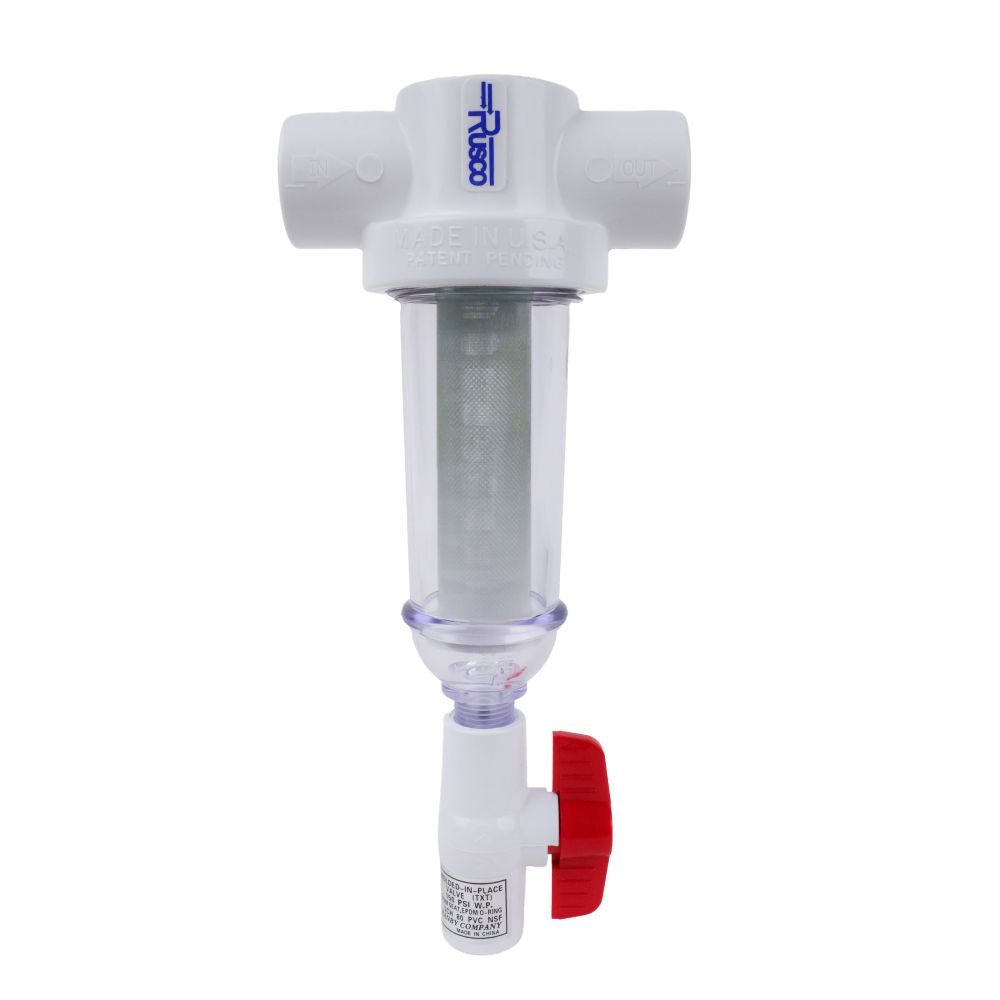

![Rusco Spin Down Filter SS Screen T Style 2" - 60 Mesh [254 micron]](http://cdn.shopify.com/s/files/1/2723/8896/products/hdtbvztz20ojviskfpsu_1500x.jpg?v=1600981375)
Features:
- Unique element design traps sediment in lower reservoir of clear cover.
- Clear bowl easily removed for total cleaning (No tools required-using tools voids warranty)
- Sediment is visible through the clear cover indicating when the filter needs cleaning
- Ball valve allows for quick sediment removal from bottom of cover
- Centrifuge Spin-Down type sediment separation
- No down time!!
- The new 1.5" & 2" Spin-down models make it easy to convert the standard spin-down filter to a Sediment Trapper by simply replacing the element screens
- No filter cartridges to replace
- No down time required flushing out sediment
- No wasteful backwashing required
- Small size takes little space
- Screen sizes can be easily changed if required

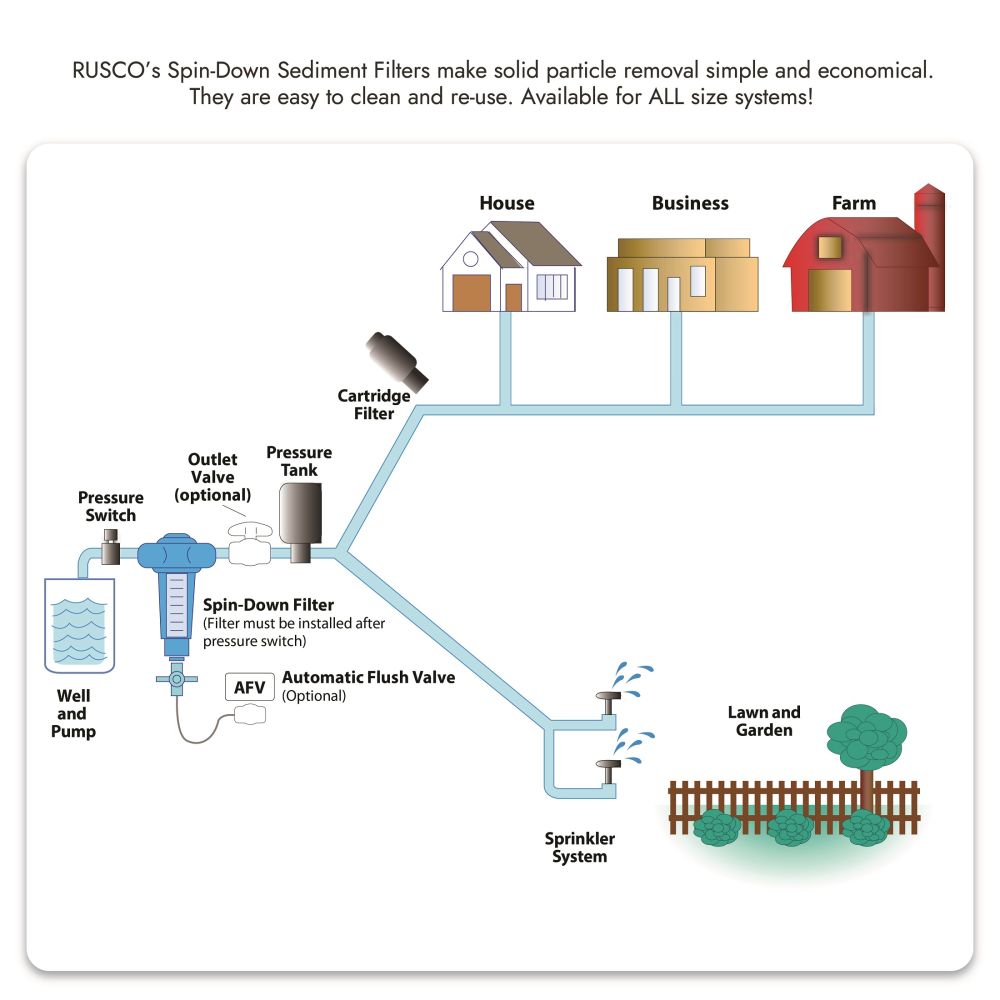

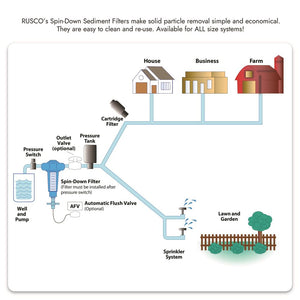

- Multiple uses: Well water, Irrigation, Sand sensitive valves, Drip irrigation, Faucet aerators, Poultry Growers Watering devices (.010"), Fogger nozzles, Pre-treatment for Ultra water systems and Reverse Osmosis
Details
Body Material | PVC |

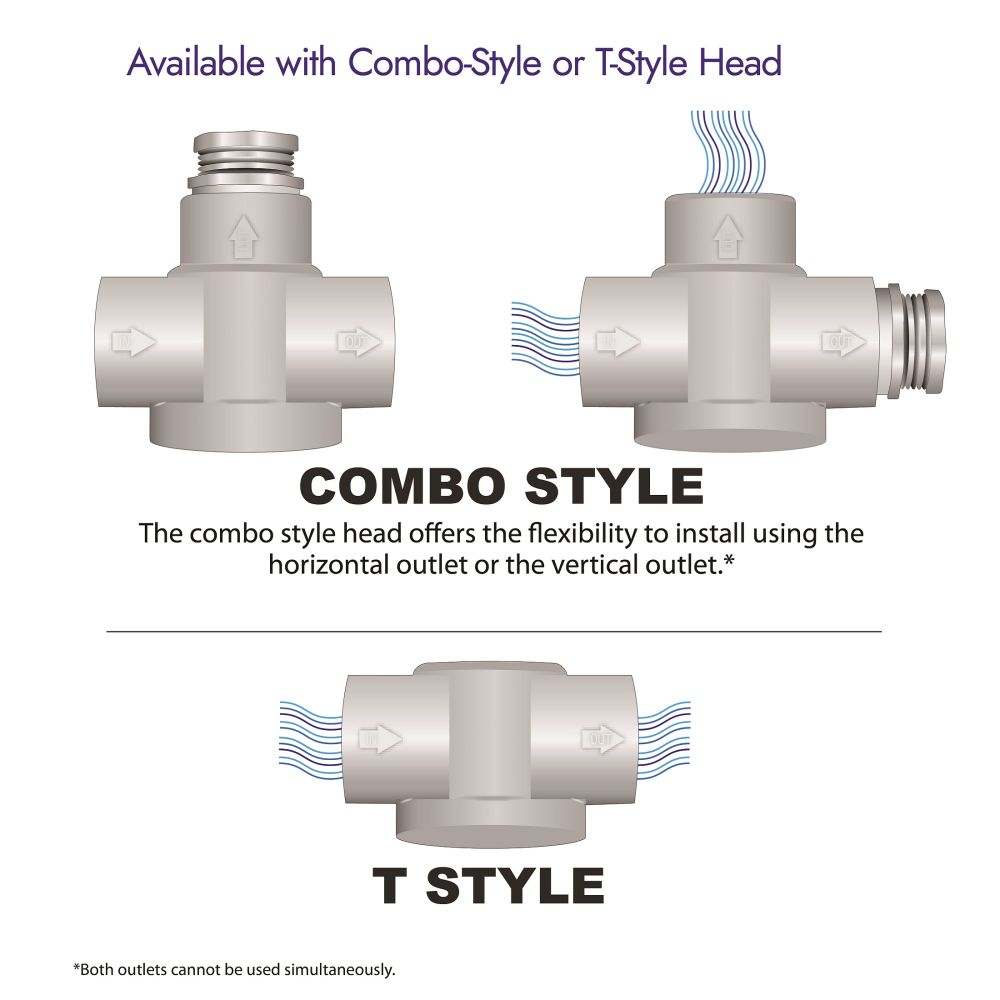

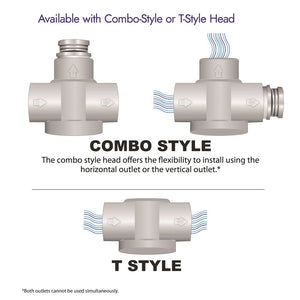

Head Style | T-Style |
Housing Material | High Impact Polymer Resin |
Inlet/Outlet Connection | 2" Slip |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 100 |

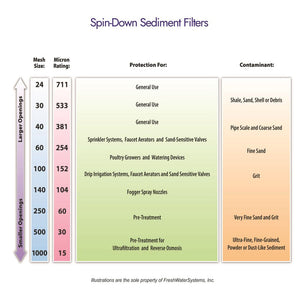

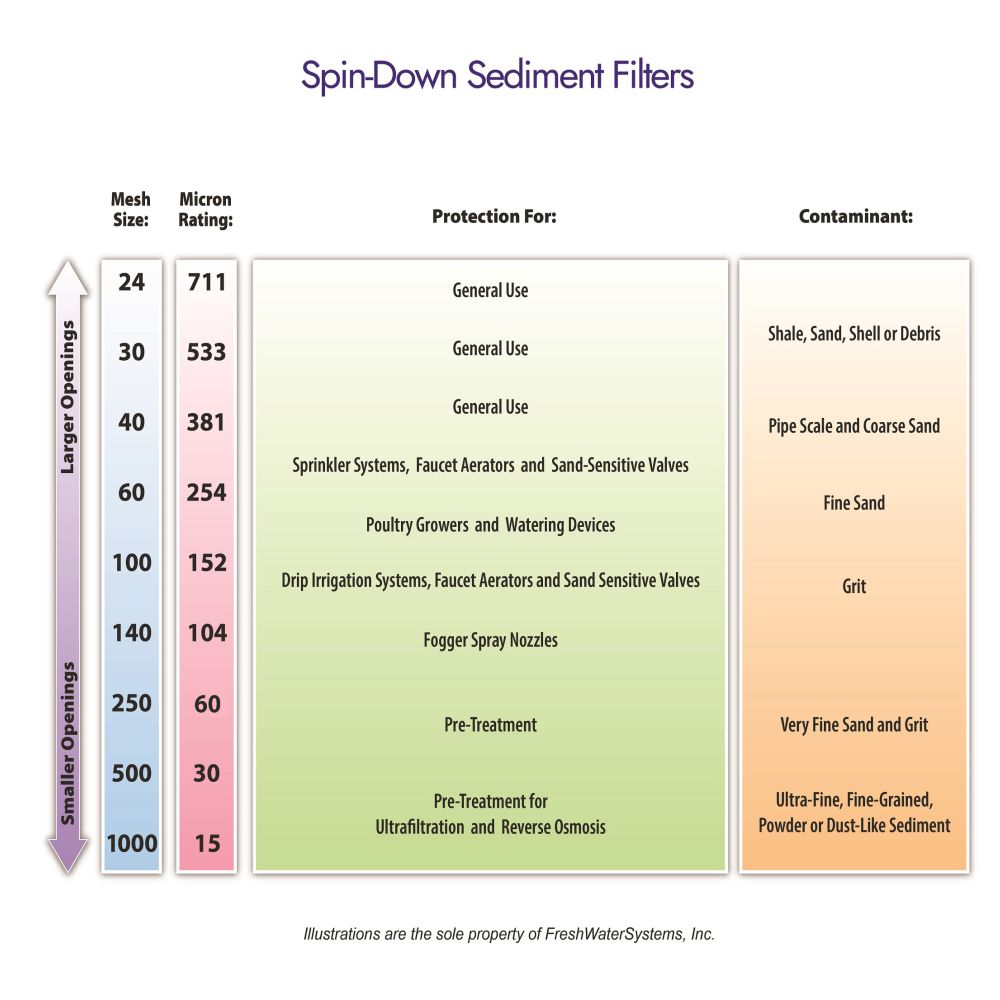

Mesh Size | 30, 60, 100, 140, 200 |
Micron Rating (Nominal) | 533 µm, 254 µm, 152 µm, 104 µm, 74 µm |
O-Rings | EPDM |
Screen Opening | .021, .010, .006, .004, .0029 |
Cartridge Style | Spin-down |
Connection Type | Slip |
Contaminants Reduced | Sediment/Dirt/Rust |
Filter Type | Rusco Spin-Down & Sediment Traps |
Flow Rate | 18-100 GPM |
Housing Resistance | Fresh Water Only |
Media Type | Stainless Steel |
Micron Rating | 533 µm, 254 µm, 152 µm, 104 µm, 74 µm |
Port Size | 2" |
Screen Material | Stainless Steel |
Sub-Type | T-Style System |
Top Style | T-Style |
Type | Standard |

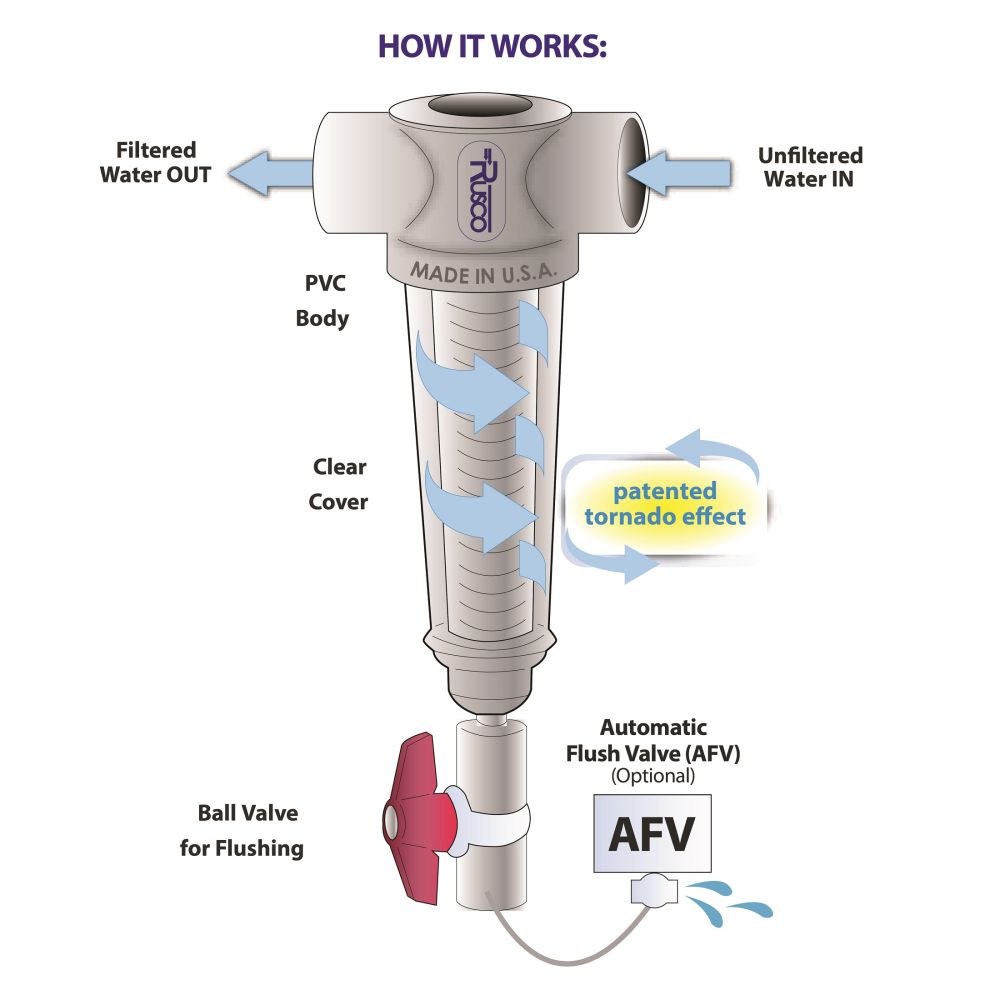

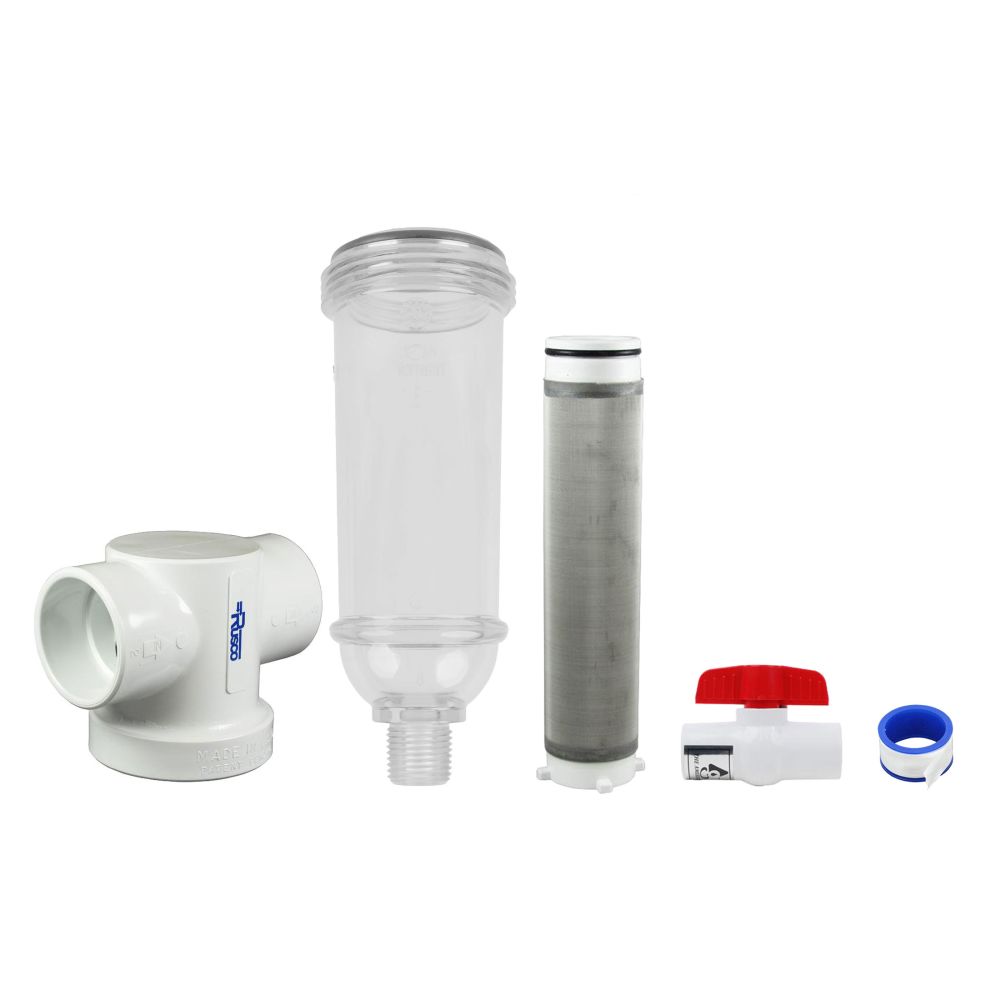

Rusco 2" Spin Down Sediment Filter System with Stainless Steel Filter Screen is more durable than PE screens and make solid particle removal simple and economical. The benefit of the 2" Spin Down filter system is its ability to be cleaned and reused. The 2" Spin-Down Sediment Filter by Rusco has a clear cover that can be easily removed for total of filter and stainless steel filter screen cleaning. The unique tornado (spin-down action) effect created by the patented process is unique
Features:
- Unique element design traps sediment in lower reservoir of clear cover.
- Clear bowl easily removed for total cleaning (No tools required-using tools voids warranty)
- Sediment is visible through the clear cover indicating when the filter needs cleaning
- Ball valve allows for quick sediment removal from bottom of cover
- Centrifuge Spin-Down type sediment separation
- No down time!!
- The new 1.5" & 2" Spin-down models make it easy to convert the standard spin-down filter to a Sediment Trapper by simply replacing the element screens
- No filter cartridges to replace
- No down time required flushing out sediment
- No wasteful backwashing required
- Small size takes little space
- Screen sizes can be easily changed if required
- Multiple uses: Well water, Irrigation, Sand sensitive valves, Drip irrigation, Faucet aerators, Poultry Growers Watering devices (.010"), Fogger nozzles, Pre-treatment for Ultra water systems and Reverse Osmosis
Details
Body Material | PVC |
Head Style | T-Style |
Housing Material | High Impact Polymer Resin |
Inlet/Outlet Connection | 2" Slip |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 100 |
Mesh Size | 30, 60, 100, 140, 200 |
Micron Rating (Nominal) | 533 µm, 254 µm, 152 µm, 104 µm, 74 µm |
O-Rings | EPDM |
Screen Opening | .021, .010, .006, .004, .0029 |
Cartridge Style | Spin-down |
Connection Type | Slip |
Contaminants Reduced | Sediment/Dirt/Rust |
Filter Type | Rusco Spin-Down & Sediment Traps |
Flow Rate | 18-100 GPM |
Housing Resistance | Fresh Water Only |
Media Type | Stainless Steel |
Micron Rating | 533 µm, 254 µm, 152 µm, 104 µm, 74 µm |
Port Size | 2" |
Screen Material | Stainless Steel |
Sub-Type | T-Style System |
Top Style | T-Style |
Type | Standard |
