Features:
- Unique element design traps sediment in lower reservoir of clear cover.
- Clear bowl easily removed for total cleaning (No tools required-using tools voids warranty)
- Sediment is visible through the clear cover indicating when the filter needs cleaning
- Ball valve allows for quick sediment removal from bottom of cover
- Centrifuge Spin-Down type sediment separation
- No down time!!
- The new 1.5" & 2" Spin-down models make it easy to convert the standard spin-down filter to a Sediment Trapper by simply replacing the element screens
- No filter cartridges to replace
- No down time required flushing out sediment
- No wasteful backwashing required
- Small size takes little space
- Screen sizes can be easily changed if required

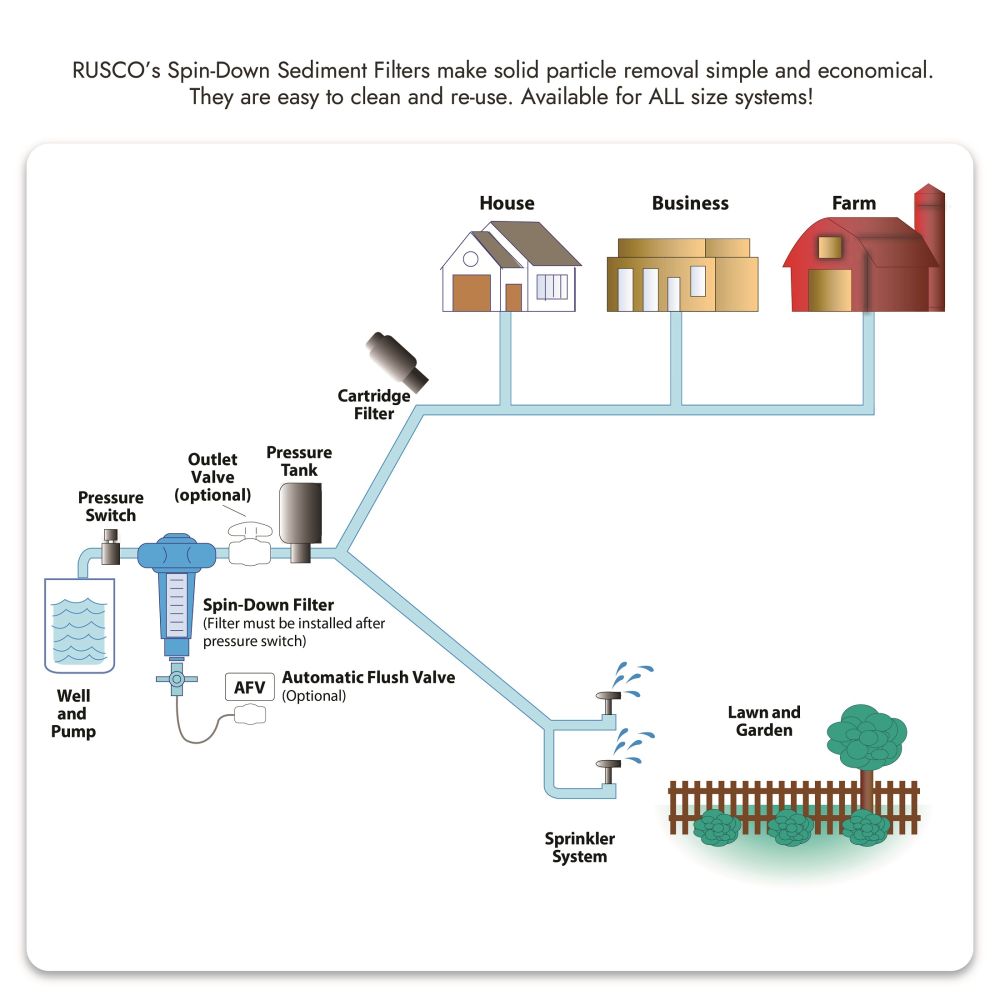

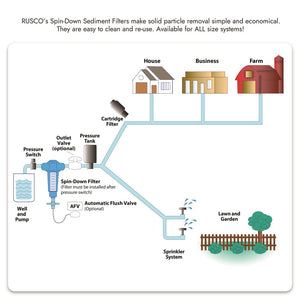

- Multiple uses: Well water, Irrigation, Sand sensitive valves, Drip irrigation, Faucet aerators, Poultry Growers Watering devices (.010"), Fogger nozzles, Pre-treatment for Ultra water systems and Reverse Osmosis
Details
Body Material | PVC |

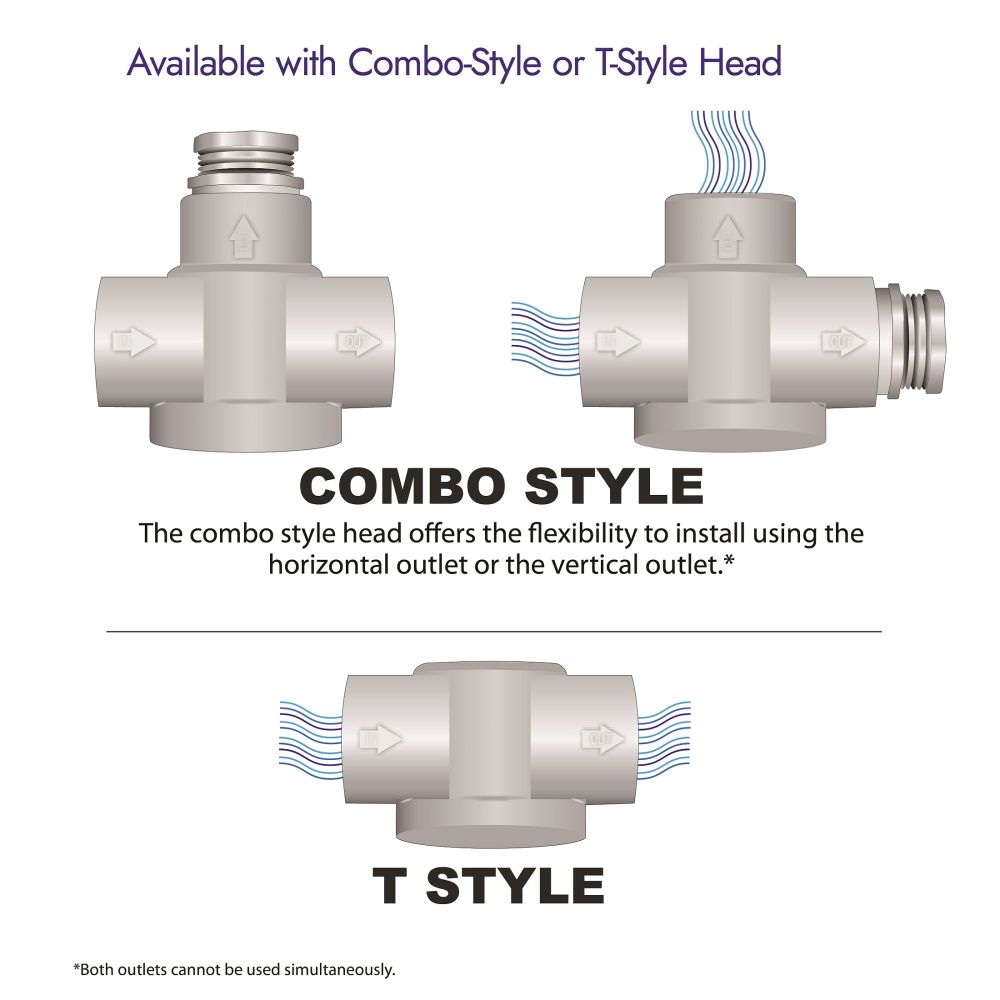

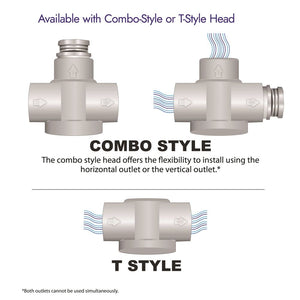

Head Style | T-Style |
Housing Material | High Impact Polymer Resin |
Inlet/Outlet Connection | 1-1/2" Slip |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 100 |

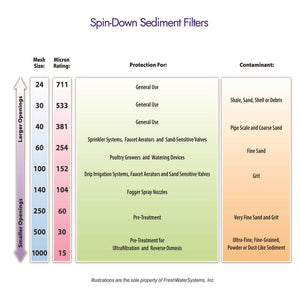

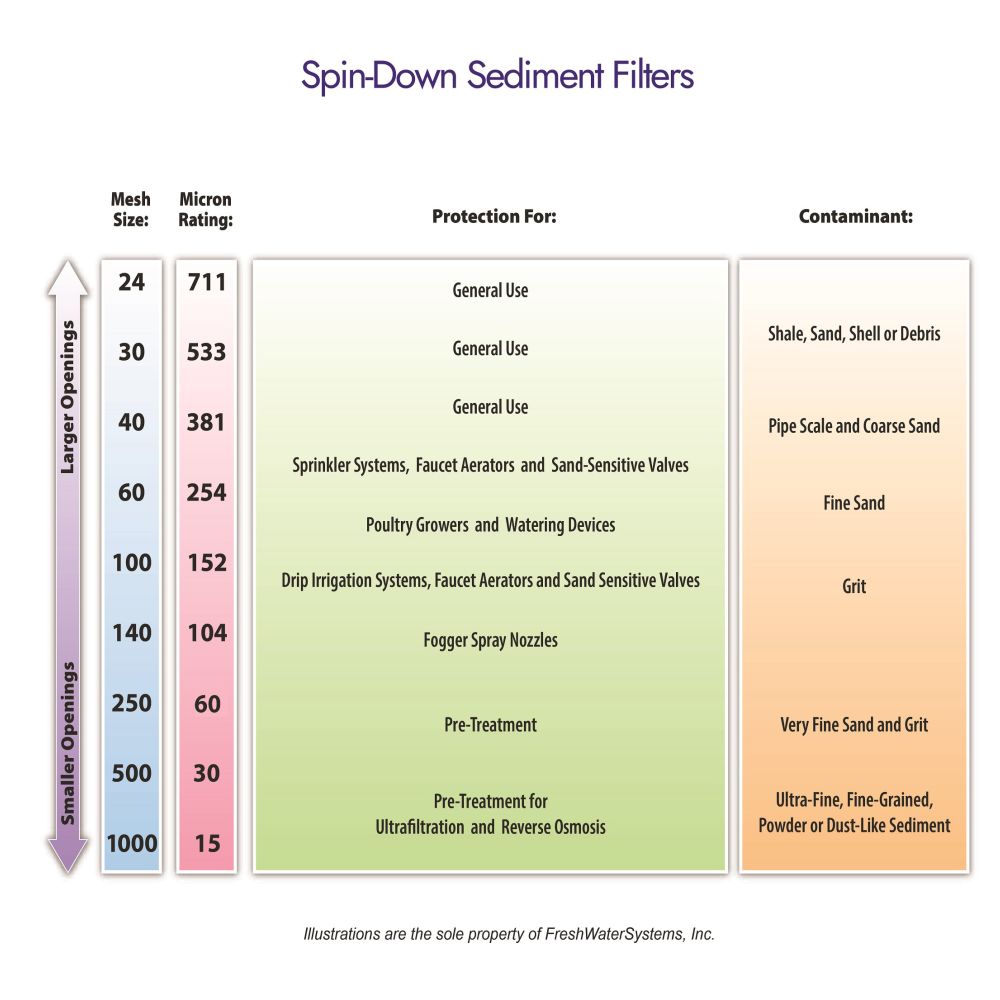

Mesh Size | 30, 60, 100, 140, 200 |
Micron Rating (Nominal) | 533 µm, 254 µm, 152 µm, 104 µm, 74 µm |
O-Rings | EPDM |
Screen Opening | .021, .010, .006, .004, .0029 |
Cartridge Style | Spin-down |
Connection Type | Slip |
Contaminants Reduced | Sediment/Dirt/Rust |
Filter Type | Rusco Spin-Down & Sediment Traps |
Flow Rate | 10-50 GPM |
Housing Resistance | Fresh Water Only |
Media Type | Stainless Steel |
Micron Rating | 533 µm, 254 µm, 152 µm, 104 µm, 74 µm |
Port Size | 1-1/2" |
Screen Material | Stainless Steel |
Sub-Type | T-Style System |
Top Style | T-Style |
Type | Standard |

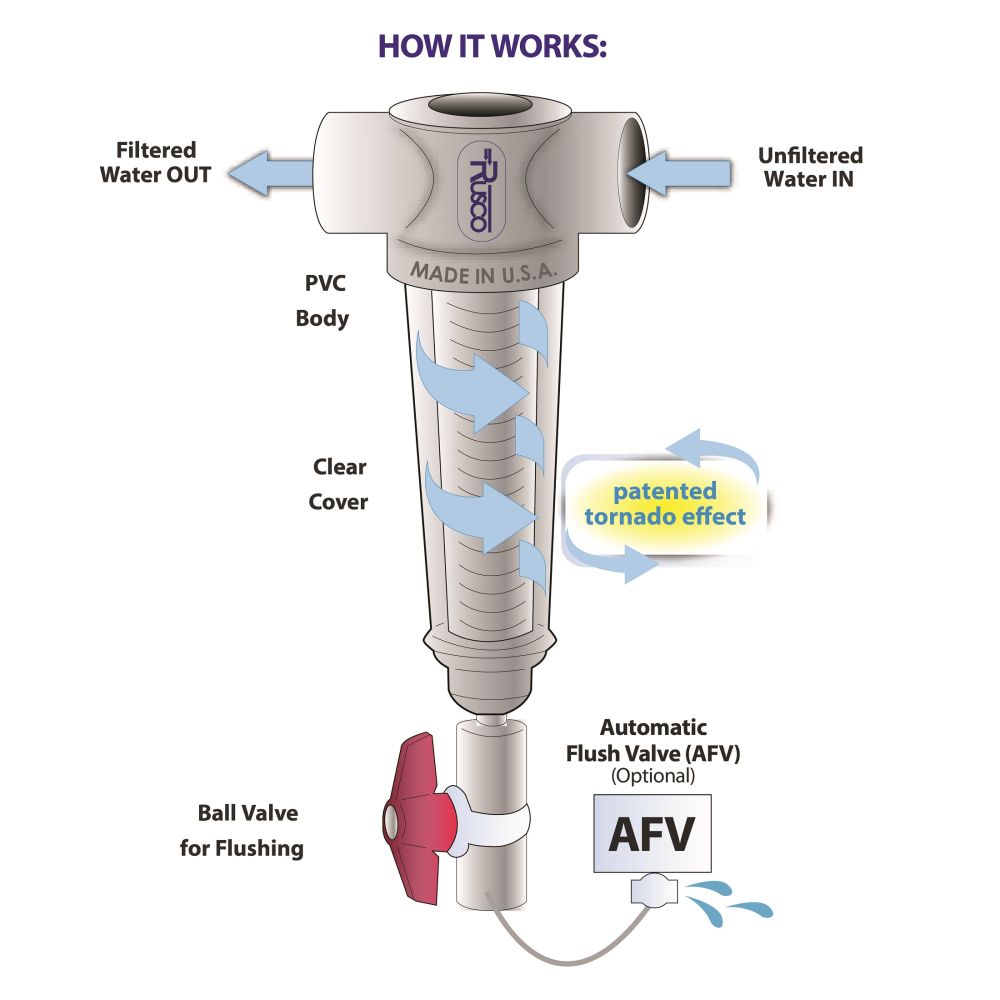

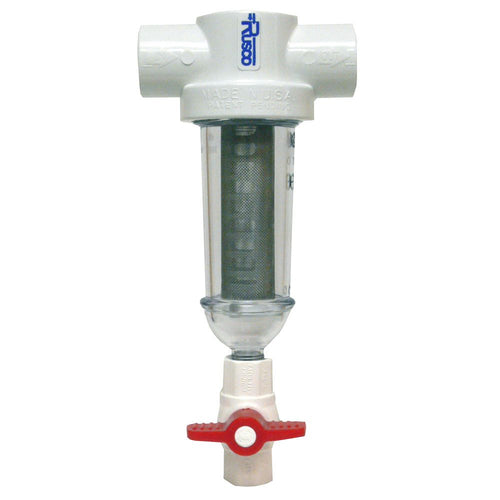

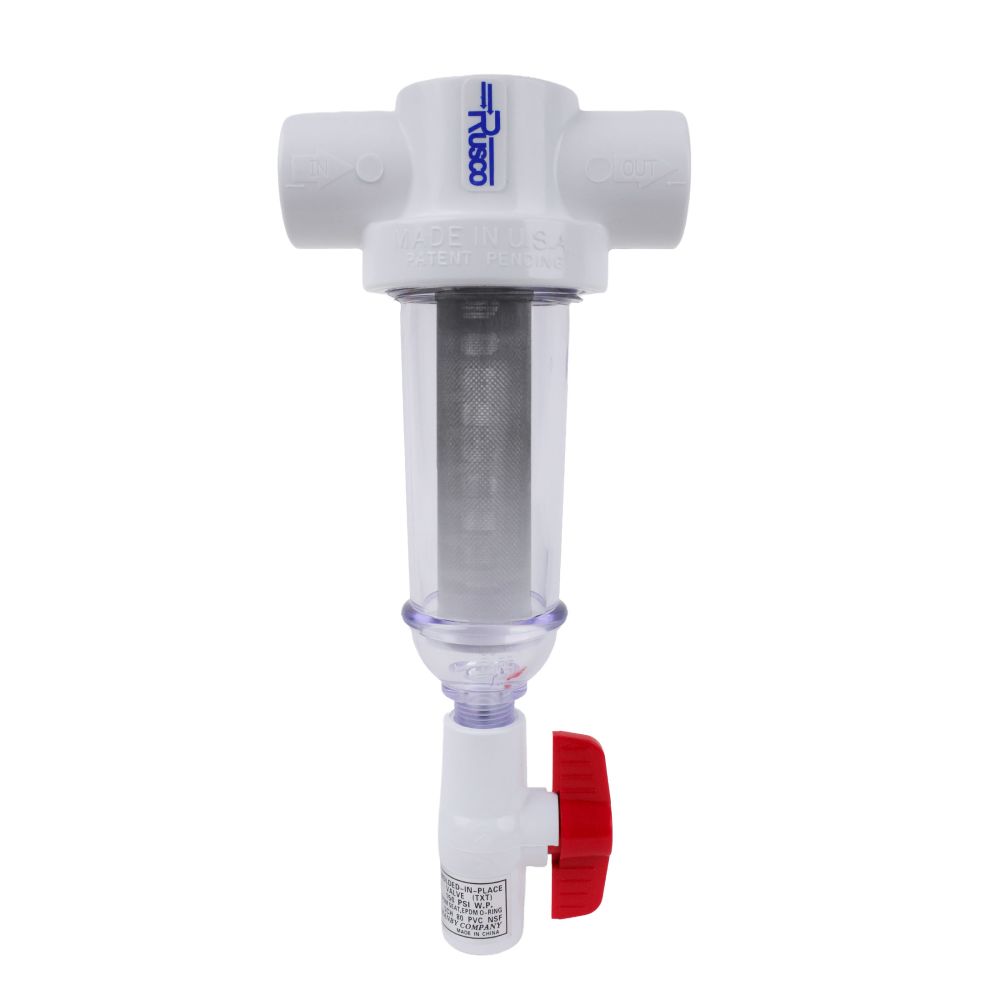

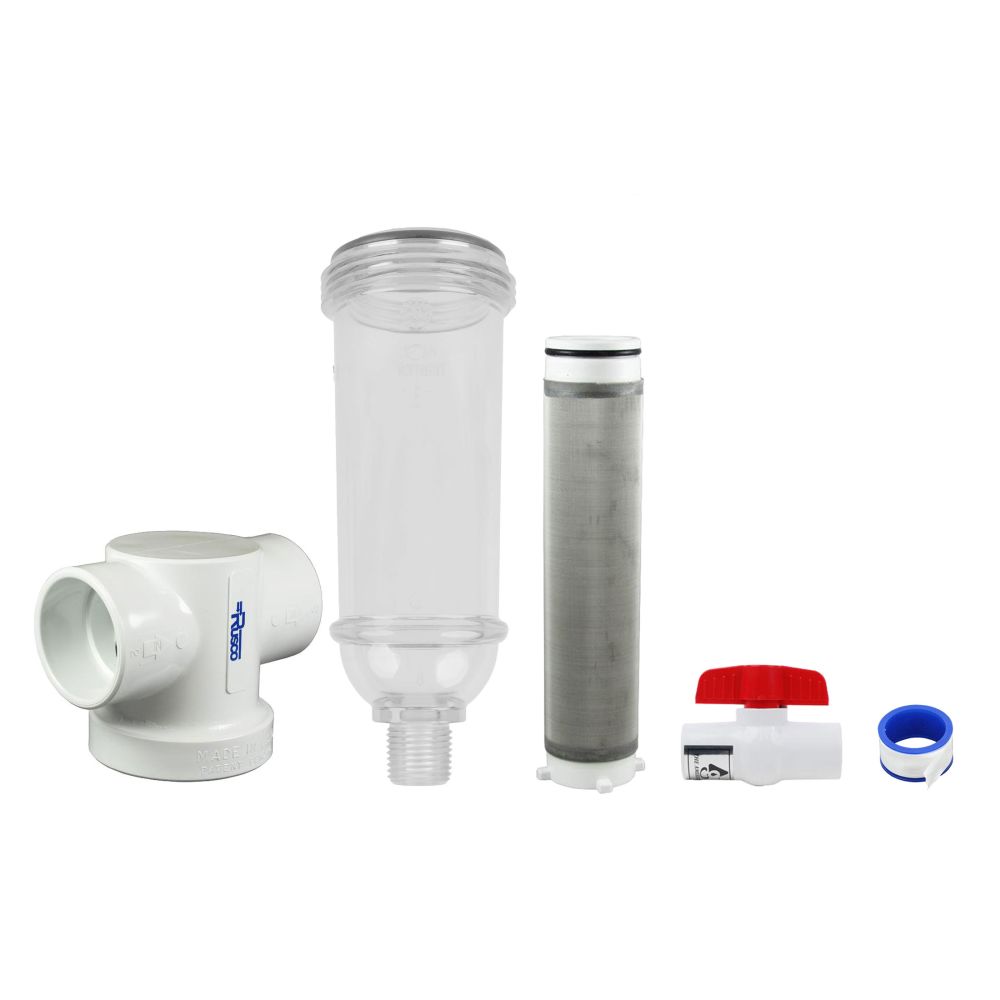

Rusco 1 1/2" Spin Down Sediment Filter System with Stainless Steel Filter Screen is more durable than PE screens and make solid particle removal simple and economical. The benefit of the 1 1/2" Spin Down filter system is its ability to be cleaned and reused. The 1 1/2" Spin-Down Sediment Filter by Rusco has a clear cover that can be easily removed for total of filter and stainless steel filter screen cleaning. The unique tornado (spin-down action) effect created by the patented process is unique.
Features:
- Unique element design traps sediment in lower reservoir of clear cover.
- Clear bowl easily removed for total cleaning (No tools required-using tools voids warranty)
- Sediment is visible through the clear cover indicating when the filter needs cleaning
- Ball valve allows for quick sediment removal from bottom of cover
- Centrifuge Spin-Down type sediment separation
- No down time!!
- The new 1.5" & 2" Spin-down models make it easy to convert the standard spin-down filter to a Sediment Trapper by simply replacing the element screens
- No filter cartridges to replace
- No down time required flushing out sediment
- No wasteful backwashing required
- Small size takes little space
- Screen sizes can be easily changed if required
- Multiple uses: Well water, Irrigation, Sand sensitive valves, Drip irrigation, Faucet aerators, Poultry Growers Watering devices (.010"), Fogger nozzles, Pre-treatment for Ultra water systems and Reverse Osmosis
Details
Body Material | PVC |
Head Style | T-Style |
Housing Material | High Impact Polymer Resin |
Inlet/Outlet Connection | 1-1/2" Slip |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 100 |
Mesh Size | 30, 60, 100, 140, 200 |
Micron Rating (Nominal) | 533 µm, 254 µm, 152 µm, 104 µm, 74 µm |
O-Rings | EPDM |
Screen Opening | .021, .010, .006, .004, .0029 |
Cartridge Style | Spin-down |
Connection Type | Slip |
Contaminants Reduced | Sediment/Dirt/Rust |
Filter Type | Rusco Spin-Down & Sediment Traps |
Flow Rate | 10-50 GPM |
Housing Resistance | Fresh Water Only |
Media Type | Stainless Steel |
Micron Rating | 533 µm, 254 µm, 152 µm, 104 µm, 74 µm |
Port Size | 1-1/2" |
Screen Material | Stainless Steel |
Sub-Type | T-Style System |
Top Style | T-Style |
Type | Standard |
