Rusco

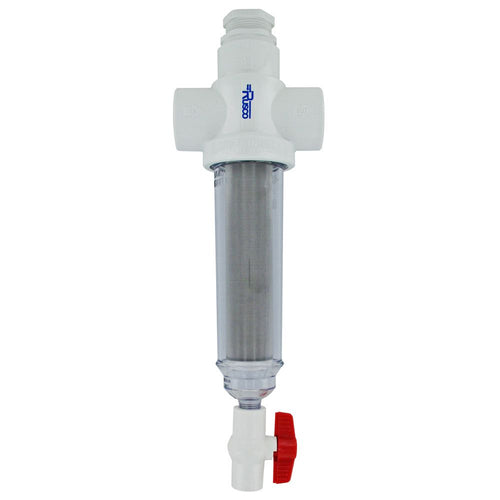

Rusco Spin Down Filter SS Screen Combo Style 1.5"

Part Number: CF1-1/2-30SS-F

In Stock

out of stock

In Stock

$94.10

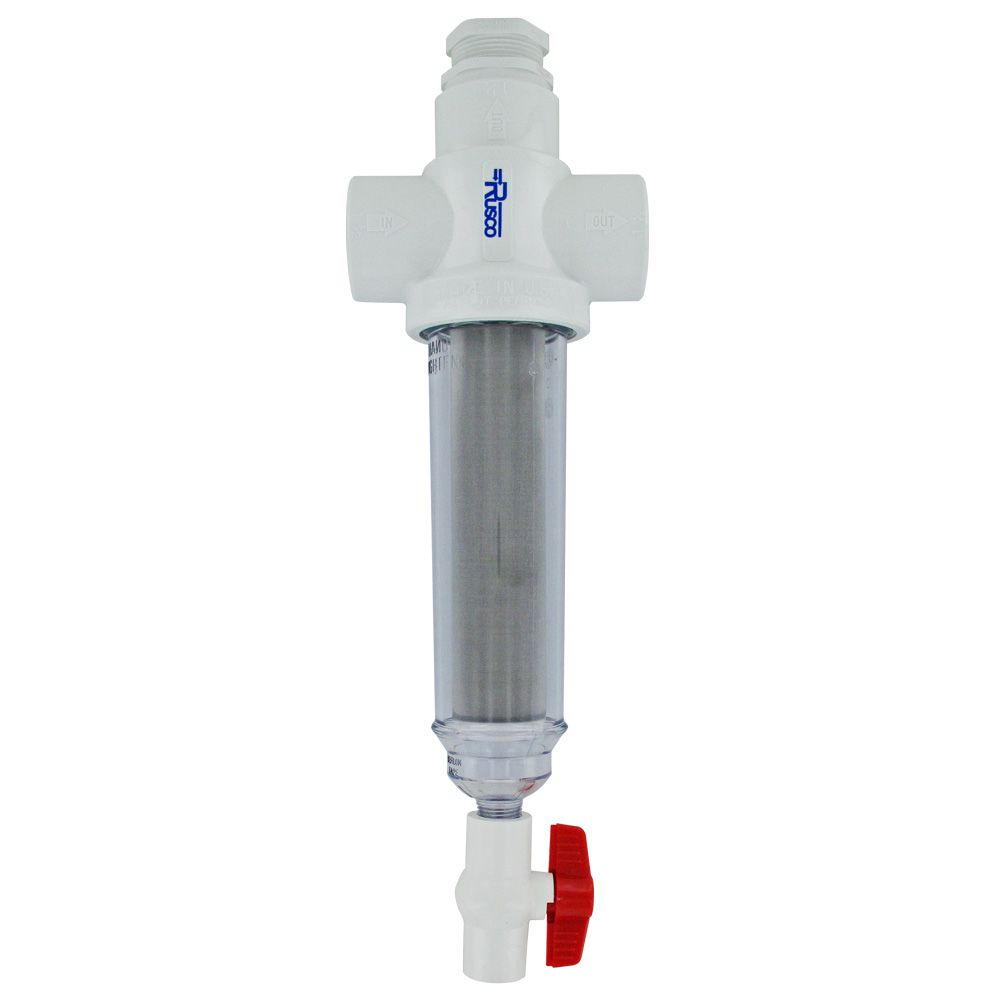

Rusco 1-1/2" Spin Down Sediment Filter System with Stainless Steel Filter Screen is more durable than PE screens and make solid particle removal simple and economical. The benefit of the 1-1/2" spin Down filter system is its ability to be cleaned and reused. The 1-1/2" Spin-Down Sediment Filter by Rusco has a clear cover that can be easily removed for total of filter and stainless steel filter screen cleaning. The unique tornado (spin-down action) effect created by the patented process is unique

Features:

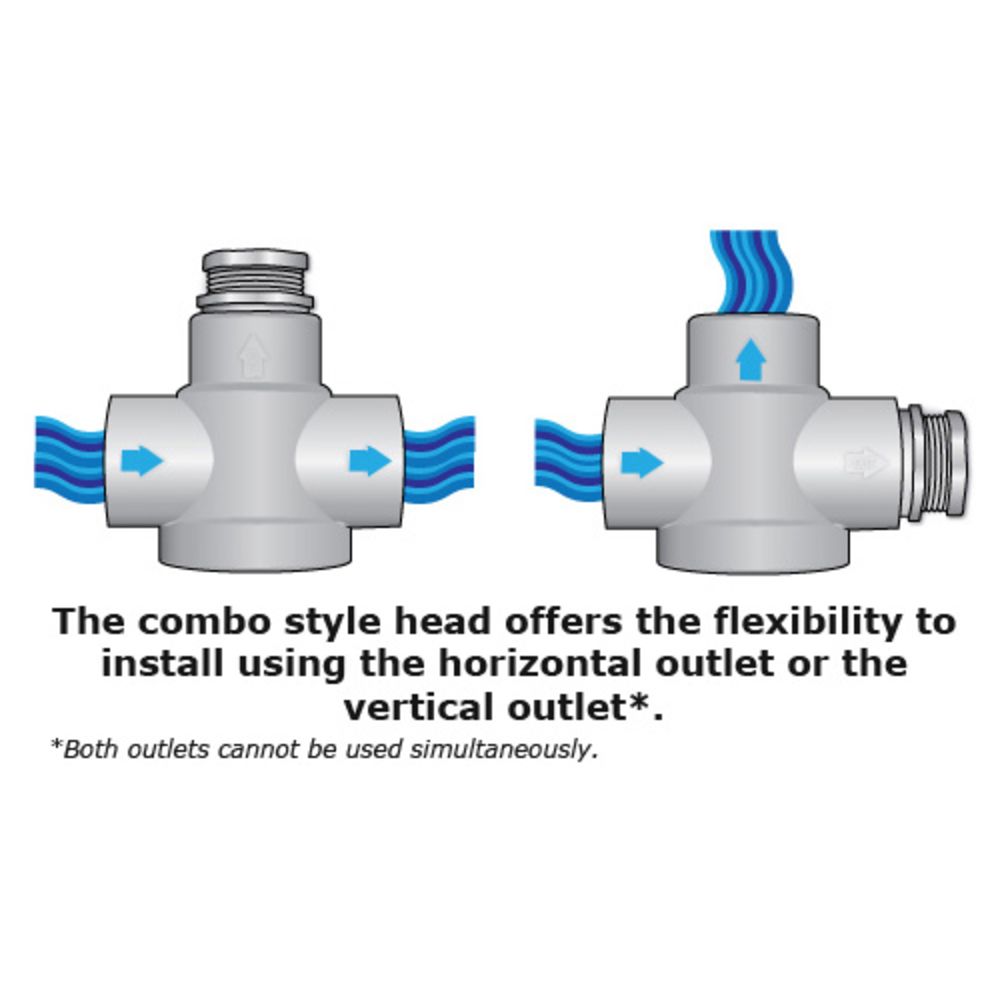

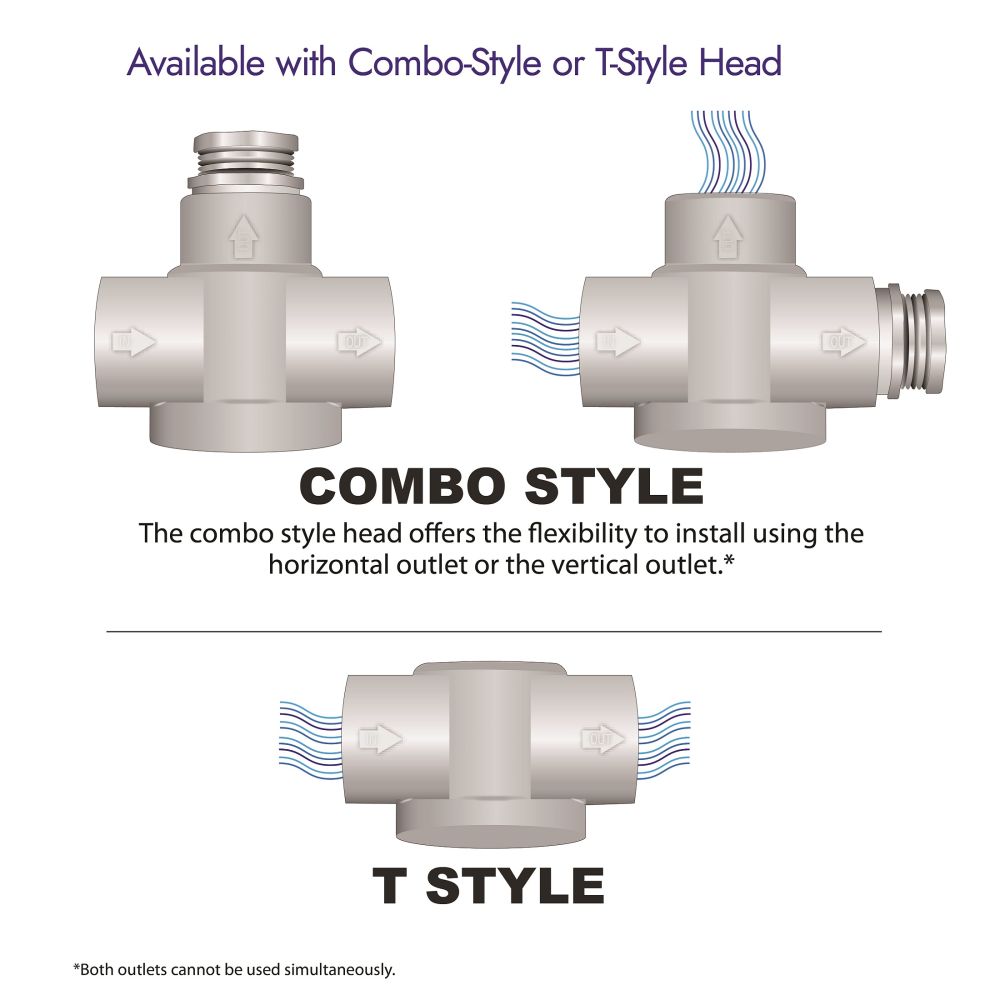

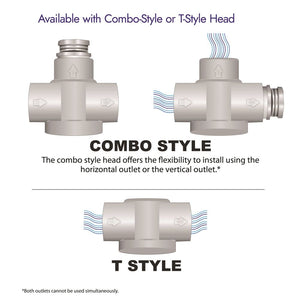

  • Combo style head allows you to choose between the horizontal and vertical outlets (cannot use both)

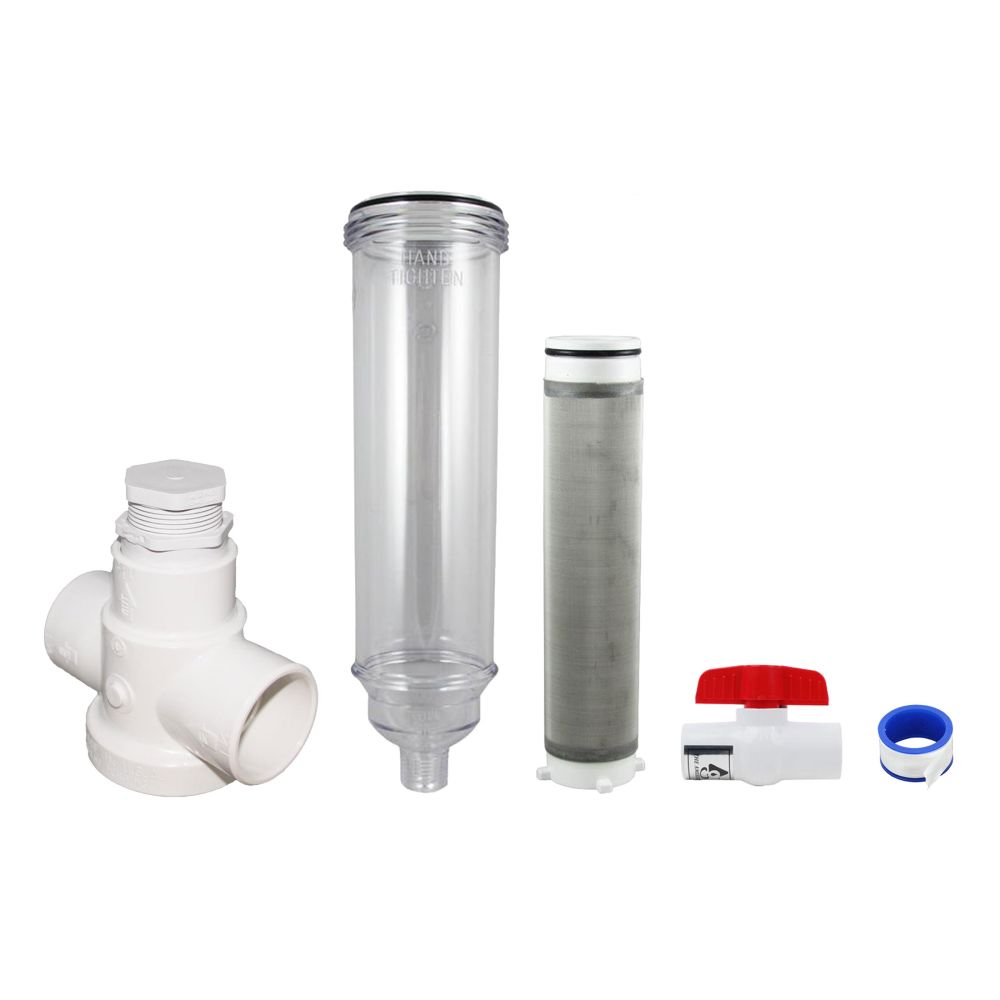

  • Includes 1.5" slip to 1.25" FPT bushing and 1.25" MPT plug for the unused outlet
  • Unique element design traps sediment in lower reservoir of clear cover.
  • Clear bowl easily removed for total cleaning (no tools required – using tools voids warranty)
  • Sediment is visible through the clear cover indicating when the filter needs cleaning
  • Ball valve allows for quick sediment removal from bottom of cover

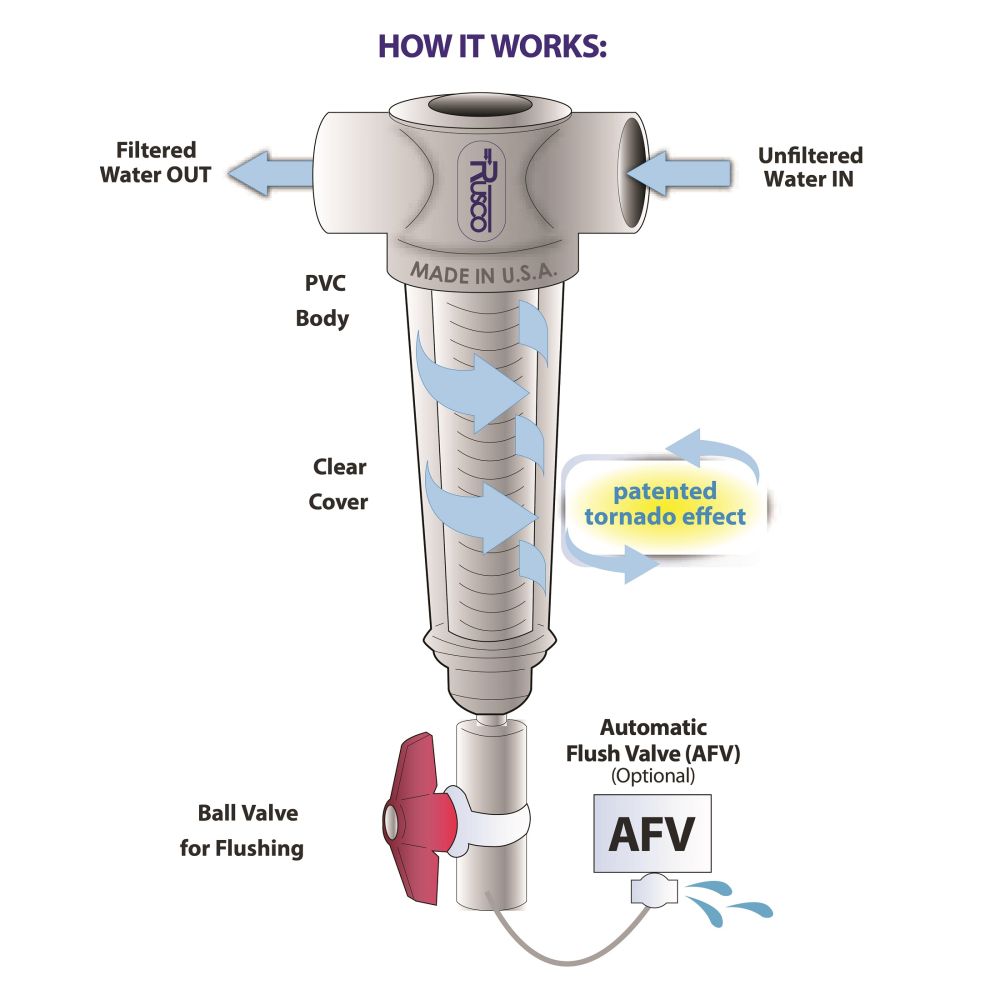

  • Centrifuge Spin-Down type sediment separation
  • No down time!!
Benefits:
  • The new 1.5" and 2" spin-down models make it easy to convert the standard spin-down filter to a sediment trapper by simply replacing the element screens
  • No filter cartridges to replace
  • No down time required flushing out sediment
  • No wasteful backwashing required
  • Small size takes little space
  • Screen sizes can be easily changed if required

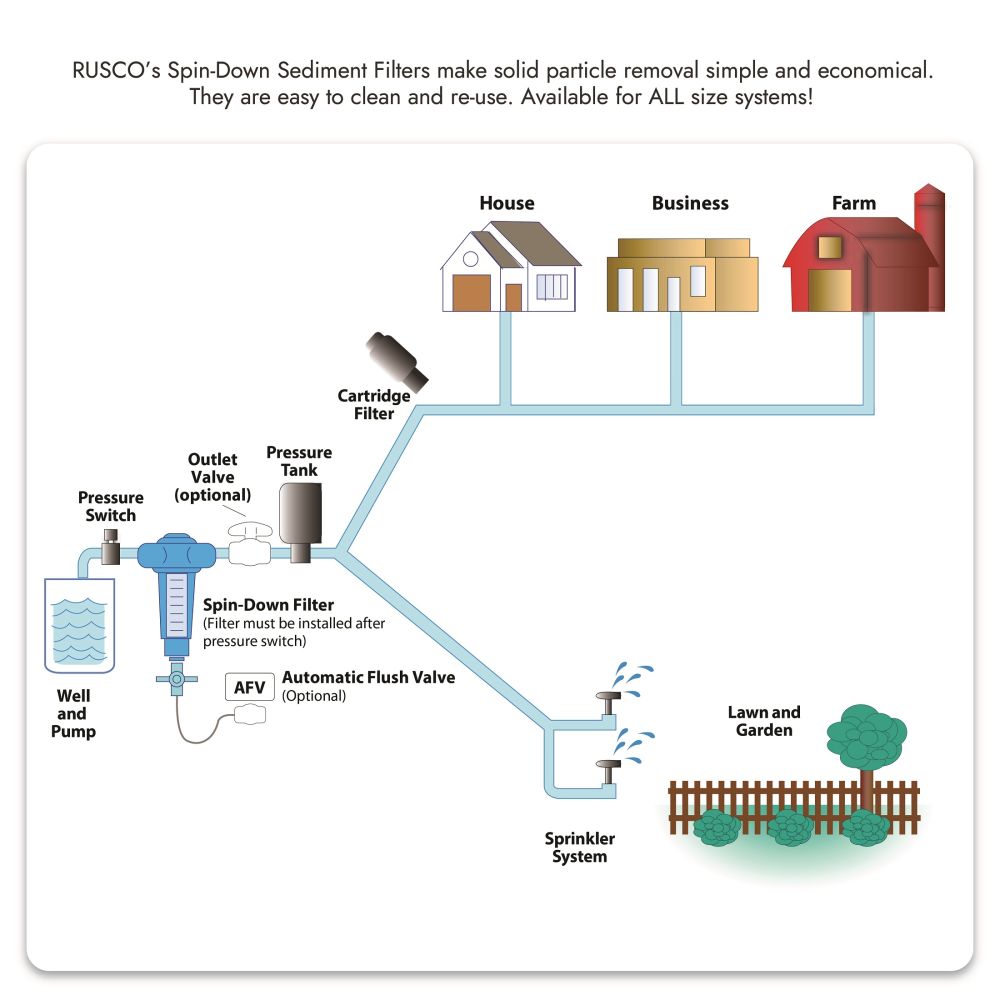

  • Multiple uses: well water, irrigation, sand sensitive valves, drip irrigation, faucet aerators, poultry growers watering devices (.010"), fogger nozzles, pre-treatment for ultra water systems and reverse osmosis


Details

Body Material

PVC

Cartridge Style

Stainless Steel; Spin Down Screen

Flow Rate

10-50 Gallons Per Minute

Inlet/Outlet Size

1-1/2" Slip

Max Operating Pressure

150 PSI

Max Operating Temperature

100 Degrees Fahrenheit

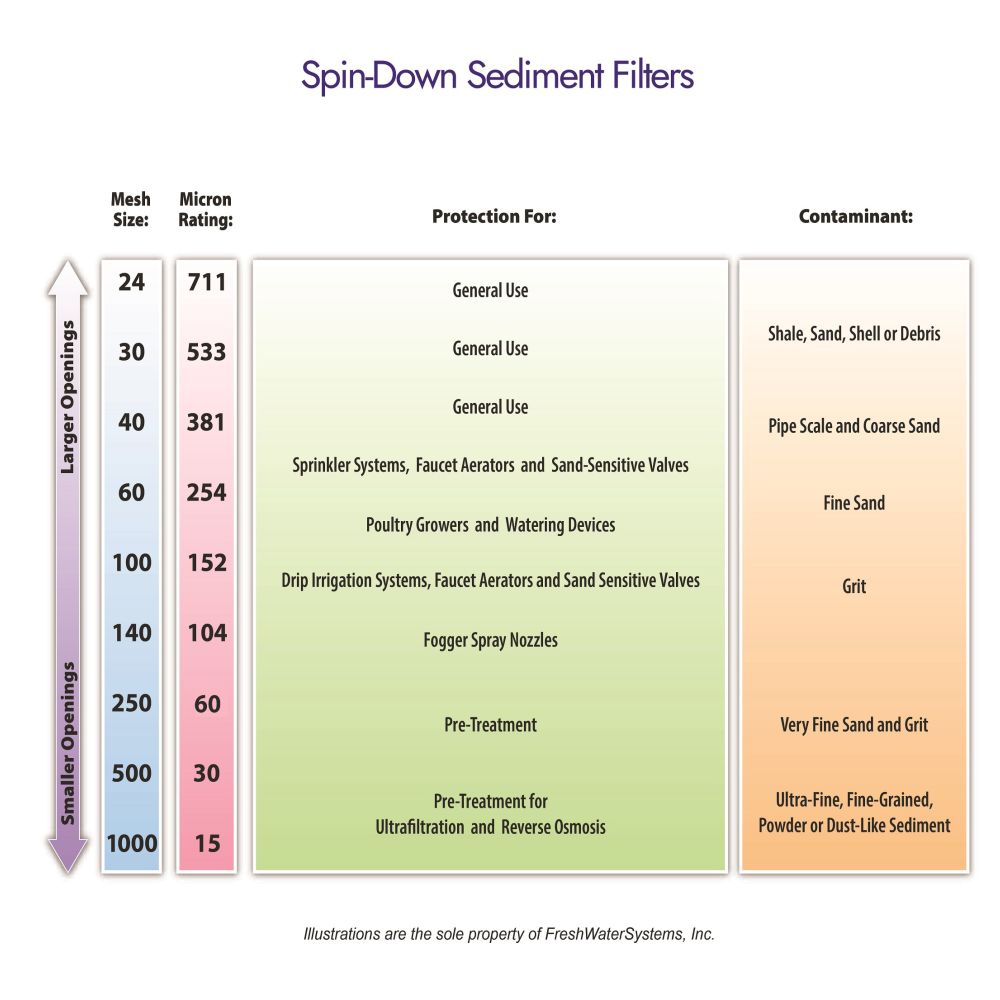

Mesh Size

30; 60; 100; 140; 200

Micron Rating (Nominal)

533; 254; 152; 104; 74

O Rings

EPDM

Top Style

Combo Style


Rusco

Rusco

Rusco





Rusco 1-1/2" Spin Down Sediment Filter System with Stainless Steel Filter Screen is more durable than PE screens and make solid particle removal simple and economical. The benefit of the 1-1/2" spin Down filter system is its ability to be cleaned and reused. The 1-1/2" Spin-Down Sediment Filter by Rusco has a clear cover that can be easily removed for total of filter and stainless steel filter screen cleaning. The unique tornado (spin-down action) effect created by the patented process is unique

Features:
  • Combo style head allows you to choose between the horizontal and vertical outlets (cannot use both)
  • Includes 1.5" slip to 1.25" FPT bushing and 1.25" MPT plug for the unused outlet
  • Unique element design traps sediment in lower reservoir of clear cover.
  • Clear bowl easily removed for total cleaning (no tools required – using tools voids warranty)
  • Sediment is visible through the clear cover indicating when the filter needs cleaning
  • Ball valve allows for quick sediment removal from bottom of cover
  • Centrifuge Spin-Down type sediment separation
  • No down time!!
Benefits:
  • The new 1.5" and 2" spin-down models make it easy to convert the standard spin-down filter to a sediment trapper by simply replacing the element screens
  • No filter cartridges to replace
  • No down time required flushing out sediment
  • No wasteful backwashing required
  • Small size takes little space
  • Screen sizes can be easily changed if required

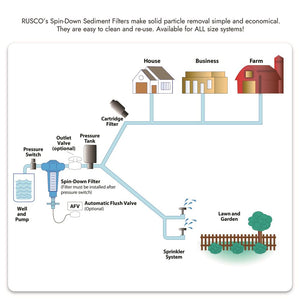

  • Multiple uses: well water, irrigation, sand sensitive valves, drip irrigation, faucet aerators, poultry growers watering devices (.010"), fogger nozzles, pre-treatment for ultra water systems and reverse osmosis

Details

Body Material

PVC

Cartridge Style

Stainless Steel; Spin Down Screen

Flow Rate

10-50 Gallons Per Minute

Inlet/Outlet Size

1-1/2" Slip

Max Operating Pressure

150 PSI

Max Operating Temperature

100 Degrees Fahrenheit

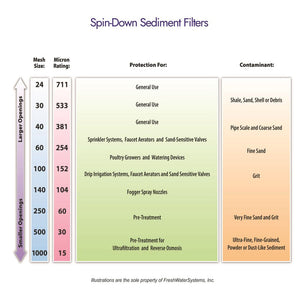

Mesh Size

30; 60; 100; 140; 200

Micron Rating (Nominal)

533; 254; 152; 104; 74

O Rings

EPDM

Top Style

Combo Style
