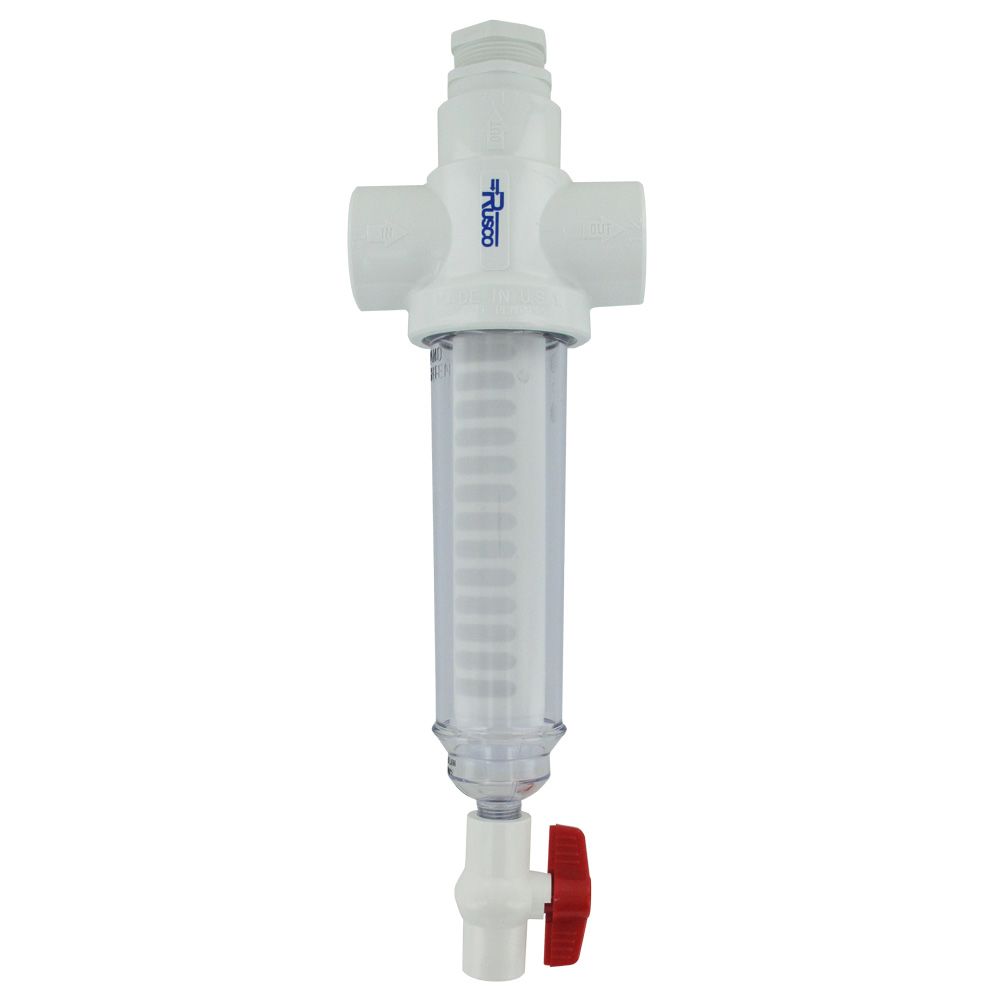

Rusco Spin Down Filter PE Screen Combo Style 1.5"

Part Number: CF1-1/2-24-F

Rusco

Rusco Spin Down Filter PE Screen Combo Style 1.5"

Part Number: CF1-1/2-24-F

One-time purchase

Subscription

Subscription details

Your price:

Choose

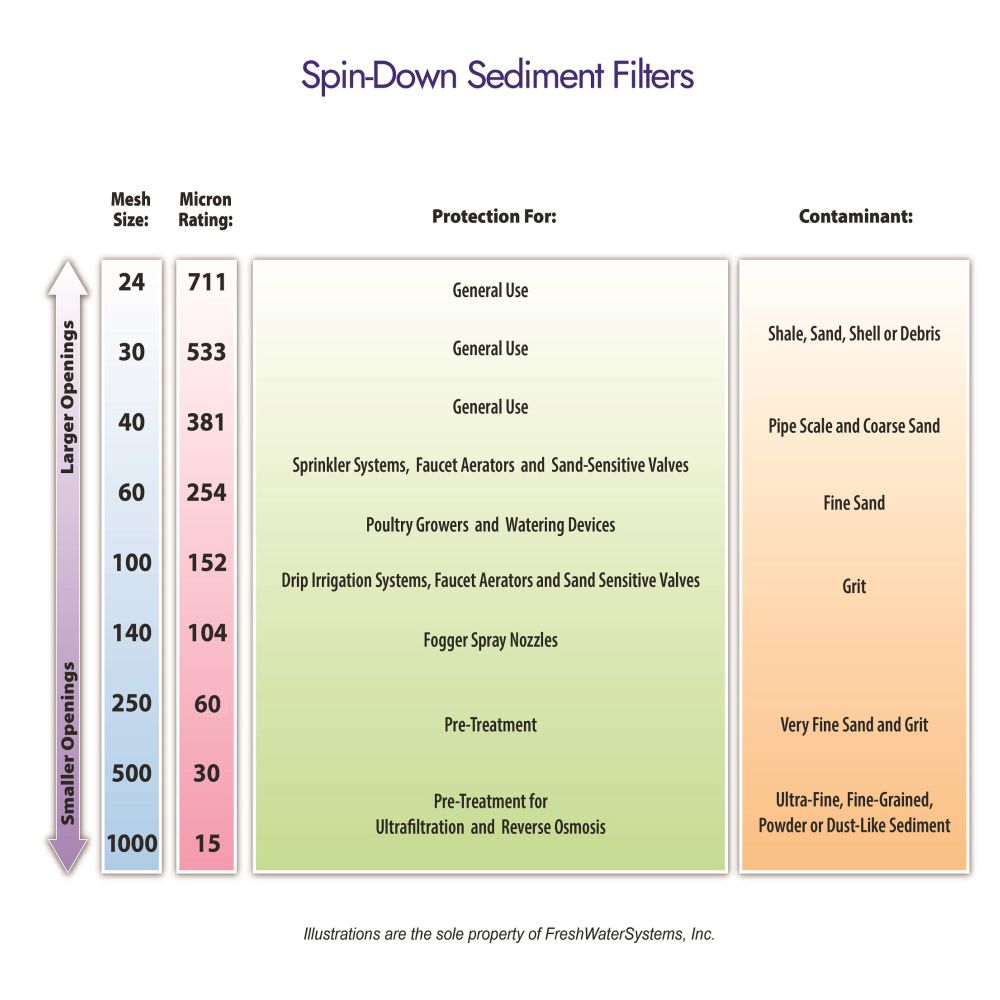

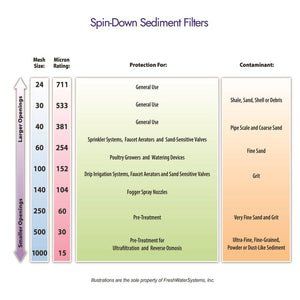

24 Mesh (711 micron)

30 Mesh (533 micron)

40 Mesh (381 micron)

60 Mesh (254 micron)

100 Mesh (152 micron)

140 Mesh (104 micron)

250 Mesh (61 micron)

500 Mesh (30 micron)

1000 Mesh (15 micron)

Quantity

Rusco 1-1/2" Spin Down Sediment Filter System with Polyester Filter Screen make solid particle removal simple and economical. The benefit of the 1-1/2" Spin Down filter system is its ability to be cleaned and reused. The 1-1/2" Spin-Down Sediment Filter by Rusco has a clear cover that can be easily removed for total cleaning. The unique tornado (spin-down action) effect created by the patented process is unique.

Features:

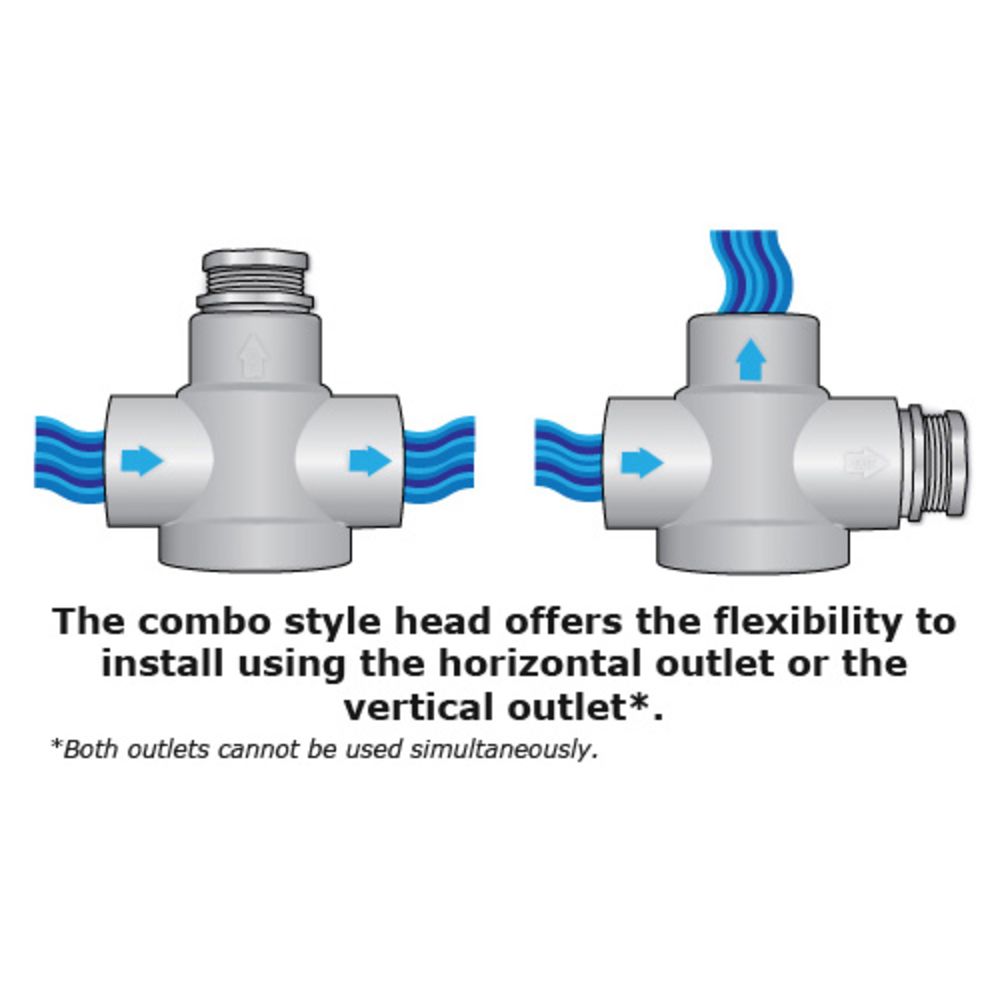

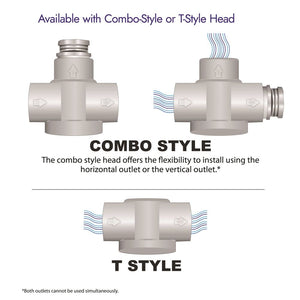

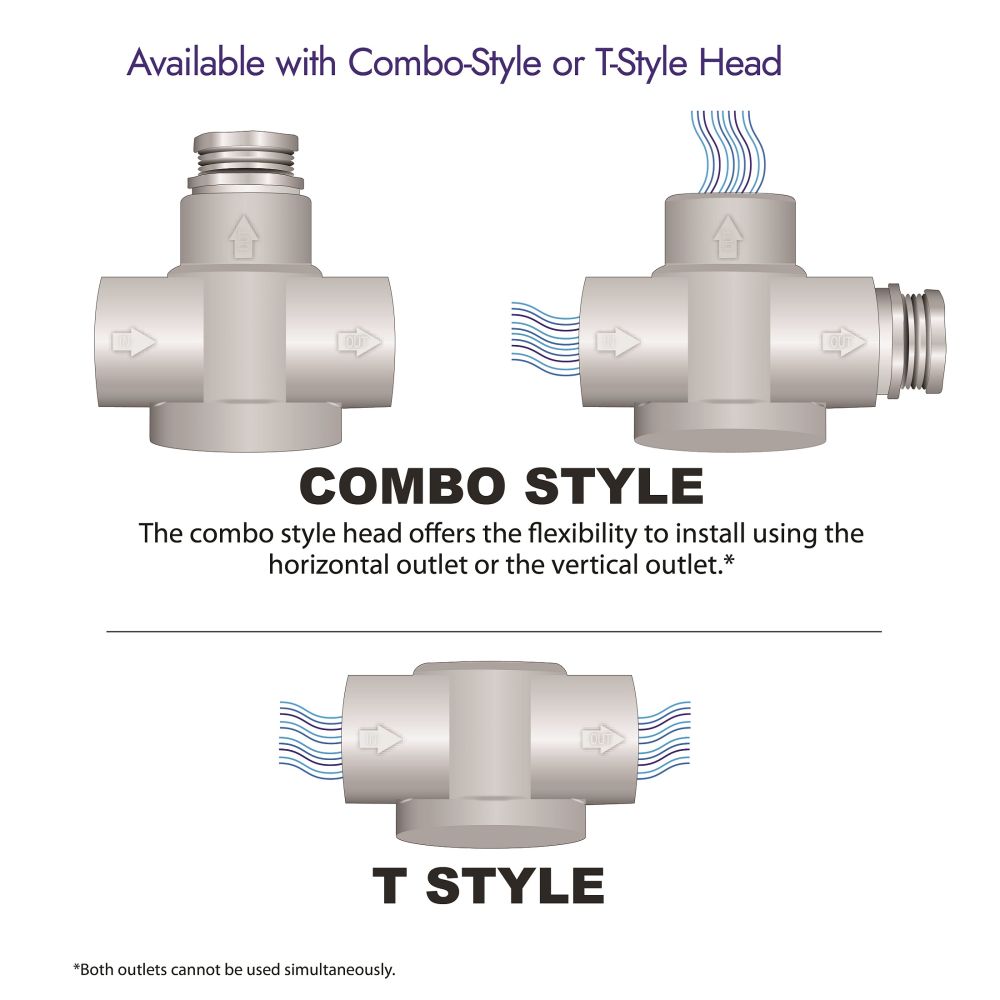

Combo style head allows you to choose from a vertical or horizontal outlet (cannot use both)

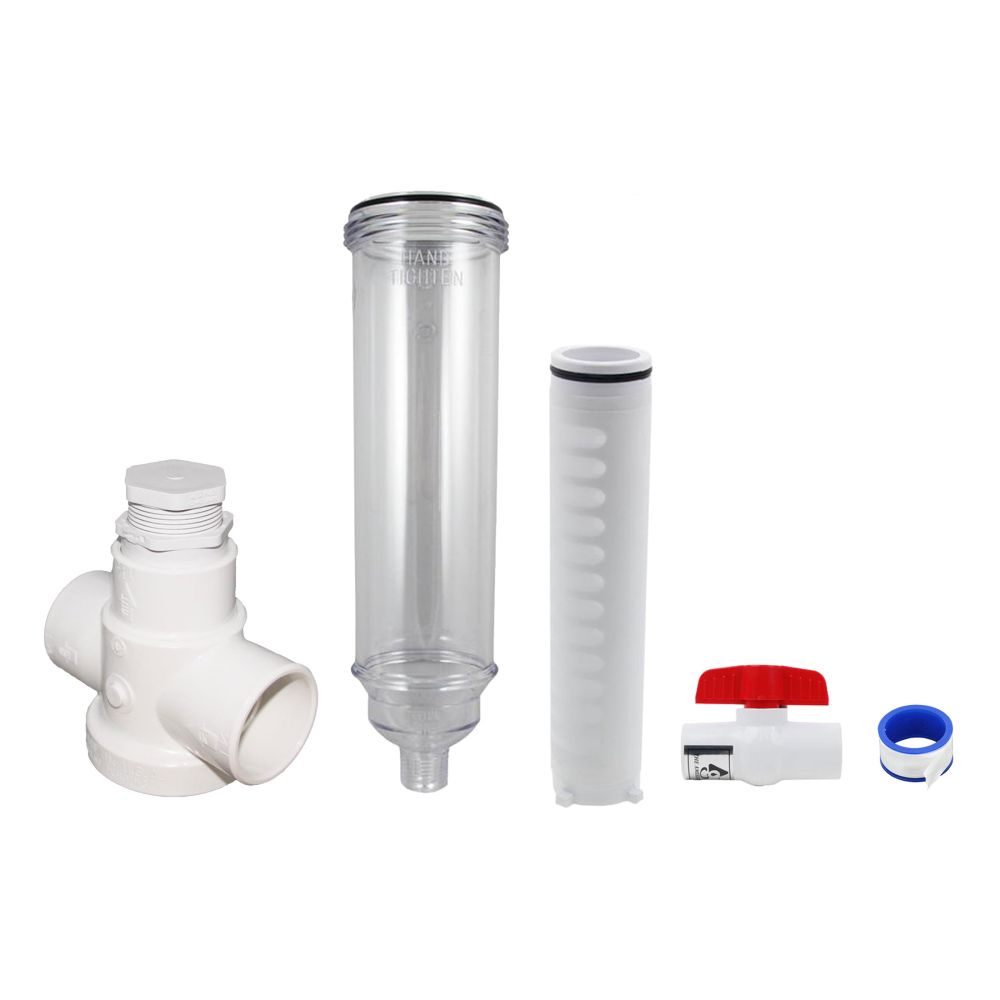

Includes 1.5" slip to 1.25" FPT bushing and 1.25" MPT plug for the unused outlet

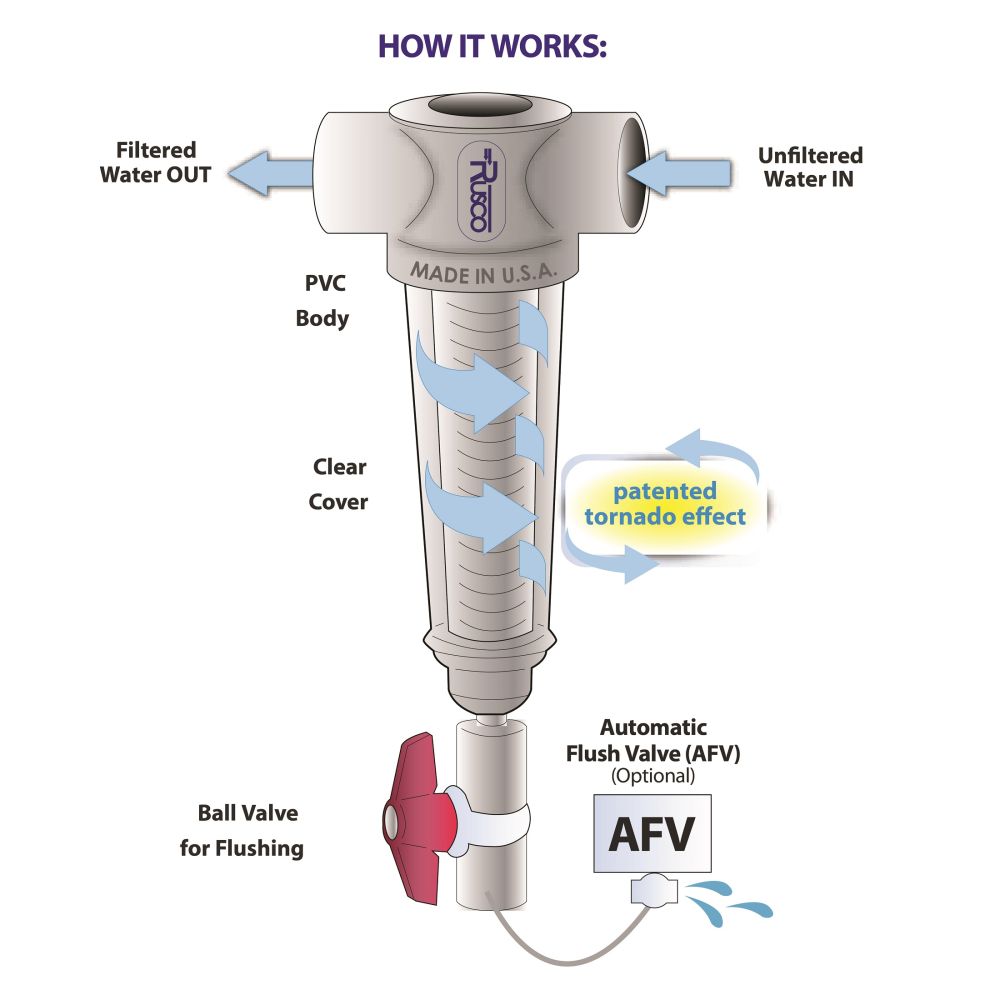

Unique element design traps sediment in lower reservoir of clear cover.
Clear bowl easily removed for total cleaning (no tools required-using tools voids warranty)
Sediment is visible through the clear cover indicating when the filter needs cleaning
Ball valve allows for quick sediment removal from bottom of cover
Centrifuge spin-down type sediment separation
No down time!

Benefits:

The new 1.5" and 2" spin-down models make it easy to convert the standard spin-down filter to a sediment trapper by simply replacing the element screens
No filter cartridges to replace
No down time required flushing out sediment
No wasteful backwashing required
Small size takes little space
Screen sizes can be easily changed if required

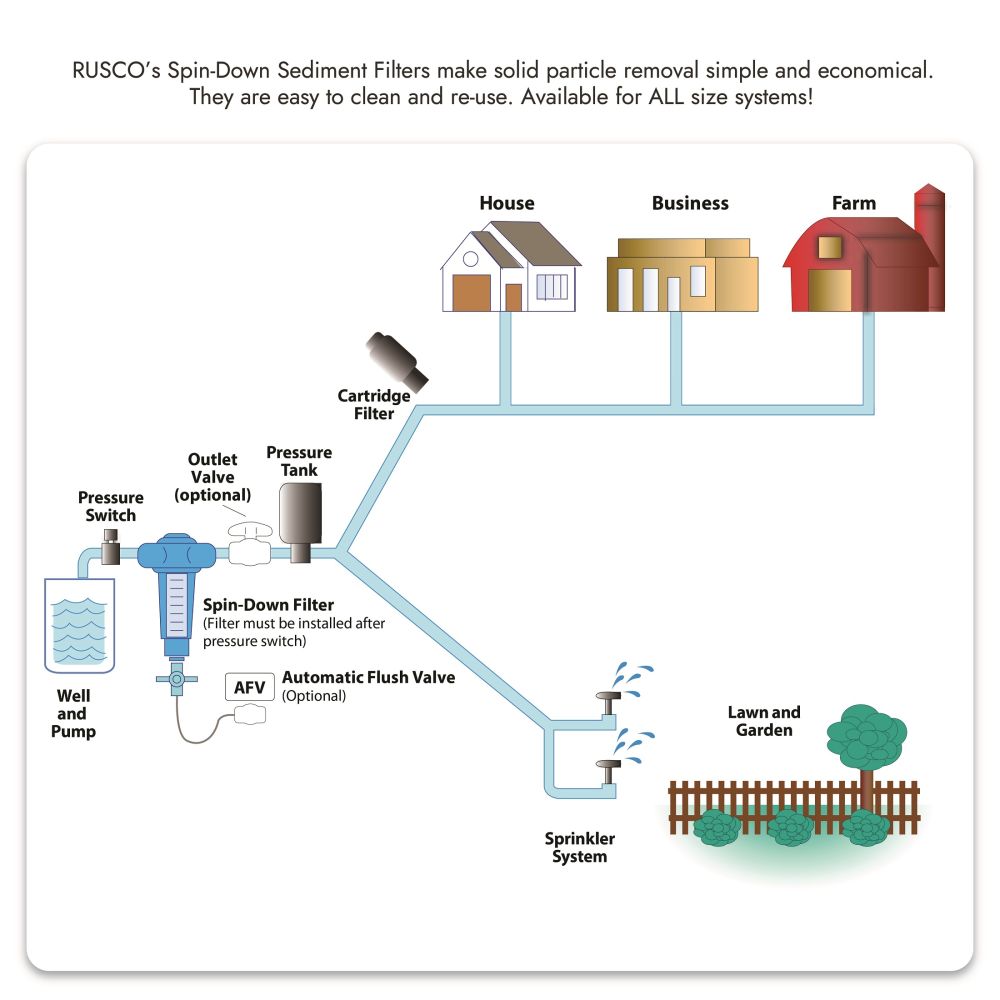

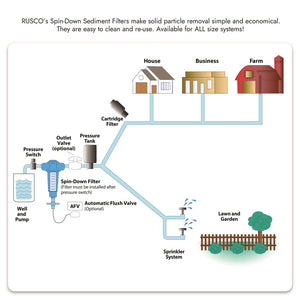

Multiple uses: well water, irrigation, sand sensitive valves, drip irrigation, faucet aerators, poultry growers watering devices (.010"), fogger nozzles, pre-treatment for ultra water systems and reverse osmosis

Compatible with:

Vu-Flow

CF150-24P, CF150-30P, CF150-40P, CF150-60P, CF150-100P, CF150-140P, CF150-250P, CF150-500P, CF150-1000P

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Well Water Pumps Water Softeners
Body Material	PVC
Body Size	1.5”
Head Style	Combo Style
Housing Material	High Impact Polymer Resin
Inlet Connection	1-1/2" Slip
Max Pressure (Psi)	150
Max Temp (°F)	100
Mesh Size	24 30 40 60 100 140 250 500 1000
O-Rings	EPDM
Outlet Connection	1-1/2" Slip
Screen Opening	0.028 0.021 0.015 0.01 0.006 0.004 0.0024 0.0012 0.0006
Slip Size	1-1/2"
Cartridge Style	Spin-down
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	SPIN-DOWN \| POLYESTER
Flow Rate	10-50 GPM
Housing Resistance	Fresh Water Only
Media Type	Polyester
Micron Rating	711 µm 533 µm 381 µm 254 µm 152 µm 104 µm 61 µm 30 µm 15 µm
Port Size	1-1/2"
Screen Material	Polyester
Sub-Type	Combo Style System
Top Style	Combo Style
Type	Standard
Shipping Dimensions
Shipping Length	16.63 in.
Shipping Width	5.25 in.
Shipping Height	5.25 in.
Product Weight & Dimensions
Product Height	5-1/4"
Product Length	16-5/8"
Product Width	5-1/4"
Product Weight (lbs)	1.85
