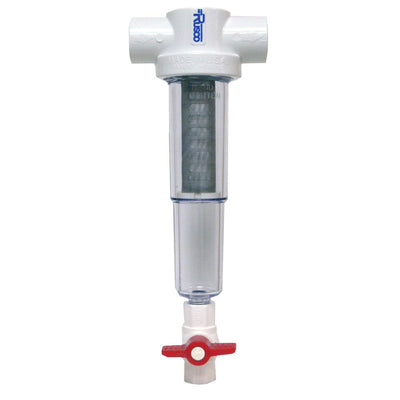

![Rusco Sediment Trapper Filter SS Screen T Style 1" - 100 Mesh [152 micron]](http://cdn.shopify.com/s/files/1/2723/8896/products/elbdbafdw9gvah1drosd_1500x.jpg?v=1600356463)
- High performance SS (Stainless Steel) sediment trapper
- Flush valve included
- Dimensions: 14-3/8" L x 5" W
- Size: 1" slip
Details
Body Material | PVC |
Housing Material | High Impact Polymer Resin |
Inlet/Outlet Connection | 1" Slip |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 100 |
Mesh Size | 30, 60, 100, 140, 200 |
Micron Rating (Nominal) | 533 µm, 254 µm, 152 µm, 104 µm, 74 µm |
O-Rings | EPDM |
Screen Opening | .021, .010, .006, .004, .0029 |
Cartridge Style | Sediment Trapper |
Connection Type | Slip |
Contaminants Reduced | Sediment/Dirt/Rust |
Filter Type | Rusco Spin-Down & Sediment Traps |
Flow Rate | 1-25 GPM |
Housing Resistance | Fresh Water Only |
Media Type | Stainless Steel |
Micron Rating | 533 µm, 254 µm, 152 µm, 104 µm, 74 µm |
Port Size | 1" |
Screen Material | Stainless Steel |
Sub-Type | T-Style System |
Type | Sediment Trapper |
Features:
- High performance SS (Stainless Steel) sediment trapper
- Flush valve included
- Dimensions: 14-3/8" L x 5" W
- Size: 1" slip
Details
Body Material | PVC |
Housing Material | High Impact Polymer Resin |
Inlet/Outlet Connection | 1" Slip |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 100 |
Mesh Size | 30, 60, 100, 140, 200 |
Micron Rating (Nominal) | 533 µm, 254 µm, 152 µm, 104 µm, 74 µm |
O-Rings | EPDM |
Screen Opening | .021, .010, .006, .004, .0029 |
Cartridge Style | Sediment Trapper |
Connection Type | Slip |
Contaminants Reduced | Sediment/Dirt/Rust |
Filter Type | Rusco Spin-Down & Sediment Traps |
Flow Rate | 1-25 GPM |
Housing Resistance | Fresh Water Only |
Media Type | Stainless Steel |
Micron Rating | 533 µm, 254 µm, 152 µm, 104 µm, 74 µm |
Port Size | 1" |
Screen Material | Stainless Steel |
Sub-Type | T-Style System |
Type | Sediment Trapper |
