Features:
- Unique element design traps sediment in lower reservoir of clear cover
- Clear (yellow-tinted) bowl easily removed for total cleaning (no tools required – using tools voids warranty)
- Sediment is visible through the clear cover indicating when the filter needs cleaning
- Ball valve allows for quick sediment removal from bottom of cover
- Centrifuge spin-down-type sediment separation
- No down time!!
- The new 1.5" and 2" spin-down models make it easy to convert the standard spin-down filter to a sediment trapper by simply replacing the element screens
- No filter cartridges to replace
- No down time required flushing out sediment
- No wasteful backwashing required
- Small size takes little space
- Screen sizes can be easily changed if required

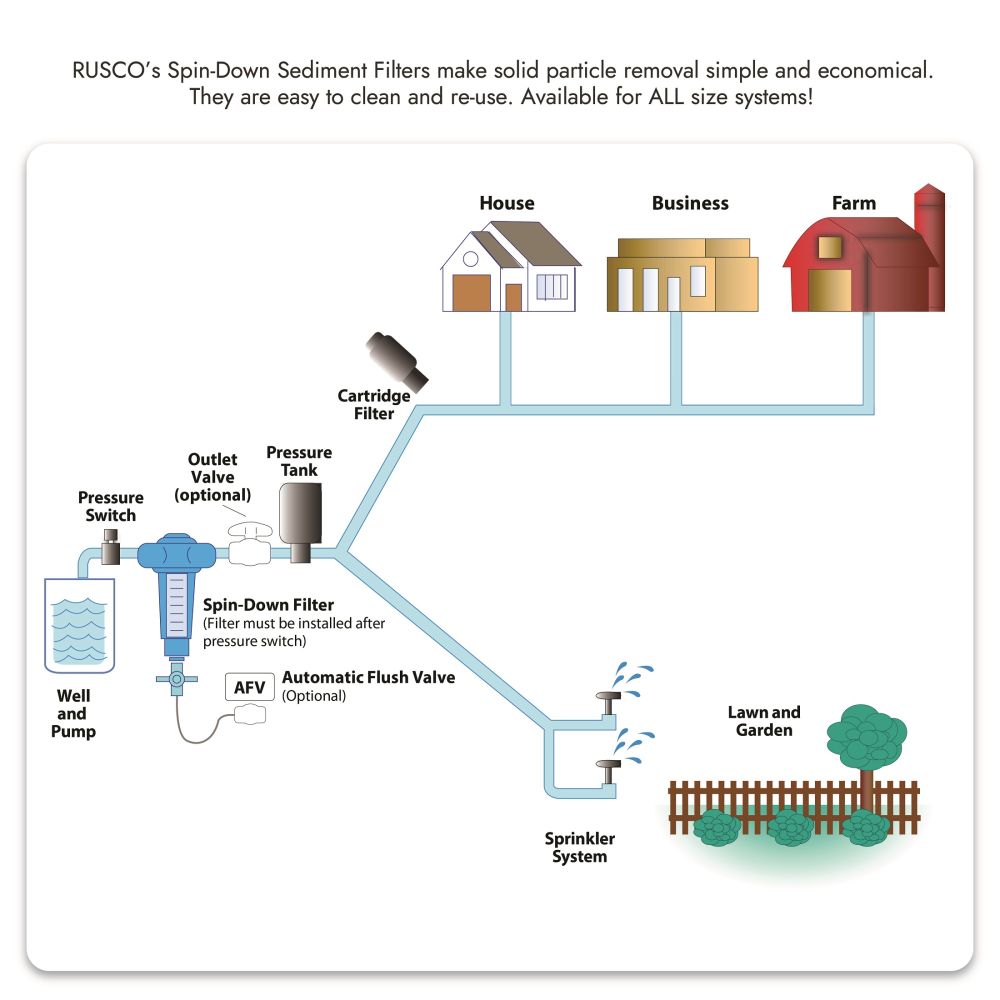

- Multiple uses: well water, irrigation, sand-sensitive valves, drip irrigation, faucet aerators, poultry growers watering devices (.010"), fogger nozzles, pre-treatment for ultrafiltration water systems and reverse osmosis
Details
Body Material | PVC |

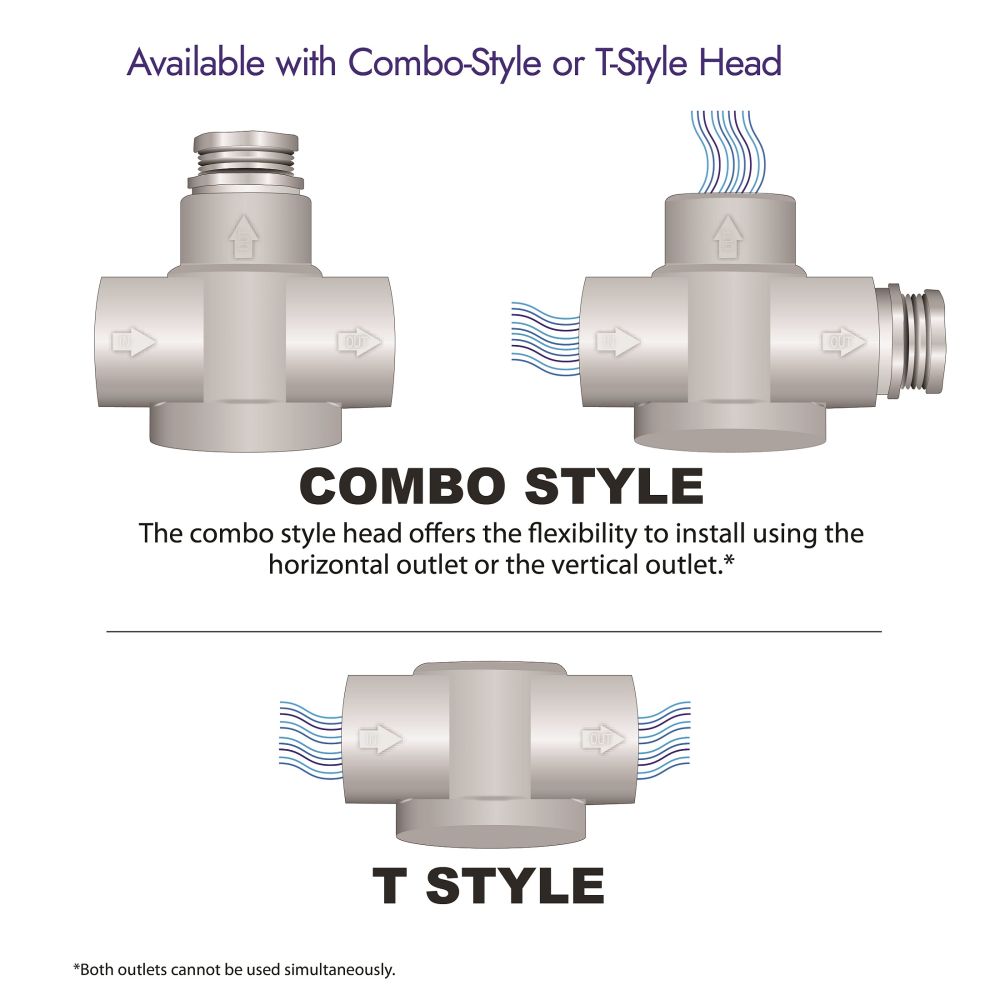

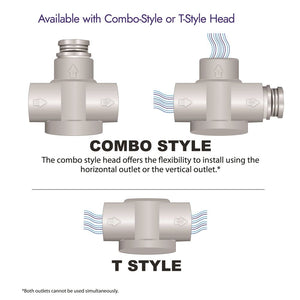

Head Style | T-Style |
Housing Material | Chemical/Heat Resistant High Impact Polymer Resin |
Inlet/Outlet Connection | 1-1/2" Slip |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 100 |

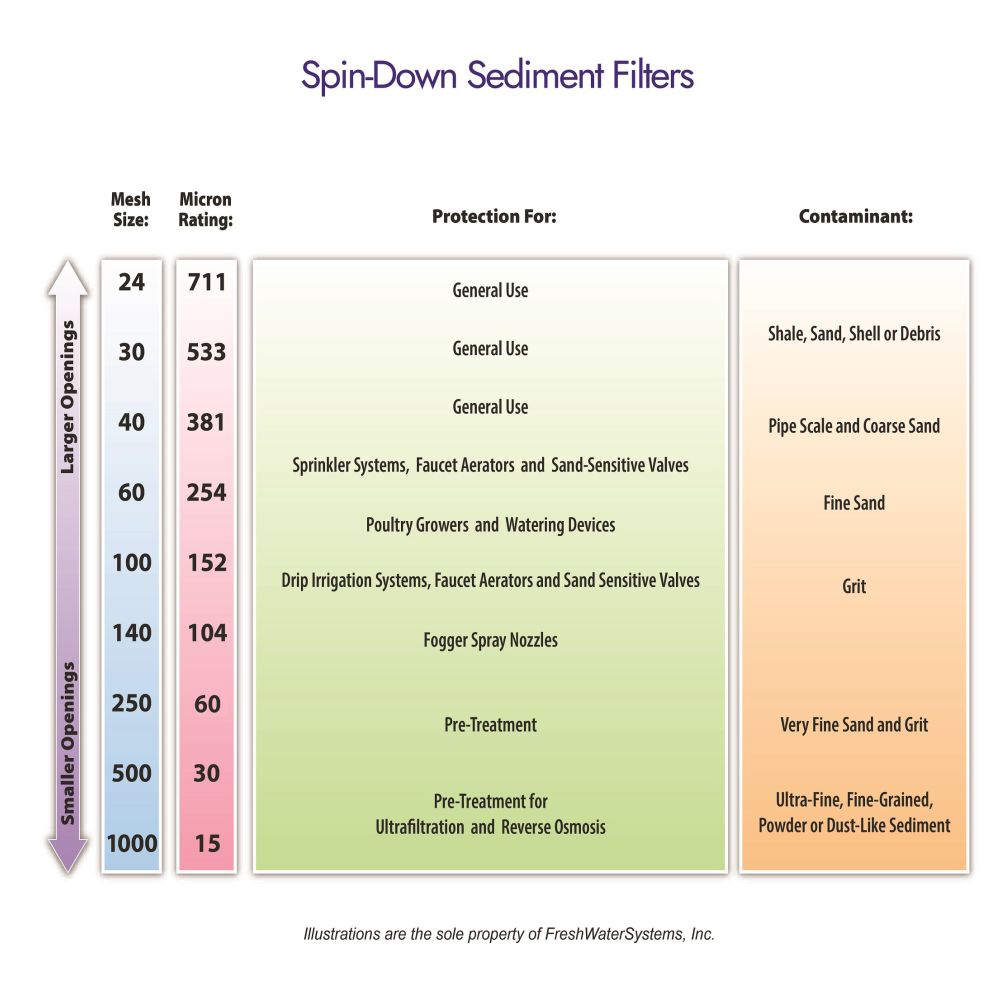

Mesh Size | 30, 60, 100, 140, 200 |
Micron Rating (Nominal) | 533 µm, 254 µm, 152 µm, 104 µm, 74 µm |
O-Rings | EPDM |
Screen Opening | .010 |
Cartridge Style | Spin-down |
Connection Type | Slip |
Contaminants Reduced | Sediment/Dirt/Rust |
Filter Type | Rusco Spin-Down & Sediment Traps |
Flow Rate | 10-50 GPM |
Media Type | Chemical Resistant Stainless Steel |
Micron Rating | 533 µm, 254 µm, 152 µm, 104 µm, 74 µm |
Port Size | 1-1/2" |
Screen Material | Stainless Steel |
Sub-Type | T-Style System |
Top Style | T-Style |
Type | Standard |

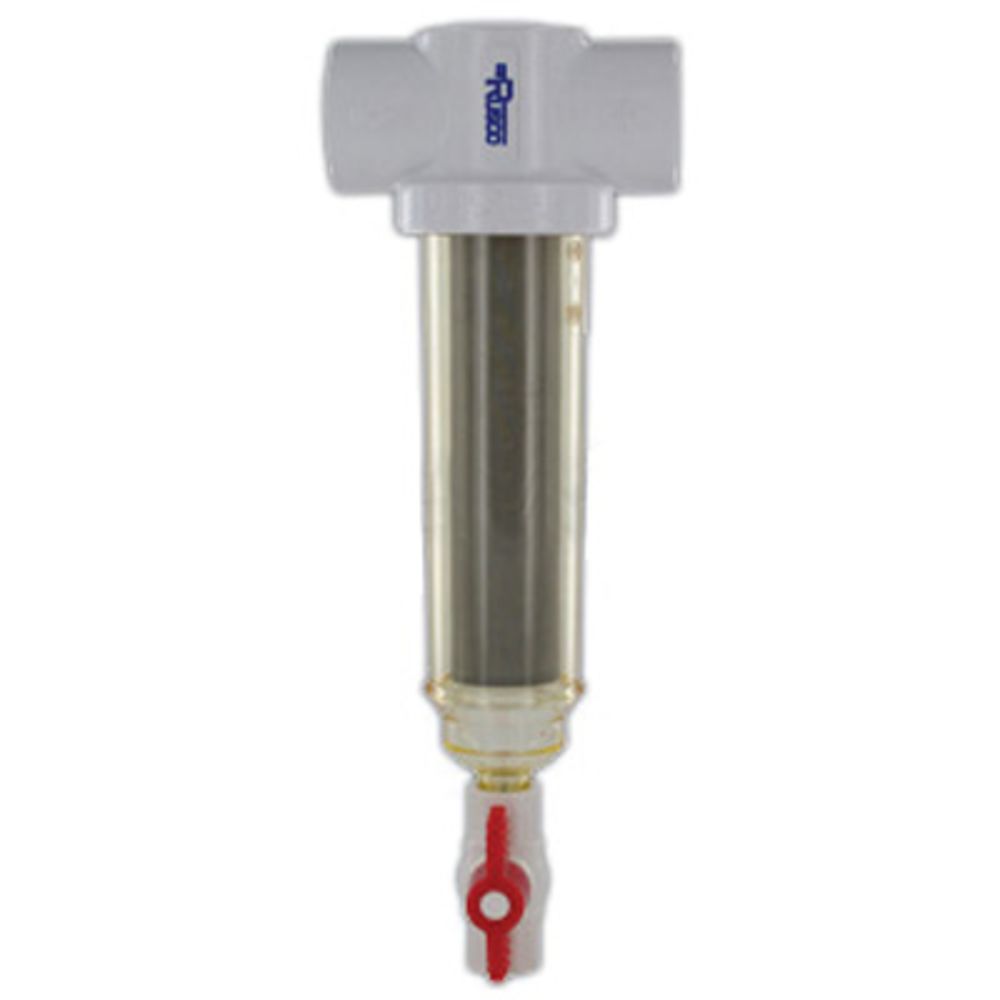

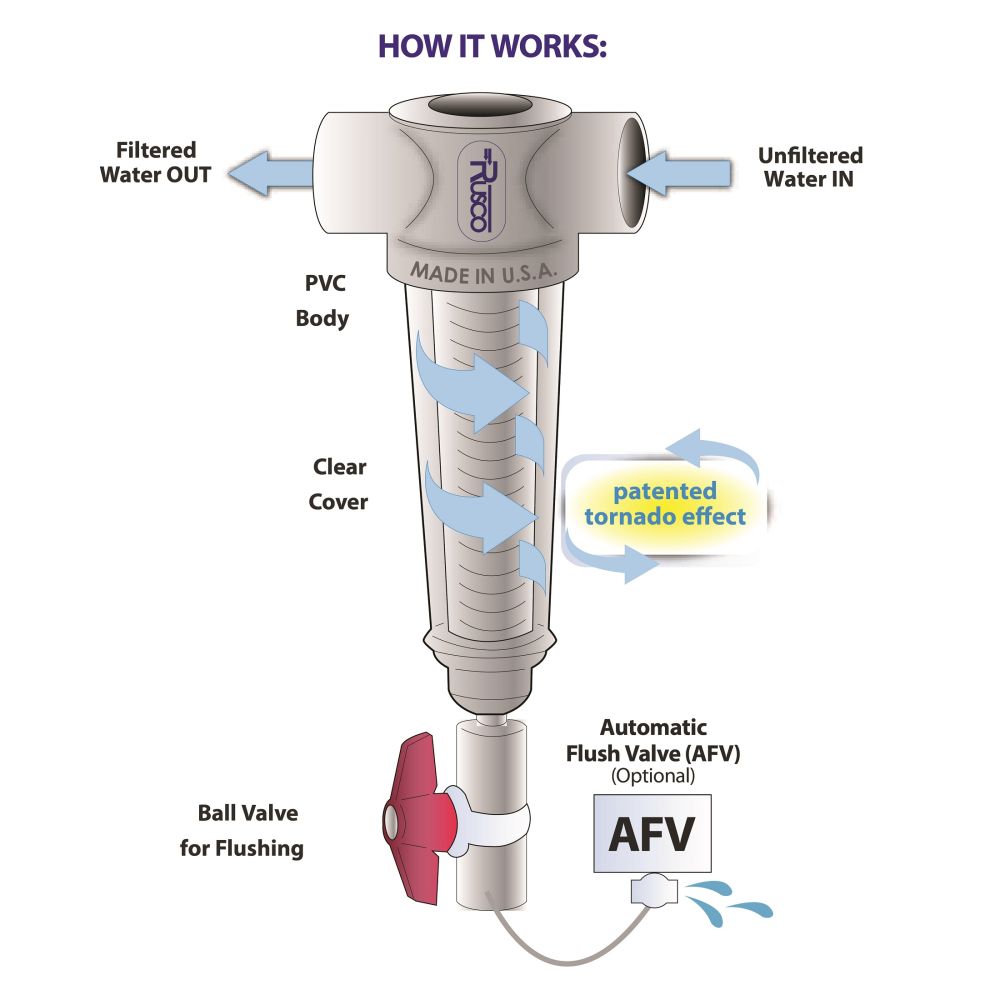

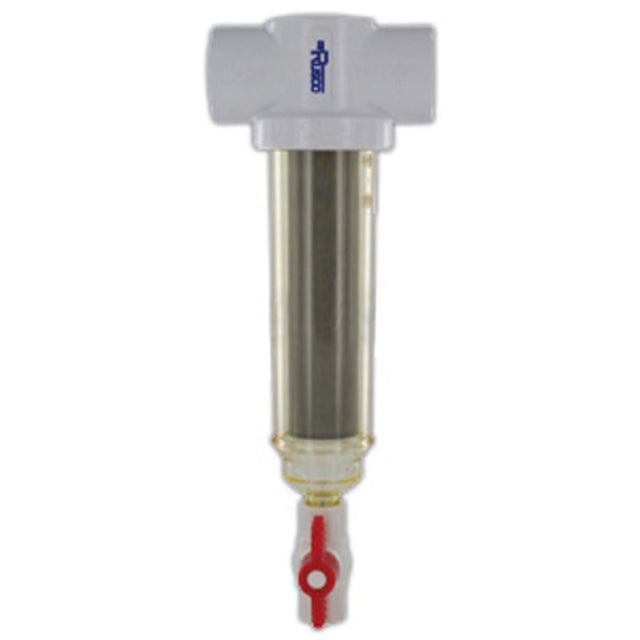

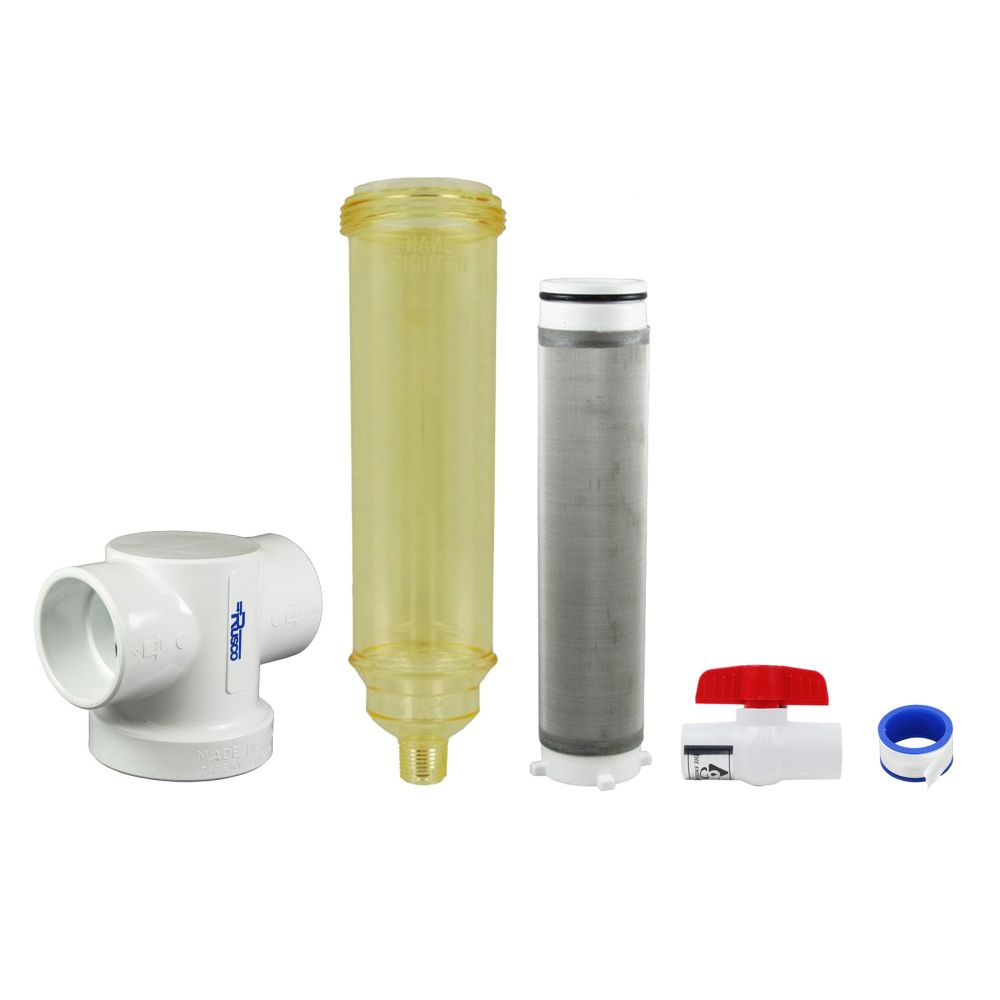

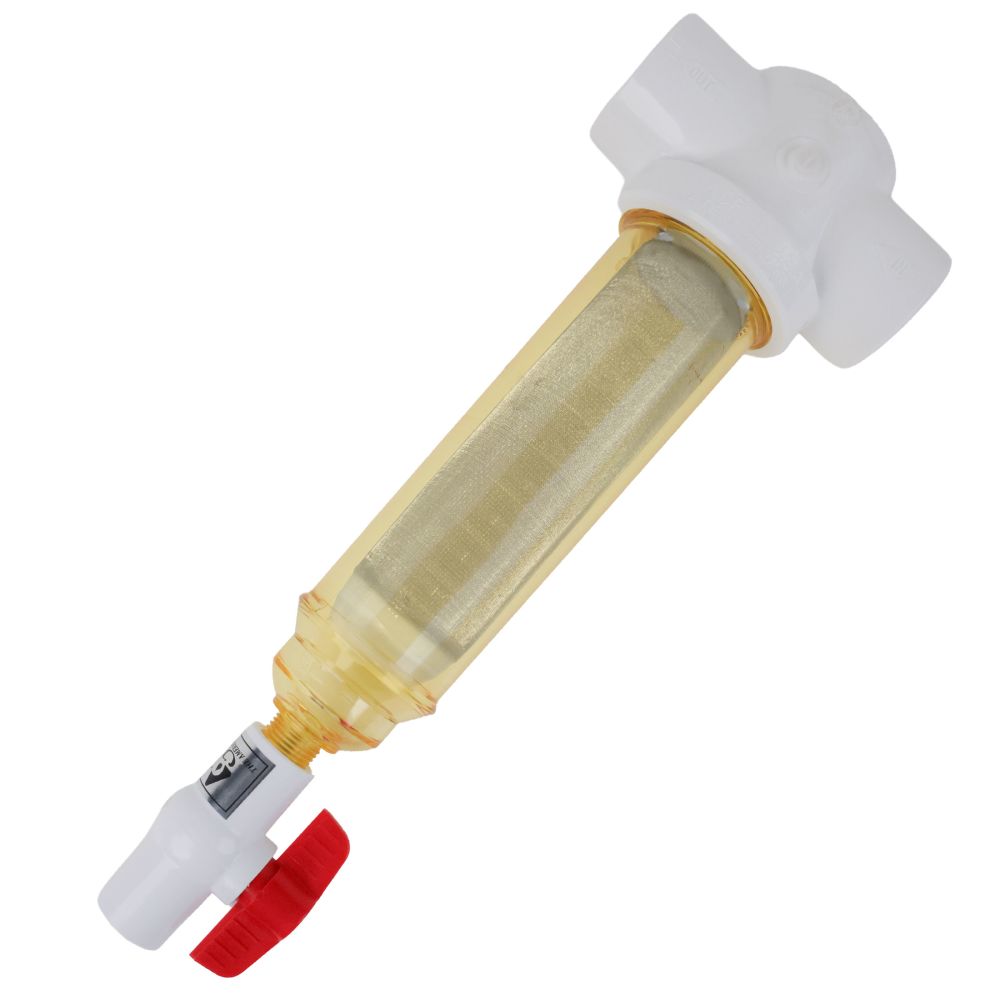

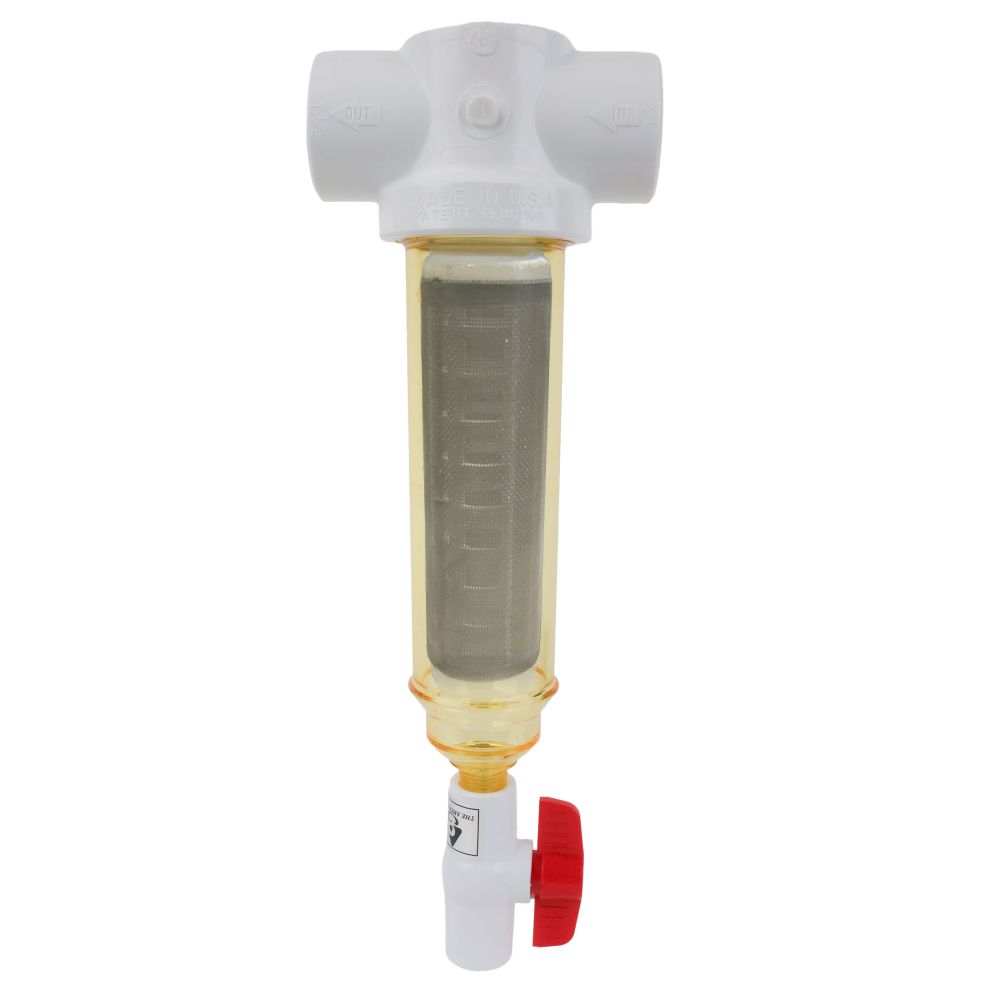

RUSCO’s 1-1/2 Stainless Steel Screen Chemically Resistant Spin-Down Sediment Filter is more durable than PE screens and system make solid particle removal simple and economical. The benefit of the chemically resistant 1-1/2" spin-down filter is its housing and head are made from chemically resistant materials for contaminated water, and its ability to be cleaned and reused. The 1-1/2" chemically resistant Rusco Spin-Down Sediment Filter has a yellow-tinted clear cover that can be easily removed for total cleaning. The tornado (spin-down action) effect created by the patented process is unique.
Features:
- Unique element design traps sediment in lower reservoir of clear cover
- Clear (yellow-tinted) bowl easily removed for total cleaning (no tools required – using tools voids warranty)
- Sediment is visible through the clear cover indicating when the filter needs cleaning
- Ball valve allows for quick sediment removal from bottom of cover
- Centrifuge spin-down-type sediment separation
- No down time!!
- The new 1.5" and 2" spin-down models make it easy to convert the standard spin-down filter to a sediment trapper by simply replacing the element screens
- No filter cartridges to replace
- No down time required flushing out sediment
- No wasteful backwashing required
- Small size takes little space
- Screen sizes can be easily changed if required

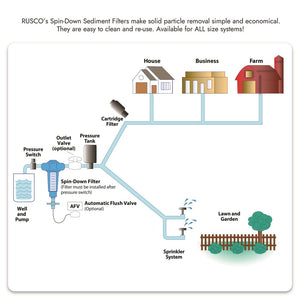

- Multiple uses: well water, irrigation, sand-sensitive valves, drip irrigation, faucet aerators, poultry growers watering devices (.010"), fogger nozzles, pre-treatment for ultrafiltration water systems and reverse osmosis
Details
Body Material | PVC |
Head Style | T-Style |
Housing Material | Chemical/Heat Resistant High Impact Polymer Resin |
Inlet/Outlet Connection | 1-1/2" Slip |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 100 |

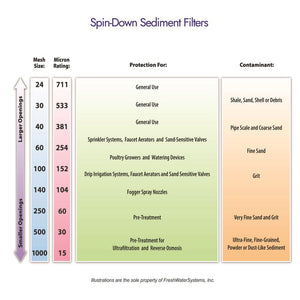

Mesh Size | 30, 60, 100, 140, 200 |
Micron Rating (Nominal) | 533 µm, 254 µm, 152 µm, 104 µm, 74 µm |
O-Rings | EPDM |
Screen Opening | .010 |
Cartridge Style | Spin-down |
Connection Type | Slip |
Contaminants Reduced | Sediment/Dirt/Rust |
Filter Type | Rusco Spin-Down & Sediment Traps |
Flow Rate | 10-50 GPM |
Media Type | Chemical Resistant Stainless Steel |
Micron Rating | 533 µm, 254 µm, 152 µm, 104 µm, 74 µm |
Port Size | 1-1/2" |
Screen Material | Stainless Steel |
Sub-Type | T-Style System |
Top Style | T-Style |
Type | Standard |
