Rusco

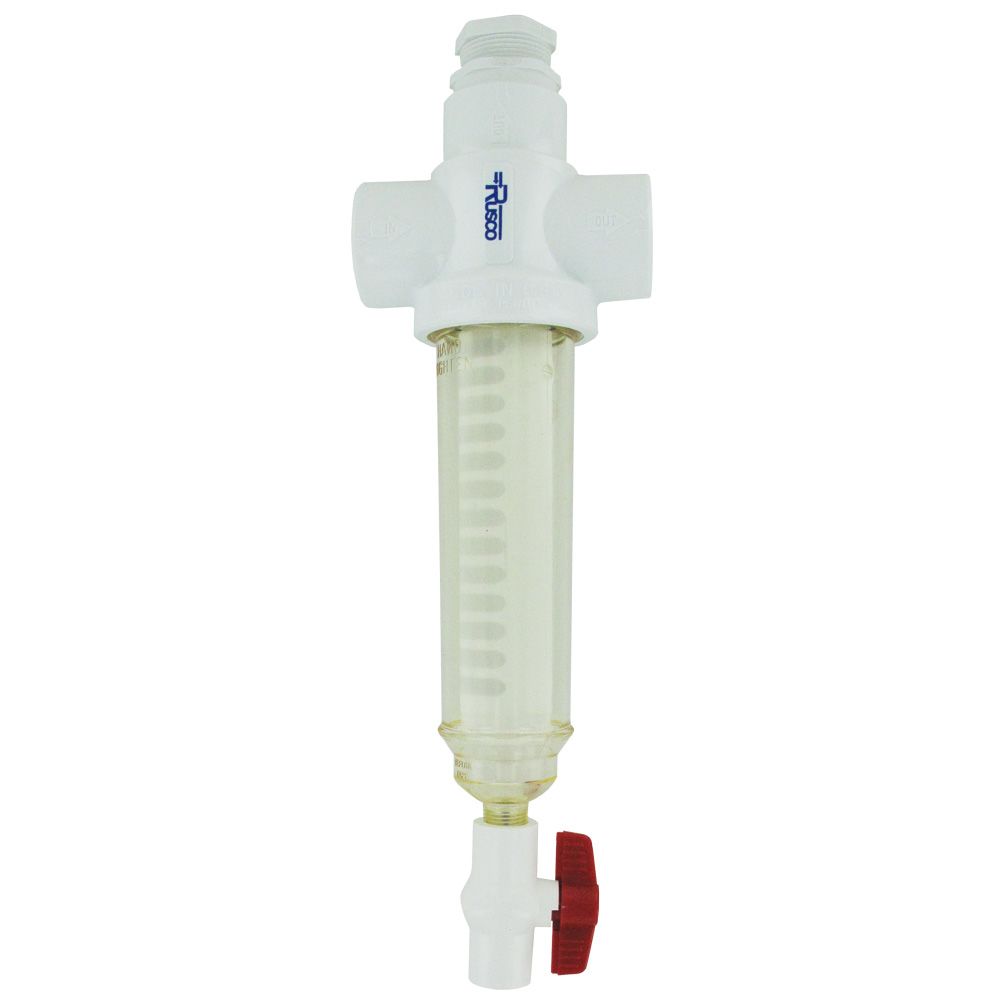

Rusco Chemically Resistant Spin Down Filter Combo Style 1-1/2" PE

Part Number: CF1-1/2-24CR-F

In Stock

out of stock

In Stock

$107.52

RUSCO’s 1 1/2" Chemical Resistant Spin-Down sediment filter system with PE filter screen make solid particle removal simple and economical. The benefit of the chemically resistant 1 1/2" Spin-Down filter is its housing & head are made from chemical resistant materials for contaminated water, and its ability to be cleaned and reused. The 1 1/2" Chemically resistant Rusco Spin-Down Sediment Filter has a clear cover that can be easily removed for total cleaning. The unique tornado (spin-down action) effect created by the patented process is unique.

Features:

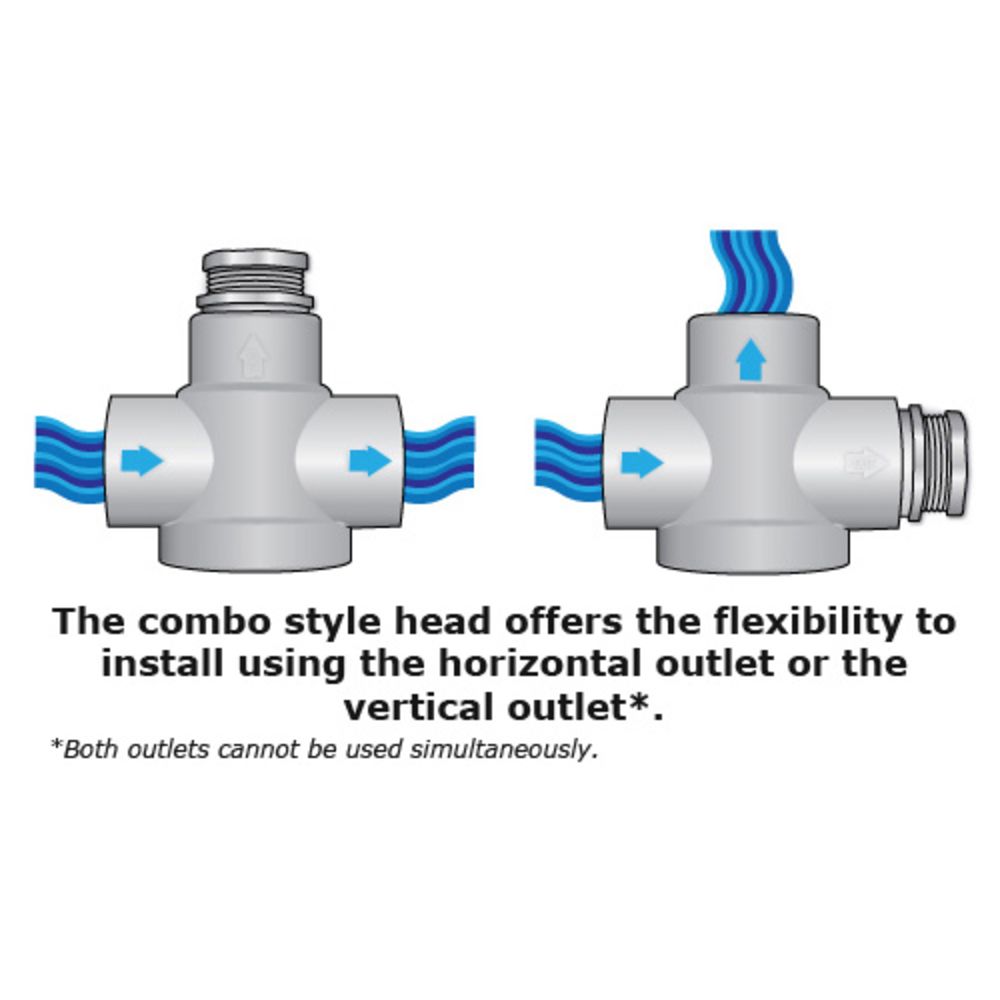

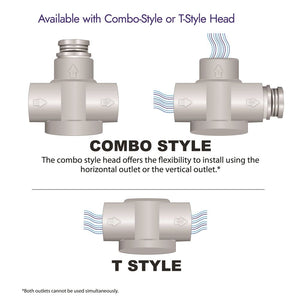

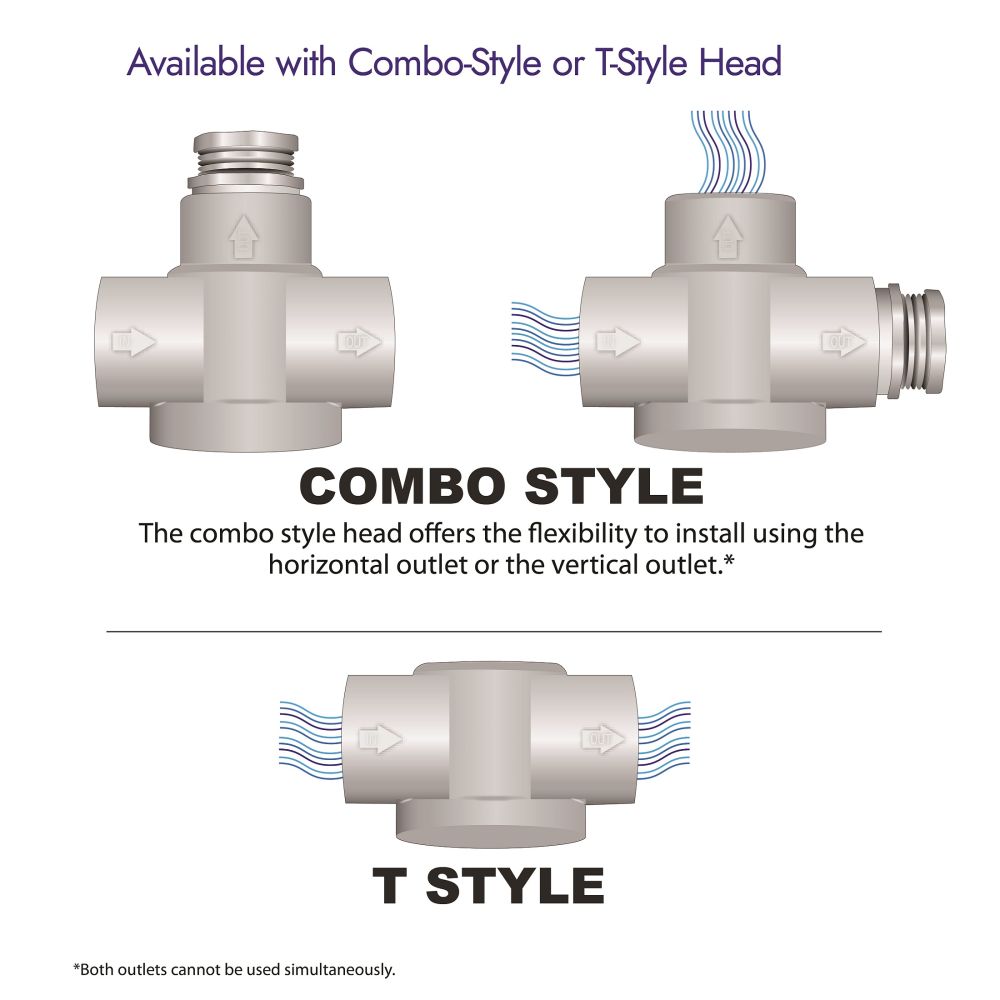

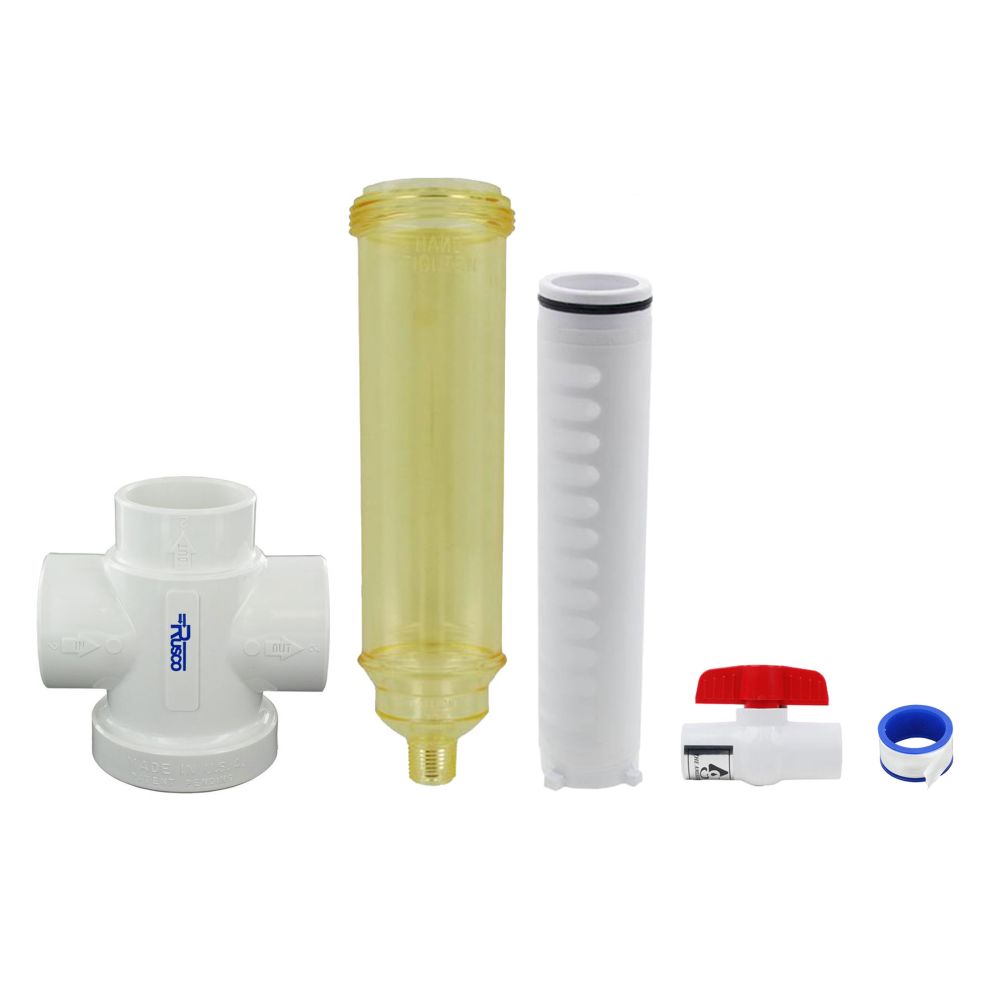

  • Combo style head allows you to select from horizontal or vertical outlet (cannot use both)
  • Includes 1.5" slip to 1.25" FPT bushing and 1.25" MPT plug for the unused outlet
  • Unique element design traps sediment in lower reservoir of clear cover.
  • Clear bowl easily removed for total cleaning (No tools required-using tools voids warranty)
  • Sediment is visible through the clear cover indicating when the filter needs cleaning
  • Ball valve allows for quick sediment removal from bottom of cover

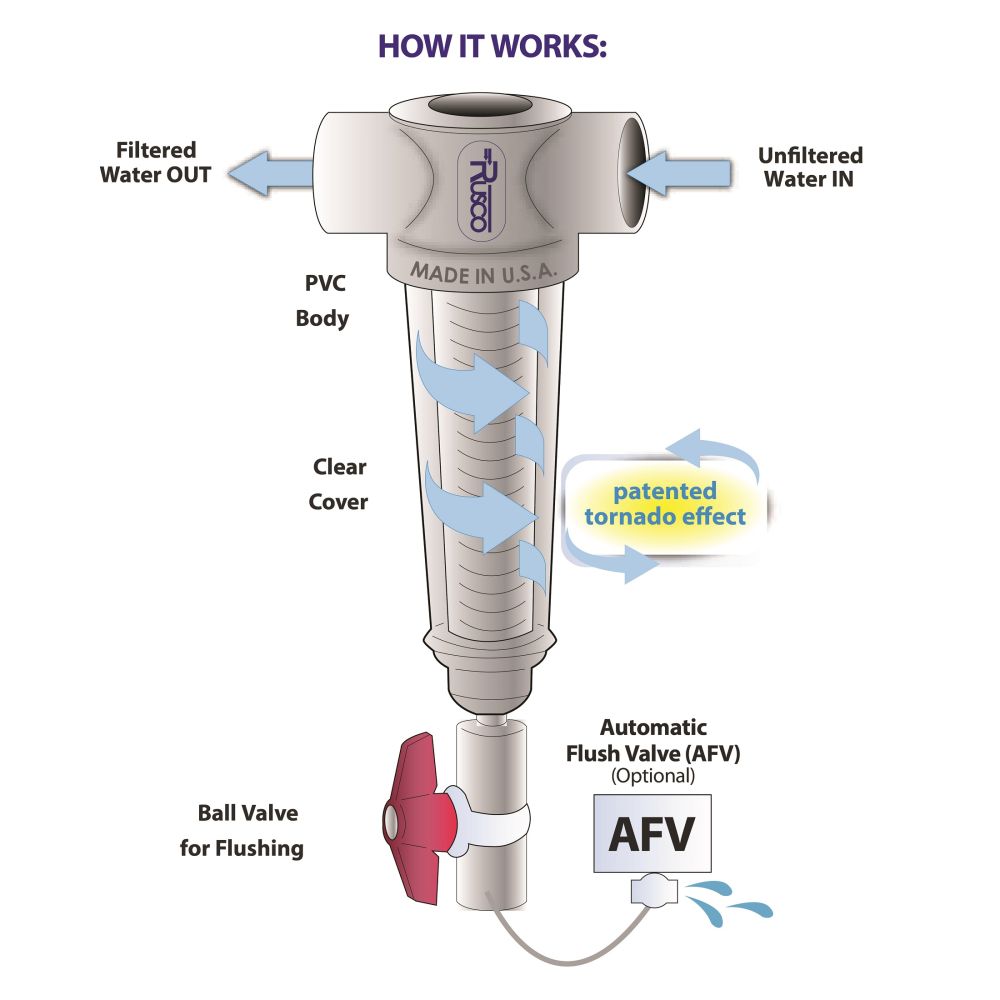

  • Centrifuge Spin-Down type sediment separation
  • No down time!!
  • The new 1.5" & 2" Spin-down models make it easy to convert the standard spin-down filter to a Sediment Trapper by simply replacing the element screens
  • No filter cartridges to replace
  • No down time required flushing out sediment
  • No wasteful backwashing required
  • Small size takes little space
  • Screen sizes can be easily changed if required

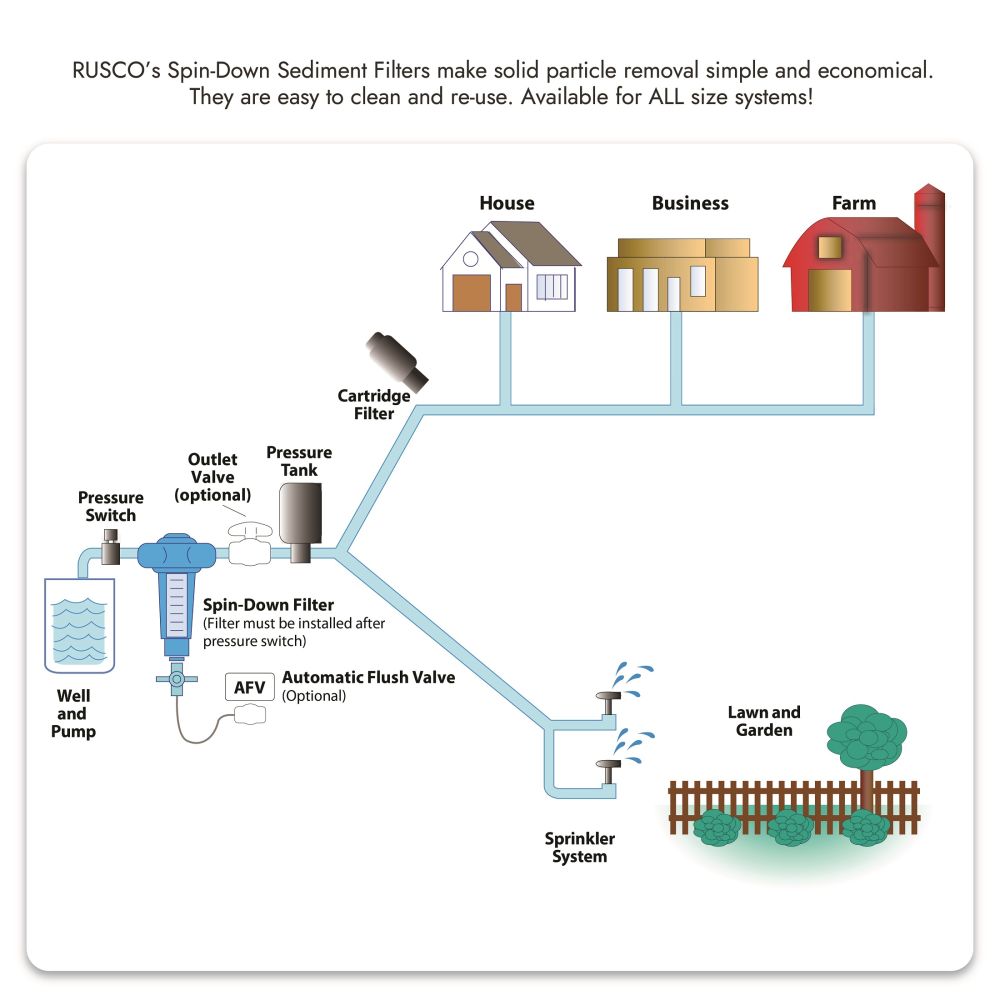

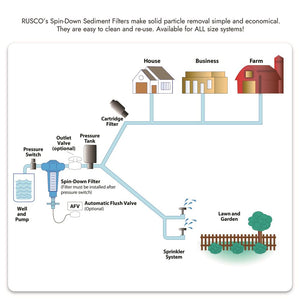

  • Multiple uses: Well water, Irrigation, Sand sensitive valves, Drip irrigation, Faucet aerators, Poultry Growers Watering devices (.010"), Fogger nozzles, Pre-treatment for Ultra water systems and Reverse Osmosis


Details

Body Material

PVC

Cartridge Style

Polyester; Spin Down; Chemical Resistant

Flow Rate

10-50 Gallons Per Minute

Housing Material

Chemical/Heat Resistant High Impact Polymer Resin

Inlet/Outlet Size

1-1/2" Slip

Max Operating Pressure

150 PSI

Max Operating Temperature

100 Degrees Fahrenheit

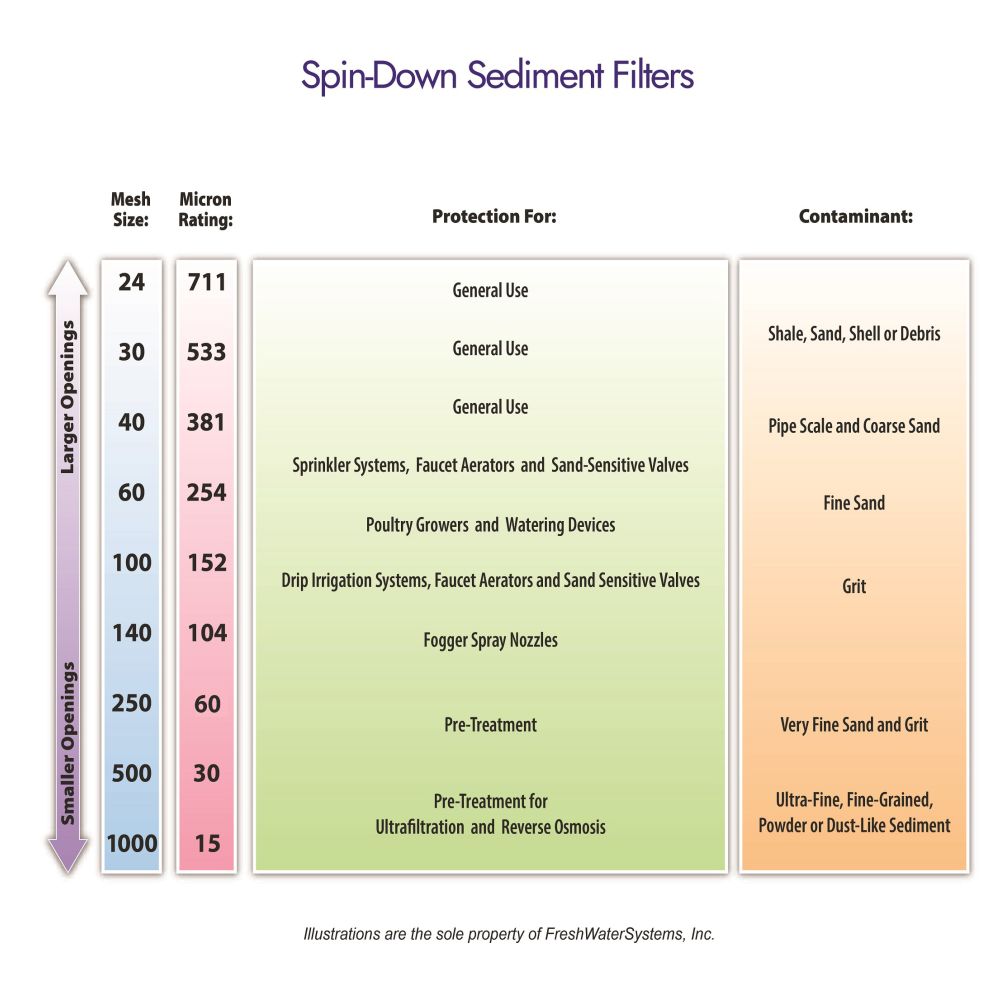

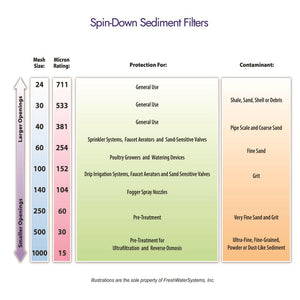

Mesh Size

30; 60; 100; 140; 250; 500; 1000; 24; 40

Micron Rating (Nominal)

533; 254; 152; 104; 61; 30; 15; 711; 381

O Rings

EPDM

Top Style

Combo Style


Rusco

Rusco

Rusco




RUSCO’s 1 1/2" Chemical Resistant Spin-Down sediment filter system with PE filter screen make solid particle removal simple and economical. The benefit of the chemically resistant 1 1/2" Spin-Down filter is its housing & head are made from chemical resistant materials for contaminated water, and its ability to be cleaned and reused. The 1 1/2" Chemically resistant Rusco Spin-Down Sediment Filter has a clear cover that can be easily removed for total cleaning. The unique tornado (spin-down action) effect created by the patented process is unique.

Features:
  • Combo style head allows you to select from horizontal or vertical outlet (cannot use both)
  • Includes 1.5" slip to 1.25" FPT bushing and 1.25" MPT plug for the unused outlet
  • Unique element design traps sediment in lower reservoir of clear cover.
  • Clear bowl easily removed for total cleaning (No tools required-using tools voids warranty)
  • Sediment is visible through the clear cover indicating when the filter needs cleaning
  • Ball valve allows for quick sediment removal from bottom of cover
  • Centrifuge Spin-Down type sediment separation
  • No down time!!
  • The new 1.5" & 2" Spin-down models make it easy to convert the standard spin-down filter to a Sediment Trapper by simply replacing the element screens
  • No filter cartridges to replace
  • No down time required flushing out sediment
  • No wasteful backwashing required
  • Small size takes little space
  • Screen sizes can be easily changed if required
  • Multiple uses: Well water, Irrigation, Sand sensitive valves, Drip irrigation, Faucet aerators, Poultry Growers Watering devices (.010"), Fogger nozzles, Pre-treatment for Ultra water systems and Reverse Osmosis

Details

Body Material

PVC

Cartridge Style

Polyester; Spin Down; Chemical Resistant

Flow Rate

10-50 Gallons Per Minute

Housing Material

Chemical/Heat Resistant High Impact Polymer Resin

Inlet/Outlet Size

1-1/2" Slip

Max Operating Pressure

150 PSI

Max Operating Temperature

100 Degrees Fahrenheit

Mesh Size

30; 60; 100; 140; 250; 500; 1000; 24; 40

Micron Rating (Nominal)

533; 254; 152; 104; 61; 30; 15; 711; 381

O Rings

EPDM

Top Style

Combo Style
