Features:
- Ball valve allows for quick sediment removal from bottom of cover
- Centrifuge Spin-Down type sediment separation
- The new 1.5" and 2" spin-down models make it easy to convert the standard spin-down filter to a sediment trapper by simply replacing the element screens
Details
Screen Material | Stainless Steel Screen |
Housing Resistance | Chemically Resistant |
Max Temp (°F) | 100 |
Max Pressure (Psi) | 150 |
Body Material | PVC |
Cartridge Style | Sediment Trapper |
Diameter | .021, .010, .006, .004, .0024, .0029 |
Flow Rate | 1-25 GPM |
Housing Material | High Impact Polymer Resin |
Media Type | Chemical Resistant, Stainless Steel |
Mesh Size | 30, 60, 100, 140, 250, 200 |
Micron Rating (Nominal) | 533 µm, 254 µm, 152 µm, 104 µm, 61 µm, 74 µm |
Size | 1" |
Inlet/Outlet Connection | 1" Slip |

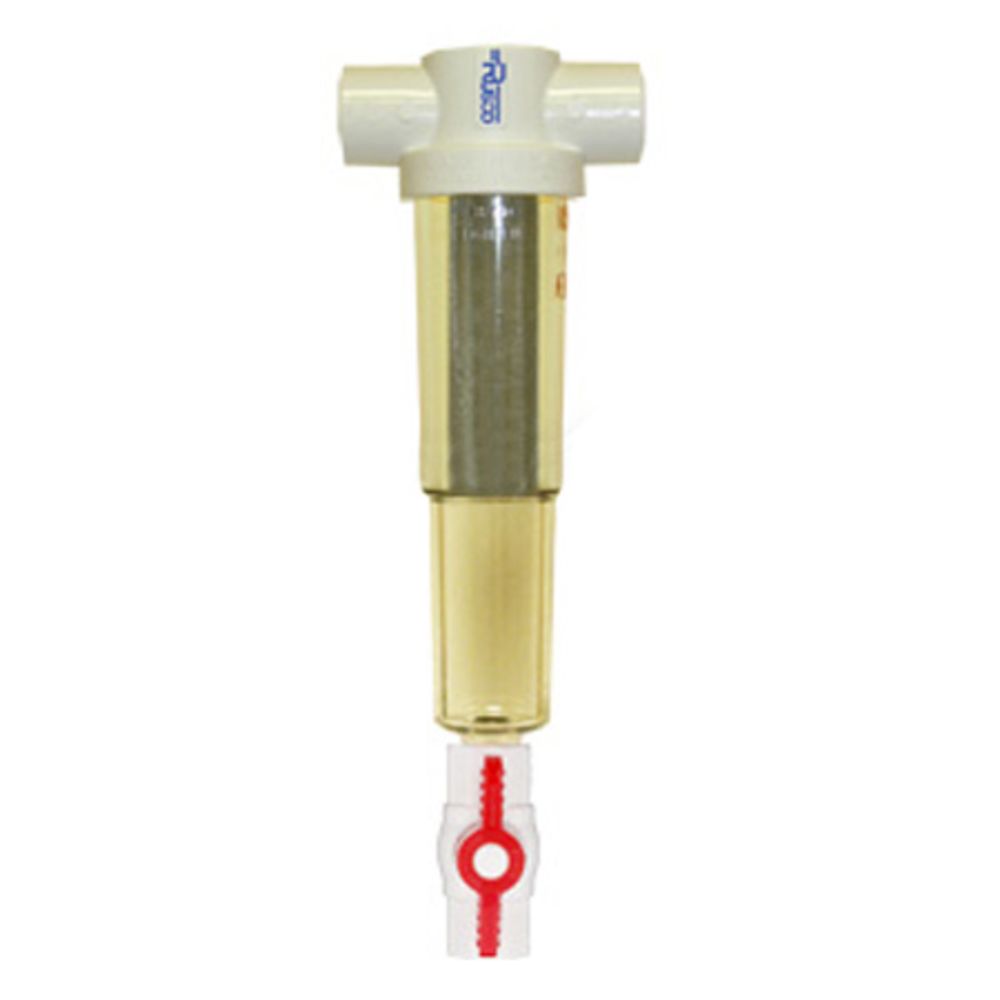

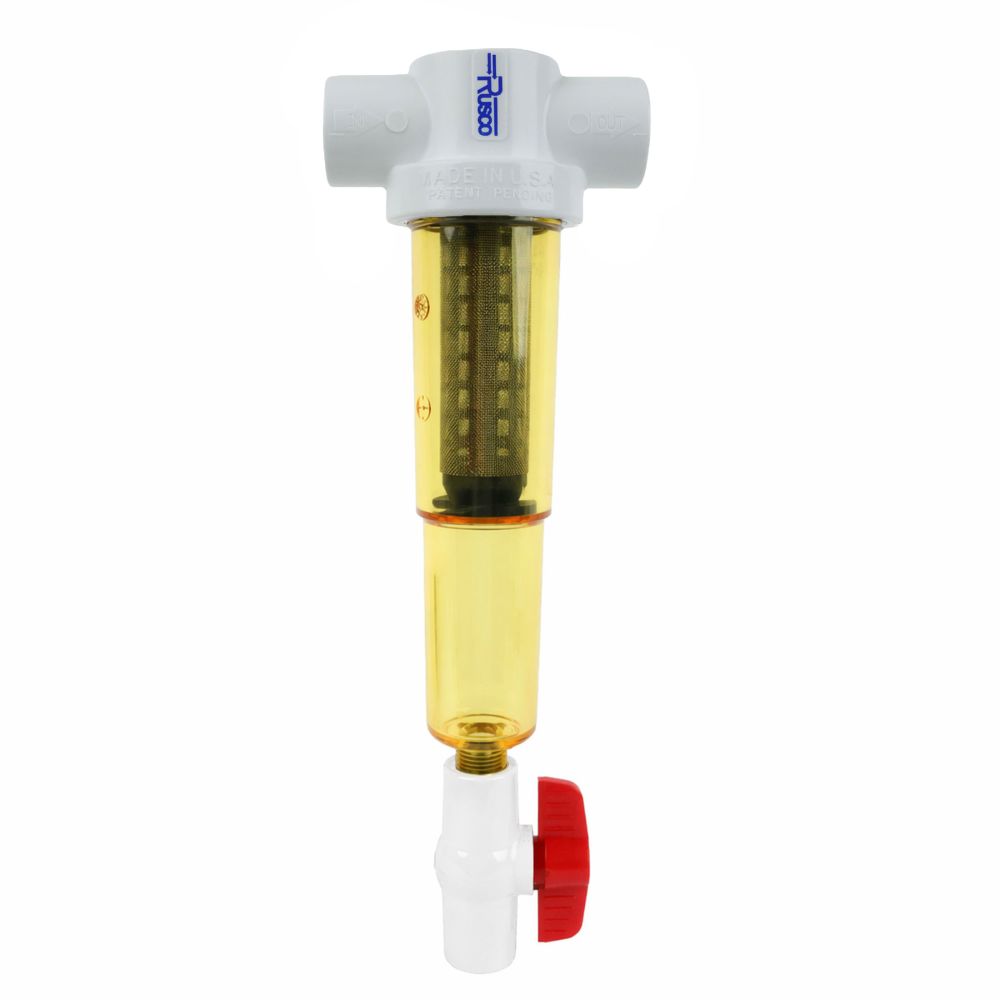

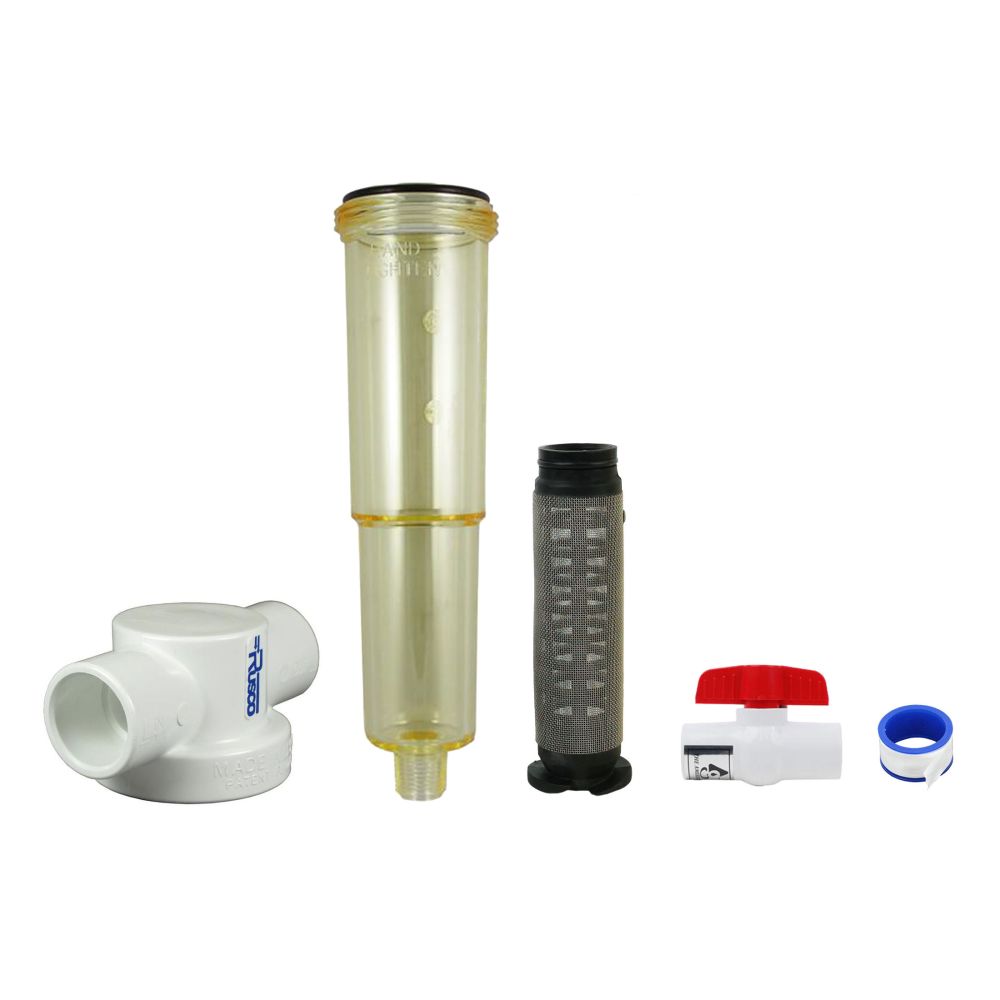

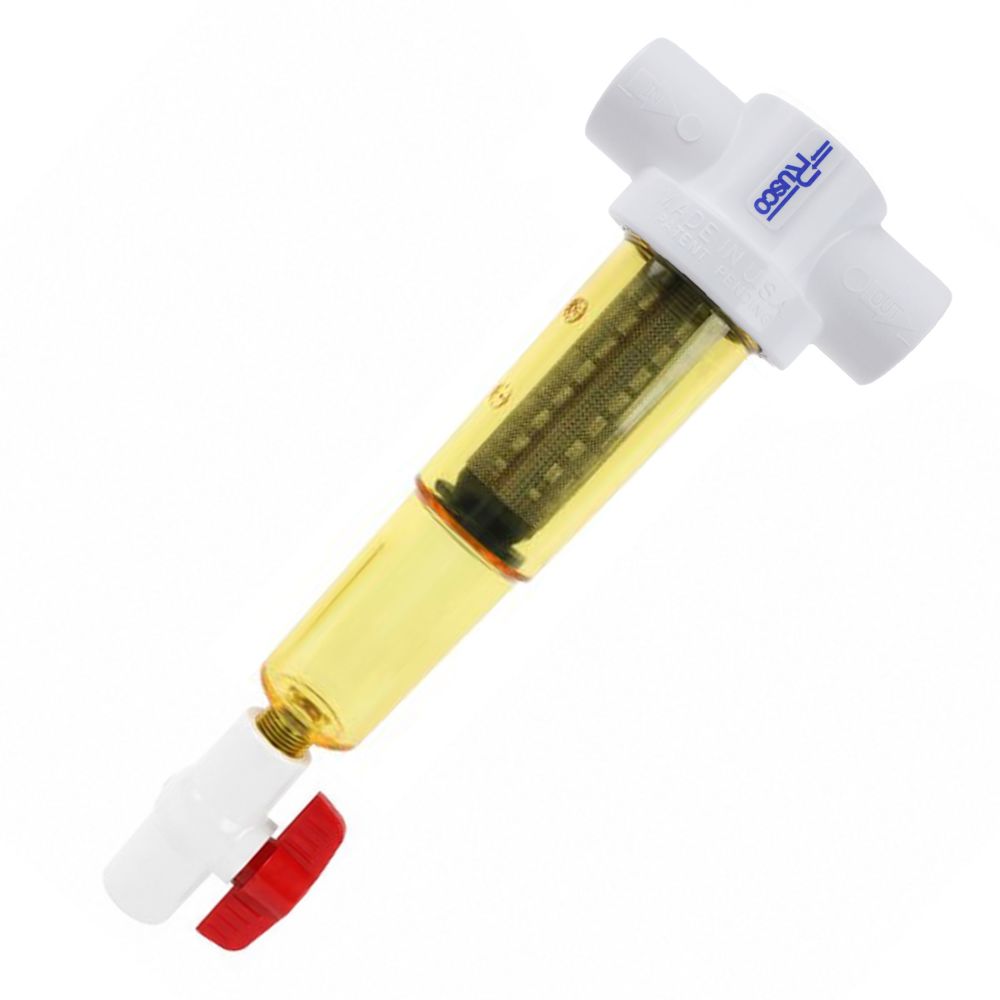

The Rusco Chemically Resistant Sediment Trapper Filter has a unique design that traps sediment in a reservoir. The reservoir, which is easily removable, is clear, allowing the sediment to be seen for the user to determine when cleaning is necessary. There are no filter cartridges to replace, no down time required for flushing out sediment, and no wasteful back-washing. It also has multiple uses, which consist of well water, irrigation, sand sensitive valves, drip irrigation, faucet aerators, poultry growers watering devices, fogger nozzles, pre-treatment for ultra water systems, and reverse osmosis. Its small size takes up little space and the sizes of the screen can be changed without difficulty if it is necessary.
