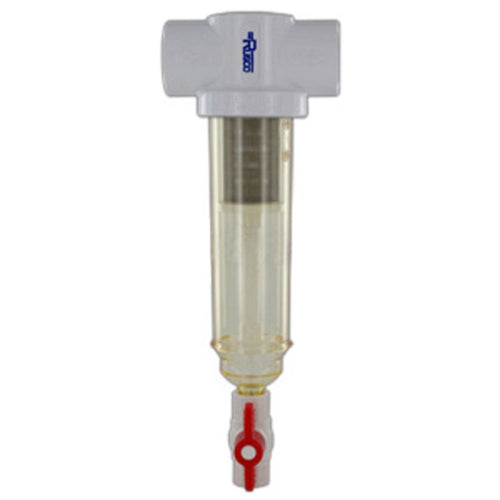

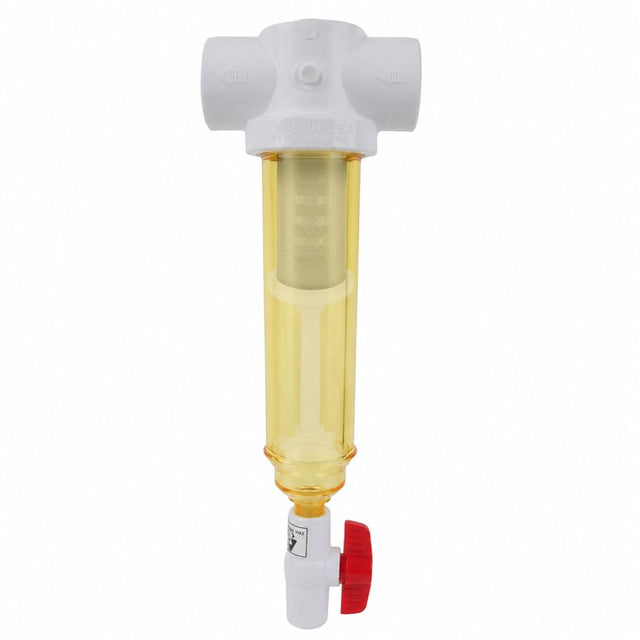

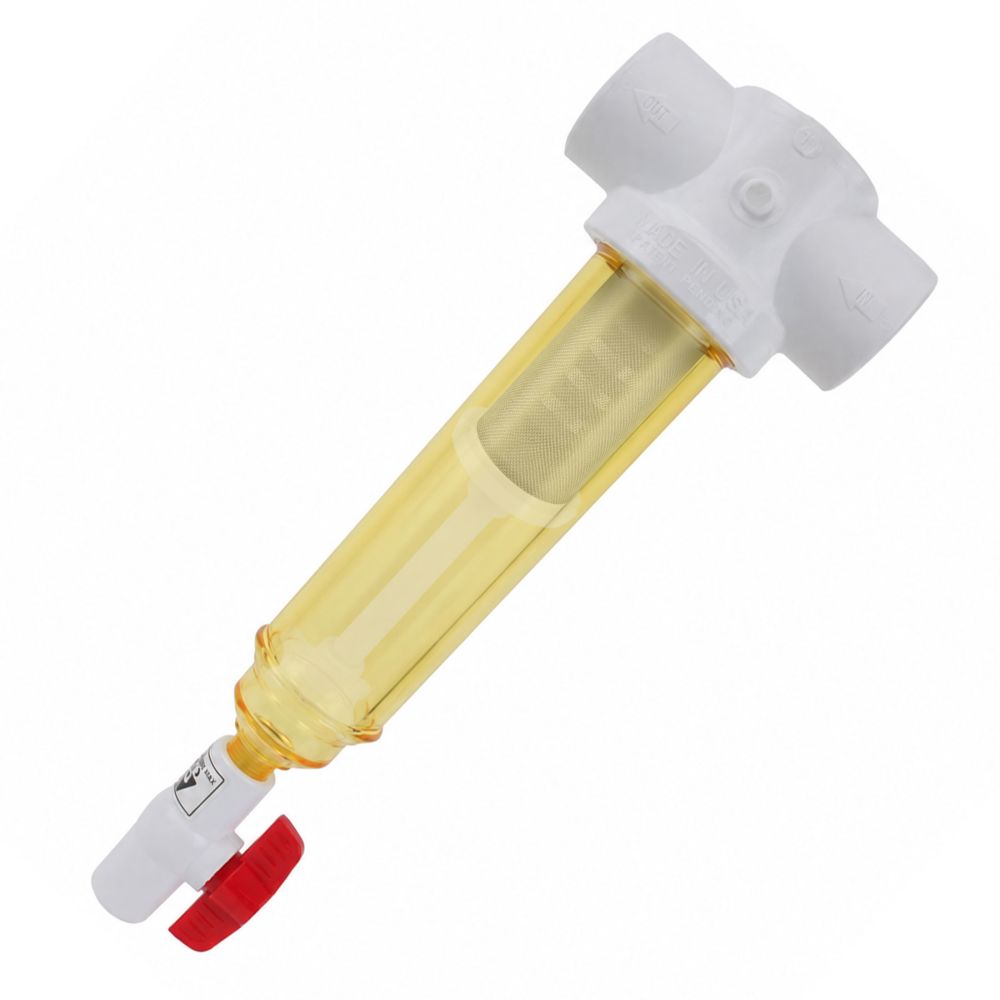

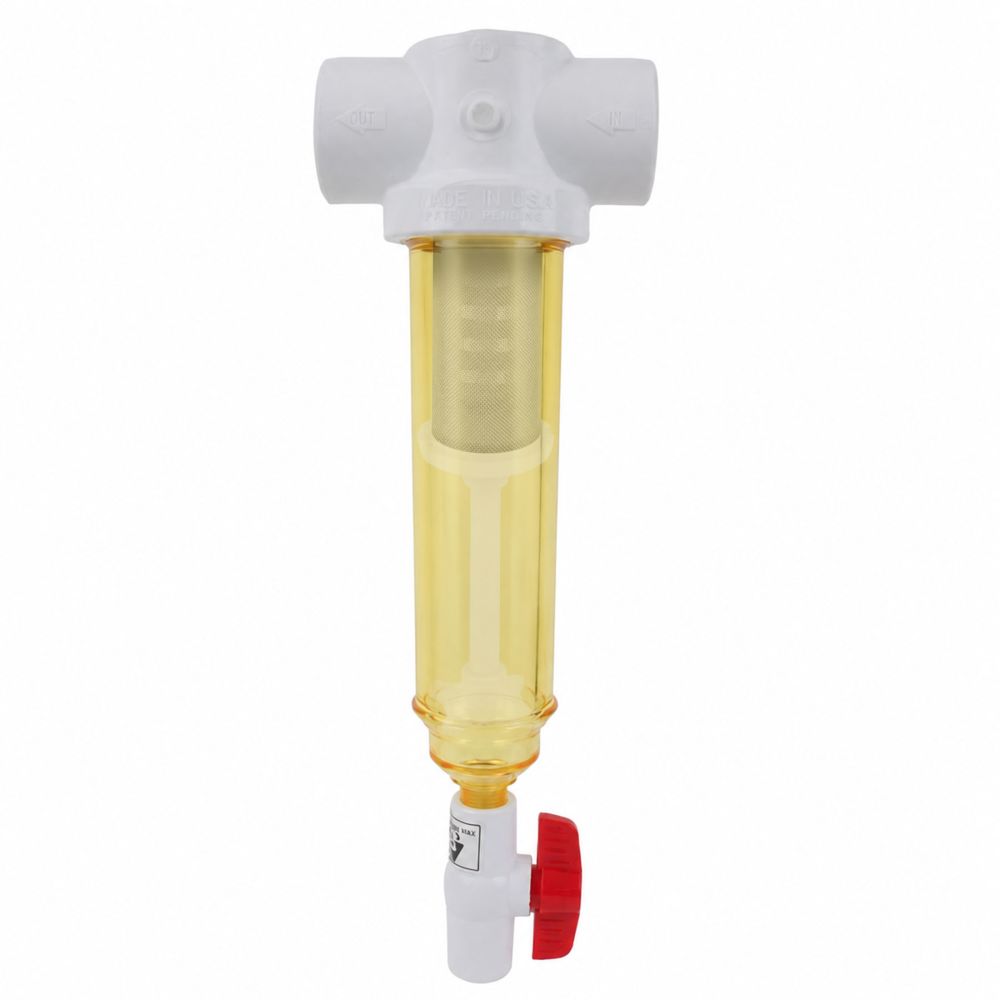

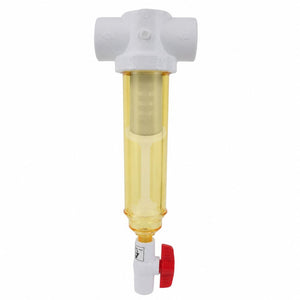

Rusco Chemically Resistant Sediment Trapper Filter T Style 1-1/2" SS

Part Number: 1-1/2-30STSSCR-F

In Stock

out of stock

In Stock

$141.45

Specifications:
  • Unique element design traps sediment in lower reservoir of clear cover.
  • Clear bowl easily removed for total cleaning (no tools required-using tools voids warranty)
  • Sediment is visible through the clear cover indicating when the filter needs cleaning
  • Ball valve allows for quick sediment removal from bottom of cover
  • Centrifuge Spin-Down type sediment separation
  • No down time!!
Features:
  • The new 1.5" and 2" spin-down models make it easy to convert the standard spin-down filter to a sediment trapper by simply replacing the element screens
  • No filter cartridges to replace
  • No down time required flushing out sediment
  • No wasteful backwashing required
  • Small size takes little space
  • Screen sizes can be easily changed if required
  • Multiple uses: well water, irrigation, sand sensitive valves, drip irrigation, faucet aerators, poultry growers watering devices (.010"), fogger nozzles, pre-treatment for ultra water systems and reverse osmosis




Details

Body Material

PVC

Head Style

T-Style

Housing Material

Chemical/Heat Resistant High Impact Polymer Resin

Inlet/Outlet Connection

1-1/2" Slip

Max Pressure (Psi)

150

Max Temp (°F)

100

Mesh Size

30, 60, 100, 140, 250, 200

Micron Rating (Nominal)

533 µm, 254 µm, 152 µm, 104 µm, 61 µm, 74 µm

O-Rings

EPDM

Screen Opening

.021, .010, .006, .004, .0024, .0029

Cartridge Style

Sediment Trapper

Connection Type

Slip

Contaminants Reduced

Sediment/Dirt/Rust

Filter Type

Rusco Spin-Down & Sediment Traps

Flow Rate

10-50 GPM

Media Type

Chemical Resistant Stainless Steel

Micron Rating

533 µm, 254 µm, 152 µm, 104 µm, 61 µm, 74 µm

Port Size

1-1/2"

Screen Material

Stainless Steel

Sub-Type

T-Style System

Top Style

T-Style

Type

Sediment Trapper
