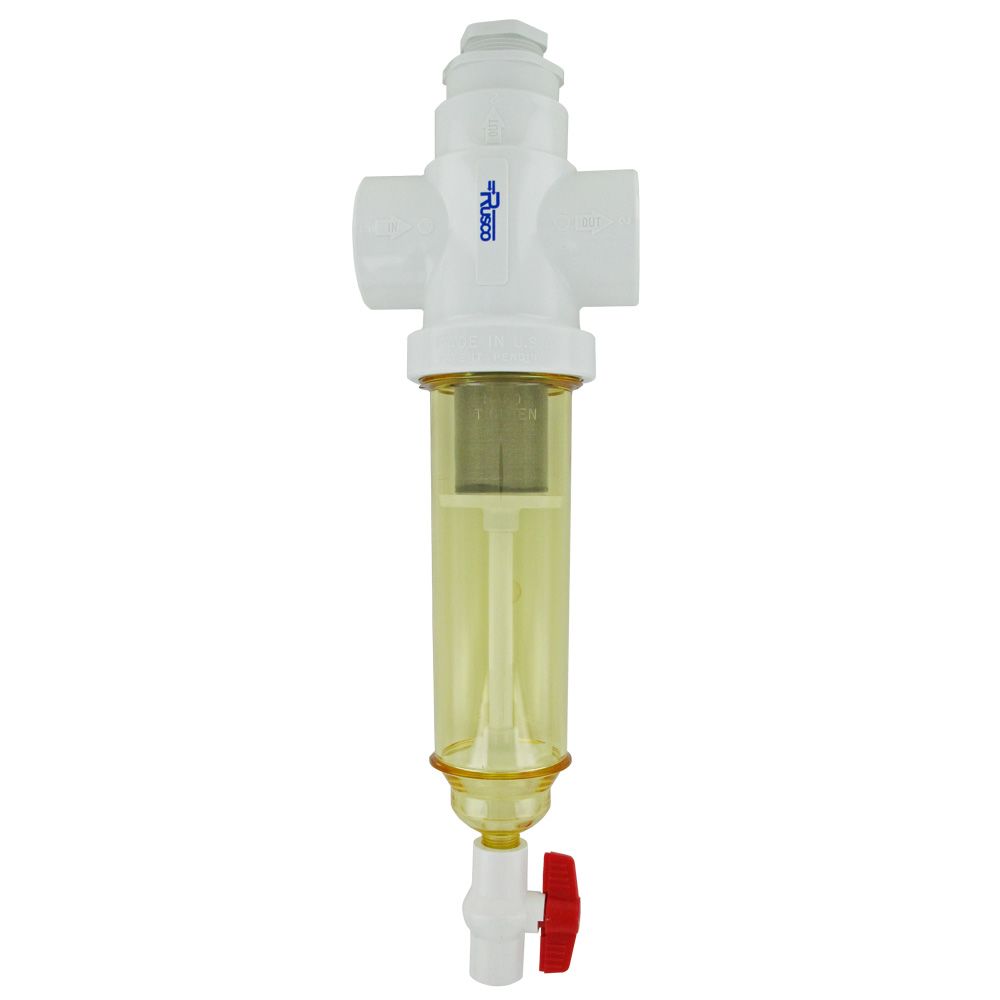

Rusco Chemically Resistant Sediment Trapper Filter Combo Style 2" SS

Part Number: CF2-30STSSCR-F

In Stock

out of stock

In Stock

$232.49

Specifications:

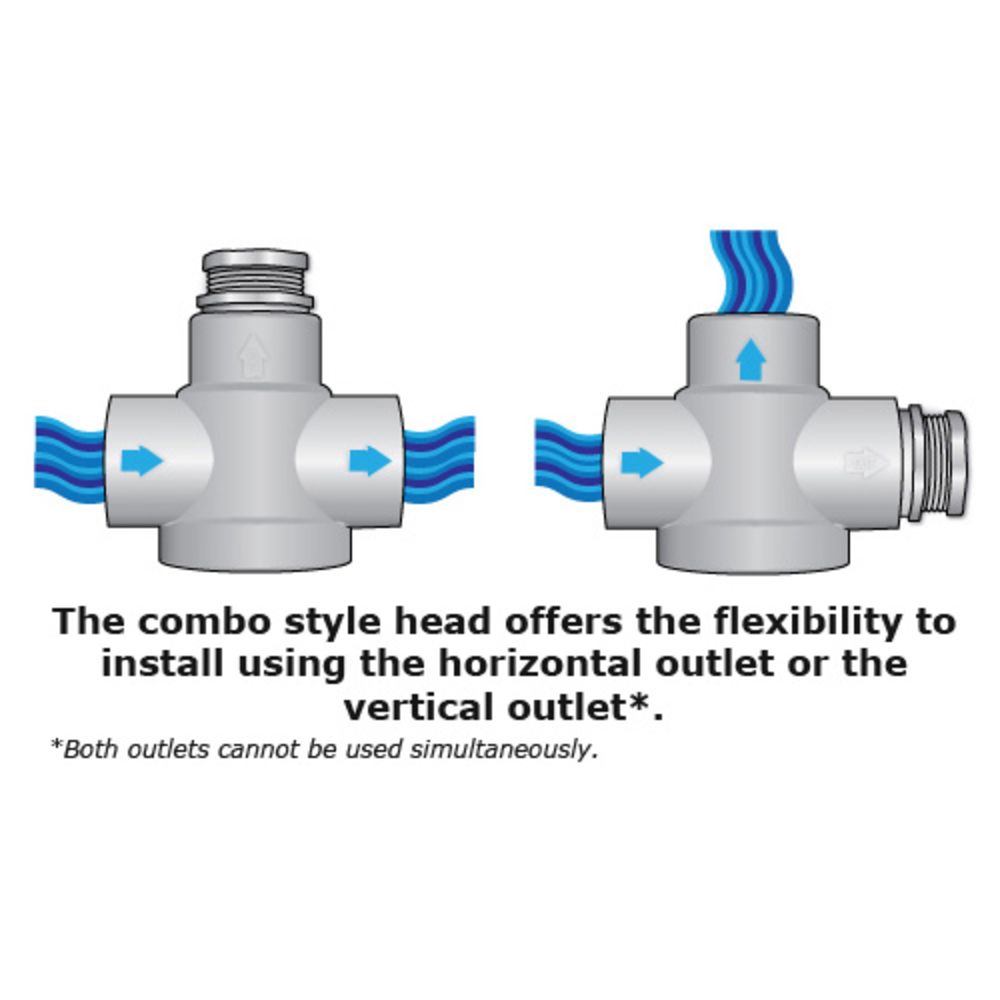

  • Combo style head allows you to select between horizontal or vertical outlet (cannot use both)
  • Includes 2" slip to 1.25" FPT bushing and 1.25" MPT plug for the unused outlet
  • Unique element design traps sediment in lower reservoir of clear cover.
  • Clear bowl easily removed for total cleaning (no tools required-using tools voids warranty)
  • Sediment is visible through the clear cover indicating when the filter needs cleaning
  • Ball valve allows for quick sediment removal from bottom of cover
  • Centrifuge Spin-Down type sediment separation
  • No down time!!
Rusco Chemically Resistant Sediment Trapper Filter Combo Style 2" SS Benefits:

  • The new 1.5" and 2" spin-down models make it easy to convert the standard spin-down filter to a sediment trapper by simply replacing the element screens
  • No filter cartridges to replace
  • No down time required flushing out sediment
  • No wasteful backwashing required
  • Small size takes little space
  • Screen sizes can be easily changed if required
  • Multiple uses: well water, irrigation, sand sensitive valves, drip irrigation, faucet aerators, poultry growers watering devices (.010"), fogger nozzles, pre-treatment for ultra water systems and reverse osmosis




Details

Screen Material

Stainless Steel Screen

Max Temp (°F)

100

Max Pressure (Psi)

150

Body Material

PVC

Cartridge Style

Sediment Trapper

Flow Rate

18-100 GPM

Housing Material

Chemical/Heat Resistant High Impact Polymer Resin

Media Type

Chemical Resistant, Stainless Steel

Mesh Size

30, 60, 100, 140, 200

Micron Rating (Nominal)

533 µm, 254 µm, 152 µm, 104 µm, 74 µm

O-Rings

EPDM

Size

2"

Top Style

Combo Style

Inlet/Outlet Connection

2" Slip


Rusco

Rusco

Rusco




Specifications:
  • Combo style head allows you to select between horizontal or vertical outlet (cannot use both)
  • Includes 2" slip to 1.25" FPT bushing and 1.25" MPT plug for the unused outlet
  • Unique element design traps sediment in lower reservoir of clear cover.
  • Clear bowl easily removed for total cleaning (no tools required-using tools voids warranty)
  • Sediment is visible through the clear cover indicating when the filter needs cleaning
  • Ball valve allows for quick sediment removal from bottom of cover
  • Centrifuge Spin-Down type sediment separation
  • No down time!!
Rusco Chemically Resistant Sediment Trapper Filter Combo Style 2" SS Benefits:

  • The new 1.5" and 2" spin-down models make it easy to convert the standard spin-down filter to a sediment trapper by simply replacing the element screens
  • No filter cartridges to replace
  • No down time required flushing out sediment
  • No wasteful backwashing required
  • Small size takes little space
  • Screen sizes can be easily changed if required
  • Multiple uses: well water, irrigation, sand sensitive valves, drip irrigation, faucet aerators, poultry growers watering devices (.010"), fogger nozzles, pre-treatment for ultra water systems and reverse osmosis



Details

Screen Material

Stainless Steel Screen

Max Temp (°F)

100

Max Pressure (Psi)

150

Body Material

PVC

Cartridge Style

Sediment Trapper

Flow Rate

18-100 GPM

Housing Material

Chemical/Heat Resistant High Impact Polymer Resin

Media Type

Chemical Resistant, Stainless Steel

Mesh Size

30, 60, 100, 140, 200

Micron Rating (Nominal)

533 µm, 254 µm, 152 µm, 104 µm, 74 µm

O-Rings

EPDM

Size

2"

Top Style

Combo Style

Inlet/Outlet Connection

2" Slip
