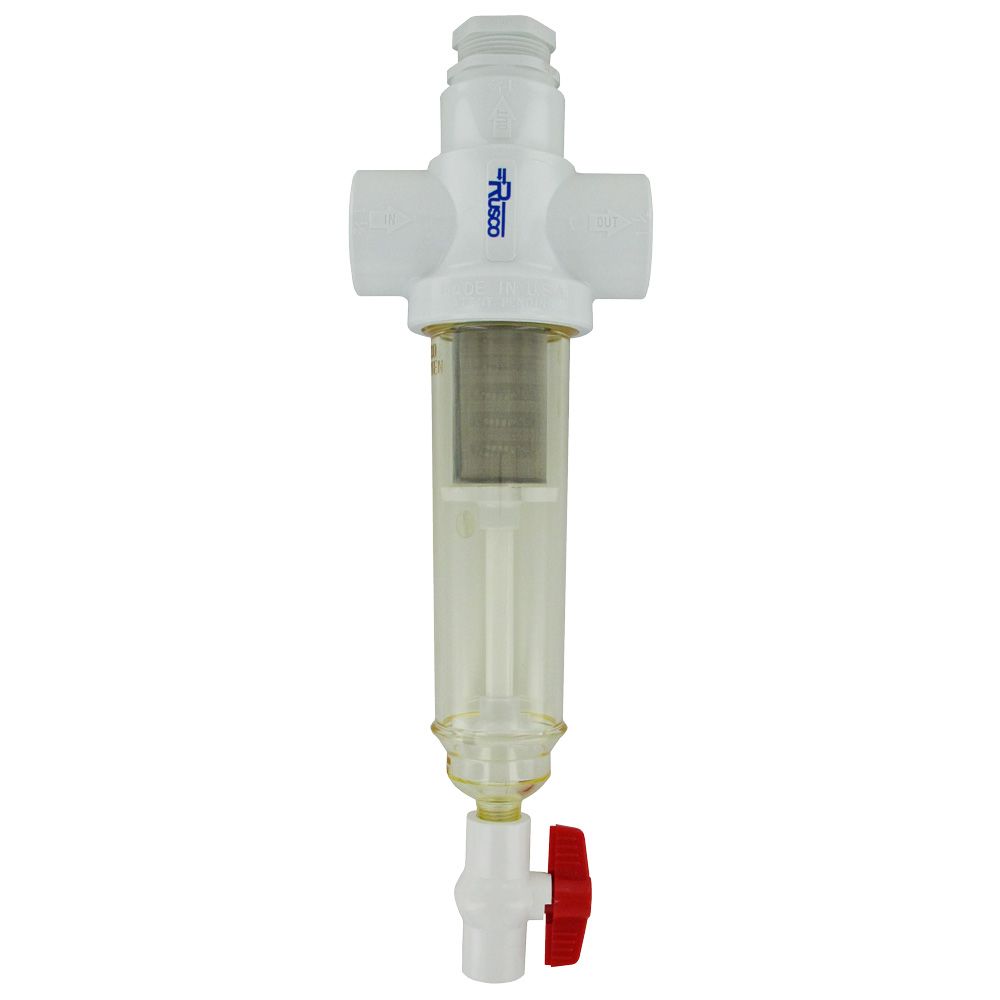

Rusco Chemically Resistant Sediment Trapper Filter Combo Style 1-1/2" SS

Part Number: CF1-1/2-30STSSCR-F

Rusco

Rusco Chemically Resistant Sediment Trapper Filter Combo Style 1-1/2" SS

Part Number: CF1-1/2-30STSSCR-F

MSRP: $186.05

$133.95

Choose:

30 Mesh (533 micron) 60 Mesh (254 micron) 100 Mesh (152 micron) 140 Mesh (104 micron) 200 Mesh (74 micron)

Product variants

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

Specifications:

Combo style head allows you to choose from a vertical or horizontal outlet (cannot use both)
Includes 1.5" slip to 1.25" FPT bushing and 1.25" MPT plug for the unused outlet
Unique element design traps sediment in lower reservoir of clear cover.
Clear bowl easily removed for total cleaning (no tools required-using tools voids warranty)
Sediment is visible through the clear cover indicating when the filter needs cleaning
Ball valve allows for quick sediment removal from bottom of cover
Centrifuge Spin-Down type sediment separation
No down time!!

Rusco Chemically Resistant Sediment Trapper Filter Combo Style 1-1/2" SS Benefits:

The new 1.5" and 2" spin-down models make it easy to convert the standard spin-down filter to a sediment trapper by simply replacing the element screens
No filter cartridges to replace
No down time required flushing out sediment
No wasteful backwashing required
Small size takes little space
Screen sizes can be easily changed if required
Multiple uses: well water, irrigation, sand sensitive valves, drip irrigation, faucet aerators, poultry growers watering devices (.010"), fogger nozzles, pre-treatment for ultra water systems and reverse osmosis

Specifications

Product Details
Application	Laboratory PRETREATMENT FOR R.O.
Body Material	PVC
Body Size	1-1/2"
Housing Material	High Impact Polymer Resin
Inlet Connection	1-1/2" Slip
Max Pressure (Psi)	150
Max Temp (°F)	100°F
Micron Rating (Nominal)	533 254 152 104 74
O-Rings	EPDM
Outlet Connection	1-1/2" Slip
Cartridge Style	Sediment Trapper
Connection Type	Slip
Contaminants Reduced	Sediment/Dirt/Rust
Filter Type	SEDIMENT TRAPPER \| STAINLESS STEEL
Flow Rate	10-50 GPM
Media Type	Chemical Resistant Stainless Steel
Micron Rating	533 µm 254 µm 152 µm 104 µm 74 µm
Port Size	1-1/2"
Sub-Type	Combo Style System
Top Style	Combo Style
Type	Sediment Trapper
Shipping Dimensions
Shipping Length	15.38 in.
Shipping Width	5.25 in.
Shipping Height	5.25 in.
Product Weight & Dimensions
Product Height	5-1/4"
Product Length	15-3/8"
Product Width	5-1/4"
Product Weight (lbs)	2.98
