Rusco

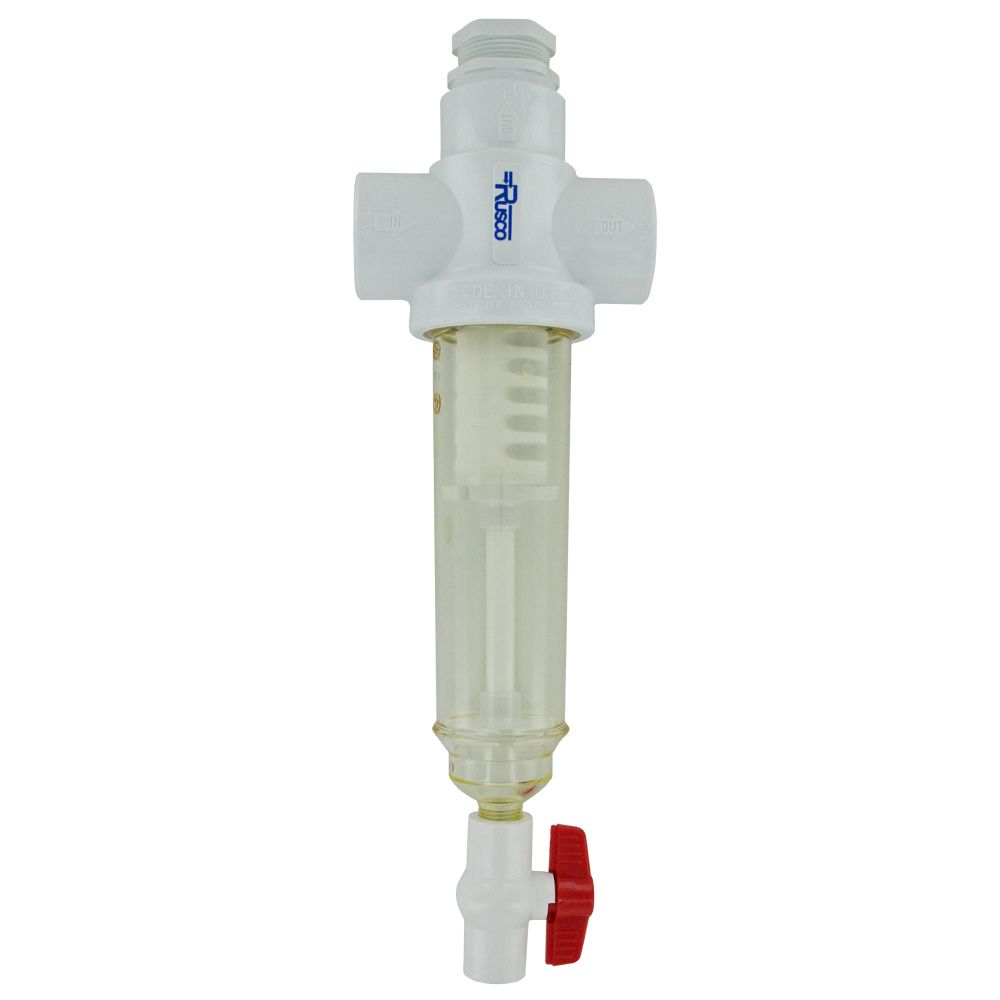

Rusco Chemically Resistant Sediment Trapper Filter Combo Style 1-1/2" PE

Part Number: CF1-1/2-24STCR-F

In Stock

out of stock

In Stock

$133.00

Features:
  • Combo style head allows you to choose from a vertical or horizontal outlet (cannot use both)
  • Includes 1.5" slip to 1.25" FPT bushing and 1.25" MPT plug for the unused outlet
  • Unique element design traps sediment in lower reservoir of clear cover.

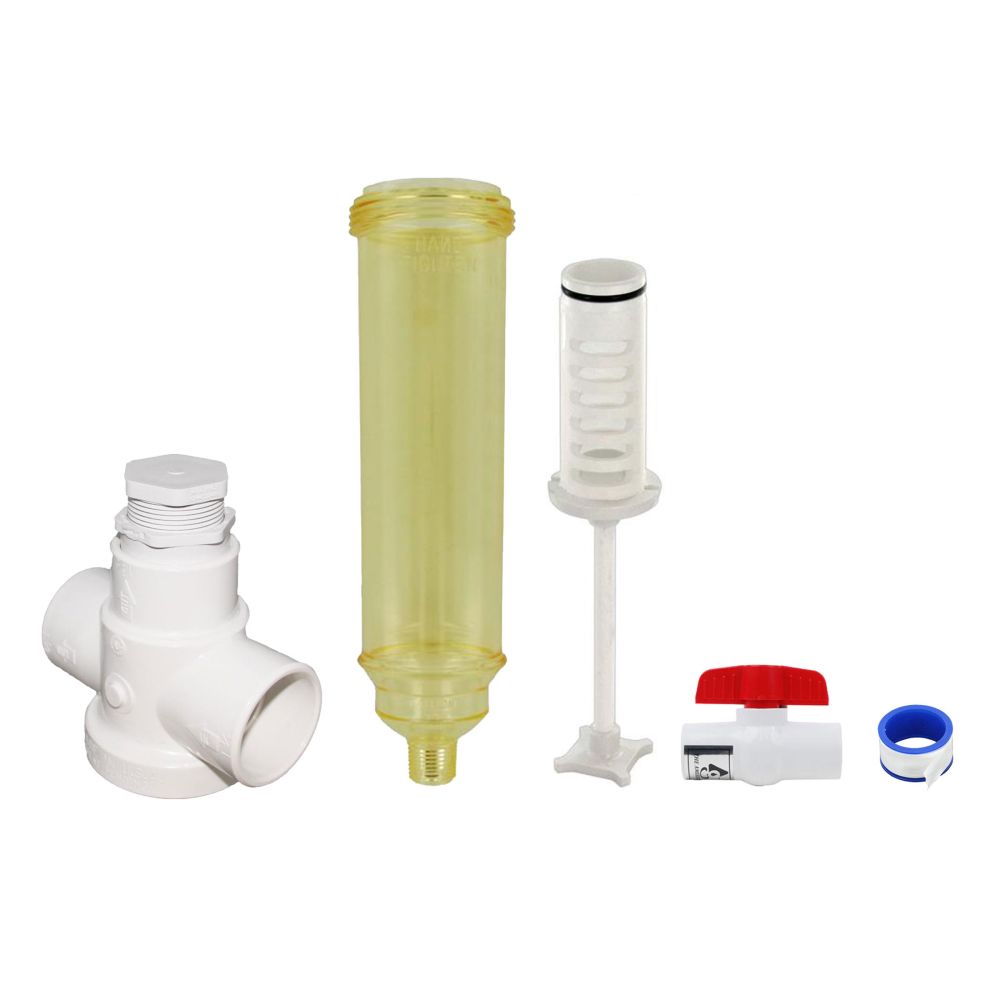

  • Clear bowl easily removed for total cleaning (no tools required-using tools voids warranty)
  • Sediment is visible through the clear cover indicating when the filter needs cleaning
  • Ball valve allows for quick sediment removal from bottom of cover
  • Centrifuge Spin-Down type sediment separation
  • No down time!!
Rusco Chemically Resistant Sediment Trapper Filter Combo Style 1-1/2" PE Benefits:
  • The new 1.5" and 2" spin-down models make it easy to convert the standard spin-down filter to a sediment trapper by simply replacing the element screens
  • No filter cartridges to replace
  • No down time required flushing out sediment
  • No wasteful backwashing required
  • Small size takes little space
  • Screen sizes can be easily changed if required
  • Multiple uses: well water, irrigation, sand sensitive valves, drip irrigation, faucet aerators, poultry growers watering devices (.010"), fogger nozzles, pre-treatment for ultra water systems and reverse osmosis


Details

Screen Material

Polyester Screen

Housing Resistance

Chemically Resistant

Body Material

PVC

Cartridge Style

Polyester, Sediment Trapper, Chemical Resistant

Flow Rate

10-50 GPM

Housing Material

Chemical/Heat Resistant High Impact Polymer Resin

Max Operating Pressure

150 PSI

Max Operating Temperature

100 Degrees Fahrenheit

Mesh Size

30, 60, 100, 140, 250, 500, 1000, 24, 40

Micron Rating (Nominal)

533, 254, 152, 104, 61, 30, 15, 711, 381

O Rings

EPDM

Size

1-1/2"

Top Style

Combo Style

Inlet/Outlet Connection

1-1/2" | Slip


Rusco

Rusco

Rusco




Features:
  • Combo style head allows you to choose from a vertical or horizontal outlet (cannot use both)
  • Includes 1.5" slip to 1.25" FPT bushing and 1.25" MPT plug for the unused outlet
  • Unique element design traps sediment in lower reservoir of clear cover.
  • Clear bowl easily removed for total cleaning (no tools required-using tools voids warranty)
  • Sediment is visible through the clear cover indicating when the filter needs cleaning
  • Ball valve allows for quick sediment removal from bottom of cover
  • Centrifuge Spin-Down type sediment separation
  • No down time!!
Rusco Chemically Resistant Sediment Trapper Filter Combo Style 1-1/2" PE Benefits:
  • The new 1.5" and 2" spin-down models make it easy to convert the standard spin-down filter to a sediment trapper by simply replacing the element screens
  • No filter cartridges to replace
  • No down time required flushing out sediment
  • No wasteful backwashing required
  • Small size takes little space
  • Screen sizes can be easily changed if required
  • Multiple uses: well water, irrigation, sand sensitive valves, drip irrigation, faucet aerators, poultry growers watering devices (.010"), fogger nozzles, pre-treatment for ultra water systems and reverse osmosis

Details

Screen Material

Polyester Screen

Housing Resistance

Chemically Resistant

Body Material

PVC

Cartridge Style

Polyester, Sediment Trapper, Chemical Resistant

Flow Rate

10-50 GPM

Housing Material

Chemical/Heat Resistant High Impact Polymer Resin

Max Operating Pressure

150 PSI

Max Operating Temperature

100 Degrees Fahrenheit

Mesh Size

30, 60, 100, 140, 250, 500, 1000, 24, 40

Micron Rating (Nominal)

533, 254, 152, 104, 61, 30, 15, 711, 381

O Rings

EPDM

Size

1-1/2"

Top Style

Combo Style

Inlet/Outlet Connection

1-1/2" | Slip
