Colder Products

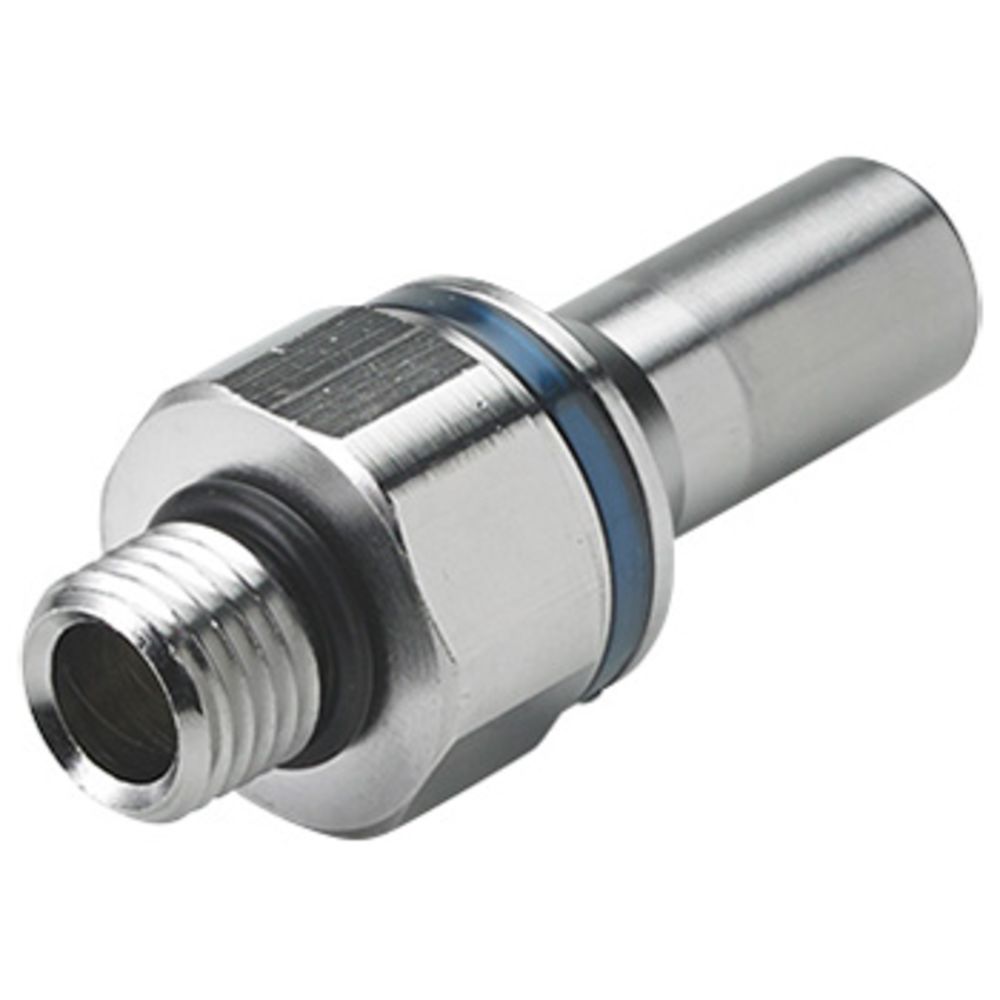

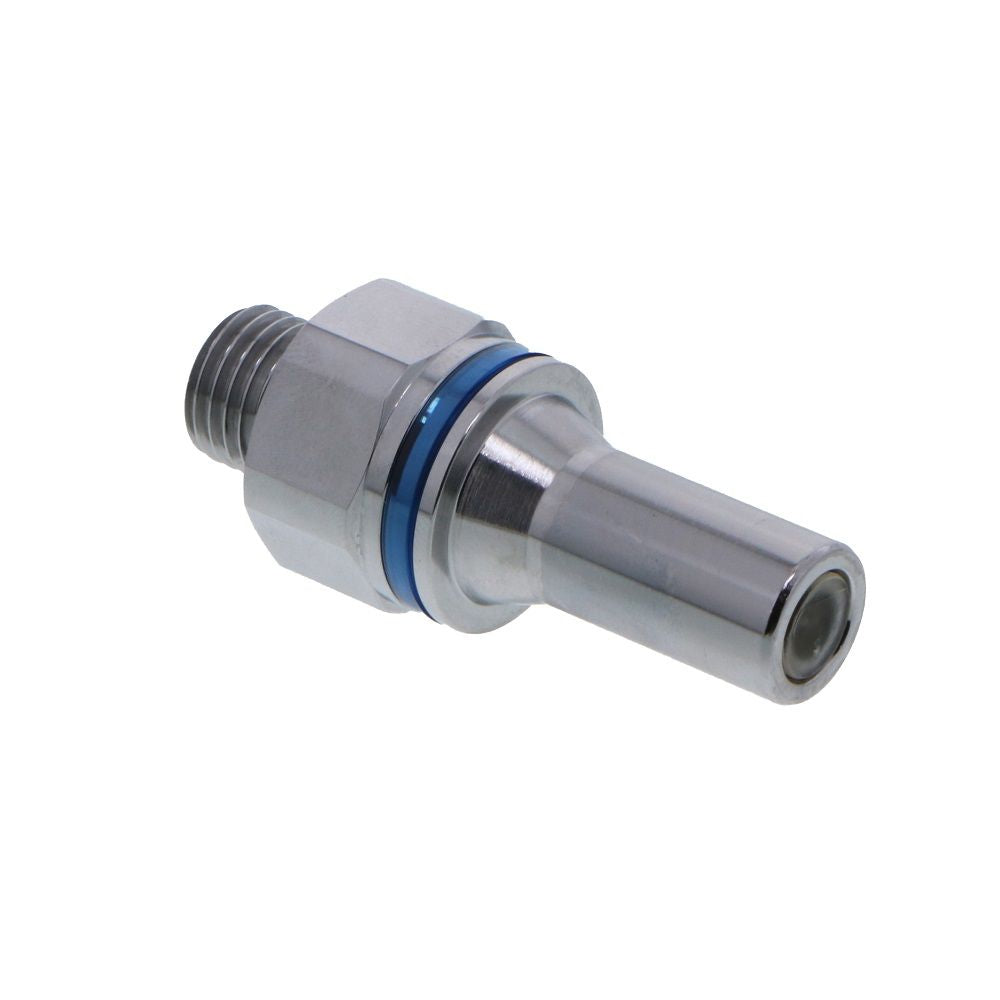

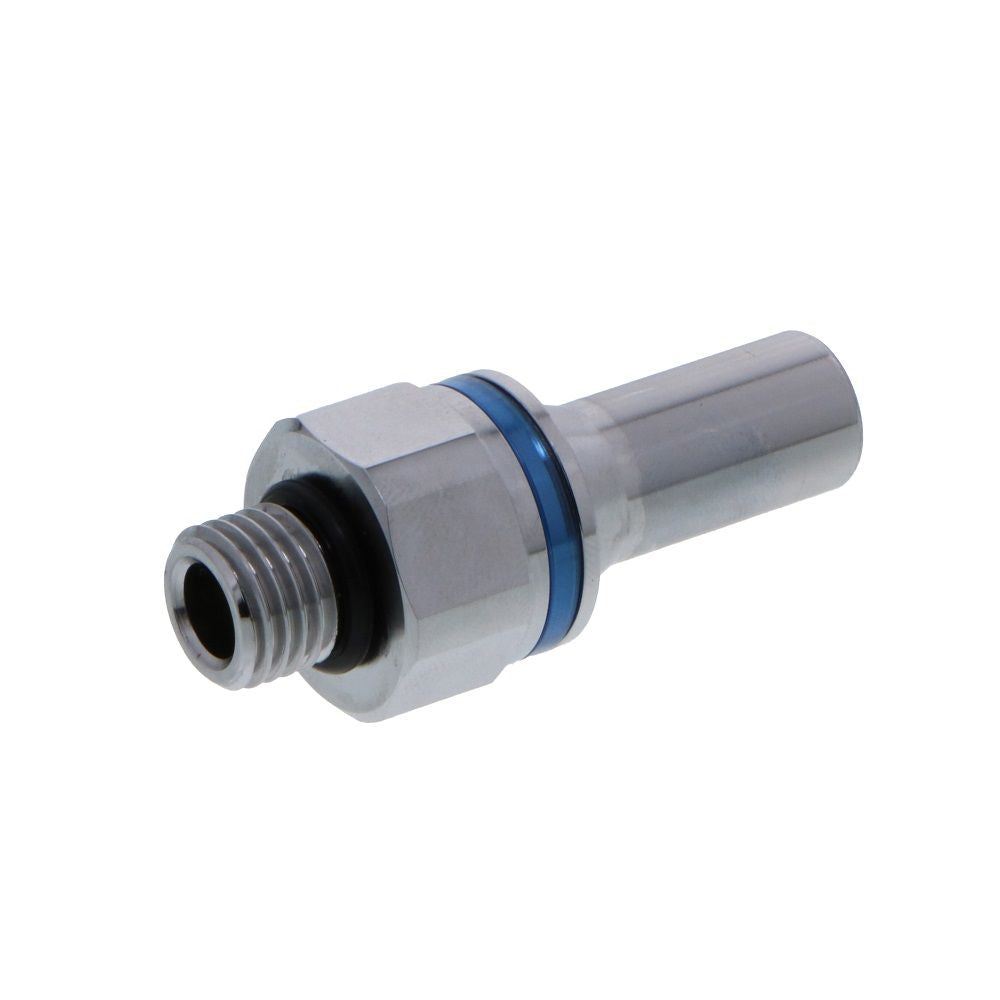

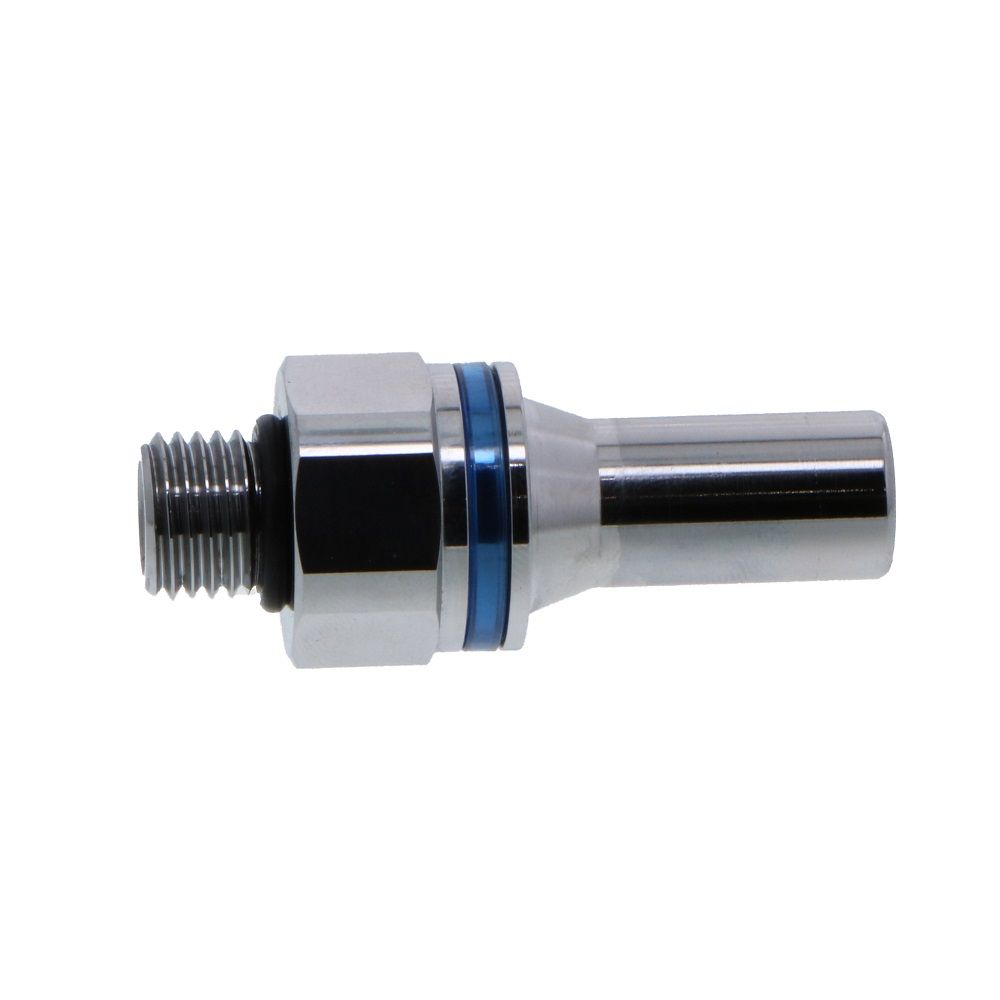

RPLQ4D46004BLU Rack and Panel Insert Straight Thread Port 1/4 SAE-04 Cool Blue

Part Number: RPLQ4D46004BLU

In Stock

out of stock

In Stock

$33.57


Colder RPLQ4 Series Quick Disconnect Couplings are reliable, dripless connectors designed for use in rack-mounted liquid cooling applications. The non-spill design and durable construction of the RPLQ4 series ensures that the connectors continue to protect valuable electronics over time. Couplings need only be within 1/8" of fully engaged in order to achieve the maximum flow. These RPLQ4 connectors are constructed out of chrome-plated brass with polysulfone valves, and come with either cool blue or warm red color rings for quick identification.

Specifications
  • Material: Chrome-plated brass
  • Valves: Polysulfone
  • Valved Spring (wetted): Stainless steel
  • Seals: EPDM
  • Lubricants: Krytox® PFPE
  • Color: Chrome with cool blue or chrome with warm red
  • Flow Capacity: 1/4" nominal flow
  • Operating Pressure: Vacuum to 120 psi, 8.3 bar
  • Temperature: 0°F to 240°F
  • Max Flow at Disconnect: 3.0 gal/min


Details

Series

RPLQ4

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome with cool blue

Operating Pressure Range

120 psi

Operating Temperature Range

0°F to 240°F

Origin

USA

Seal Material

EPDM

Size

1/4"

Spring

Stainless steel

Valve Type

Valved

Inlet/Outlet Connection

1/4" | SAE


RPLQ4D46004BLU





Colder RPLQ4 Series Quick Disconnect Couplings are reliable, dripless connectors designed for use in rack-mounted liquid cooling applications. The non-spill design and durable construction of the RPLQ4 series ensures that the connectors continue to protect valuable electronics over time. Couplings need only be within 1/8" of fully engaged in order to achieve the maximum flow. These RPLQ4 connectors are constructed out of chrome-plated brass with polysulfone valves, and come with either cool blue or warm red color rings for quick identification.

Specifications
  • Material: Chrome-plated brass
  • Valves: Polysulfone
  • Valved Spring (wetted): Stainless steel
  • Seals: EPDM
  • Lubricants: Krytox® PFPE
  • Color: Chrome with cool blue or chrome with warm red
  • Flow Capacity: 1/4" nominal flow
  • Operating Pressure: Vacuum to 120 psi, 8.3 bar
  • Temperature: 0°F to 240°F
  • Max Flow at Disconnect: 3.0 gal/min

Details

Series

RPLQ4

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome with cool blue

Operating Pressure Range

120 psi

Operating Temperature Range

0°F to 240°F

Origin

USA

Seal Material

EPDM

Size

1/4"

Spring

Stainless steel

Valve Type

Valved

Inlet/Outlet Connection

1/4" | SAE
