Colder Products

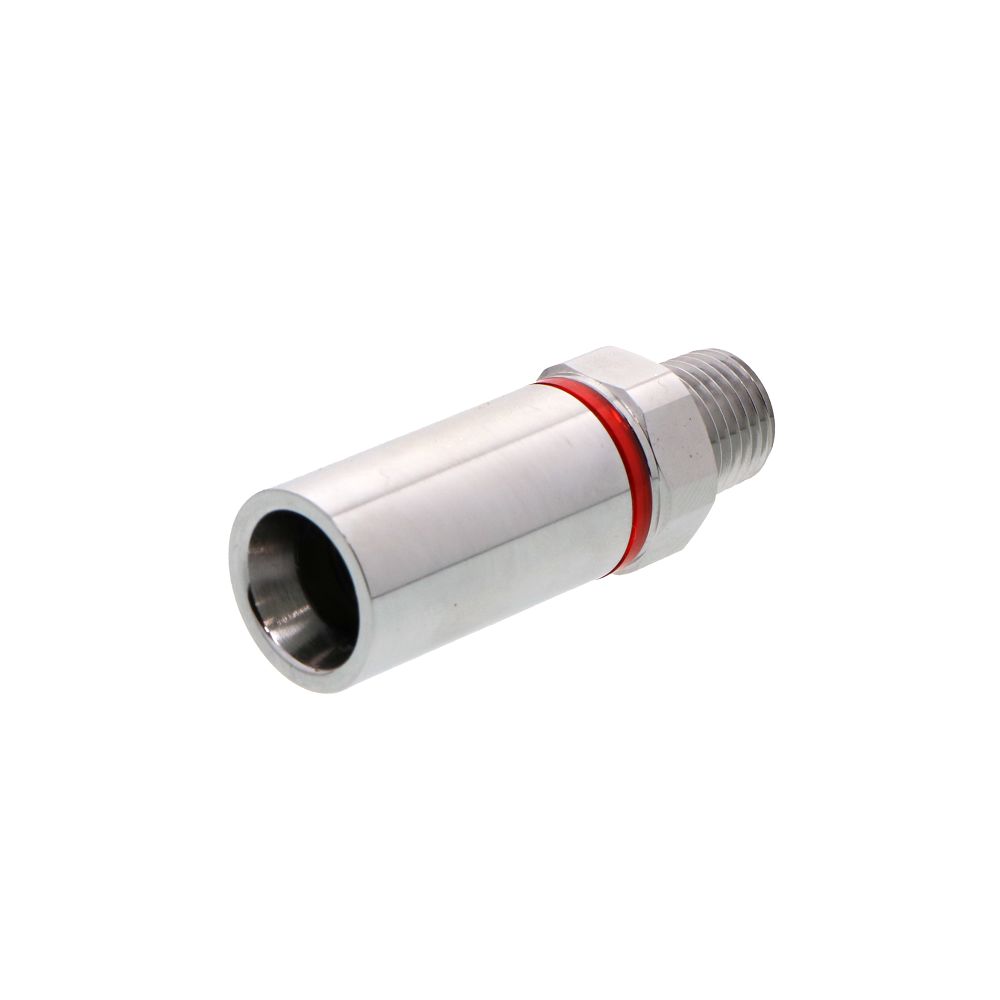

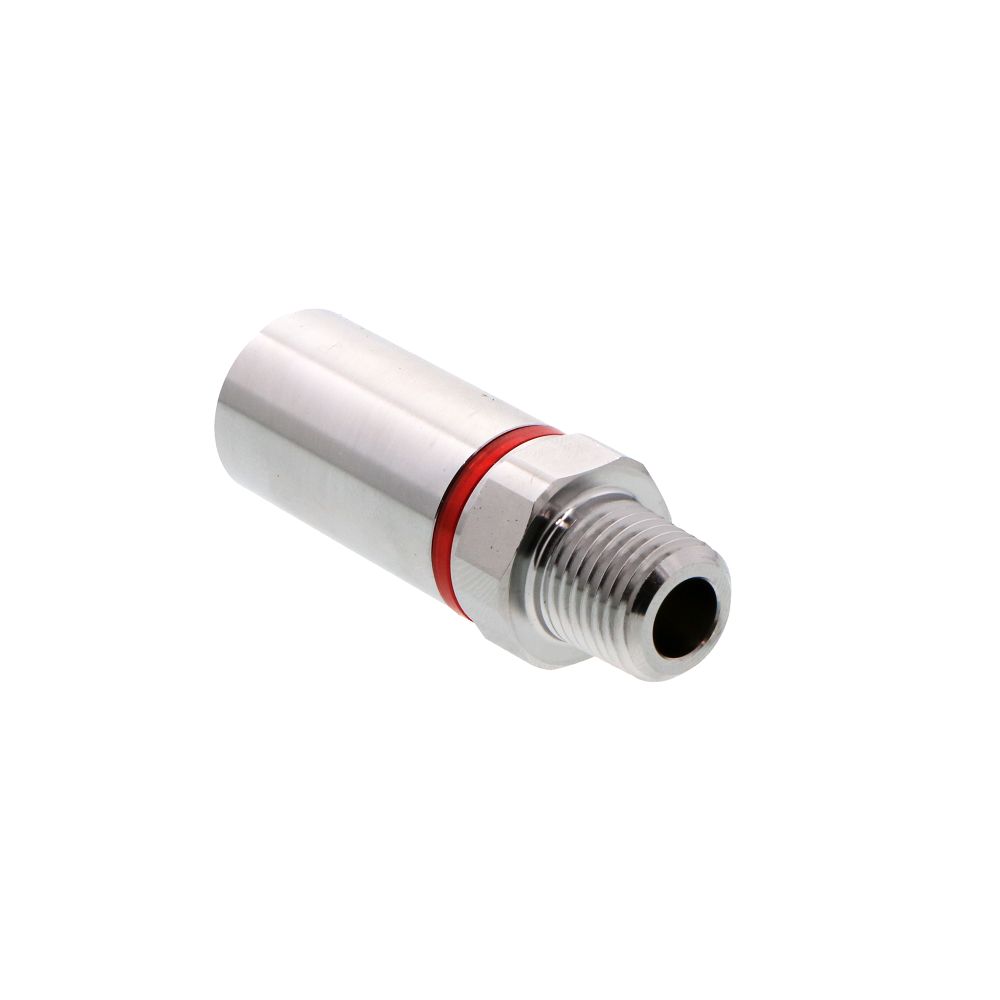

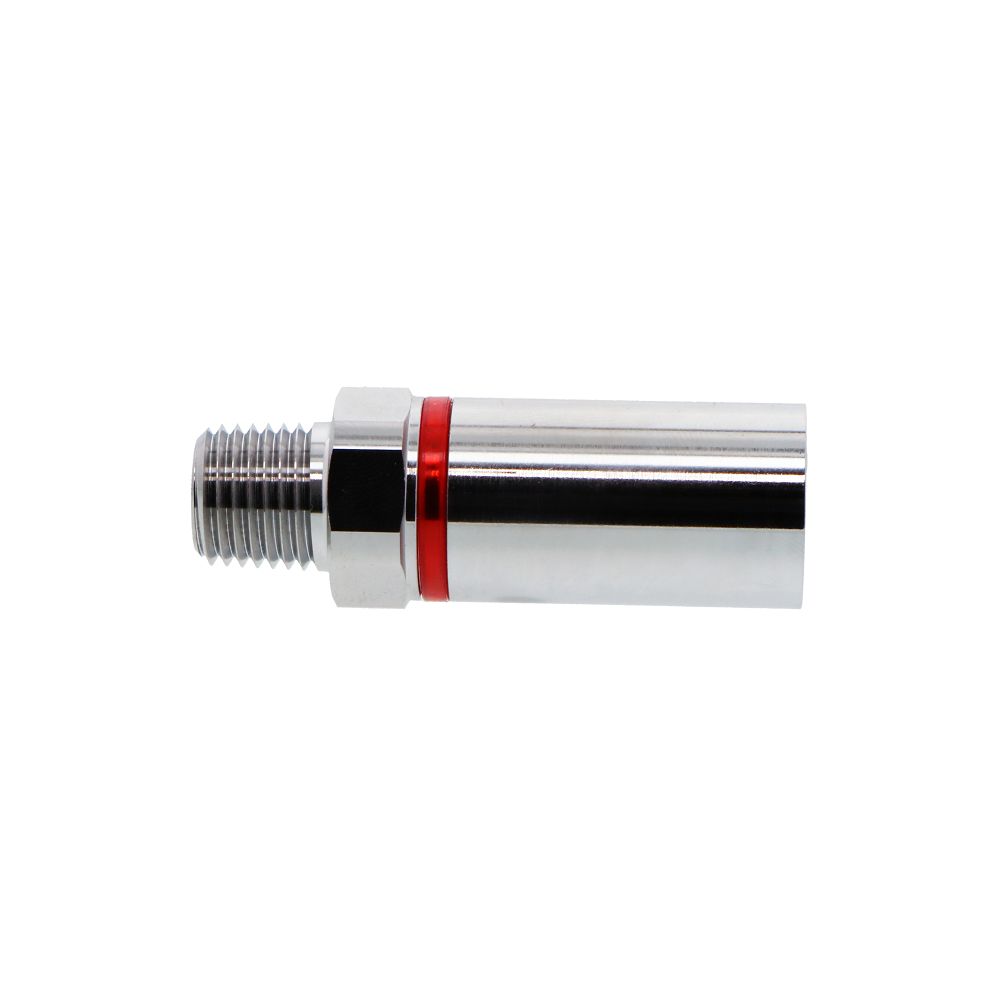

RPLQ4D10004RED Rack and Panel Body Straight Thread Port 1/4 NPT Warm Red

Part Number: RPLQ4D10004RED

In Stock

out of stock

In Stock

Closeout sale item. Please contact our team of Water Specialists to discuss our limited remaining inventory.

Call To Order

Colder RPLQ4 Series Quick Disconnect Couplings are reliable, dripless connectors designed for use in rack-mounted liquid cooling applications. The non-spill design and durable construction of the RPLQ4 series ensures that the connectors continue to protect valuable electronics over time. Couplings need only be within 1/8" of fully engaged in order to achieve the maximum flow. These RPLQ4 connectors are constructed out of chrome-plated brass with polysulfone valves, and come with either cool blue or warm red color rings for quick identification.

Specifications
  • Material: Chrome-plated brass
  • Valves: Polysulfone
  • Valved Spring (wetted): Stainless steel
  • Seals: EPDM
  • Lubricants: Krytox® PFPE
  • Color: Chrome with cool blue or chrome with warm red
  • Flow Capacity: 1/4" nominal flow
  • Operating Pressure: Vacuum to 120 psi, 8.3 bar
  • Temperature: 0°F to 240°F
  • Max Flow at Disconnect: 3.0 gal/min




Weight & Dimensions

Weight (lbs)

0.025

Details

Application

Water, Cooling Systems

Body Material

Chrome-Plated Brass

Inlet/Outlet Connection

1/4" MPT

Max Pressure (Psi)

120

Max Temp (°F)

240

Min Pressure (Psi)

Vacuum

Min Temp (°F)

0

Mounting Options

Thread

Seal Material

EPDM

Series

RPLQ4

Size

1/4"

Spring

Stainless steel

Valve Type

Valved

Color / Finish

Red

Connection Type

Male (MPT)

Origin

USA

Type

Coupling Body


RPLQ4D10004RED




Colder RPLQ4 Series Quick Disconnect Couplings are reliable, dripless connectors designed for use in rack-mounted liquid cooling applications. The non-spill design and durable construction of the RPLQ4 series ensures that the connectors continue to protect valuable electronics over time. Couplings need only be within 1/8" of fully engaged in order to achieve the maximum flow. These RPLQ4 connectors are constructed out of chrome-plated brass with polysulfone valves, and come with either cool blue or warm red color rings for quick identification.

Specifications
  • Material: Chrome-plated brass
  • Valves: Polysulfone
  • Valved Spring (wetted): Stainless steel
  • Seals: EPDM
  • Lubricants: Krytox® PFPE
  • Color: Chrome with cool blue or chrome with warm red
  • Flow Capacity: 1/4" nominal flow
  • Operating Pressure: Vacuum to 120 psi, 8.3 bar
  • Temperature: 0°F to 240°F
  • Max Flow at Disconnect: 3.0 gal/min



NOTE: Closeout sale item. Please contact our team of Water Specialists to discuss our limited remaining inventory.

Weight & Dimensions

Weight (lbs)

0.025

Details

Application

Water, Cooling Systems

Body Material

Chrome-Plated Brass

Inlet/Outlet Connection

1/4" MPT

Max Pressure (Psi)

120

Max Temp (°F)

240

Min Pressure (Psi)

Vacuum

Min Temp (°F)

0

Mounting Options

Thread

Seal Material

EPDM

Series

RPLQ4

Size

1/4"

Spring

Stainless steel

Valve Type

Valved

Color / Finish

Red

Connection Type

Male (MPT)

Origin

USA

Type

Coupling Body
