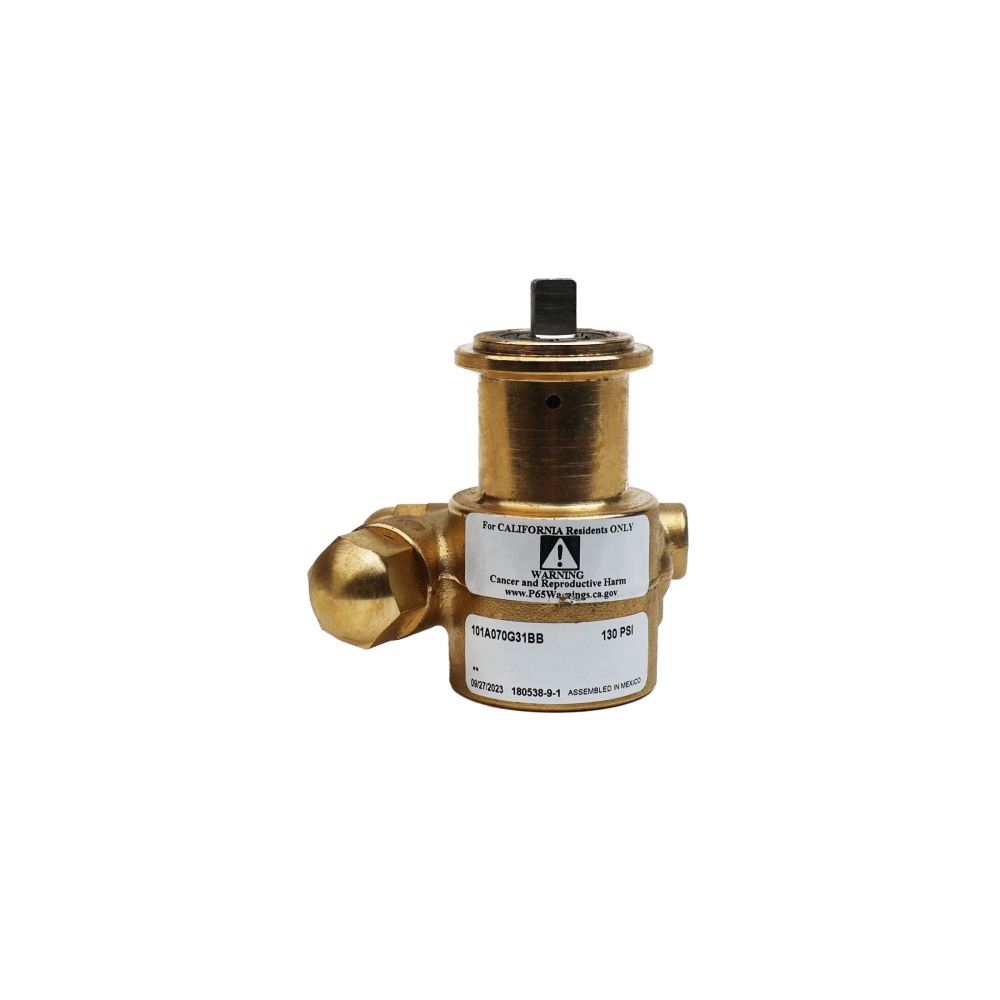

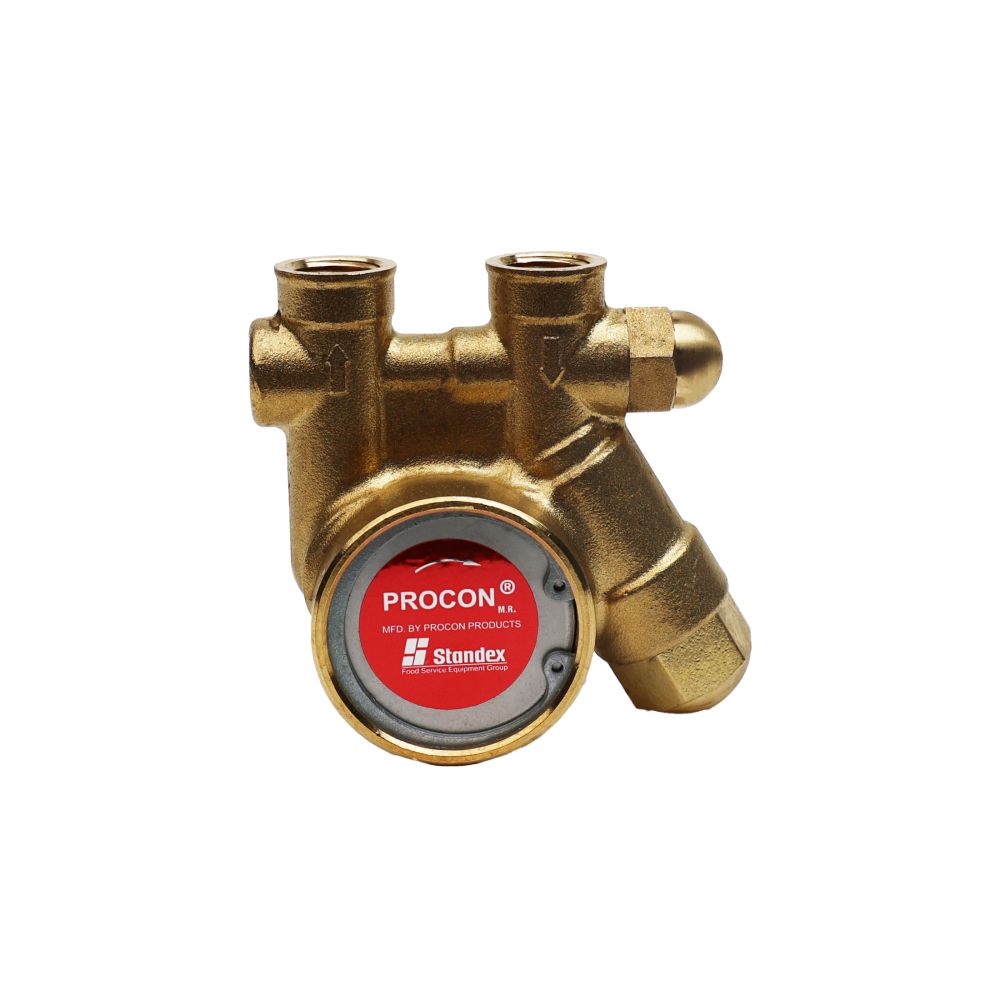

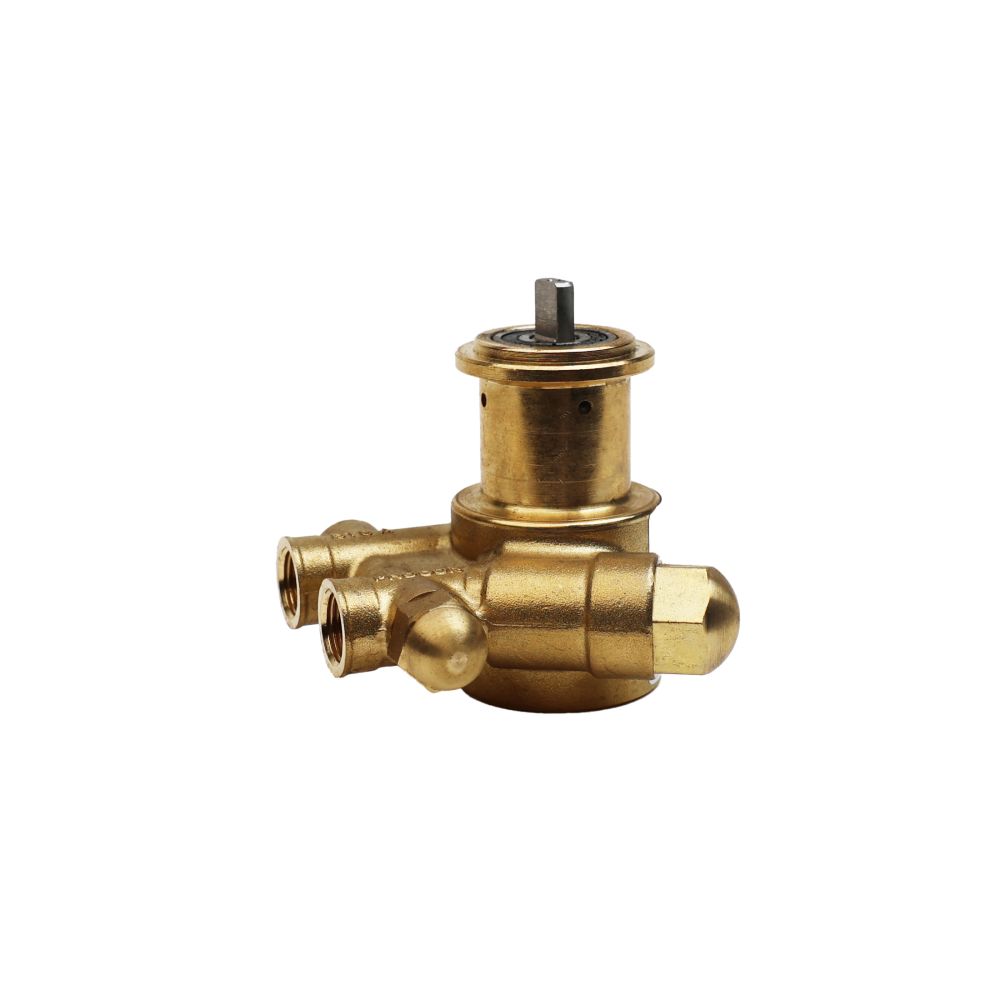

The Rotary Vane Pump Series 1 - 101A070G31BB delivers a consistent flow rate across variable pressures, making it an ideal choice for various applications. It is self-priming with water and maintenance-free, featuring low vibration and pulsation characteristics for smooth operation.

Key Features

• Consistent Flow Rate: Maintains steady performance across variable pressures.
• Self-Priming: Efficiently primes with water and requires no maintenance.
• Low Vibration & Pulsation: Ensures smooth and quiet operation.
• Internal Relief Valve: Standard non-external adjust configuration.
• Integral Strainer: Removes debris from pumping fluid.
• Brass Housing: Durable construction with EPDM elastomers.
• Connections: 3/8" NPT inlet and outlet.
• Flow Rate: 70 GPH (210 LPH) at 1725 RPM/60Hz and 1450 RPM/50Hz.
• Operating Temperature Range: -4°F to 160°F (-20°C to 71°C).
• Maximum Mechanical Horsepower: 0.37hp (276W).

Technical Specifications

• Flow Rate (GPH): 70 GPH
• Flow Rate (LPH): 210 LPH
• Material: Brass
• Port Hole: NPT 3/8"
• Integrated Strainer: Yes
• Mounting Type: Clamp-On
• Drive Configuration: Double Flat
• Elastomer: EPDM
• Seal Type: Non-balanced Ceramic/Carbon
• Rotation: Clockwise
• Internal Component Material: Carbon
• Valve Type: Solid Ultem
• Valve Configuration: Standard Non-external adjust
• Product Weight: 2.4 lb (1.09 kg)
• Max Operating Pressure: 100 psi
• Maximum Mechanical Power Requirement: 0.37 hp (276 W)
• Relief Valve Set Pressure Range: 100 to 150 psi (7 to 10 BAR)
• Max Static Pressure: 100 psi
• Min Operating Fluid Temperature: -4°F
• Max Operating Fluid Temperature: 160°F
• Max Fluid Viscosity: 100 cP
• Max Sound Level: 60 dB(a)
• Max Discharge Pressure: 250 psi
• Min Speed: 1000 RPM
• Max Speed: 2400 RPM
• Dry Suction Lift: 3.3 ft
• Wet Suction Lift: 6.6 ft
• Fluid Acidity: 6 pH
• Max Total Dissolved Solids (TDS): 5000 ppm

The Rotary Vane Pump Series 1 - 101A070G31BB is engineered for efficiency and reliability, making it a robust solution for your pumping needs.
