Remco Industries

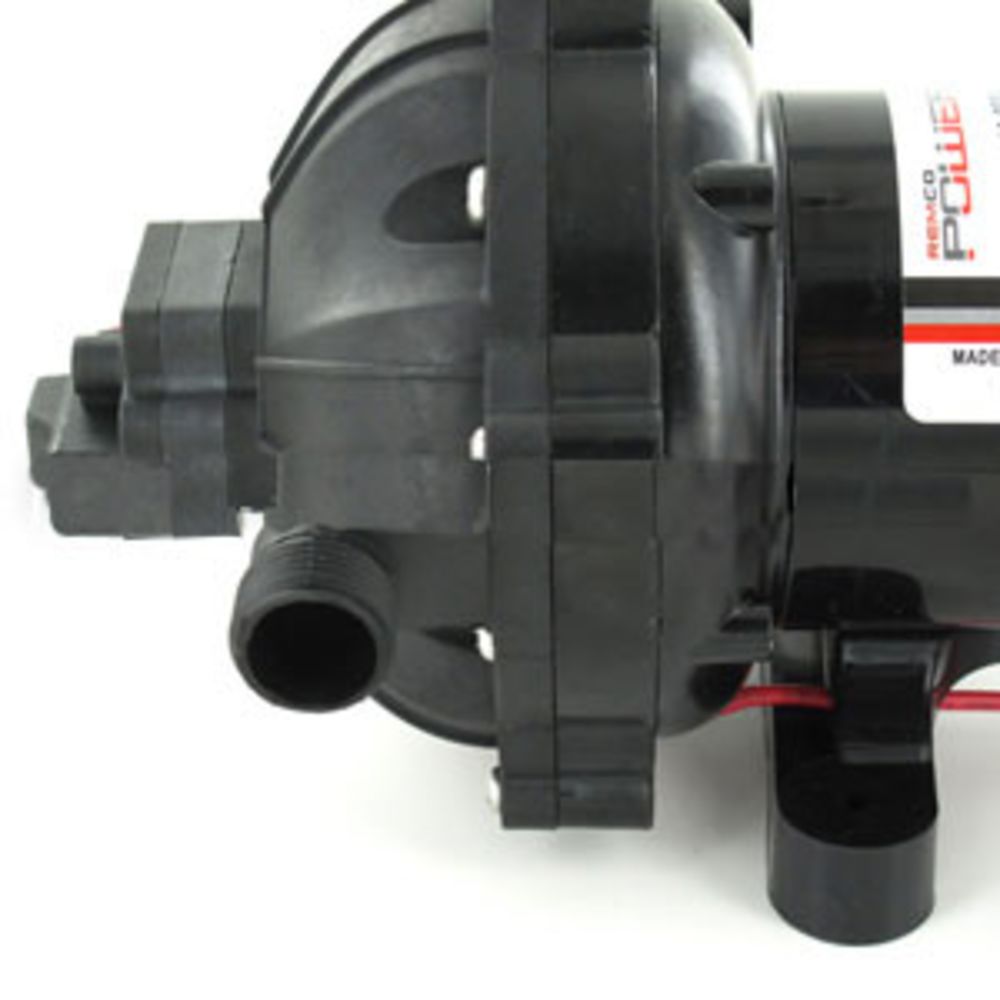

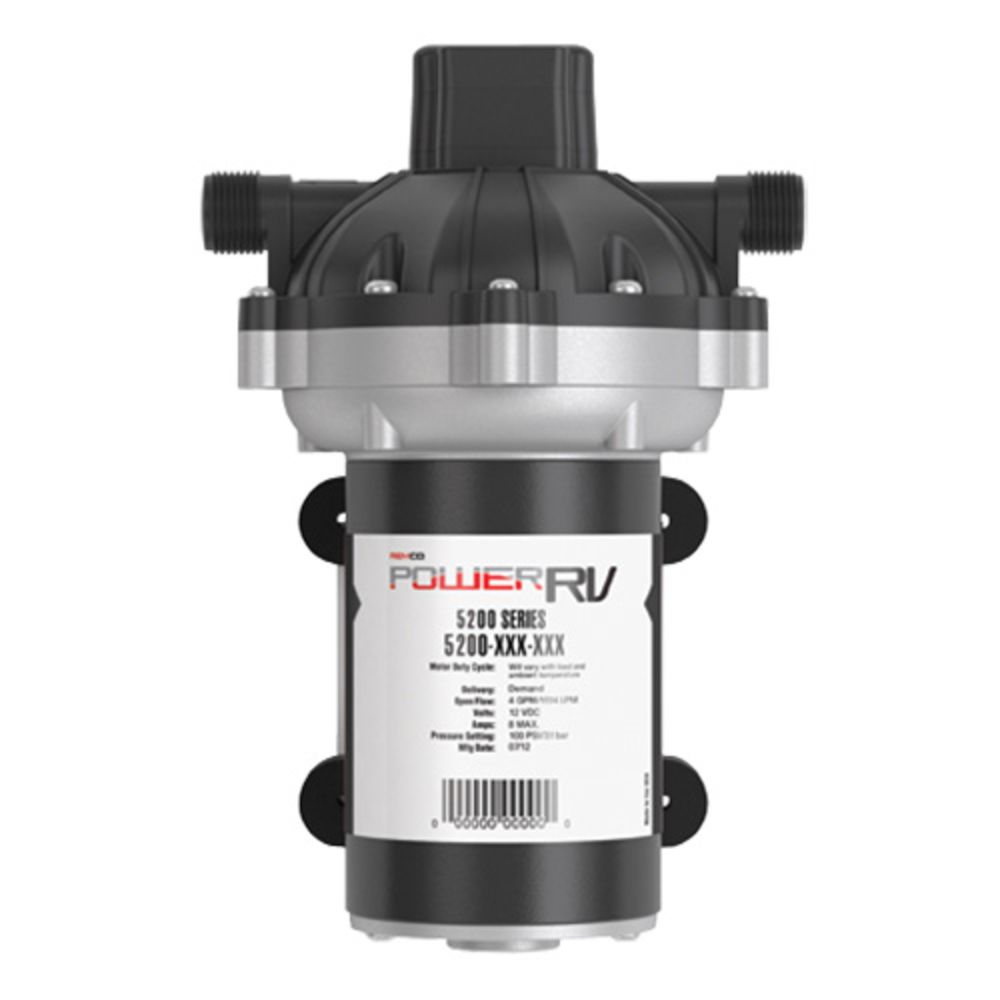

Remco PowerRV 5200 RV Water Pump 12VDC 60 psi

Part Number: 5264-1E1-80A

In Stock

out of stock

In Stock

$105.50

The Remco PowerRV 5200 RV Water Pump was designed to be flexible enough to be used in multiple applications. With on-demand switching, it is available with flow rates of 3, 4 or 5 gpm and 60 psi.

Specifications:
  • 5 chamber positive displacement diaphragm pump
  • Self priming up to 6 feet
  • Capable of being run dry
  • 4.5" 18 AWG bare wire leads
  • Rated for intermittent duty cycle
  • Max pressure: 100 psi
  • Inlet/Outlet Ports: 1/2" NPT male
  • Weight: 7 lbs
Applications:
  • RV and coach water pumps
  • Automotive
  • General industrial
  • Agricultural spraying
  • Water treatment/RO


Model Voltage Switch GPM PSI/BAR Max Draw Valves Diaphragm
5264-1E1-80A 12 V Demand 3.0 60/5.1 10 A Viton Santoprene
5266-1E1-80A 12 V Demand 4.0 60/4.1 12 A Viton Santoprene
5267-1E1-80A 12 V Demand 5.0 60/40.1 15 A Viton Santoprene


Details

Diaphragm Materials

Santoprene

Inlet/Outlet Connection

1/2" MPT

Pin Configuration

2-pin

Power

4-1/2" 18 AWG with 2-pin molded connector

Series

5200

Size

1/2"

Wire Option

Bare Wire

Connection Type

Male (MPT)

Flow Rate

3 GPM

Type

Diaphragm Pump

Voltage

12VDC


Remco

Remco




The Remco PowerRV 5200 RV Water Pump was designed to be flexible enough to be used in multiple applications. With on-demand switching, it is available with flow rates of 3, 4 or 5 gpm and 60 psi.

Specifications:
  • 5 chamber positive displacement diaphragm pump
  • Self priming up to 6 feet
  • Capable of being run dry
  • 4.5" 18 AWG bare wire leads
  • Rated for intermittent duty cycle
  • Max pressure: 100 psi
  • Inlet/Outlet Ports: 1/2" NPT male
  • Weight: 7 lbs
Applications:
  • RV and coach water pumps
  • Automotive
  • General industrial
  • Agricultural spraying
  • Water treatment/RO


Model Voltage Switch GPM PSI/BAR Max Draw Valves Diaphragm
5264-1E1-80A 12 V Demand 3.0 60/5.1 10 A Viton Santoprene
5266-1E1-80A 12 V Demand 4.0 60/4.1 12 A Viton Santoprene
5267-1E1-80A 12 V Demand 5.0 60/40.1 15 A Viton Santoprene

Details

Diaphragm Materials

Santoprene

Inlet/Outlet Connection

1/2" MPT

Pin Configuration

2-pin

Power

4-1/2" 18 AWG with 2-pin molded connector

Series

5200

Size

1/2"

Wire Option

Bare Wire

Connection Type

Male (MPT)

Flow Rate

3 GPM

Type

Diaphragm Pump

Voltage

12VDC
