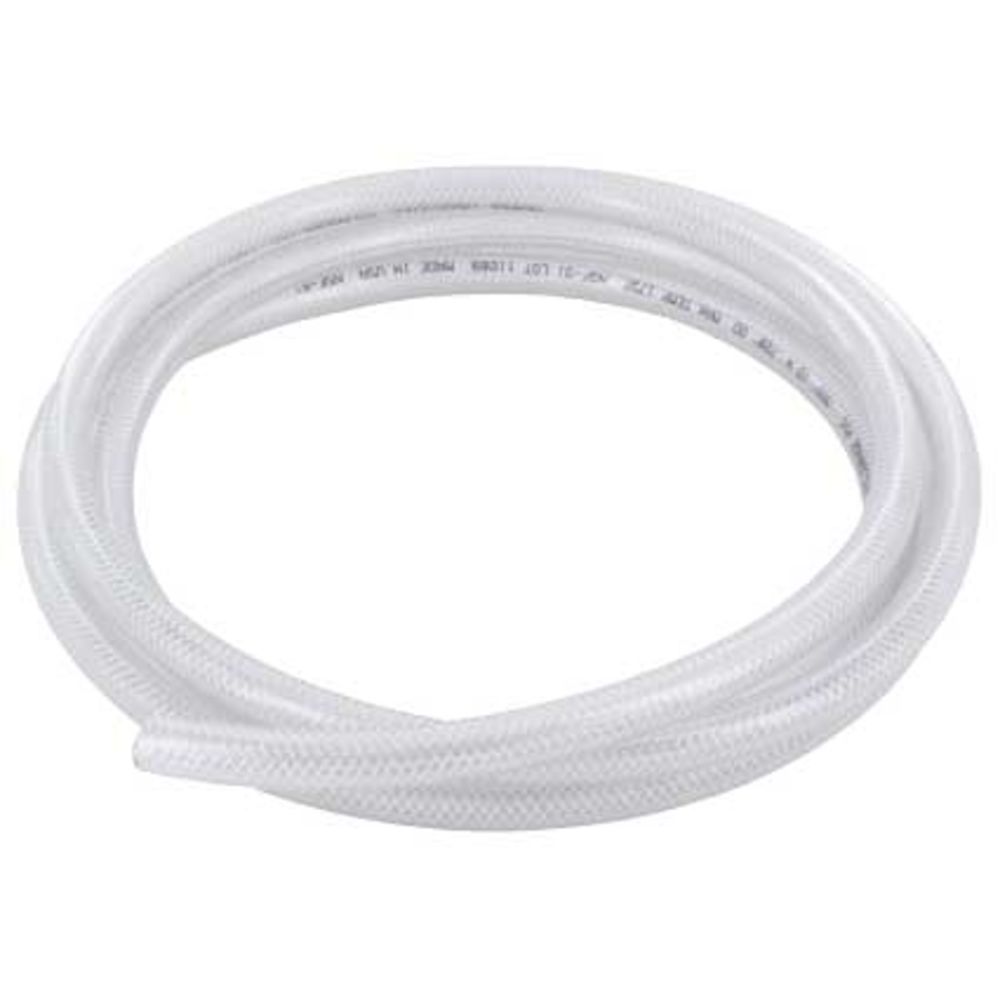

Reinforced Clear PVC Tubing 3/8 ID x .594 OD
Part Number: 125-06000:10FT
Alt. Part Number: 7583-375, TUBRPVC-375 125-06000300
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Reinforced PVC Hose features a polyester spiral yarn enabling higher pressure applications for both fluid and compressed gases. This tubing meets FDA requirements and is NSF-61 certified, making it perfect for use with food and beverage applications.
Tubing is compatible with: Parker Nexbraid Compatible Series 125, Tygon B-44-4X I.B, New Age Industries Nylobrade, Boston Woven Hose H285, Goodyear Pliovic FG, Kentak K-9500 and Kuriyama K3150.
Specification:
- Tubing ID: 3/8" (9.5mm)
- Tubing OD: 0.594" (15.1mm)
- Tubing Material: Clear PVC
- Reinforcement: Polyester
- Max Temperature: 150° F
- Working Pressure: 225 psi @ 70° F
- Certification: NSF 61 Certified for Direct Contact with Potable Water, Food & Beverage
- Compliance: FDA, RoHS, REACH, USP Class IV
- Coil Length: 100 Foot
- Lightweight and Flexible
- Phthalate Free
- Compatible with hose barb fittings
Applications:
- Beverages, potable water, pure water
- Dry abrasive materials, flour, grains, granules, pellets, powders, sugar
- Air, flexible conduit, light vacuum, wire harness
Note: Any length of tubing that is less than a full coil must be custom cut and is non-returnable. Only complete, unaltered coils may be returned.
* Orders for lengths greater than 100 feet will receive full coil(s). Any remaining length will be shipped as a separate segment.
Product Details | |
---|---|
Application | Potable Water |
Brittle Temperature | -4 F |
Hardness | Medium Hard |
Material Of Construction | Reinforced Clear PVC |
Max Pressure (Psi) | 225 |
Max Temp (°F) | 150 |
Tensile Strength | 400 lbs |
Tubing Roll Length | 10 |
Diameter | 19/32" |
Inner Diameter | 3/8" |
Warranty & Certifications | |
Certifications | NSF Standard 61 |
Shipping Dimensions | |
Shipping Length | 14.88 in. |
Shipping Width | 14.88 in. |
Shipping Height | 8.13 in. |
Product Weight & Dimensions | |
Product Height | 8.13 in. |
Product Length | 14.88 in. |
Product Width | 14.88 in. |
Product Weight (lbs) | 27.04375 |
Product Details | |
---|---|
Application | Potable Water |
Brittle Temperature | -4 F |
Hardness | Medium Hard |
Material Of Construction | Reinforced Clear PVC |
Max Pressure (Psi) | 225 |
Max Temp (°F) | 150 |
Tensile Strength | 400 lbs |
Tubing Roll Length | 50 |
Diameter | 19/32" |
Inner Diameter | 3/8" |
Warranty & Certifications | |
Certifications | NSF Standard 61 |
Product Weight & Dimensions | |
Product Weight (lbs) | 5.85 |
Product Details | |
---|---|
Application | Potable Water |
Brittle Temperature | -4 F |
Hardness | Medium Hard |
Material Of Construction | Reinforced Clear PVC |
Max Pressure (Psi) | 225 |
Max Temp (°F) | 150 |
Tensile Strength | 400 lbs |
Tubing Roll Length | 100 |
Diameter | 19/32" |
Inner Diameter | 3/8" |
Warranty & Certifications | |
Certifications | NSF Standard 61 |
Product Weight & Dimensions | |
Product Weight (lbs) | 11.7 |
Reinforced PVC Hose features a polyester spiral yarn enabling higher pressure applications for both fluid and compressed gases. This tubing meets FDA requirements and is NSF-61 certified, making it perfect for use with food and beverage applications.
Tubing is compatible with: Parker Nexbraid Compatible Series 125, Tygon B-44-4X I.B, New Age Industries Nylobrade, Boston Woven Hose H285, Goodyear Pliovic FG, Kentak K-9500 and Kuriyama K3150.
Specification:
- Tubing ID: 3/8" (9.5mm)
- Tubing OD: 0.594" (15.1mm)
- Tubing Material: Clear PVC
- Reinforcement: Polyester
- Max Temperature: 150° F
- Working Pressure: 225 psi @ 70° F
- Certification: NSF 61 Certified for Direct Contact with Potable Water, Food & Beverage
- Compliance: FDA, RoHS, REACH, USP Class IV
- Coil Length: 100 Foot
- Lightweight and Flexible
- Phthalate Free
- Compatible with hose barb fittings
Applications:
- Beverages, potable water, pure water
- Dry abrasive materials, flour, grains, granules, pellets, powders, sugar
- Air, flexible conduit, light vacuum, wire harness
Note: Any length of tubing that is less than a full coil must be custom cut and is non-returnable. Only complete, unaltered coils may be returned.
* Orders for lengths greater than 100 feet will receive full coil(s). Any remaining length will be shipped as a separate segment.
