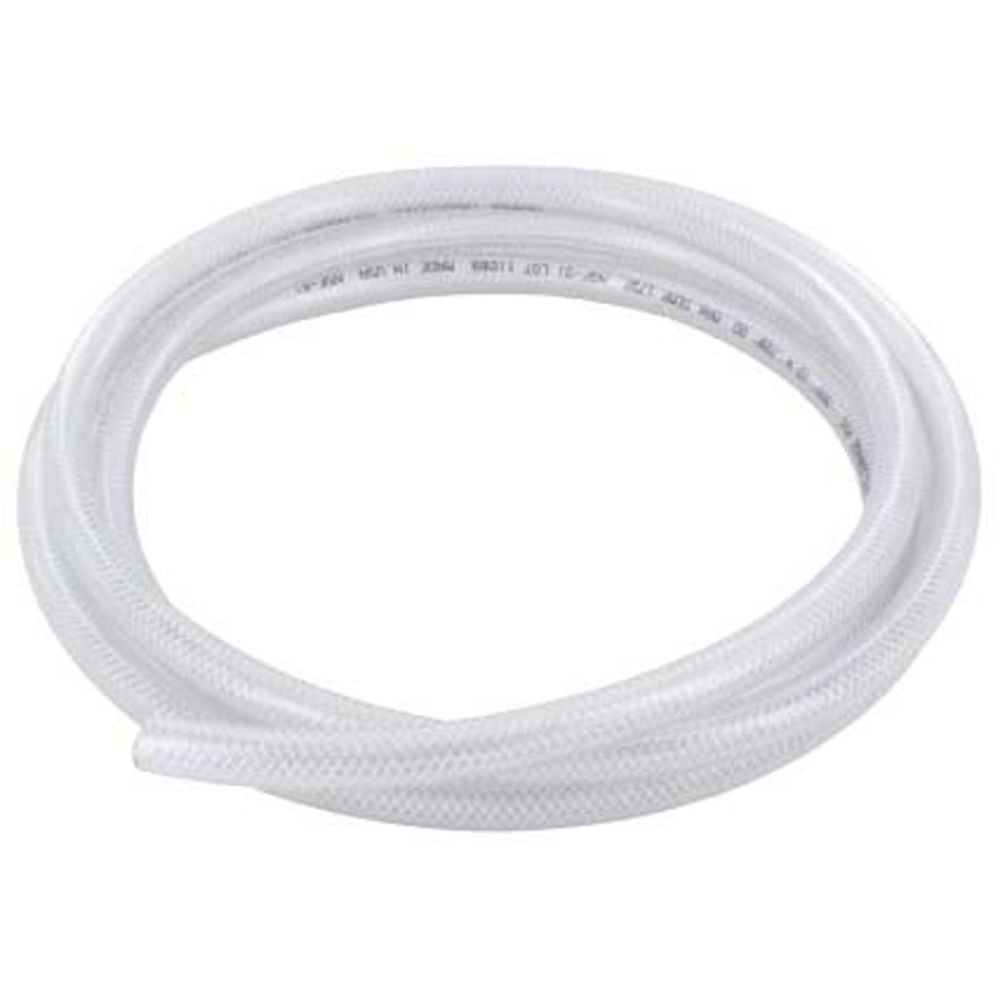

Reinforced Clear PVC Tubing 1-1/2 ID x 1.937 OD

Part Number: PVCR-2431-FT-C:10FT
Alt. Part Number: 7583-1500 125-24000100
Your price:
similar items

Reinforced PVC Hose features a polyester spiral yarn enabling higher pressure applications for both fluid and compressed gases. This tubing meets FDA requirements and is NSF-61 certified, making it perfect for use with food and beverage applications.

Tubing is compatible with: Parker Nexbraid Compatible Series 125, Tygon B-44-4X I.B, New Age Industries Nylobrade, Boston Woven Hose H285, Goodyear Pliovic FG, Kentak K-9500 and Kuriyama K3150.

Specification:

  • Tubing ID: 1-1/2" (38.1mm)
  • Tubing OD: 1.937" (49.2mm)
  • Tubing Material: Clear PVC
  • Reinforcement: Polyester
  • Max Temperature: 150° F
  • Working Pressure: 100 psi @ 70° F
  • Certification: NSF 61 Certified for Direct Contact with Potable Water, Food & Beverage
  • Compliance: FDA, RoHS, REACH, USP Class IV
  • Coil Length: 100 Foot
  • Lightweight and Flexible
  • Phthalate Free
  • Compatible with hose barb fittings

Applications:

  • Beverages, potable water, pure water
  • Dry abrasive materials, flour, grains, granules, pellets, powders, sugar
  • Air, flexible conduit, light vacuum, wire harness

Note: Any length of tubing that is less than a full coil must be custom cut and is non-returnable. Only complete, unaltered coils may be returned.

* Orders for lengths greater than 100 feet will receive full coil(s). Any remaining length will be shipped as a separate segment.
