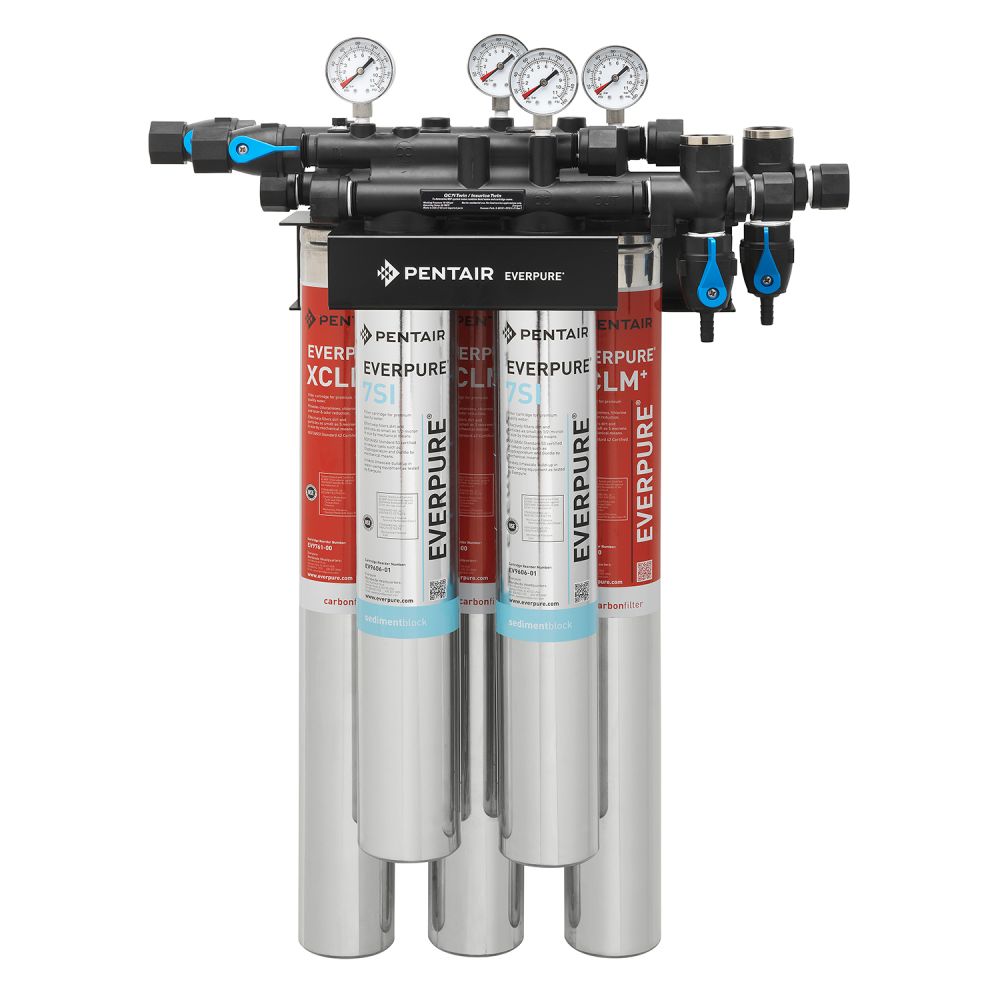

QC7i XCLM+/7SI DIO System
Part Number: EV9278-42
Alt. Part Number: EV927842
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
XCLM+ System Features & Specifications:
- Certified by NSF against standard NSF/ANSI 42
- Reduces chloramines, chlorine taste & odor
- Filters dirt and particles as small as 5 micron
- Improves the taste of fountain beverages
- Protects drink system seals, pump, tubing and small orifices from clogging, corrosion and abrasive wear

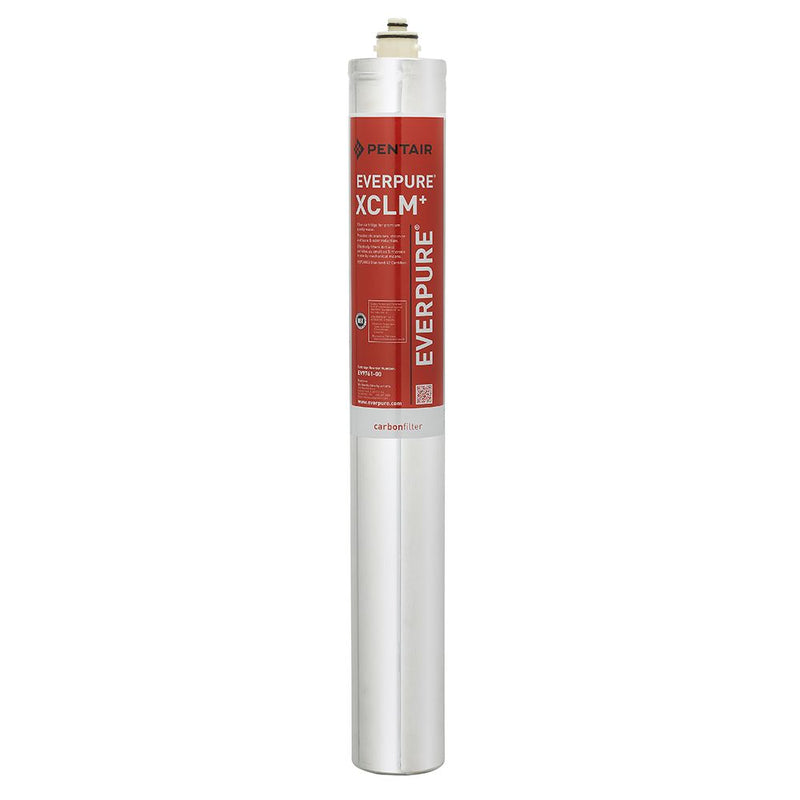

- Includes (3) EV9761-00 XCLM+ cartridges
- Inlet Connection: 3/4" NPT
- Outlet Connections: 3/4" NPT
- Rated Capacity:
- 57,900 gal @ 3.0 gpm
- 34,800 gal @ 5.0 gpm
- 27,900 gal @ 6.0 gpm
- Certified by NSF against standards NSF/ANSI 42 & 53
- Reduces cysts by mechanical means
- Fibredyne media with superior dirt-holding capacity filters dirt and particles to 1/2 micron in size
- Promotes longer service life by reducing scale build-up in the system
- Includes (2) EV9606-01 7SI cartridges
- Inlet Connection: 3/4" NPT
- Outlet Connections: 3/4" NPT
- Rated Capacity:
- 50,000 gal @ 7.0 gpm
Product Details | |
---|---|
Application | Fountain Beverage System Ice System |
Capacity | 27,900 Gallons 34,800 Gallons 57,900 Gallons 50,000 Gallons |
Inlet Connection | 3/4" FPT |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 100 |
Micron Rating (Nominal) | 0.5 µm |
Min Pressure (Psi) | 10 |
Min Temp (°F) | 35 |
Outlet Connection | 3/4" FPT |
Size | 3/4" |
Cartridge Style | Quick Change |
Change Frequency | 27,900 gal @ 6.0 gpm,34,800 gal @ 5.01 gpm,57,900 gal @ 3.0 gpm,50,000 gal @ 7.0 gpm |
Connection Type | Female (FPT) |
Contaminants Reduced | Chlorine/Taste/Odor Chloramine Particulate Class I Particulate Class III Cysts Sediment/Dirt/Rust |
Flow Rate | 3 GPM 5 GPM 6 GPM 7 GPM |
Type | Ice Filtration System |
Warranty & Certifications | |
Certifications | NSF/ANSI 42, NSF/ANSI 53 |
Shipping Dimensions | |
Shipping Length | 24 in. |
Shipping Width | 16.5 in. |
Shipping Height | 16.25 in. |
Product Weight & Dimensions | |
Product Height | 16.25 |
Product Length | 24 |
Product Width | 16.5 |
Product Weight (lbs) | 25.92 |
XCLM+ System Features & Specifications:
- Certified by NSF against standard NSF/ANSI 42
- Reduces chloramines, chlorine taste & odor
- Filters dirt and particles as small as 5 micron
- Improves the taste of fountain beverages
- Protects drink system seals, pump, tubing and small orifices from clogging, corrosion and abrasive wear
- Includes (3) EV9761-00 XCLM+ cartridges
- Inlet Connection: 3/4" NPT
- Outlet Connections: 3/4" NPT
- Rated Capacity:
- 57,900 gal @ 3.0 gpm
- 34,800 gal @ 5.0 gpm
- 27,900 gal @ 6.0 gpm
- Certified by NSF against standards NSF/ANSI 42 & 53
- Reduces cysts by mechanical means
- Fibredyne media with superior dirt-holding capacity filters dirt and particles to 1/2 micron in size
- Promotes longer service life by reducing scale build-up in the system
- Includes (2) EV9606-01 7SI cartridges
- Inlet Connection: 3/4" NPT
- Outlet Connections: 3/4" NPT
- Rated Capacity:
- 50,000 gal @ 7.0 gpm
Product Details | |
---|---|
Application | Fountain Beverage System Ice System |
Capacity | 27,900 Gallons 34,800 Gallons 57,900 Gallons 50,000 Gallons |
Inlet Connection | 3/4" FPT |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 100 |
Micron Rating (Nominal) | 0.5 µm |
Min Pressure (Psi) | 10 |
Min Temp (°F) | 35 |
Outlet Connection | 3/4" FPT |
Size | 3/4" |
Cartridge Style | Quick Change |
Change Frequency | 27,900 gal @ 6.0 gpm,34,800 gal @ 5.01 gpm,57,900 gal @ 3.0 gpm,50,000 gal @ 7.0 gpm |
Connection Type | Female (FPT) |
Contaminants Reduced | Chlorine/Taste/Odor Chloramine Particulate Class I Particulate Class III Cysts Sediment/Dirt/Rust |
Flow Rate | 3 GPM 5 GPM 6 GPM 7 GPM |
Type | Ice Filtration System |
Warranty & Certifications | |
Certifications | NSF/ANSI 42, NSF/ANSI 53 |
Shipping Dimensions | |
Shipping Length | 24 in. |
Shipping Width | 16.5 in. |
Shipping Height | 16.25 in. |
Product Weight & Dimensions | |
Product Height | 16.25 |
Product Length | 24 |
Product Width | 16.5 |
Product Weight (lbs) | 25.92 |
