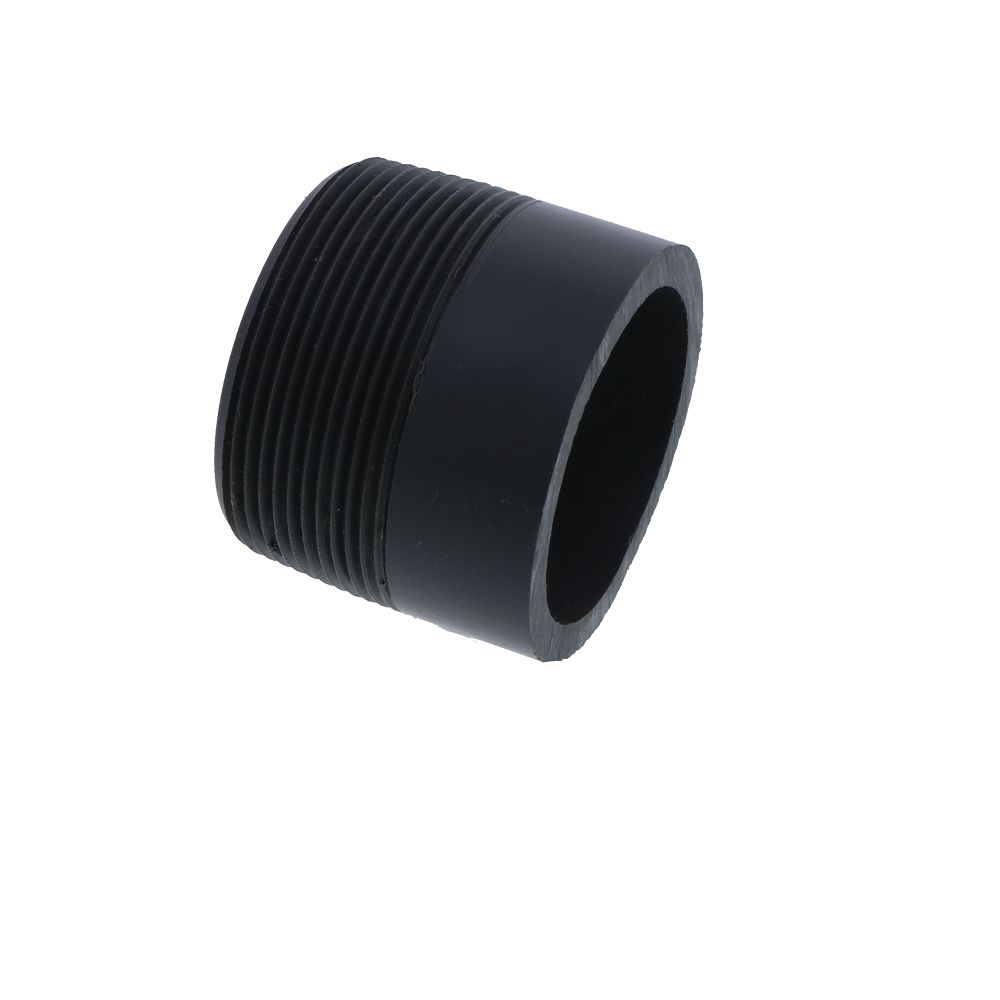

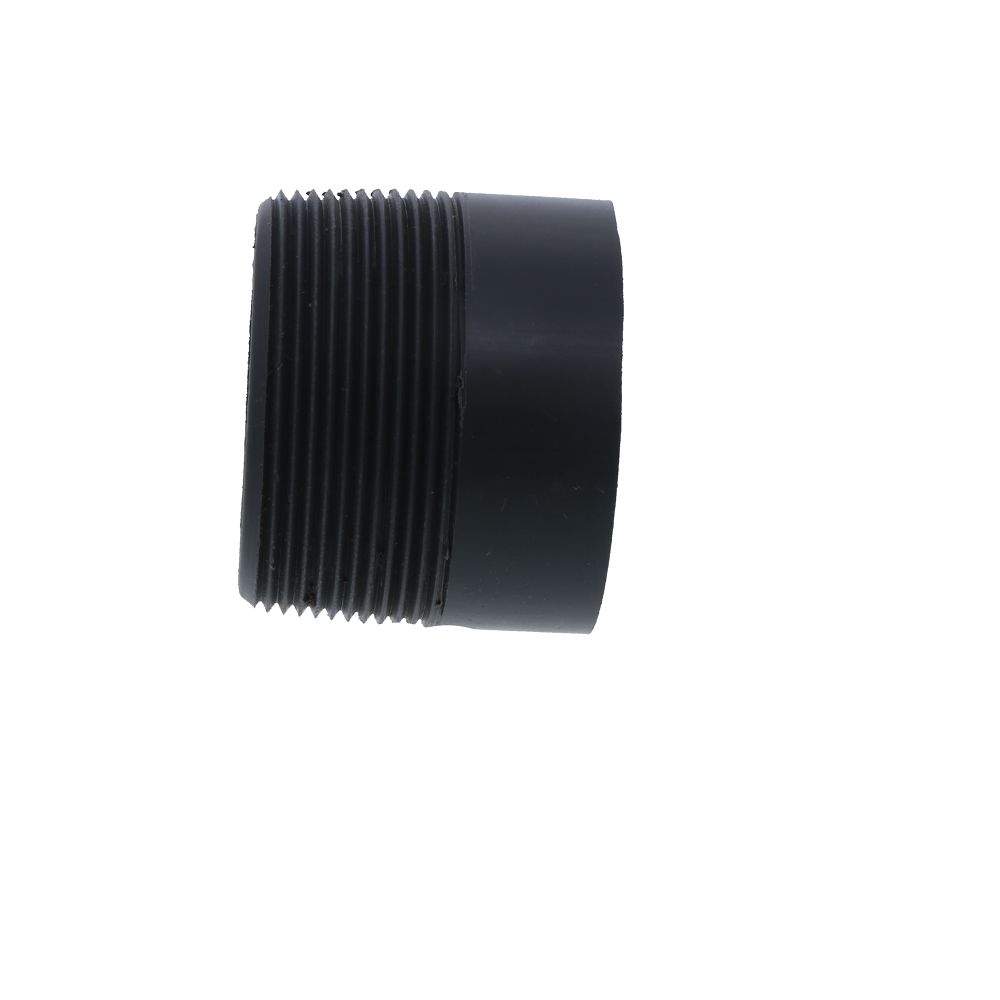

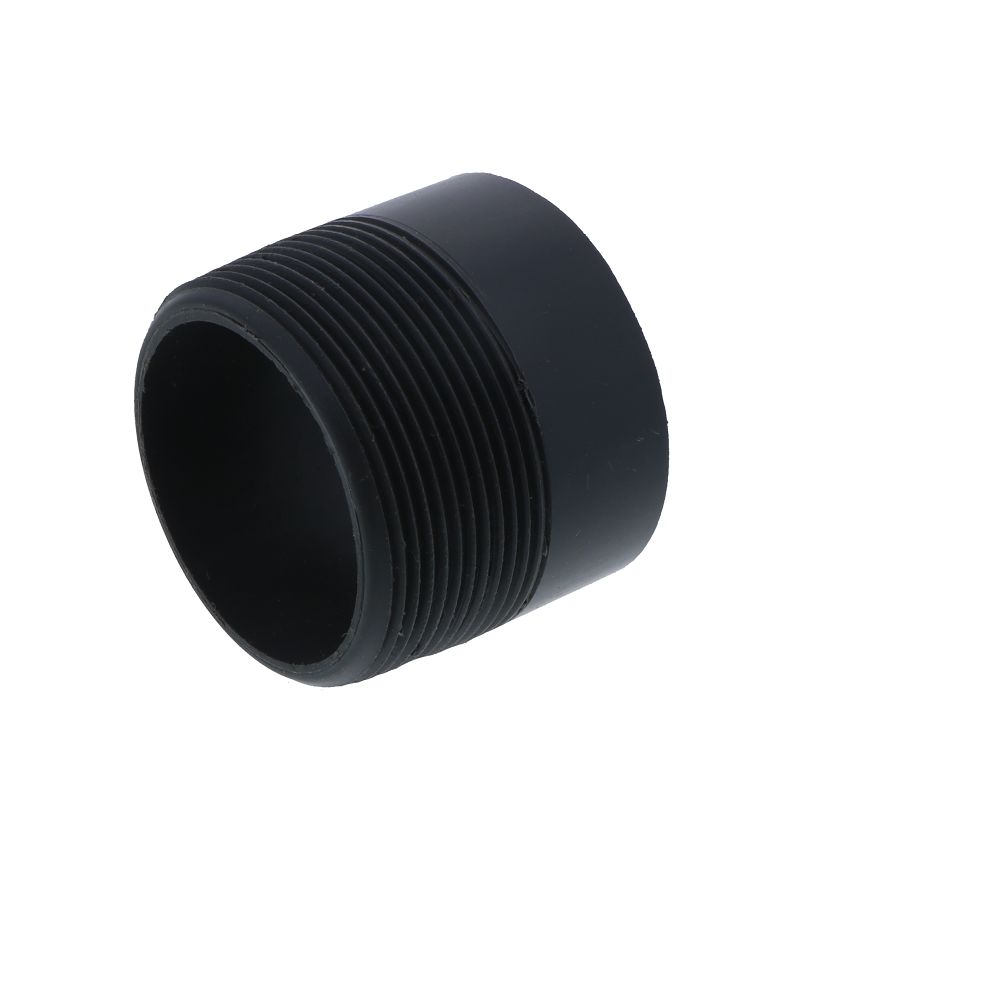

The FPTN20 is a Schedule 80 PVC TOE Nipple. This TOE nipple features 2" NPT on one end and 2" SLIP connections on the other. Schedule 80 PVC provides a thicker wall diameter for durability and longevity.
Specifications:
Specifications:
- Material: PVC
- Schedule: 80
- TOE: Threaded on One End
- Connection: NPT x SLIP
- Size: 2" x 2"
Weight & Dimensions
Weight (lbs) | 0.4 |
Details
Series | Schedule 80 |
Max Temp (°F) | 140 |
Max Pressure (Psi) | 400 |
Min Pressure (Psi) | 0 |
Application | Water |
Body Material | Schedule 80 PVC |
Color / Finish | Gray |
Mounting Options | Thread |
Size | 2" |
Inlet/Outlet Connection | 2" NPT, 2" Slip |
Warranty & Certifications
Certifications | NSF 61, NSF 14 |
The FPTN20 is a Schedule 80 PVC TOE Nipple. This TOE nipple features 2" NPT on one end and 2" SLIP connections on the other. Schedule 80 PVC provides a thicker wall diameter for durability and longevity.
Specifications:
- Material: PVC
- Schedule: 80
- TOE: Threaded on One End
- Connection: NPT x SLIP
- Size: 2" x 2"
Weight & Dimensions
Weight (lbs) | 0.4 |
Details
Series | Schedule 80 |
Max Temp (°F) | 140 |
Max Pressure (Psi) | 400 |
Min Pressure (Psi) | 0 |
Application | Water |
Body Material | Schedule 80 PVC |
Color / Finish | Gray |
Mounting Options | Thread |
Size | 2" |
Inlet/Outlet Connection | 2" NPT, 2" Slip |
Warranty & Certifications
Certifications | NSF 61, NSF 14 |
