Hydrocomponents & Technologies, Inc.

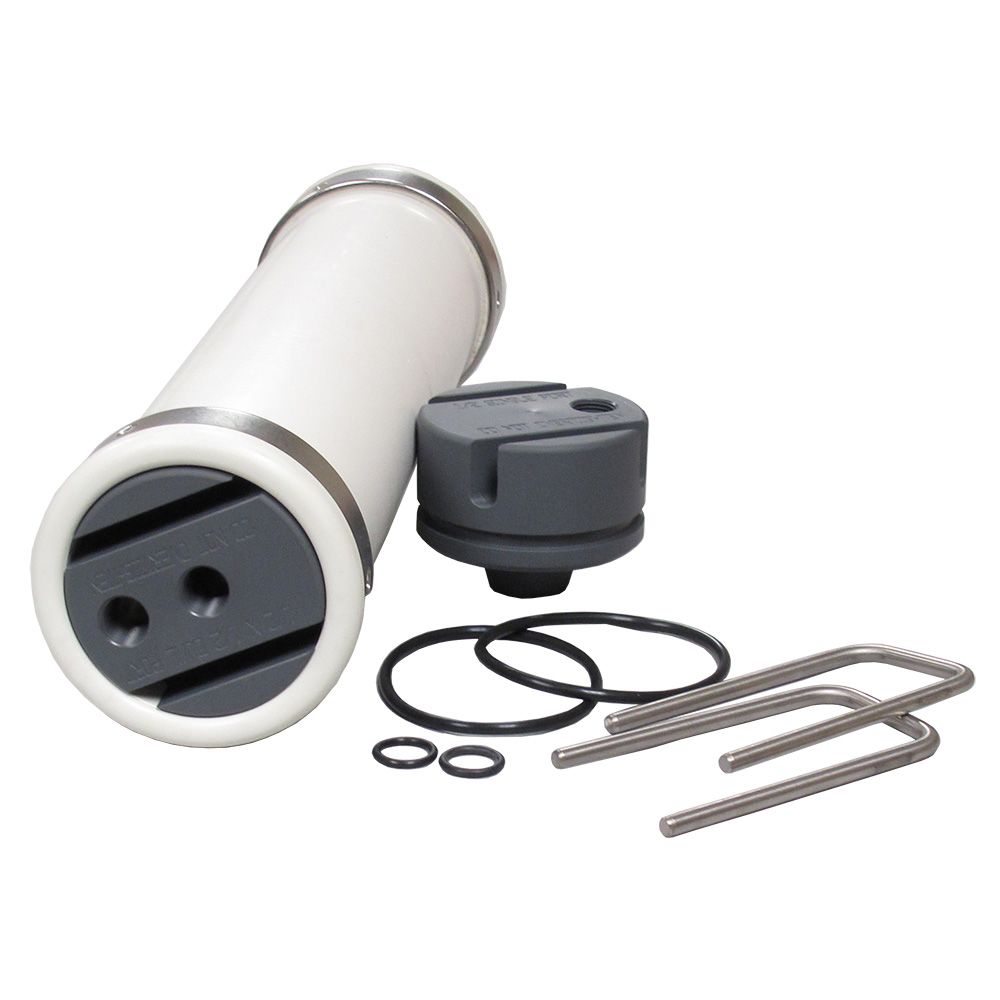

PVC Membrane Housing 4" x 21", U-Pin

Part Number: MHPVCU-4021NS

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Stainless Steel Membrane Housing 4" x 21" 1/2" Feed as a substitute.


Ideal for today's ultra-low pressure membrane applications. PVC pressure vessels should not be placed in direct sunlight or near UV sources. PVC housing expand slightly when pressurized and must be allowed to "breathe".
Features:
  • White PVC housing
  • NSF Approved
  • Self-locking 304 Stainless Steel U-Pin
  • Ethylene Propylene FDA Approved O-ring
  • Sturdy PVC Collars
  • Flush mount easy aligning PVC end plugs
  • Max separation between permeate port and feed/concentrate port allow the use of large fittings




Weight & Dimensions

Approx Length (Inches)

21"

Weight (lbs)

20

Details

Closure Type

U-Pin

Housing Material

PVC

Max Pressure (Psi)

150

O-Rings

Ethylene Propylene

Diameter

4"

End Cap Type

PVC

Port Size

1/2"


PVC

PVC





Ideal for today's ultra-low pressure membrane applications. PVC pressure vessels should not be placed in direct sunlight or near UV sources. PVC housing expand slightly when pressurized and must be allowed to "breathe".
Features:
  • White PVC housing
  • NSF Approved
  • Self-locking 304 Stainless Steel U-Pin
  • Ethylene Propylene FDA Approved O-ring
  • Sturdy PVC Collars
  • Flush mount easy aligning PVC end plugs
  • Max separation between permeate port and feed/concentrate port allow the use of large fittings



NOTE: This item is discontinued. We recommend the Stainless Steel Membrane Housing 4" x 21" 1/2" Feed as a substitute.

Weight & Dimensions

Approx Length (Inches)

21"

Weight (lbs)

20

Details

Closure Type

U-Pin

Housing Material

PVC

Max Pressure (Psi)

150

O-Rings

Ethylene Propylene

Diameter

4"

End Cap Type

PVC

Port Size

1/2"
