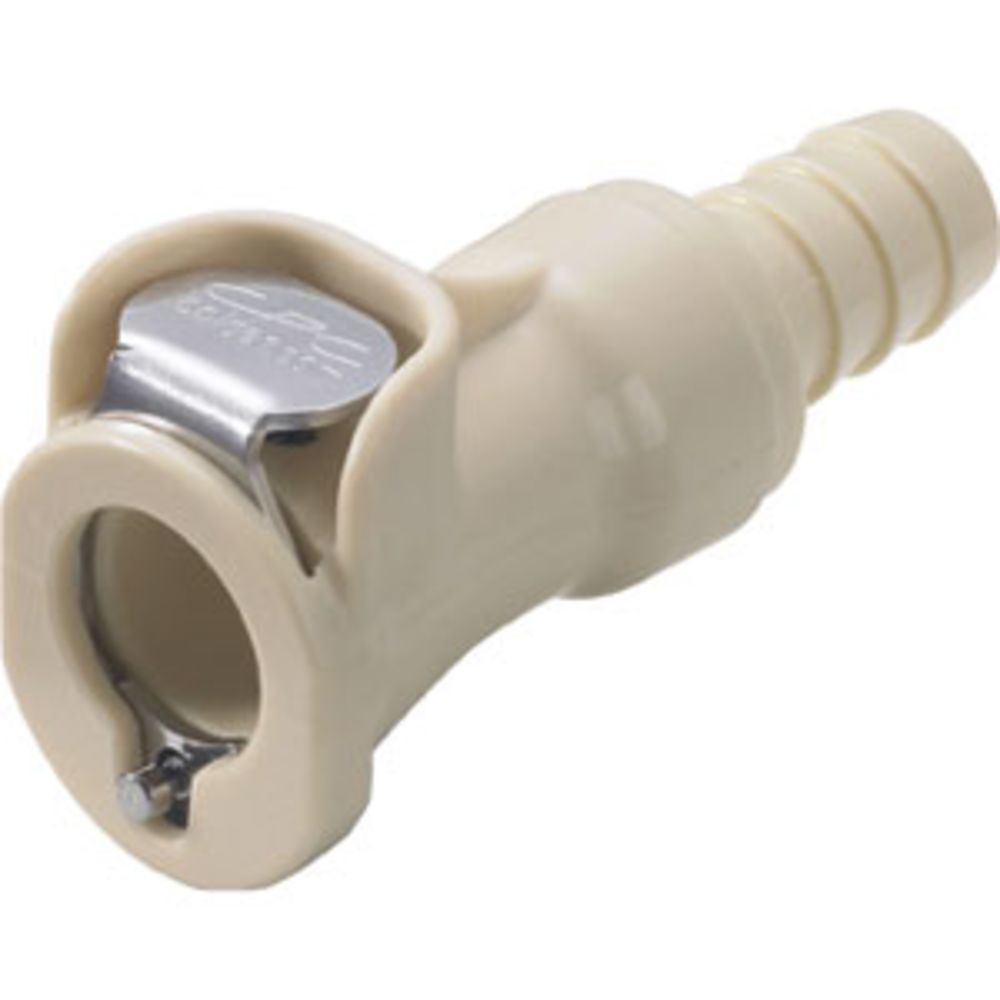

PSD1700612 Valved In-Line Hose Barb Coupling Body 3/8 ID Barb

The Puncture Seal dispensing system provides clean and safe liquid dispensing from bag-in-box (BIB) or other types of flexible packaging. The system consists of a Puncture Seal closure cap and a specially designed quick disconnect coupling body.

Specifications:

Material: Polypropylene
Material Finish: Almond
Valve Option: Valved
Mounting Option: Free Floating
Pressure Range: Vacuum to 120 psi, 8.3 bar
Temperature Range: 32°F to 160°F

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Bag-in-Box
Barb Size	3/8" ID
Body Material	Polypropylene
Max Temp (°F)	160
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Seal Material	EPDM
Series	Puncture Seal
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	Almond
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	0.3

Product Details
Application	Bag-in-Box
Barb Size	3/8" ID
Body Material	Polypropylene
Max Temp (°F)	160
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Seal Material	EPDM
Series	Puncture Seal
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	Almond
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	7.5

Product Details
Application	Bag-in-Box
Barb Size	3/8" ID
Body Material	Polypropylene
Max Temp (°F)	160
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Seal Material	EPDM
Series	Puncture Seal
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	Almond
Type	Coupling Body
