Home / Pumps & Motors / Rotary Vane Pumps & Motors / Procon Pump Vane LF Brass 140gph NSF Bypass 401 3/8" NPT
Procon

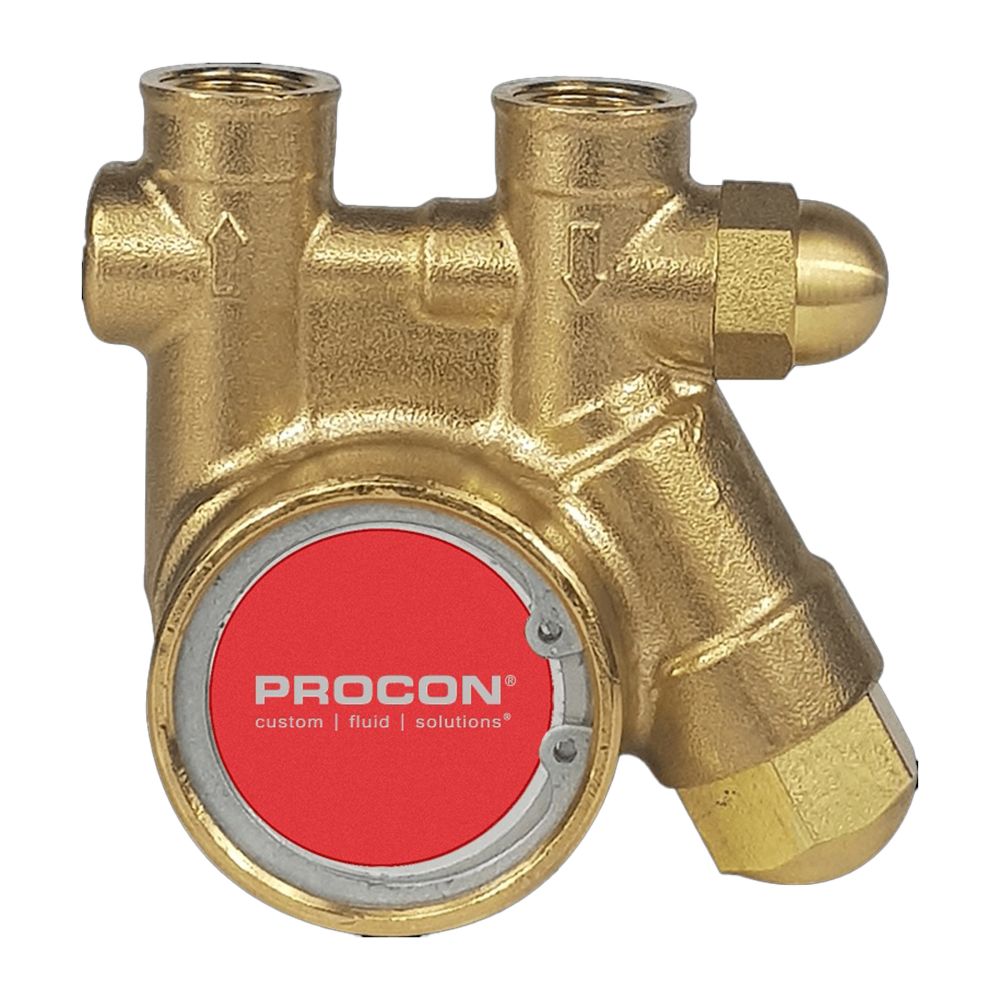

Procon Pump Vane LF Brass 140gph NSF Bypass 401 3/8" NPT

Part Number: 141A140F11BA
Your price:

This high-performance pump offers a consistent flow rate across varying pressures, ensuring reliable performance even under fluctuating conditions. Designed to be self-priming with water and maintenance-free, it features low vibration and pulsation for smoother operation. Built with a standard internal relief valve and an integrated strainer, it effectively removes debris from the pumping fluid, prolonging the pump's lifespan. Its durable low-lead brass housing, coupled with EPDM/Nitrile elastomers and NPT 3/8" inlet and outlet connections, ensures resilience in demanding environments. Capable of operating at temperatures between -4°F to 160°F (-20°C to 71°C) and supporting a maximum mechanical horsepower requirement of 0.64hp (477W), this pump delivers a robust flow rate of 140GPH (425LPH) under optimal conditions.

Key Specifications:

  • Flow Rate: 140GPH (425LPH)
  • Max Operating Pressure: 150psi
  • Inlet/Outlet Connections: NPT 3/8"
  • Material: Low Lead Brass Housing, EPDM/Nitrile Elastomers
  • Integrated Strainer: Yes
  • Temperature Range: -4°F to 160°F (-20°C to 71°C)
  • Maximum Horsepower: 0.64hp (477W)
  • Approvals: NSF STD. 169 Listed (0.2% Max Lead)
  • Dimensions: 2.4lb (1.09Kg), 3.3ft dry suction lift, 6.6ft wet suction lift


Compatible with:
Ice House America®IHA - H05219
