Procon

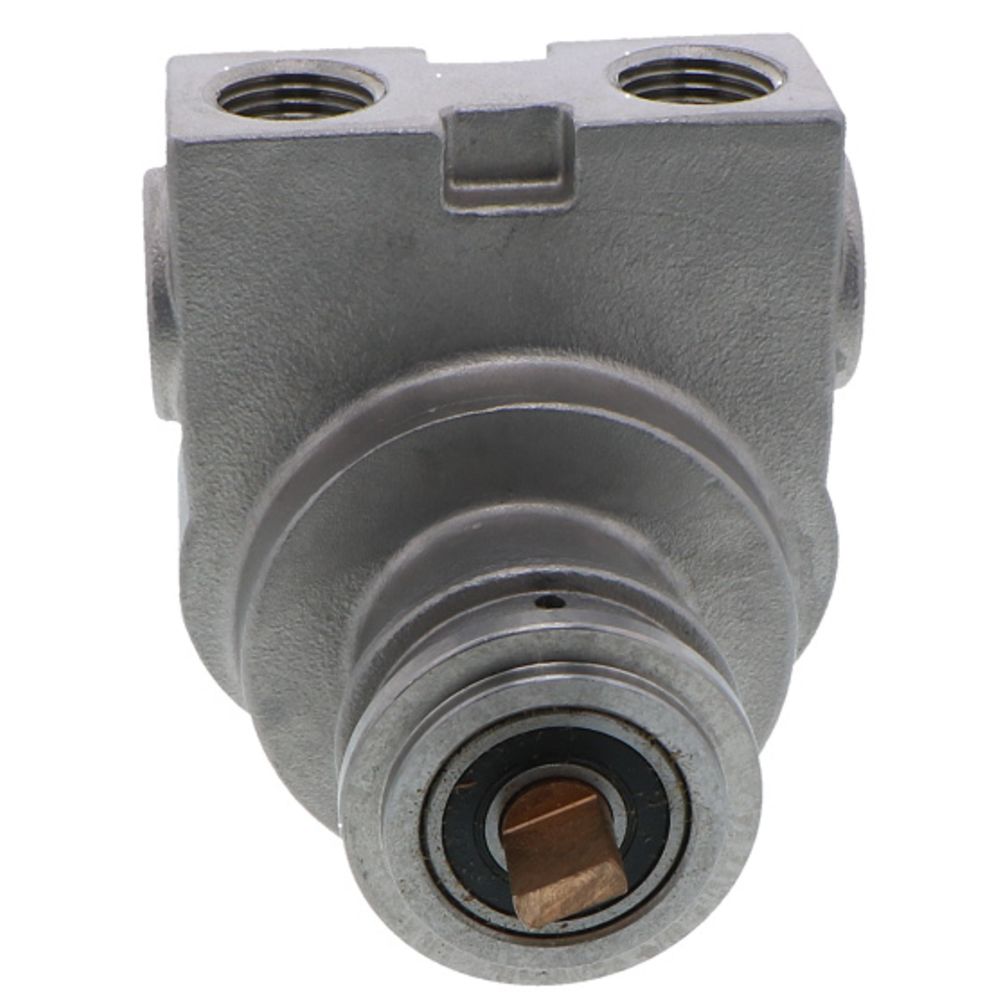

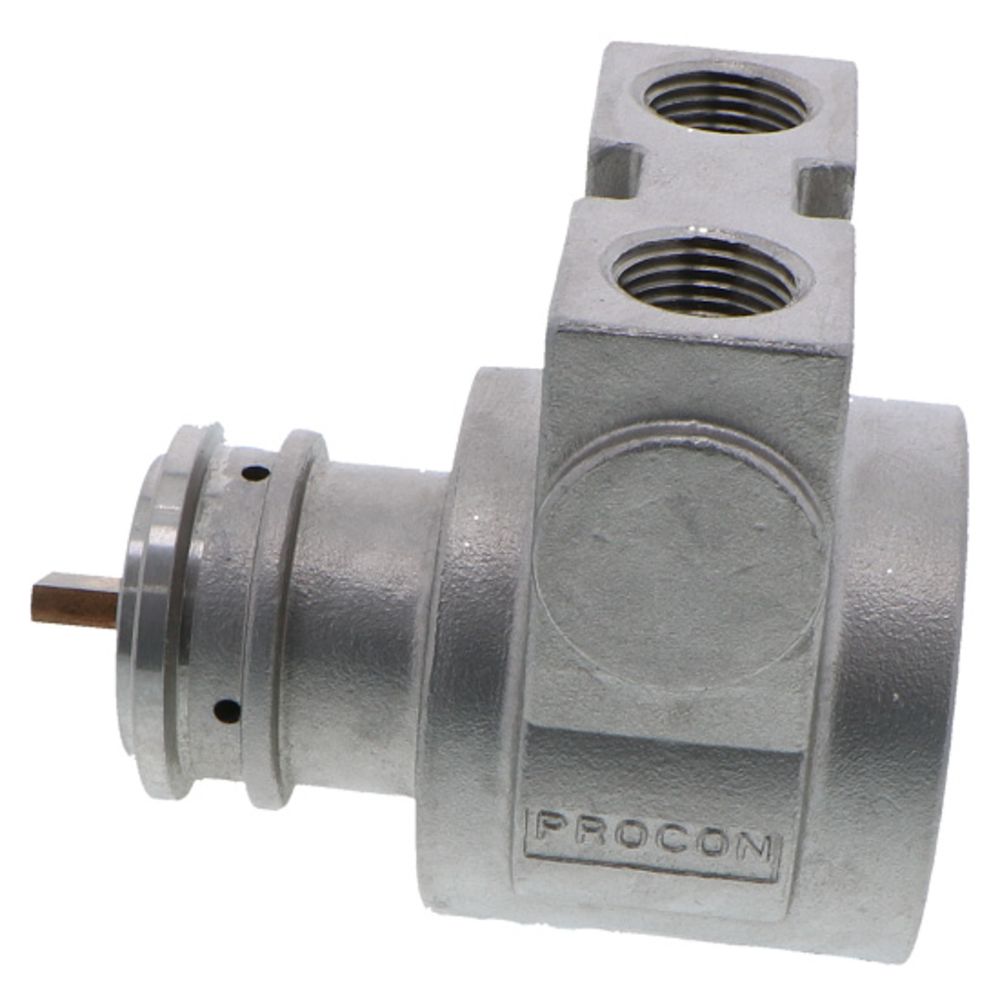

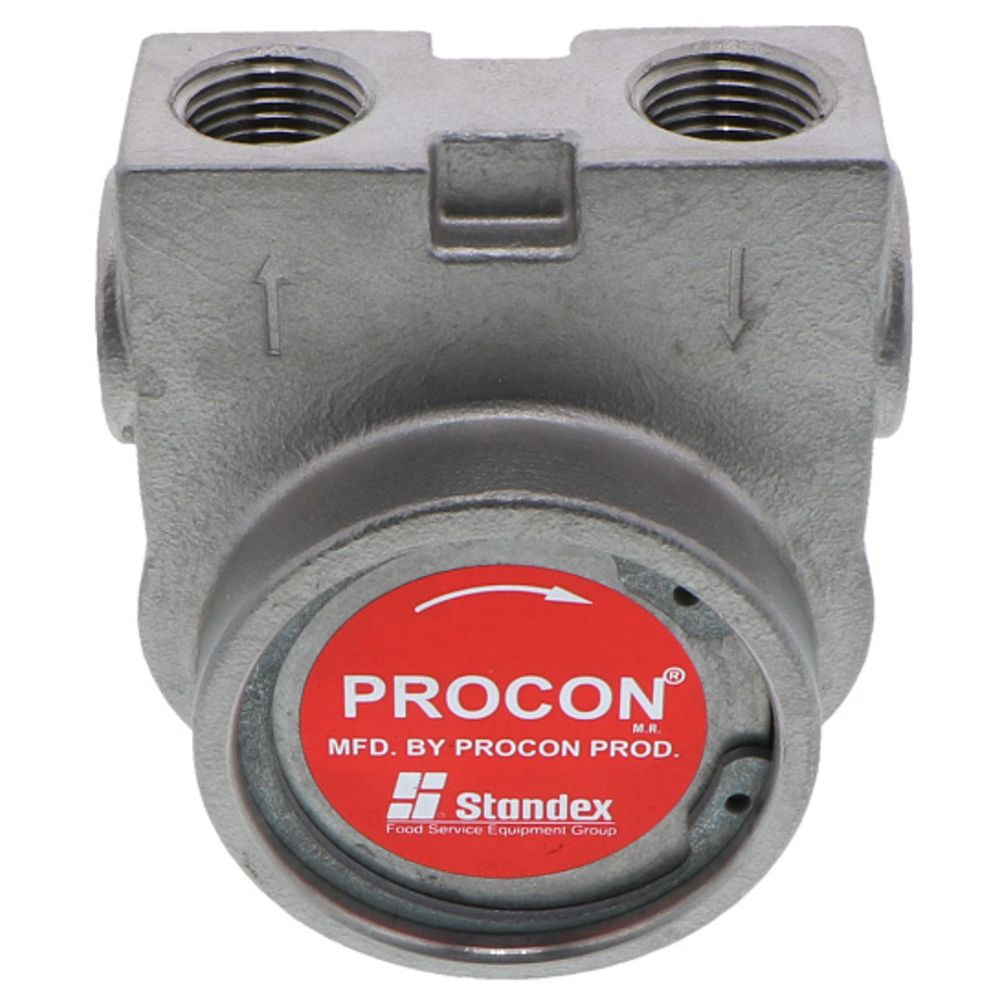

Procon Pump Stainless Steel w/ 1143 Bronze Coupling 190 GPH 1/2" FPT

Part Number: 105B190R31XX

In Stock

out of stock

In Stock

$220.00

Procon 105B190R31XX rotary vane pump is a positive displacement pump. This Series 5 Procon pump is stainless steel with 1143 Bronze Coupling. The inlet and outlet ports are 1/2" NPT and the pump has a flow-rate of 190 gallons per hour. The seal configuration for the 105B190R31XX uses Fluorocarbon Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 5 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 105B190R31XX pump is designed to be directly connected to the motor with a stainless steel clamp.

Specifications:
  • Capacity: 190 GPH
  • Nominal Speed: 1725 RPM
  • Maximum Discharge Pressure: 250 PSI
  • Rotation: clockwise/slinger
  • Weight: 2.5 lbs
  • Port Size: 1/2" NPT Inlet and Outlet
  • Bronze Coupler


Weight & Dimensions

Dimensions

Standard Clearance

Details

Body Material

Stainless Steel

Flow Rate

190 - Gallons Per Hour

Mounting Options

CLAMP ON WITH 1143 BRONZE COUPLING

Power

1-2

Valve Type

NO RELIEF VALVE

Elastomer Type

Fluorocarbon / Type 21 seal

Port Size

Stainless Steel - 1/2" NPT

Max Outlet Pressure

250 PSI

Nominal Speed Rpm

1725

Rotation / Slinger / Passivation / Strainer

Clockwise / Slinger

Warranty & Certifications

Certifications

N/A; 0: Non-Food Grade
