Sold Out

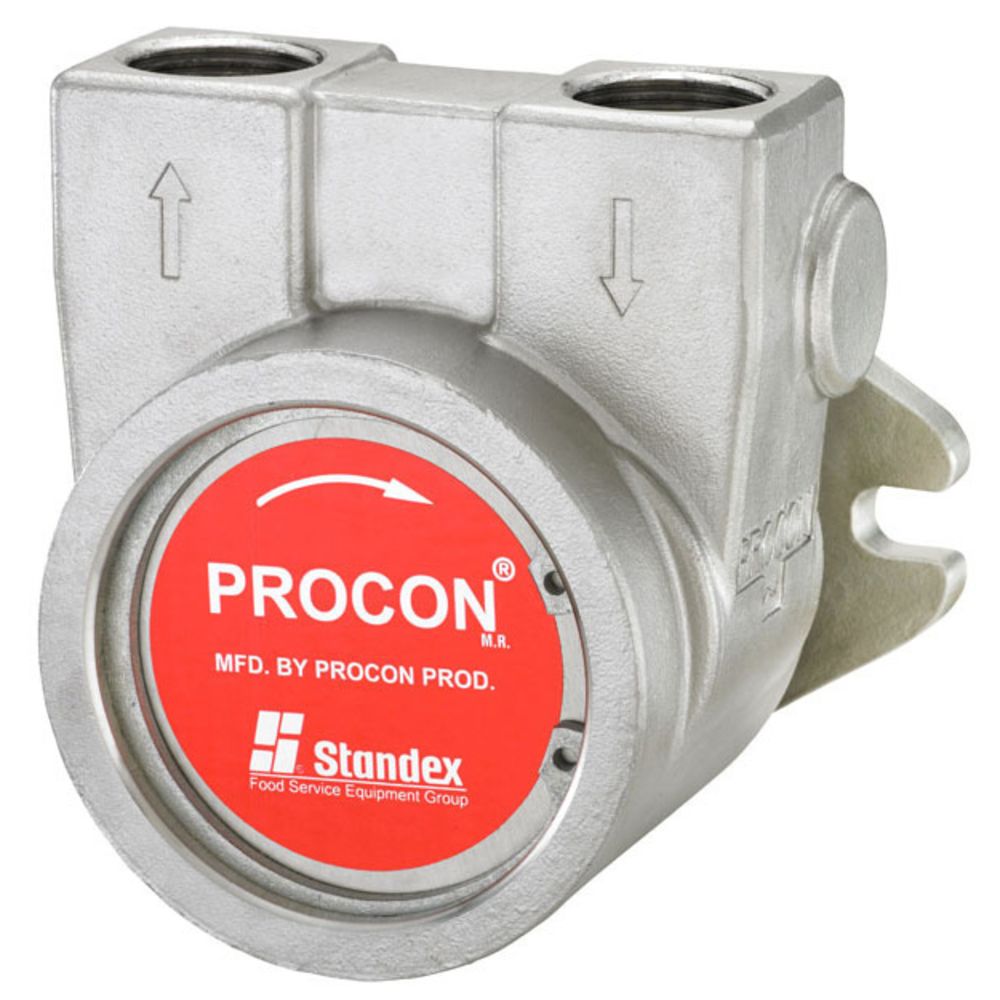

Procon Pump NSF Stainless Steel 540 GPH 1" NPT w/ Key Slot Drive (Bolt-on)
Part Number:
116N540F11XX
![Procon Pump NSF Stainless Steel 540 GPH 1" NPT w/ Key Slot Drive [Bolt-on]](http://www.freshwatersystems.com/cdn/shop/files/fxzcwiwtftmcnoh7kszh.jpg?v=1772618148&width=1500)
Loading...
Sold Out
Procon Pump NSF Stainless Steel 540 GPH 1" NPT w/ Key Slot Drive (Bolt-on)
Part Number:
116N540F11XX
Regular price
$672.40
Unit price
Unit price
/
Unavailable
You May Also Need
You May Also Need

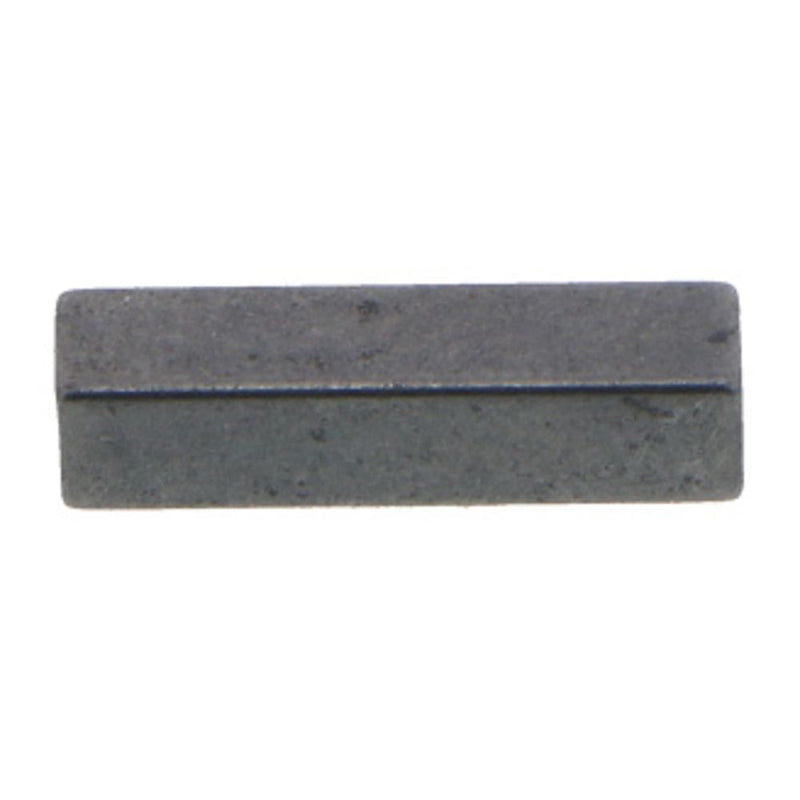

Optional AccessoryProcon Shaft Key for Series 6 Pumps
Regular price From $1.50 Unit priceUnit price /Unavailable

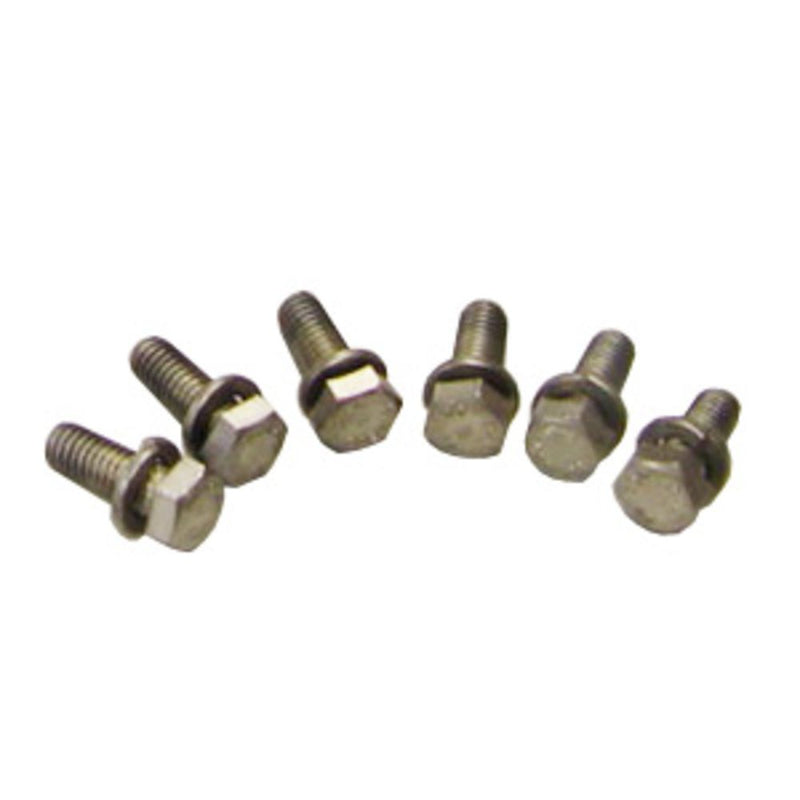

Optional AccessoryProcon 6 each bolts and washers for Series 6
Regular price From $12.27 Unit priceUnit price /Unavailable
Optional AccessoryProcon mtg bracket for bolt-on 56C for Series 6
Regular price From $149.75 Unit priceUnit price /Unavailable

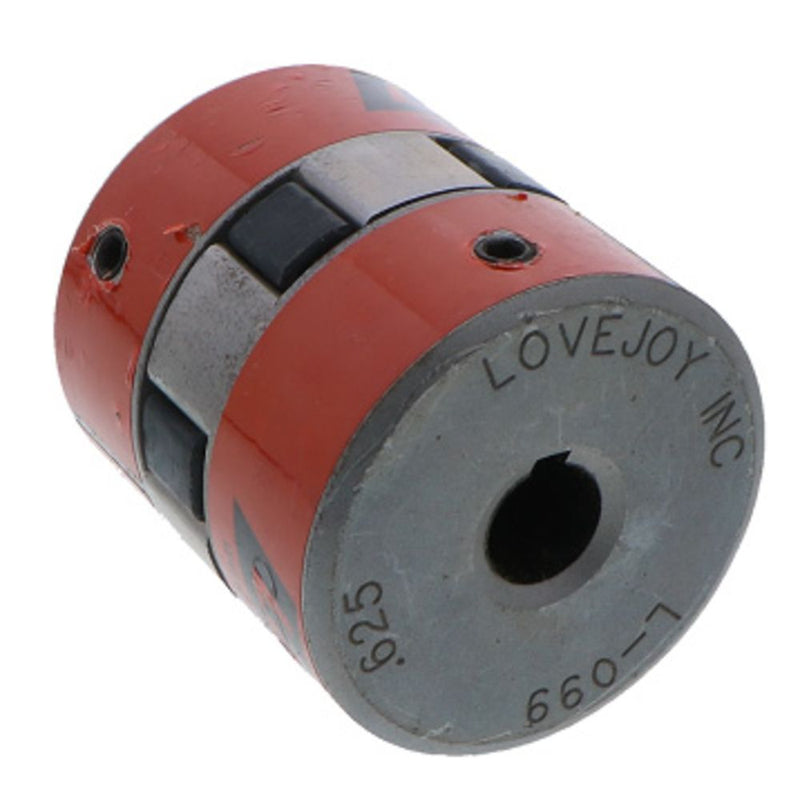

Optional AccessoryProcon coupler 5/8 x 5/8 bolt-on 56C for Series 6
Regular price From $65.00 Unit priceUnit price /Unavailable
Shipping Information
Shipping Information
Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.
Description
Description
The Procon Pump NSF Stainless Steel 540 GPH 1" NPT w/ Key Slot Drive (Bolt-on) rotary vane pump is a positive displacement pump. This Series 6 Procon pump is brass with a key slot drive. The inlet and outlet ports are 1" NPT and the pump has a flow-rate of 540 gallons per hour. The seal configuration for the 116N540F11XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 6 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 116N540F11XX pump is designed to be bolted directly to the motor.
Additional Specification:
Additional Specification:
-
Capacity: 540 GPH
-
Nominal Speed: 1725 RPM
-
Maximum Discharge Pressure: 250 PSI
-
Rotation: Clockwise
-
Weight: 2.5 lbs
-
Port Size: 1" NPT Inlet and Outlet
- Single Flat Drive
Specifications
Specifications
Downloads
Downloads
Reviews (0)
Reviews (0)
Safe & Secure Checkout
Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.
Compare Similar Products
| Facet |
![Procon Pump NSF Stainless Steel 540 GPH 1" NPT w/ Key Slot Drive [Bolt-on]](http://www.freshwatersystems.com/cdn/shop/files/fxzcwiwtftmcnoh7kszh.jpg?v=1772618148&width=460)
Sold Out
Regular price
From
$672.40
Unit price
Unit price
/
Unavailable
Sold out
Part #: 116N540F11XX
Save up to 7% with bulk pricing
|

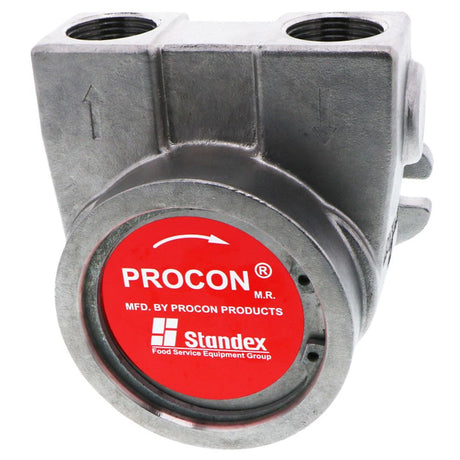

![Procon Pump NSF Stainless Steel 660 GPH 1" NPT w/ Key Slot Drive [Bolt-on]](http://www.freshwatersystems.com/cdn/shop/files/dognnujizcvao3oquj5d.jpg?v=1772617872&width=460)
