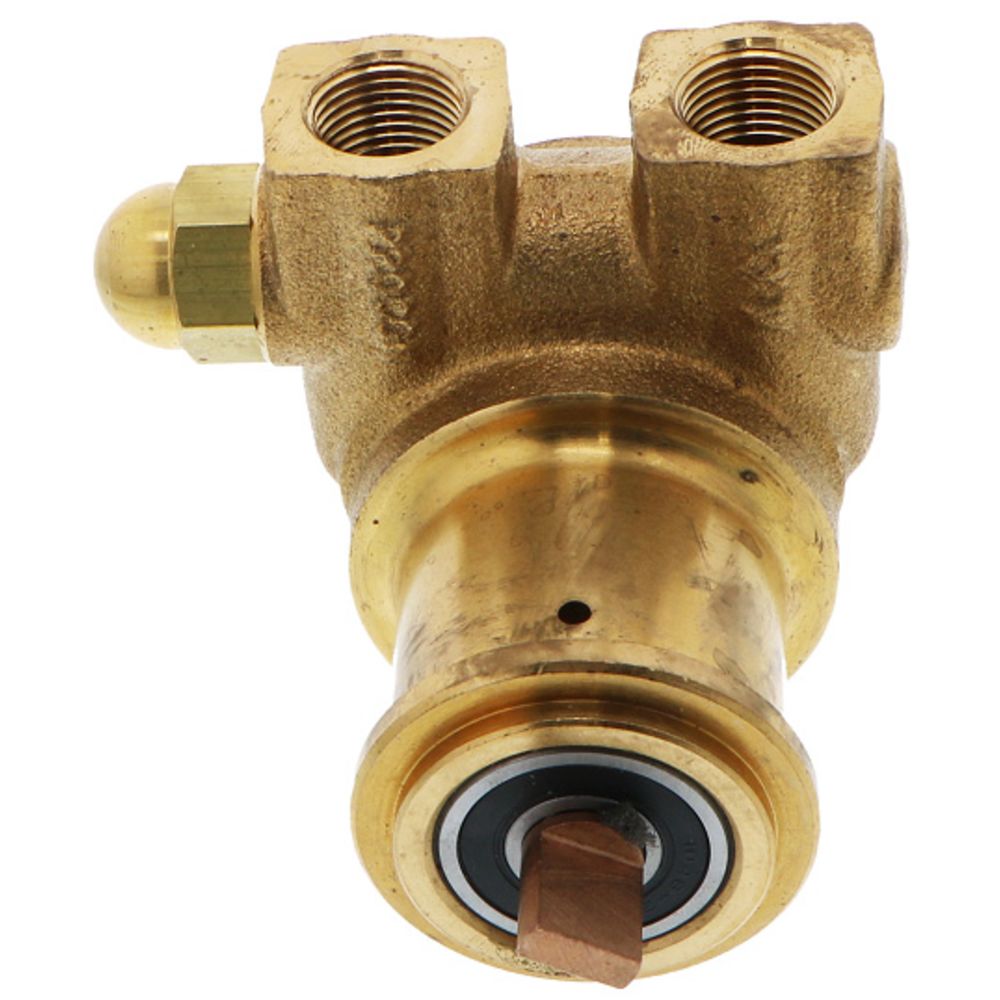

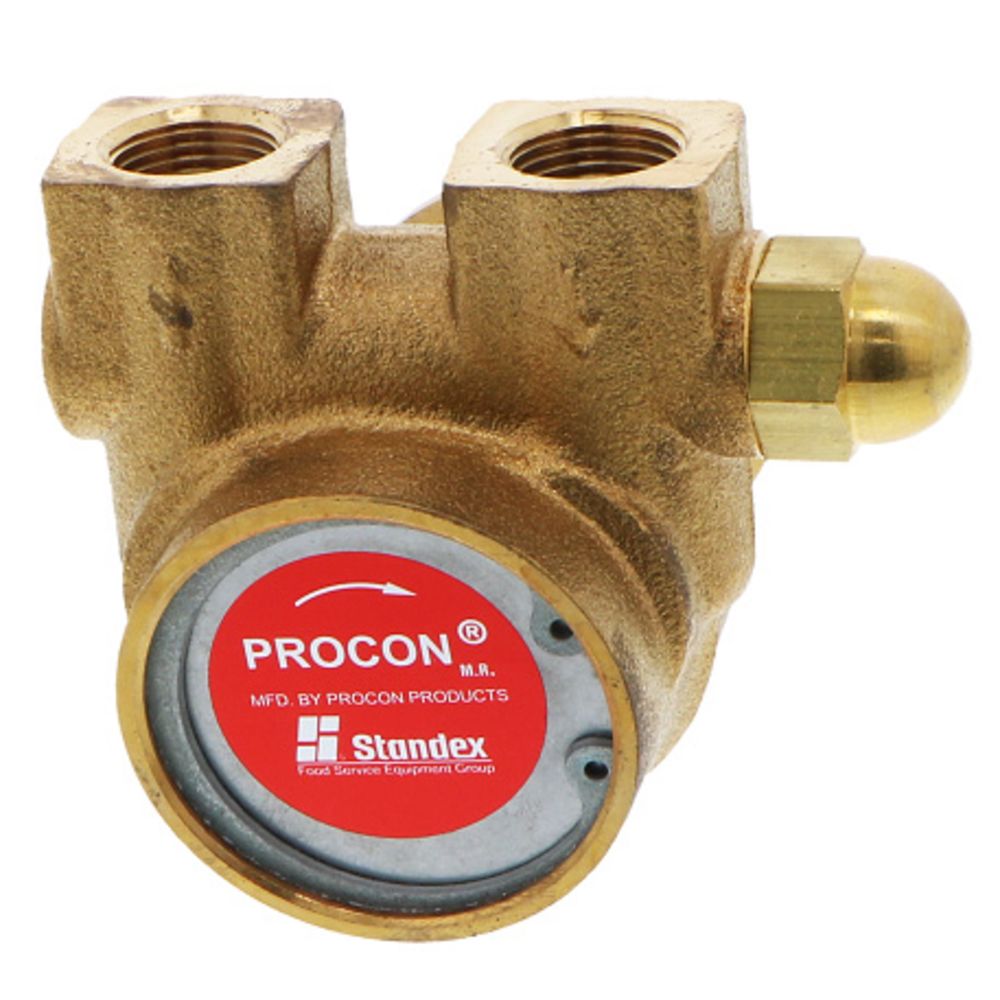

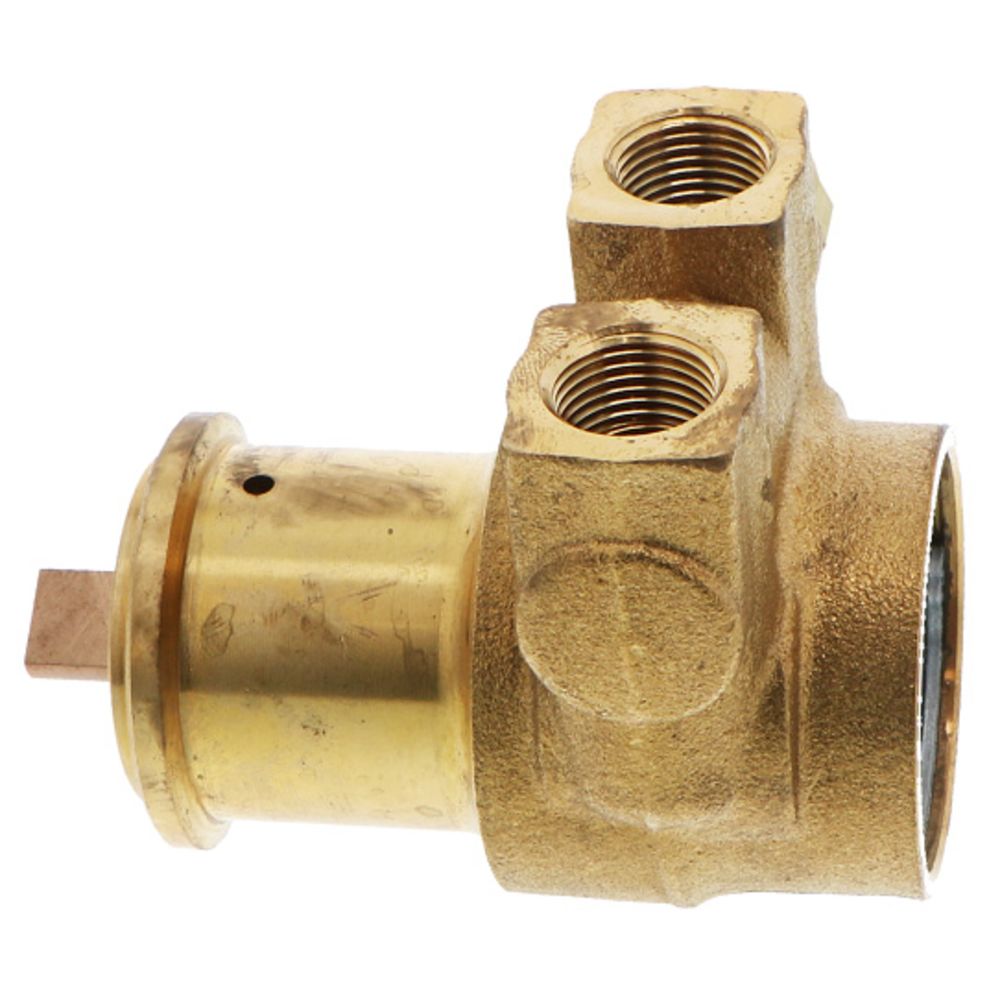

Procon Pump NSF Brass 125 GPH 3/8" NPT - 250 psi PRV w/ 1143 Bronze Coupling (Clamp-on)

Part Number: 112B125F11BA250

1 3

Procon

Procon Pump NSF Brass 125 GPH 3/8" NPT - 250 psi PRV w/ 1143 Bronze Coupling (Clamp-on)

Part Number: 112B125F11BA250

MSRP: $205.24

$93.99

Quantity

Unit Price

Price

Savings

$93.99

—

$89.29

$357.16

$84.59

$1,015.09

10%

Product variants

You May Also Need

Optional Accessory
Procon V-Band Clamp

Regular price From $2.05
Optional Accessory
Procon 3045 Coupler 7/16 x 5/8 Bolt-On 56C for Series 2, 3, 4 & 5

Regular price From $45.99
Optional Accessory
Procon mtg bracket for bolt-on 56C for Series 2, 3, 4 & 5

Regular price From $42.95
Optional Accessory
Procon 1143 Bronze Coupling Slotted Rotor C/O

Regular price From $12.65

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The Procon Pump NSF Brass 125 GPH 3/8" NPT - 250 psi PRV w/ 1143 Bronze Coupling (Clamp-on) rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a .188" double flat drive and 1143 bronze coupling. The inlet and outlet ports are 3/8" NPT, with integral strainer, and the pump has a flow-rate of 125 gallons per hour. The seal configuration for the 112B140F11BA250 uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The pressure relief valve on this pump is set to 250 PSI. The 112B140F11BA250 pump is designed to be directly connected to the motor with a stainless steel clamp.

Specifications:

Capacity: 125 GPH
Nominal Speed: 1725 RPM
Relief Valve: 250 PSI
Rotation: Clockwise
Weight: 2.5 lbs
Port Size: 3/8" NPT Inlet and Outlet with integral strainer

Specifications

Product Details
Body Material	Brass
Direction	Clockwise
Inlet Connection	3/8" MPT
Min Pressure (Psi)	151
Mounting Options	Clamp On
Outlet Connection	3/8" MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	125
Pump Max Pressure (Psi)	250
Seal / O-Ring Material	Buna-N (Nitrile)
Series	2
Size	3/8"
Surface Area	3.25 Square"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	4 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Height	2.75
Product Length	4
Product Width	2.75
Product Weight (lbs)	3

Product Details
Body Material	Brass
Direction	Clockwise
Inlet Connection	3/8" MPT
Min Pressure (Psi)	151
Mounting Options	Clamp On
Outlet Connection	3/8" MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	125
Pump Max Pressure (Psi)	250
Seal / O-Ring Material	Buna-N (Nitrile)
Series	2
Size	3/8"
Surface Area	3.25 Square"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Weight (lbs)	9.05

Product Details
Body Material	Brass
Direction	Clockwise
Inlet Connection	3/8" MPT
Min Pressure (Psi)	151
Mounting Options	Clamp On
Outlet Connection	3/8" MPT
Power	1 hp 2 hp
Pump Max Flow Rate (Gpm)	125
Pump Max Pressure (Psi)	250
Seal / O-Ring Material	Buna-N (Nitrile)
Series	2
Size	3/8"
Surface Area	3.25 Square"
Connection Type	Male (MPT)
Type	Rotary Vane Pumps
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	10 in.
Shipping Height	8 in.
Product Weight & Dimensions
Dimensions	Standard Clearance
Product Weight (lbs)	36
