Home / Pumps & Motors / Rotary Vane Pumps & Motors / Rotary Vane Pumps / Procon Pump NSF Brass 100 GPH 3/8" NPT - 250 psi PRV w/ 1143 Bronze Coupling
Procon

Procon Pump NSF Brass 100 GPH 3/8" NPT - 250 psi PRV w/ 1143 Bronze Coupling

Part Number: 102B100F11BA250
Alt. Part Number: 102B100F11XX

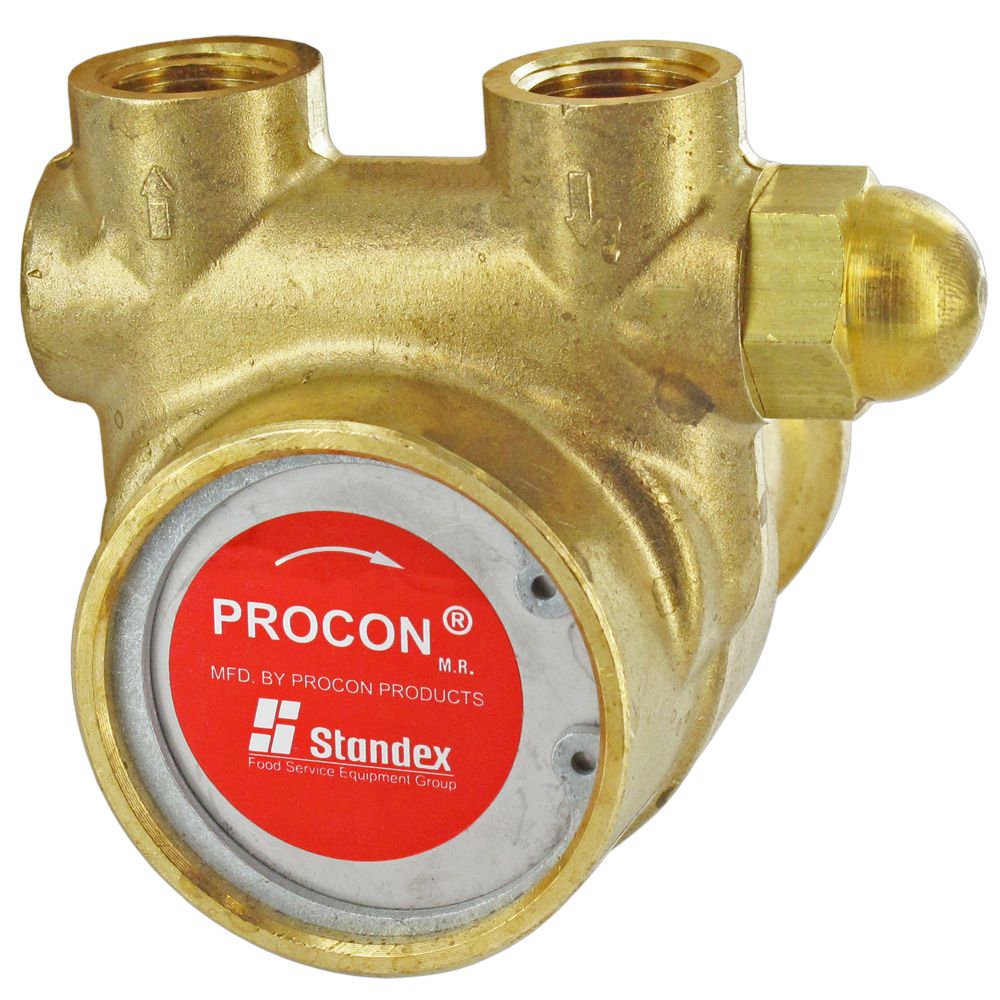

Main Product Image

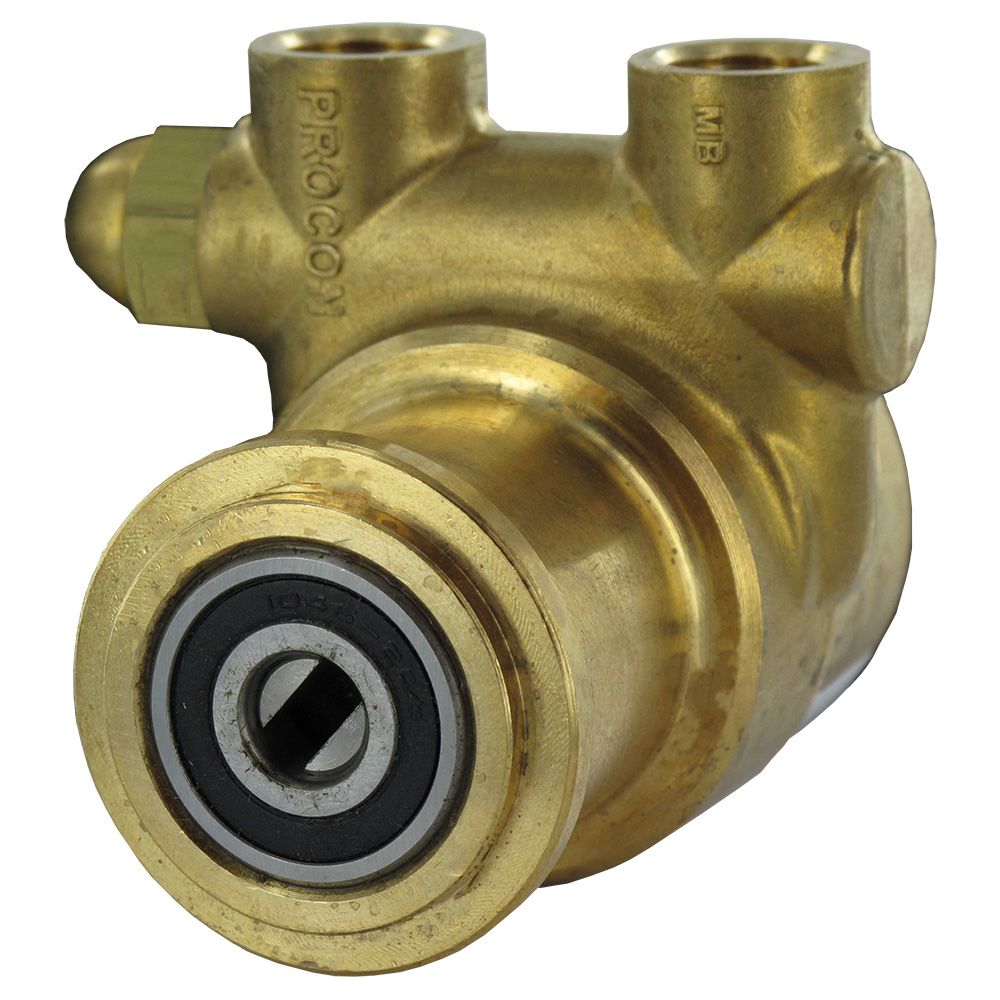

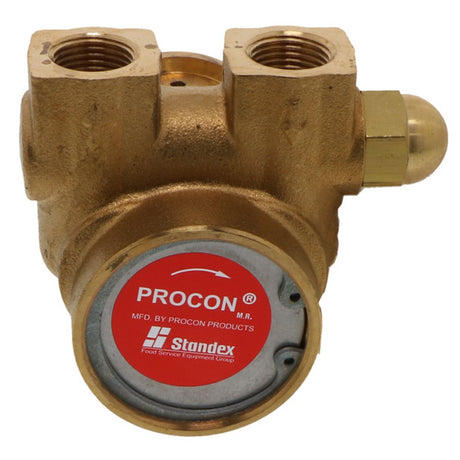

Product image 1 Product image 2
similar items
The Procon Pump NSF Brass 100 GPH 3/8" NPT - 250 psi PRV w/ 1143 Bronze Coupling rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a .188" double flat drive and 1143 bronze coupling. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 100 gallons per hour. The seal configuration for the 102B100F11BA250 uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The pressure relief valve for this pump is set for 250 PSI. The 102B100F11BA250 pump is designed to be directly connected to the motor with a stainless steel clamp.

Additonal Specifications:
  • 1143 Bronze Coupling
  • Capacity: 100 GPH
  • Nominal Speed: 1725 RPM
  • Relief Valve: 250 PSI
  • Rotation: Clockwise
  • Weight: 2.5 lbs
  • Port Size: 3/8" NPT Inlet and Outlet
  • Double Flat Drive: .188"
