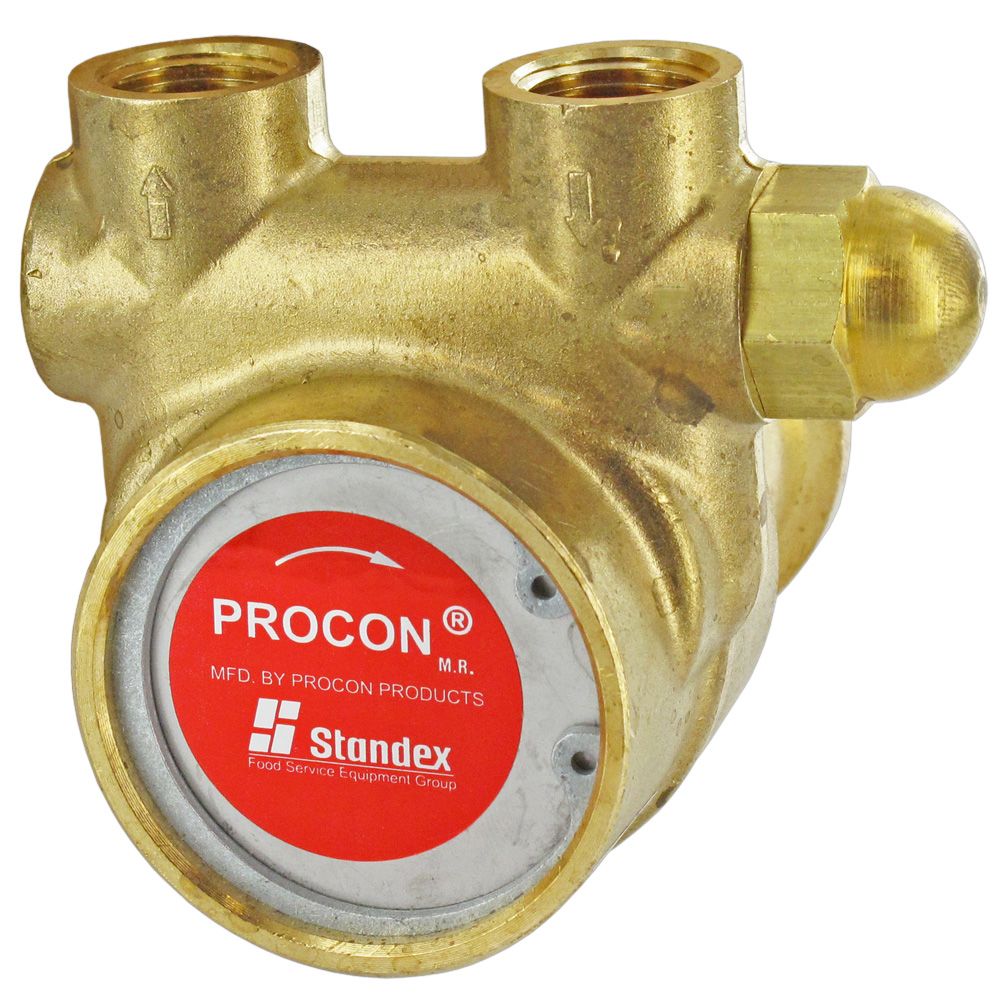

Procon 102E060F11AB rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a single flat drive. The inlet and outlet ports are 3/8" NPT with a flow-rate of 60 gallons per hour. The seal configuration for the 102E060F11AB uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The 102E060F11AB pump is designed to be directly bolt mounted to the motor.
Additional Specifications:
Additional Specifications:
- Flowrate: 60 GPH
- Nominal Speed: 1725 RPM
- Rotation: Clockwise
- Weight: 2.5 lbs
- Port Size: 3/8" NPT Inlet and Outlet
- Single Flat Drive
Weight & Dimensions
Weight (lbs) | 2.55 |
Details
Series | 2 |
Body Material | Brass |
Flow Rate | 60 GPH |
Mounting Options | Bolt-On |
Size | 3/8" |
Direction | Clockwise |
Max Outlet Pressure | 250 PSI |
Nominal Speed - Rpm | 1725 |
Rotation / Slinger / Passivation / Strainer | Clockwise |
Self-Priming (Water) | 6ft. Maximum Lift |
Inlet/Outlet Connection | 3/8" MPT |
Procon 102E060F11AB rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a single flat drive. The inlet and outlet ports are 3/8" NPT with a flow-rate of 60 gallons per hour. The seal configuration for the 102E060F11AB uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The 102E060F11AB pump is designed to be directly bolt mounted to the motor.
Additional Specifications:
- Flowrate: 60 GPH
- Nominal Speed: 1725 RPM
- Rotation: Clockwise
- Weight: 2.5 lbs
- Port Size: 3/8" NPT Inlet and Outlet
- Single Flat Drive
Weight & Dimensions
Weight (lbs) | 2.55 |
Details
Series | 2 |
Body Material | Brass |
Flow Rate | 60 GPH |
Mounting Options | Bolt-On |
Size | 3/8" |
Direction | Clockwise |
Max Outlet Pressure | 250 PSI |
Nominal Speed - Rpm | 1725 |
Rotation / Slinger / Passivation / Strainer | Clockwise |
Self-Priming (Water) | 6ft. Maximum Lift |
Inlet/Outlet Connection | 3/8" MPT |
